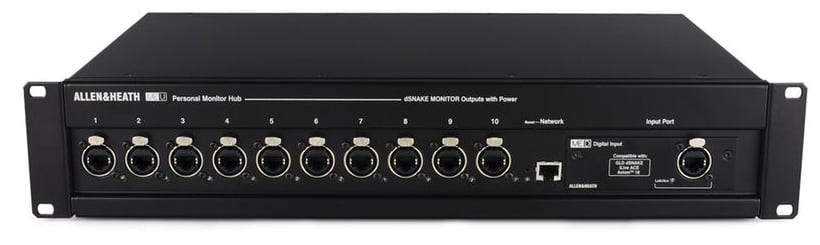

Allen&Heath ME-U

Allen&Heath ME-U - monitor hub with 10 ports for ME-1. Provides power and audio signal to multiple ME-1 personal mixers. Offers 10 ports with locking EtherCon connectors, allowing daisy chain connectivity for interconnecting multiple units to increase the number of ports. Features a standard interface input card with dSNAKE (GLD and Qu mixers), iLive ACE or Aviom A-Net, which can be replaced with an optional MADI, Dante or EtherSound card. Has a format that occupies two units (2U) in a 19" rack.

Technical specifications:

• Input:
  • Card slot, 40 channels
  • 48 kHz digital audio
  • ME-D (dSNAKE, ACE, Aviom) card included
  • Compatible with Aviom A-Net16, 16 channels
  • Optional M-Dante network card available
  • Optional M-MADI card available
  • Optional M-ES EtherSound card available

• Output:
  • 10 ports
  • Compatible with ME mixers
  • Locking EtherCon connectors
  • PoE available on all output ports

• Network port: Ethernet TCP/IP
• Setup: Use PC or Mac web browser
• IP address:
  • Default: 192.168.1.40
  • Subnet Mask: 255.255.255.0
  • Default Gateway: 192.168.1.254
• Power: 100-240 V AC, 47-63 Hz, 250 W
• PoE capable ports: 15 W at each ME-U output
• Dimensions: 483 x 253 x 92 mm
• Weight: 4.6 kg
