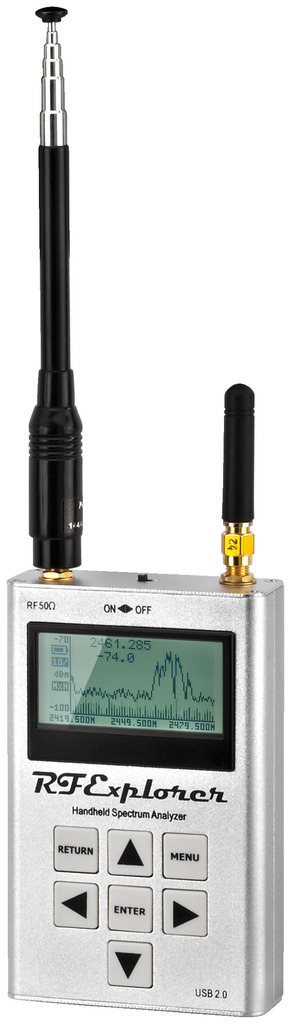

Monacor RF-EXPLORER/3 - RF spectrum analyser, 15-2,700 MHz, in a compact aluminium case with two antennas (SMA connection) for different frequency ranges. Also designed to be used for preventing frequency collisions when setting up radio links within the specified frequency range.
Real-time monitoring of the used frequency with frequency and level indication (dBm and dBµV)
High-contrast backlit graphic display (128 x 64 pixels)
Auto marker function and manual positioning of the marker for setting an individual carrier frequency
Special Wi-Fi analyser displaying 13 WLAN channels
Maximum hold function for reliable detection of ultra-short RF carrier frequencies (additional modes: normal, maximum, average, overwrite)
Mini USB 2.0 interface for connecting to a PC or laptop, as well as for charging the built-in rechargeable lithium-polymer battery (1,000 mAh)
Transport case and USB cable included
Client software with real-time analysis for Windows * XP / Vista / Win7 / Win8.x / Win10 / Windows Server (32 or 64 bit version) can be downloaded from www.monacor.com
