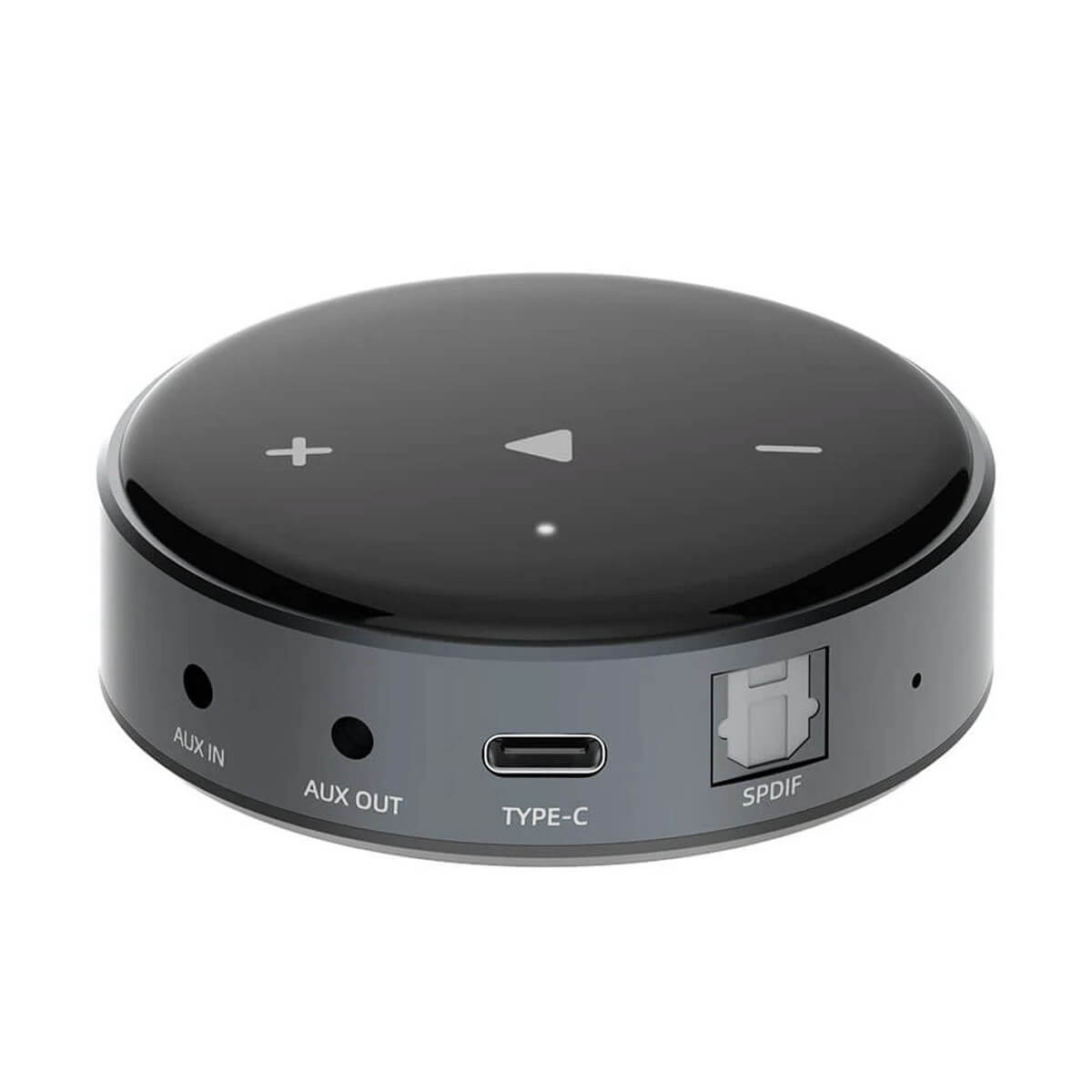

WiiM Mini

WiiM Mini – compact Hi-Resolution audio streamer (Wi-Fi & Bluetooth), designed to add modern streaming features to existing audio systems. It offers Hi-Res playback up to 192 kHz / 24-bit and supports control via app or voice.

It easily integrates into multiroom systems and allows music playback from popular services or local sources, via Wi-Fi or Bluetooth.

Audio:

• Audio resolution: up to 192 kHz / 24-bit
• Internal DAC: TI PCM5121
• SNR: 102 dB
• THD+N: 0.009%
• Gapless playback

Connectivity and streaming:

• Wi-Fi: dual-band 2.4 GHz / 5 GHz
• Bluetooth: 5.2
• Protocols: AirPlay 2, Spotify Connect, TIDAL Connect, DLNA
• Services: Spotify, TIDAL, Qobuz, Deezer, Amazon Music, TuneIn

Connectors:

• Digital output: Optical SPDIF (Toslink)
• Analog output: 3.5 mm Jack
• Analog input: 3.5 mm Jack

Functions and control:

• App: WiiM Home
• Multiroom audio
• Voice control: Alexa, Siri
• EQ: presets, bass/treble, graphic EQ
• Automations and alarms

Power and dimensions:

• Power supply: USB-C, 5V / 1A
• Dimensions: 69 × 69 × 24 mm
• Weight: 40 g

Package contents:

• WiiM Mini streamer
• USB-C cable
• Toslink optical cable
• 3.5 mm Jack – RCA cable
• 3.5 mm Jack – 3.5 mm Jack cable
