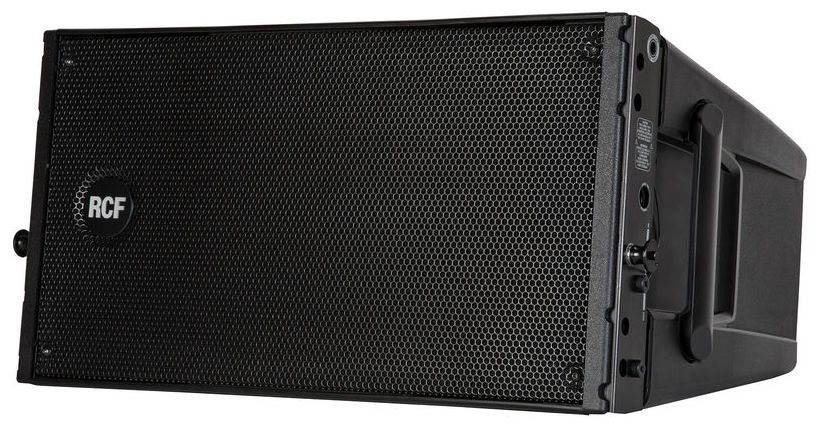

RCF HDL 10-A

RCF HDL 10-A, active line-array satellite with powerful DSP, 2 x 8" speakers and 2" high-frequency driver. Due to its compact dimensions, quality speakers, and composite material cabinet, the HDL-10A is ideal for both live applications and installations. Larger systems can be composed, either hung or mobile stacked on subwoofers.

• frequency range: 65 Hz - 20 kHz
• max SPL 133 dB
• dispersion 100° x 15°
• speakers:
  • 2 x 8'' woofers with 2.0'' voice coil
  • 1 x 2'' compression driver with 2.5'' voice coil
• I/O:
  • 1 x balanced/unbalanced XLR input
  • 1 x XLR output
  • input sensitivity: -2 dBu/+4 dBu
• processing:
  • crossover frequency: 800 Hz
  • protections: thermal, RMS
  • soft limiter
  • controls: Cluster, HF, High curving, Indoor
• amplification: 700 W RMS / 1400W peak
  • high-frequency amplification: 200W RMS / 400W peak
  • low-frequency amplification: 500W RMS / 1000W peak
• power supply: PowerCon In/Out
• convection cooling
• curvature 0°-15° in 2° steps
• PP composite material cabinet
• included line-array mounting hardware
• dimensions 294 x 569 x 434 mm
• weight 20.4 kg net / 23 kg packaged
