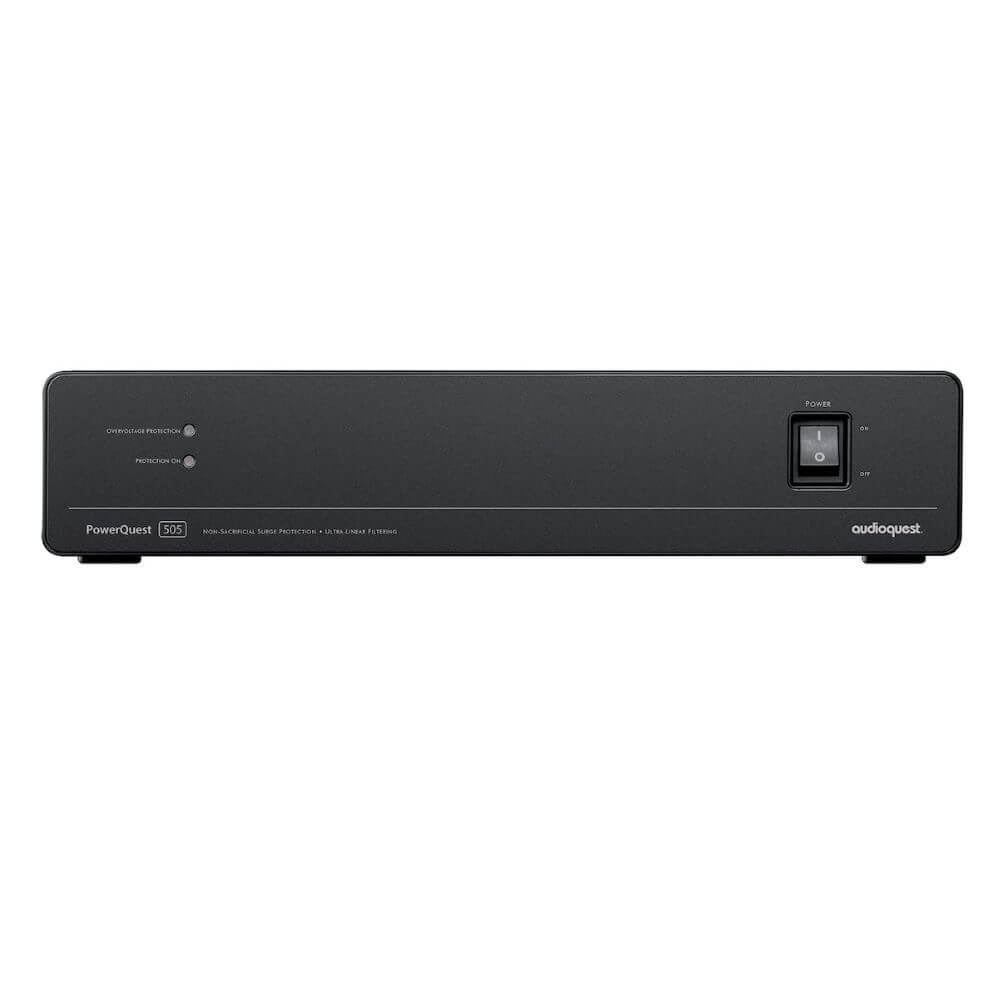

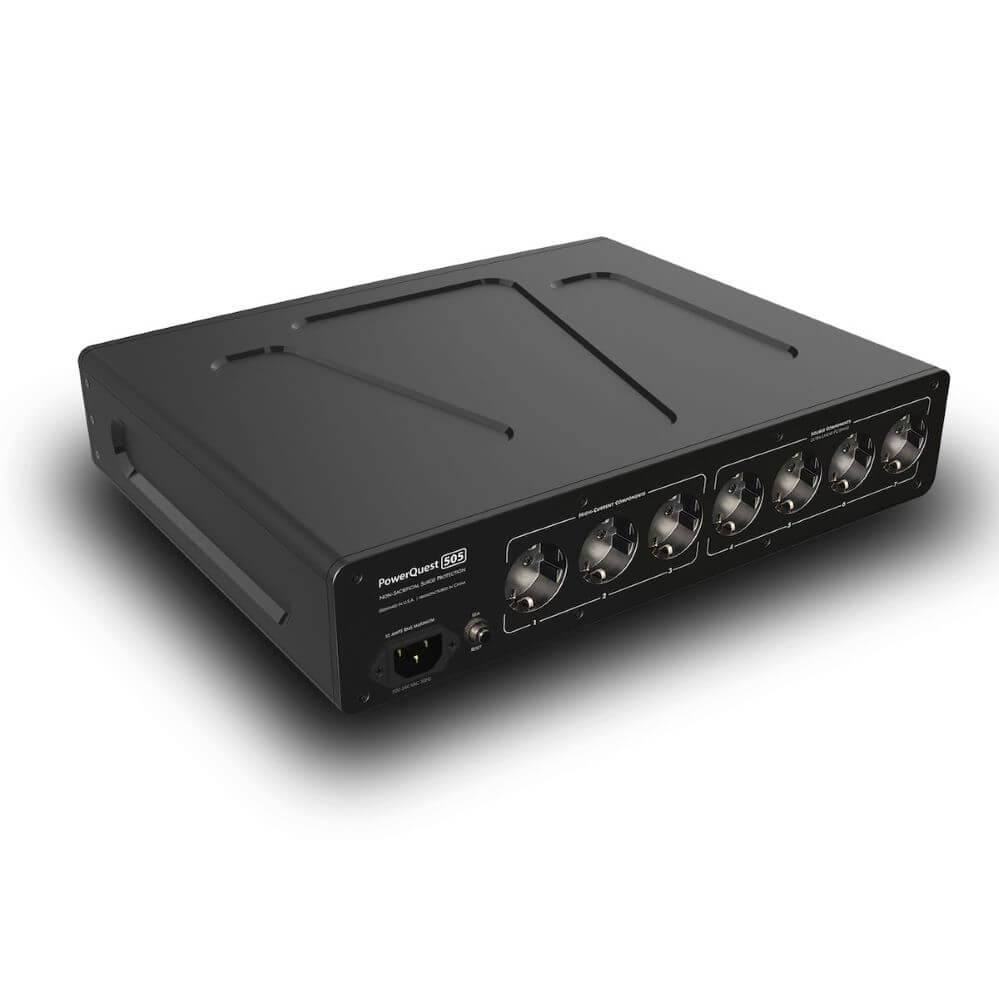

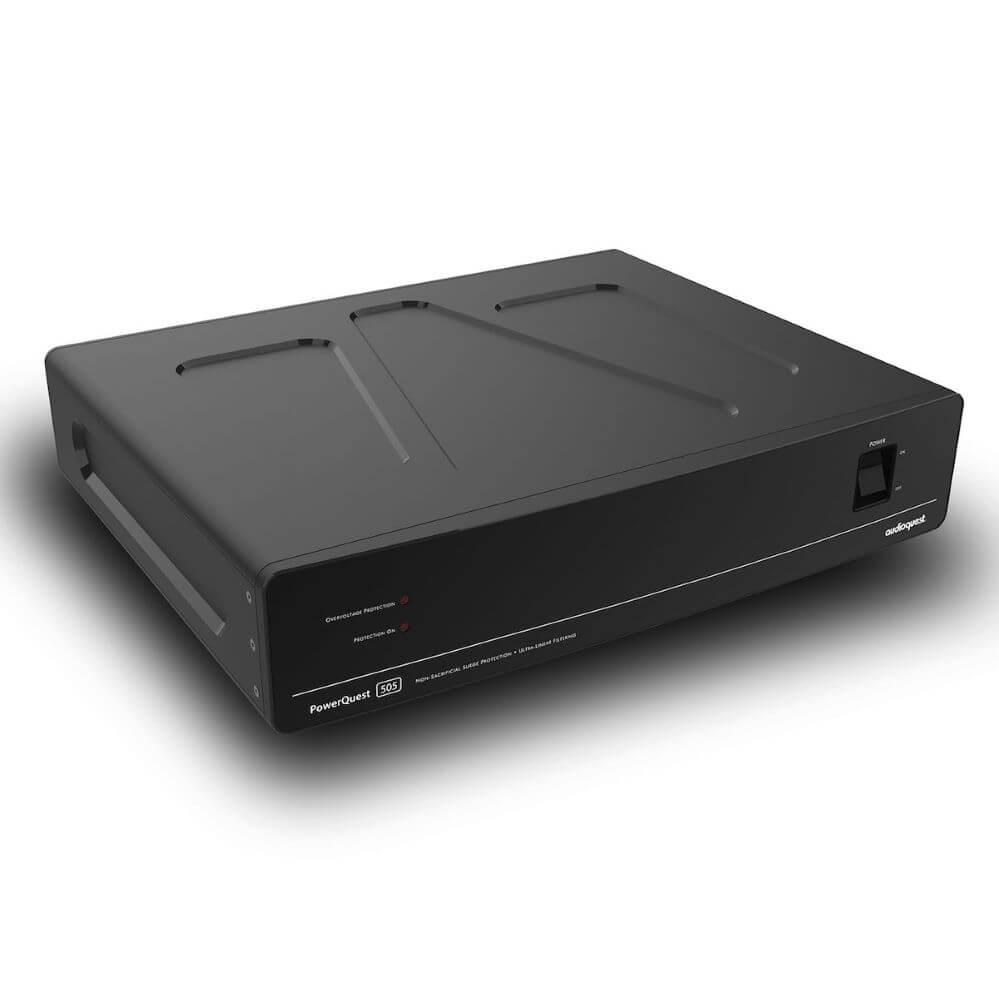

The PowerQuest 303, 505, and 707 devices provide surge protection and power conditioning for audio and home theatre systems.
All models reduce wideband noise and offer surge protection with automatic shutdown at 140 VAC.
Each model has 12 outlets: 4 for high current and 8 with linear filtering.
The PQ 707 includes transient power correction, providing a current reservoir of up to 45 amps.
All models come with 2RU rack ears and a detachable power cable of 2 m.
PQ-715 FLAT PLUG POWER CABLE FOR WALL
Cable with long-grain copper conductors and technology for RF noise dissipation (2 m; 15 amps at 120 V)
ULTRA-LINEAR NOISE DISSIPATION
Differential mode: 30kHz-1GHz (PQ-505); 8kHz-1GHz (PQ-707); Common mode: 30kHz-100MHz (both models)
PROTECTION WITHOUT UNDER-VOLTAGE SACRIFICE
Tested at surge voltages of 6000 V/3000 A.
EXTREME VOLTAGE SHUTDOWN
140VAC: activates the main circuit relay in less than 0.25 seconds; resets automatically.
Transient power correction of 45 amps with current reservoir
Provides a current reservoir for any power amplifier (45 amps peak; up to 25 mS)

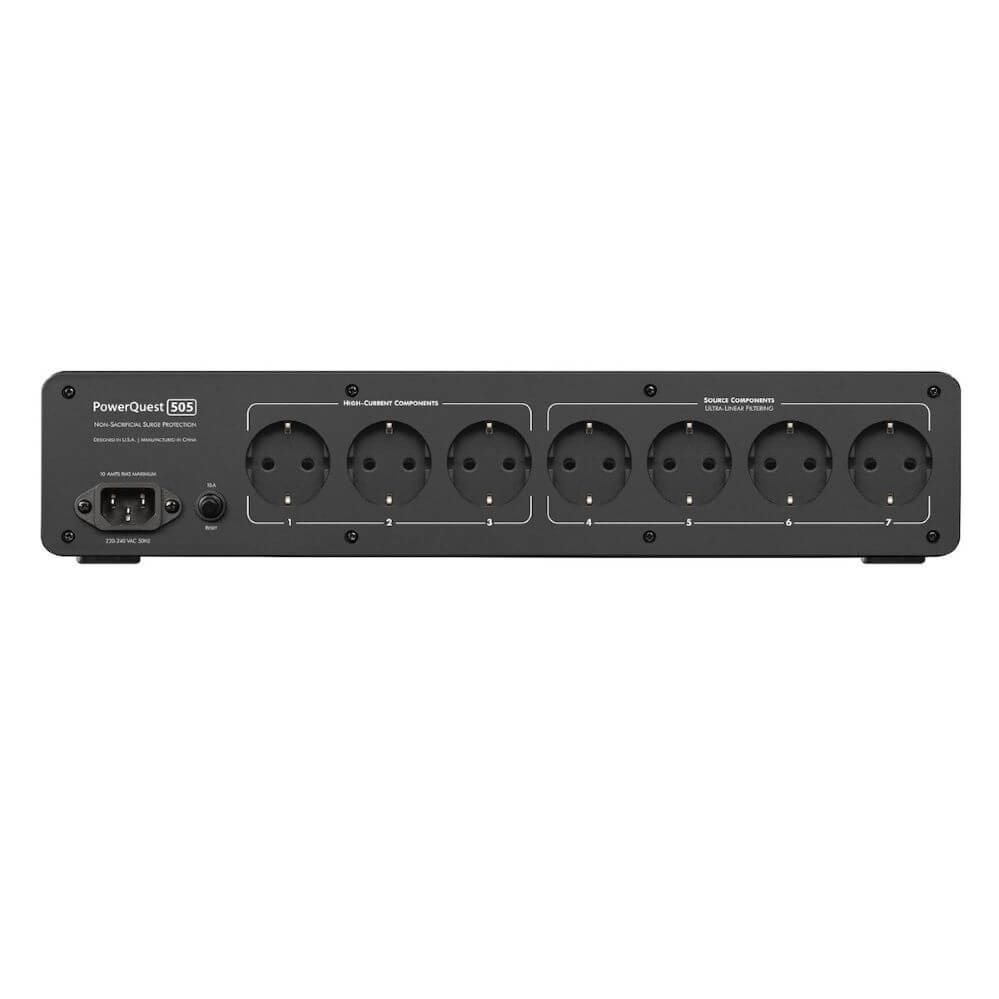

OPTIMISED OUTLETS
8x Linear-Filtered for source components / constant current; 4x High-Current for variable current components
RACK MOUNTED
2RU rack ears included DIMENSIONS
Width: 17 inch(es) / 431.8 mm
Depth: 14.9 inch(es) / 378.46 mm
Height: 3.7 inch(es) / 93.98 mm
Weight: 16.7 lb(s) / 4.9 kg
