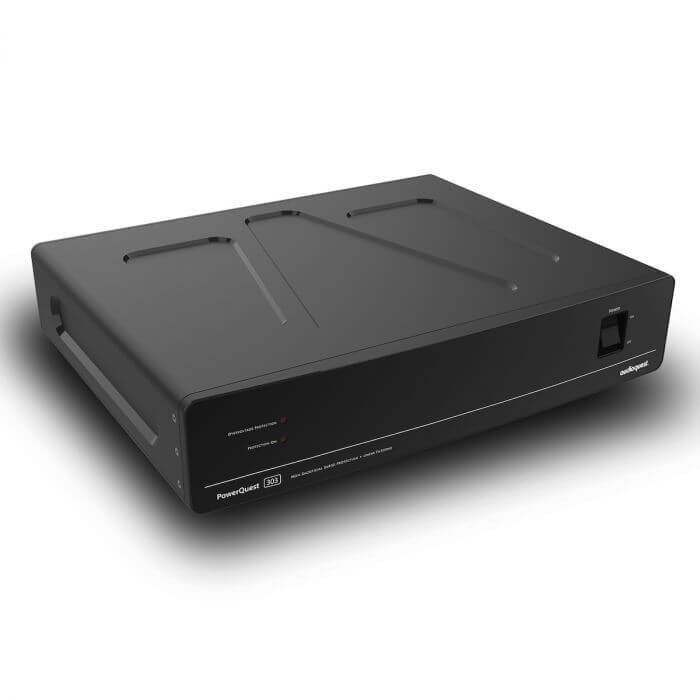

The PowerQuest 303, 505, and 707 devices provide surge protection and power conditioning for audio and home theatre systems.
All models reduce broadband noise and offer surge protection with automatic shutdown at 140 VAC.

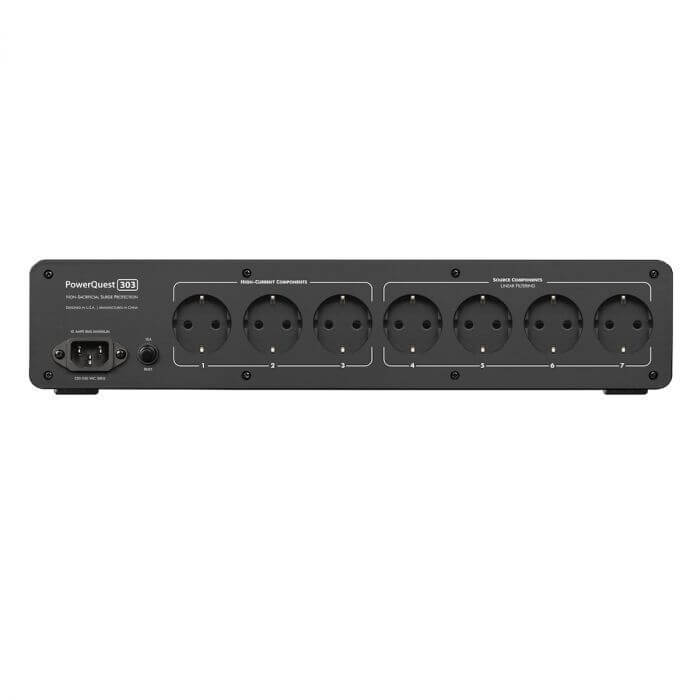

Each model has 12 outlets: 4 for high current and 8 with linear filtering.
The PQ 707 includes transient power correction, providing a current reservoir of up to 45 amps.
All models come with 2RU rack ears and a detachable 2 m power cable.
PQ-715 FLAT PLUG POWER CABLE FOR WALL
RF noise dissipation cable with semi-solid concentric copper conductors (LGC), ZERO-Tech for uncompressed current transients and RF/ND-Tech for unprecedented noise dissipation (2 m; 15 amps at 120 V)
ULTRA-LINEAR NOISE DISSIPATION (MORE THAN -22DB)
Differential mode: 30kHz-1GHz (PQ-505); 8kHz-1GHz (PQ-707); Common mode: 30kHz-100MHz (both models)
PROTECTION WITHOUT UNDER-VOLTAGE SACRIFICE
Nothing to damage with repeated input surge tests of 6000 V/3000 A, which is the maximum that can survive the AC power panel of a building.
SHUTDOWN AT EXTREME VOLTAGE
140VAC: will activate the main power circuit relay to open in less than 0.25 seconds; automatically resets once the input power is within a safe range.
Transient power correction of 45 amps with current reservoir
Provides a current reservoir for any power amplifier (45 amps peak; up to 25 mS)
OPTIMIZED OUTLETS
8x Linear-Filtered for source components / constant current (TVs, media streaming devices, etc.); 4x High-Current for variable current components (amplifiers, powered speakers, and subwoofers)
RACK MOUNTED
2RU rack ears included DIMENSIONS
Width: 17 inch(es) / 431.8 mm
Depth: 14.9 inch(es) / 378.46 mm
Height: 3.7 inch(es) / 93.98 mm
Weight: 16.7 lb(s) / 4.65 kg
