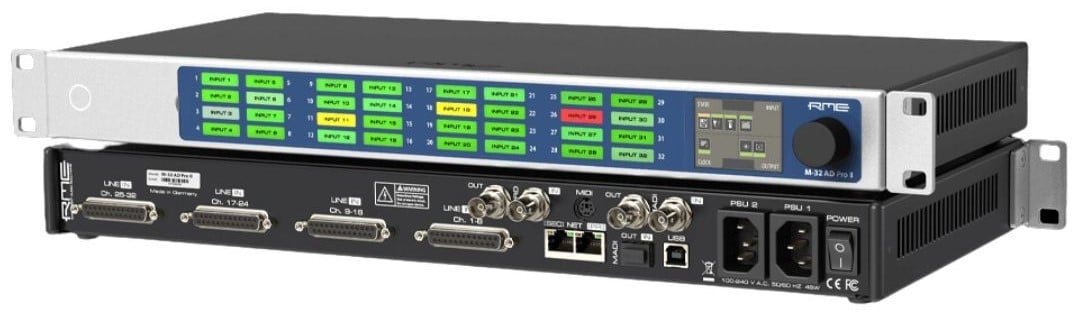

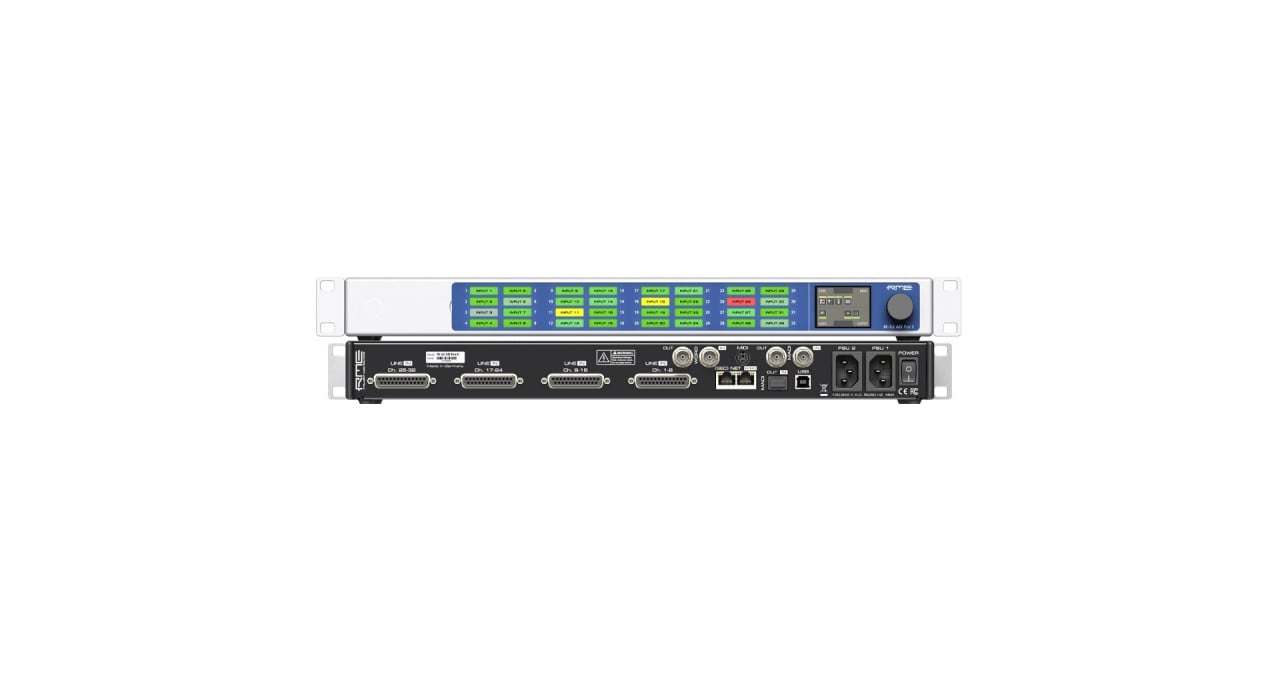

RME M-32 AD Pro II

M-32 AD Pro II is a 32-channel AD converter, 192 kHz, MADI (128 x 128) and AVB (128 x 128).

Technical specifications:

• 32 x Analog Input/Output (25-pin D-sub, up to +24 dBu)
• 2 x MADI I/O (via optional SFP optical and BNC coaxial, up to 128 channels)
• 2 x RJ45 1 GigE AVB, four streams with 4/8/12/16 channels each
• (optional) MIDI I/O for compatibility with older MIDI devices
• Word Clock Output/Input (BNC)
• USB 2.0 (for remote control)
• 2 x Internal power supplies
• 32-channel AD converter, 120 dBa
• Three-colour illuminated channel indicators, with Peak/RMS measurement
• Magnetic cover with customisable labels for channels
• SyncCheck® and ICC® - detects when a clock source is out of sync and automatically switches to other available signals
• MADI Auto-Input - No interruptions
• 2" display with button for full device control
• 15 storage presets
• Internal routing of up to 224x192 channels M-32 AD Pro / 192x224 channels M-32 DA Pro in blocks of 4 channels (32 x Analog, 64 x optical MADI, 64 x coaxial MADI and 64 x AVB)
• Remote control via HTTP, JSON, IEEE 1722.1 AVDECC and MIDI over MADI, with MIDI option.

M-32 Pro II AD Line In 1-32:

• Resolution: 24 bits
• Selectable input level switch per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
• AC coupled inputs, fully balanced signal path (servo-balanced)
• Signal-to-noise ratio (SNR) @ +24 dBu, 44.1 kHz: 117.0 dB RMS unweighted, 120.7 dBA
• Signal-to-noise ratio (SNR) @ +19 dBu: 116.3 dB RMS unweighted, 119.9 dBA
• Signal-to-noise ratio (SNR) @ +13 dBu: 114.7 dB RMS unweighted, 118.3 dBA
• Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz - 20.5 kHz
• THD @ -1 dBFS: < -111 dB, < 0.00029%
• THD+N @ -1 dBFS: < -108 dB, < 0.00039%
• Channel separation: > 110 dB
