LD Systems Stinger G3 Power Set Active - Excellent for live clubs and bands on tour, this set is a superb choice wherever the reinforcement of extremely dynamic music, with plenty of power, is of primary importance. We recommend this set for the following types of applications: bands, live clubs, events, AV presentations. STINGER G3 POWER SET A is suitable for an audience of up to 350* people.

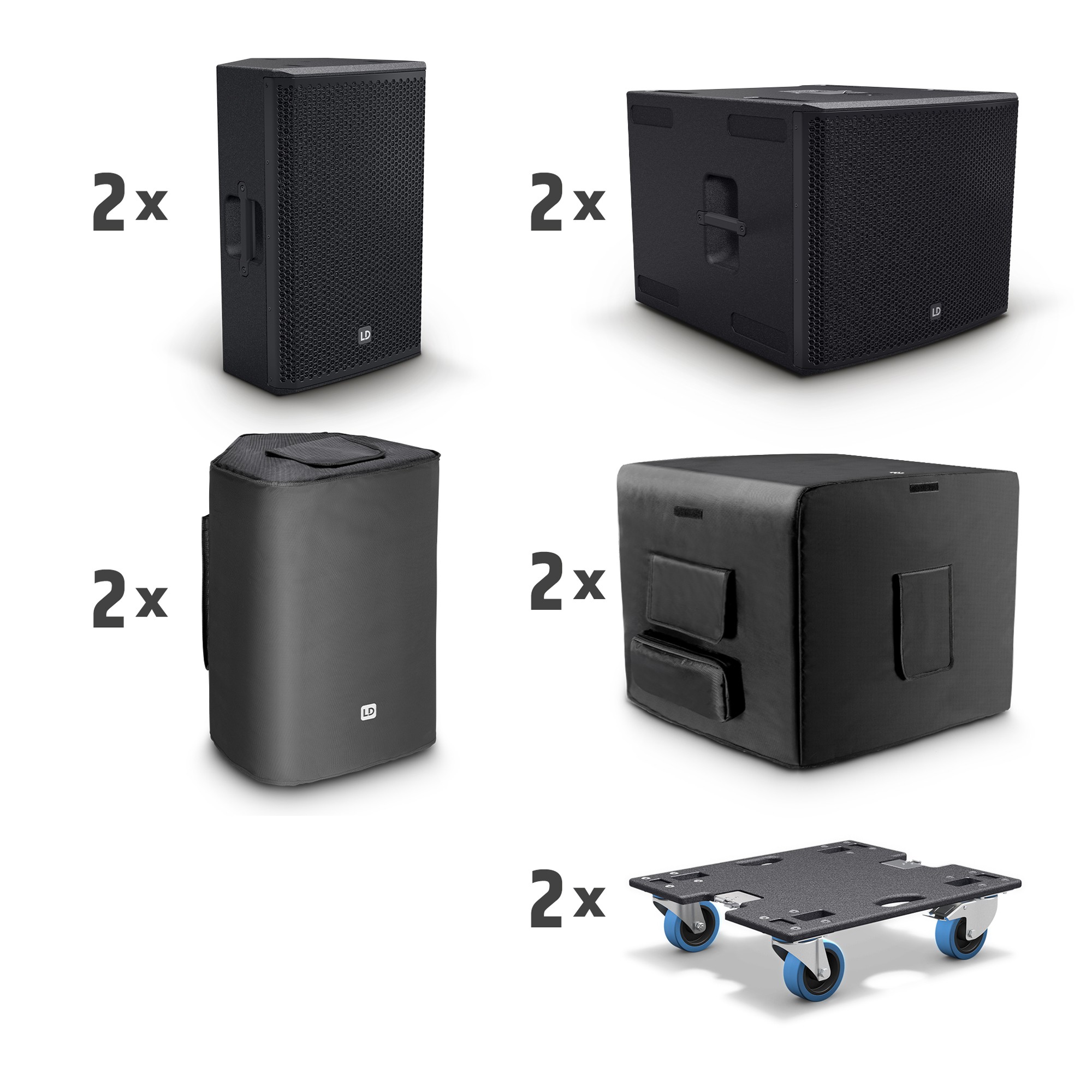

Set composed of:
2 x STINGER 12 A G3 – 12” powered speaker
2 x STINGER SUB 18 A G3 – 18” powered subwoofer
2 x STINGER 12 G3 PC – Padded protective cover for speaker
2 x STINGER SUB 18 G3 PC – Padded protective cover for subwoofer
2 x STINGER SUB 18 G3 CB – Wheel plate for subwoofer
*NOTE: specifications regarding audience size are approximate only. Actual figures may vary depending on the acoustics of the venue and the environment.
Technical Specifications:
General:
System power (RMS): 2,600 W
Frequency response: 35 - 20,000 Hz
Dispersion (H x V): 90 x 50°
Weight: 143.74 kg
Wheel plate:
Material: Birch multiplex
Material thickness: 15 mm
Width: 540 mm
Length: 650 mm
Surface finish: Polyurethane
Colour: Black
Number of wheels: 4
Number of traction wheels: 2
Wheel diameter: 100 mm
Wheel manufacturer: Adam Hall
Weight: 7 kg
12” active PA speaker:
Low/mid driver size: 12”
Width: 390 mm
Height: 627 mm
Depth: 377 mm
Woofer magnet: Ferrite
Woofer coil: 2.5”
Weight: 20.1 kg
Amplifier: Class D
Optimized CD horn BEM
Driver size: HF 1”
System power (RMS): 500 W
Peak power: 1000 W
Driver magnet: HF Ferrite
Frequency response: 58 - 20,000 Hz
Driver: HF brand BMS
Max. SPL (peak): 131 dB
Thermal overload protection circuits
Dispersion (H x V): 90 x 50 °
Control module
Signal indicators
Line inputs: 2
Line outputs: 1
Line output connectors: XLR
Operating voltage: 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (auto-switching)
Operating temperature: 0 - 40 °C
Relative humidity: < 80% (without condensation)
Material: 15 mm Plywood
Input sensitivity: -5 dBu
Cabinet surface: Polyurethane
Cabinet construction: Bass Reflex
Line input connectors: XLR
Monitor angle: 54 °
Protective cover for Stinger® G3 PA 12” speaker:
Colour: Black
Material: Nylon 1680D
Padded thickness: 8 mm
Height: 600 mm
Width: 420 mm
Depth: 400 mm
Weight: 0.67 kg
18” active bass-reflex PA subwoofer:
Low driver size: 18”
Width: 677 mm
Height: 547 mm
Woofer magnet: Ferrite
Depth: 740 mm
Woofer coil: 4”
Weight: 42.6 kg
Amplifier: Class D
System power (RMS): 800 W
Peak power: 1600 W
Frequency response: 35 - Low-pass Hz
Max. SPL (peak): 135 dB
Short circuit: protection circuits
Input impedance: 30,000 Ohms
Input sensitivity: 0.3 V
Control module
Signal indicators
Line inputs: 2
Line input connectors: XLR
Line outputs: 2
Line output connectors: XLR
Operating voltage: SMPS
Power consumption (max.): 600 W
Operating temperature: 0 - 40 °C
Relative humidity: < 80% (without condensation)
Material: 18 mm Plywood
Cabinet surface: Polyurethane
Cabinet construction: Bass Reflex
Padded protective cover for Stinger® G3 18 inch subwoofer:
