This set is the perfect all-round package for small to medium-sized gigs and functions providing a tight and punchy low end from the two subwoofers. We recommend this set for the following type of application: DJ, small bands and more. The STINGER G3 EVENT SET is suitable for audiences of up to 300* pax.

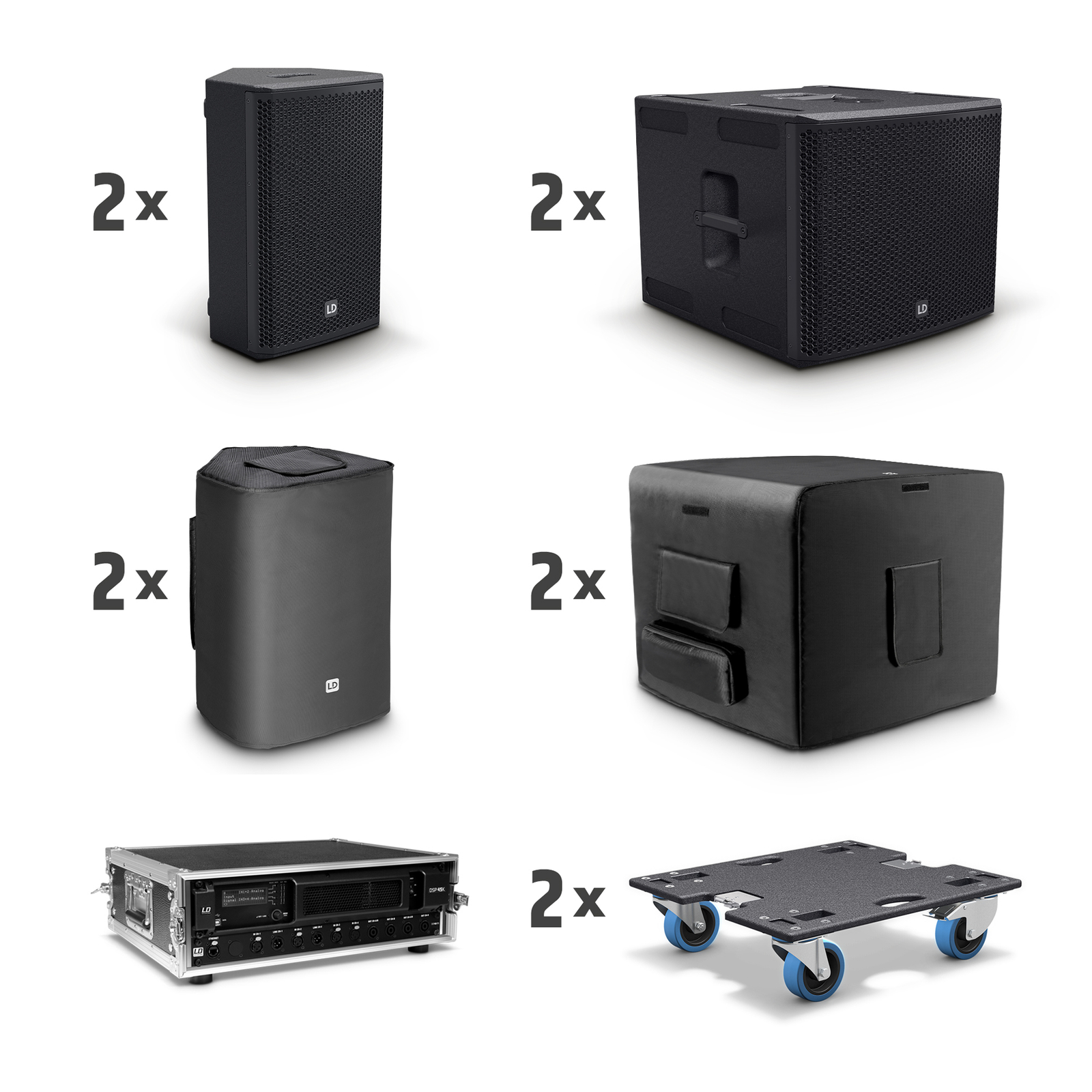

2 x STINGER 10 G3 – 10” Passive loudspeaker
2 x STINGER SUB 15 G3 – 15” Passive subwoofer
1 x DSP 45K RACK – Power amplifier with DSP
2 x STINGER 10 G3 PC – Padded protective cover for loudspeaker
2 x STINGER SUB 15 G3 PC – Padded protective cover for subwoofer
2 x STINGER SUB 15 G3 CB – Castor board for subwoofer
*NOTE: Audience size specifications are approximate only. The actual numbers may vary depending on room acoustics and environment.
Specifications:
Scope of delivery: 2 x STINGER 10 G3, 2 x STINGER SUB 15 G3, 1 x DSP 45K RACK, 2 x STINGER 10 G3 PC, 2 x STINGER SUB 15 G3 PC, 2 x STINGER SUB 15 G3 CB
RMS output power: 1,800 W
Frequency response (-6 dB, rel. Avg): 40 - 20,000 Hz
Beam angle: 90° (hor.) / 50° (vert.)
Colour: Black
Weight: 29.7 kg
Product type: PA Loudspeakers Accessories
Type: Covers
Material: Nylon 1680D
Coating: Polyurea
Roller type: Heavy-duty roller
Quantity: 4
Braked rollers: 2
Diameter: 100 mm
With brake: Yes
Width: 567 mm
Depth: 624 mm
Material thickness: 18 mm
Peak load capacity: 1,200 W
RMS load capacity: 600 W
SPL (1 W/1 m): 99 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %): 121 dB
Frequency response: 65 - 20,000 Hz
Impedance: 8 Ω
Speaker system: 2-way system
Number of inputs: 1
Input connector types: Standard speaker connector 4-pole male & speakON®
Number of outputs: 1
Output connector types: Standard speaker connector 4-pole male & speakON®
Size: 15 "
Magnet: Ferrite
Voice coil: 3 "
Driver size: 1 "
Design: Bass reflex
Number of handles: 4
Mounting type: M10 for SuperClamp
Flange: M20
Cabinet material: Birch plywood
Front grille material: Aluminium
Height: 477 mm
Included accessories: Mains cable
Suitable for: PA subwoofer
Padding thickness: 8 mm
Color: Black
Thickness of the padding: 8 mm
Max. SPL peak (sine burst, halfspace/1 m, THD≤10 %): 127 dB
