LD Systems Dave 8 XS


Compact 2.1 PA/Media System

  • active 2.1 PA/Media system with an 8" subwoofer and two satellite speakers.
  • delivers clear sound, ideal for multimedia applications, DJ monitoring, and small venues.
  • built-in A/B amplifier with a total output power of 350W RMS and 1400W peak.
  • includes XLR and RCA inputs, with standard protection features and a built-in limiter.
  • compact design with stand mounting options for easy setup.
LD Systems
42672
Currently unavailable. Request details
Central warehouse: 0
Add to cart
2210 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

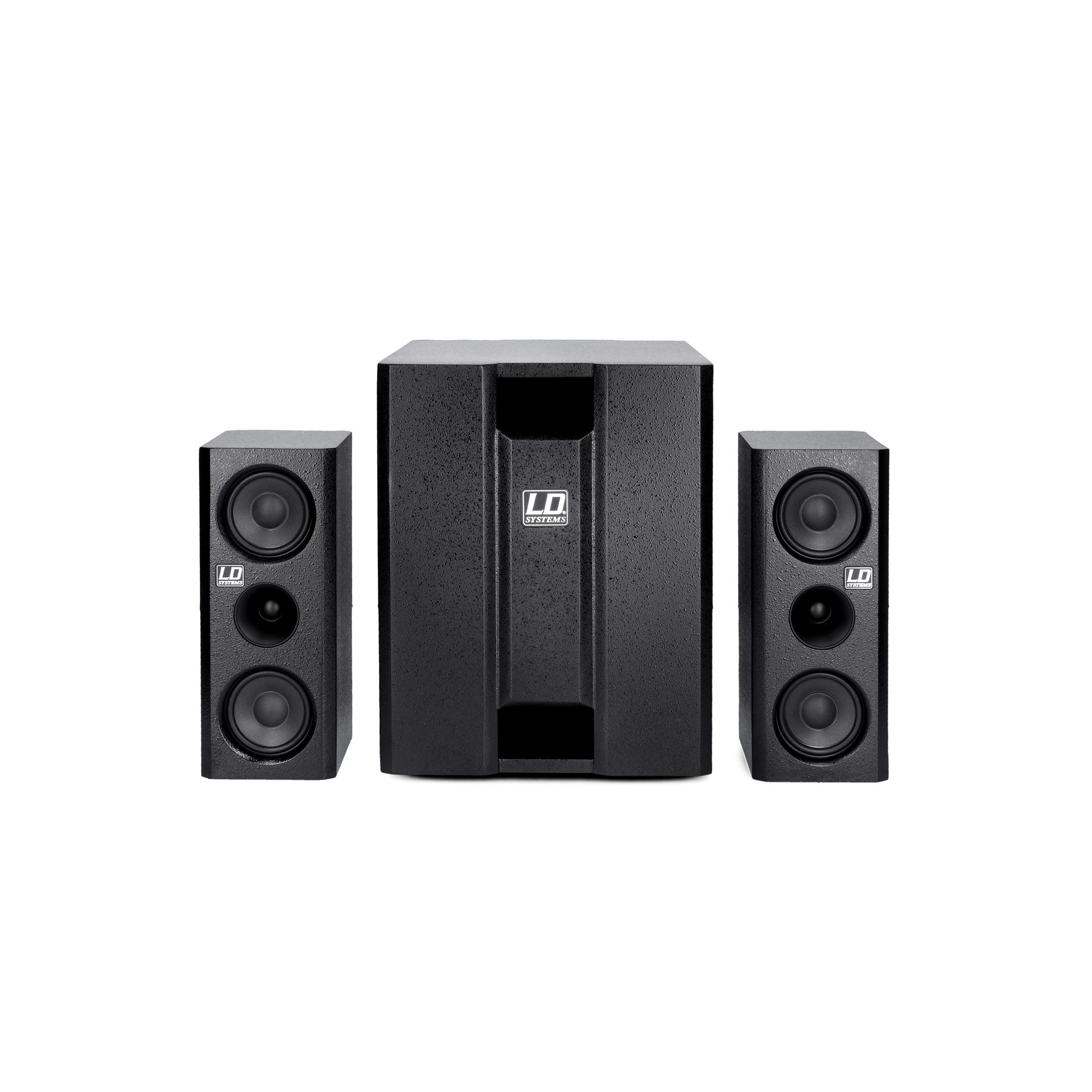

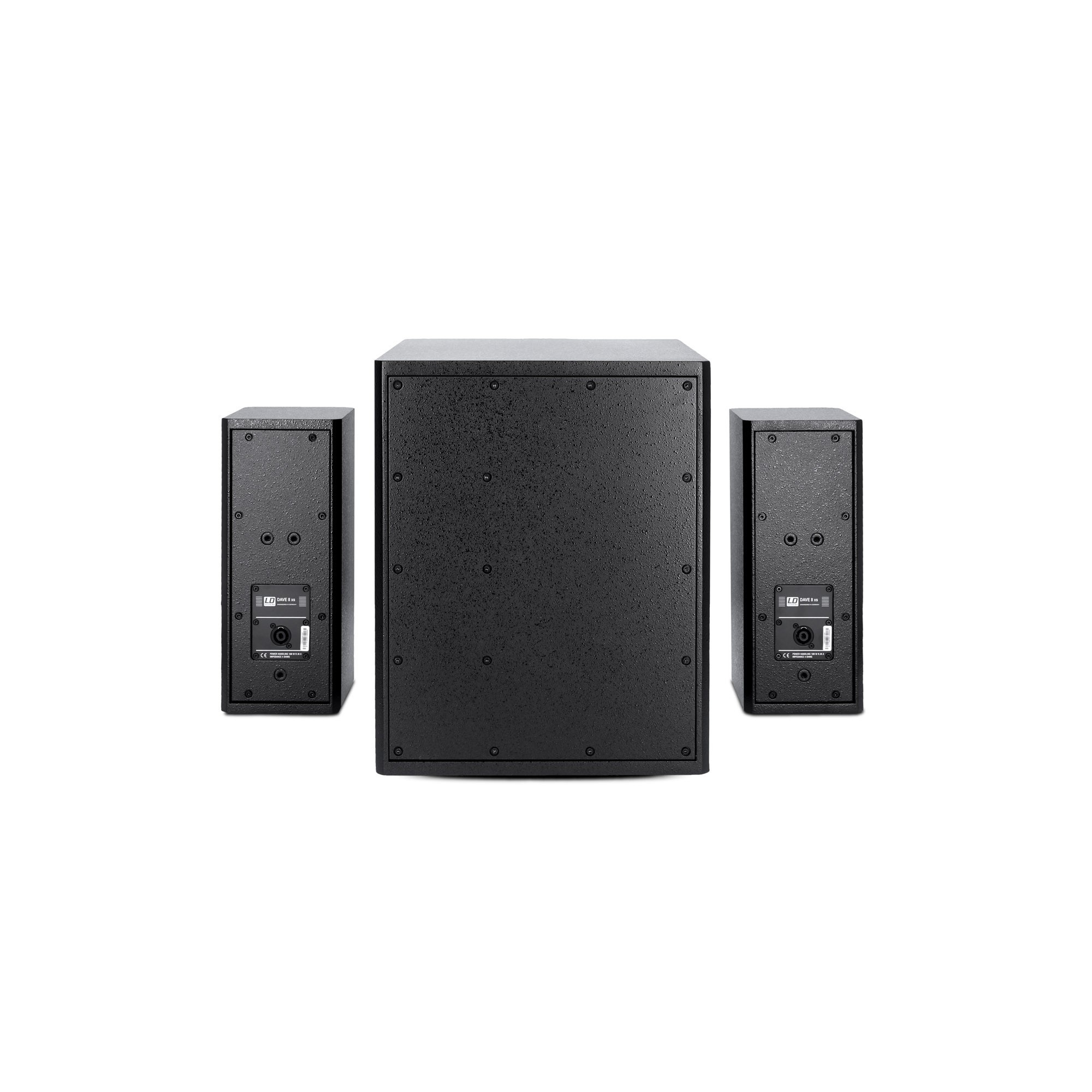

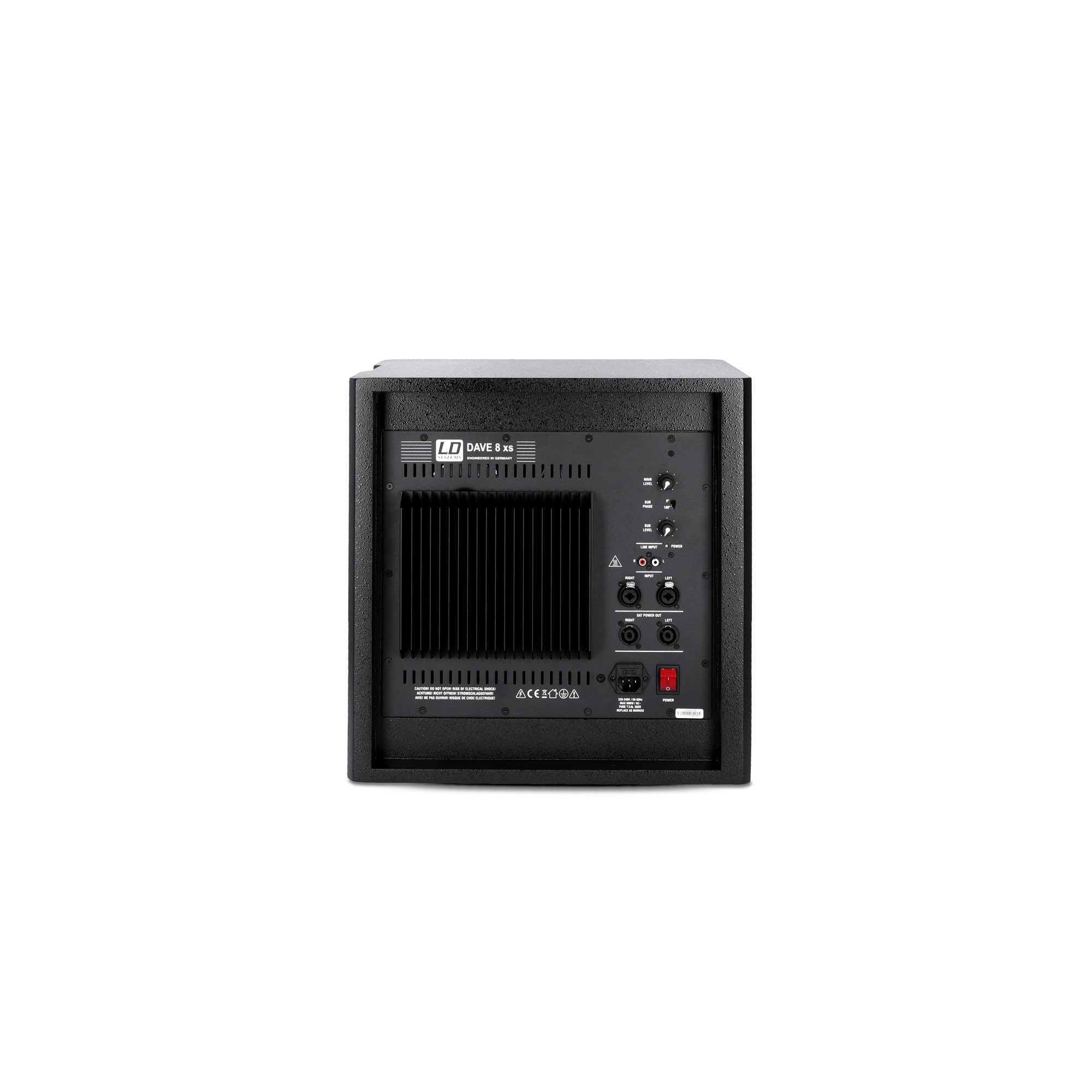

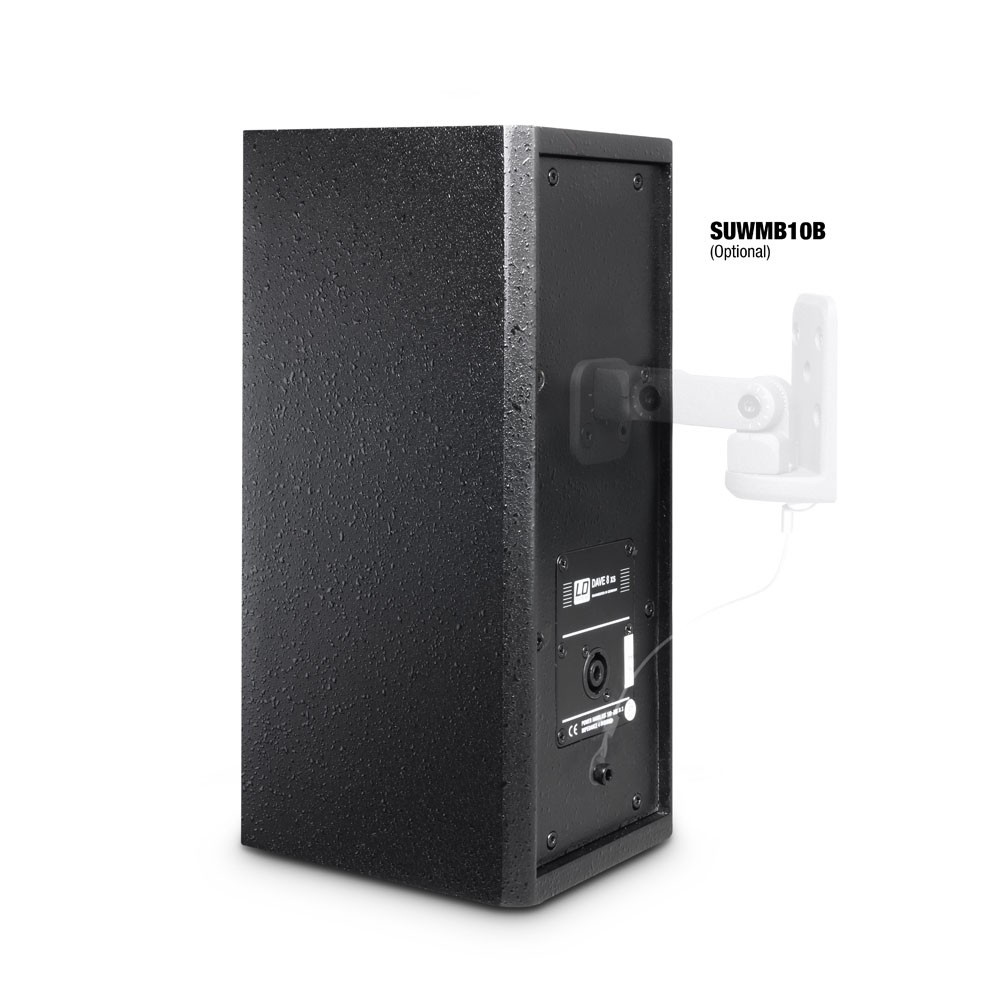

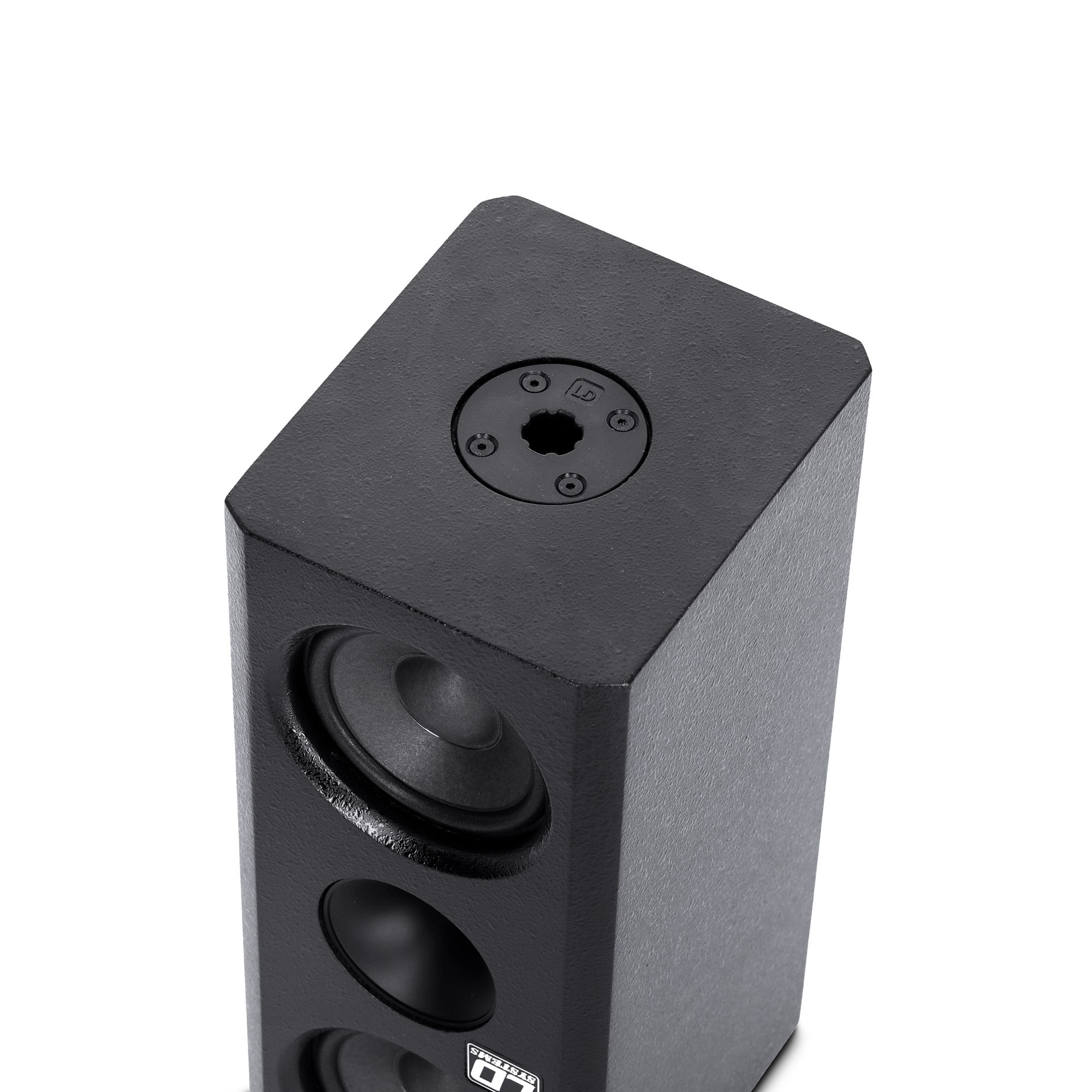

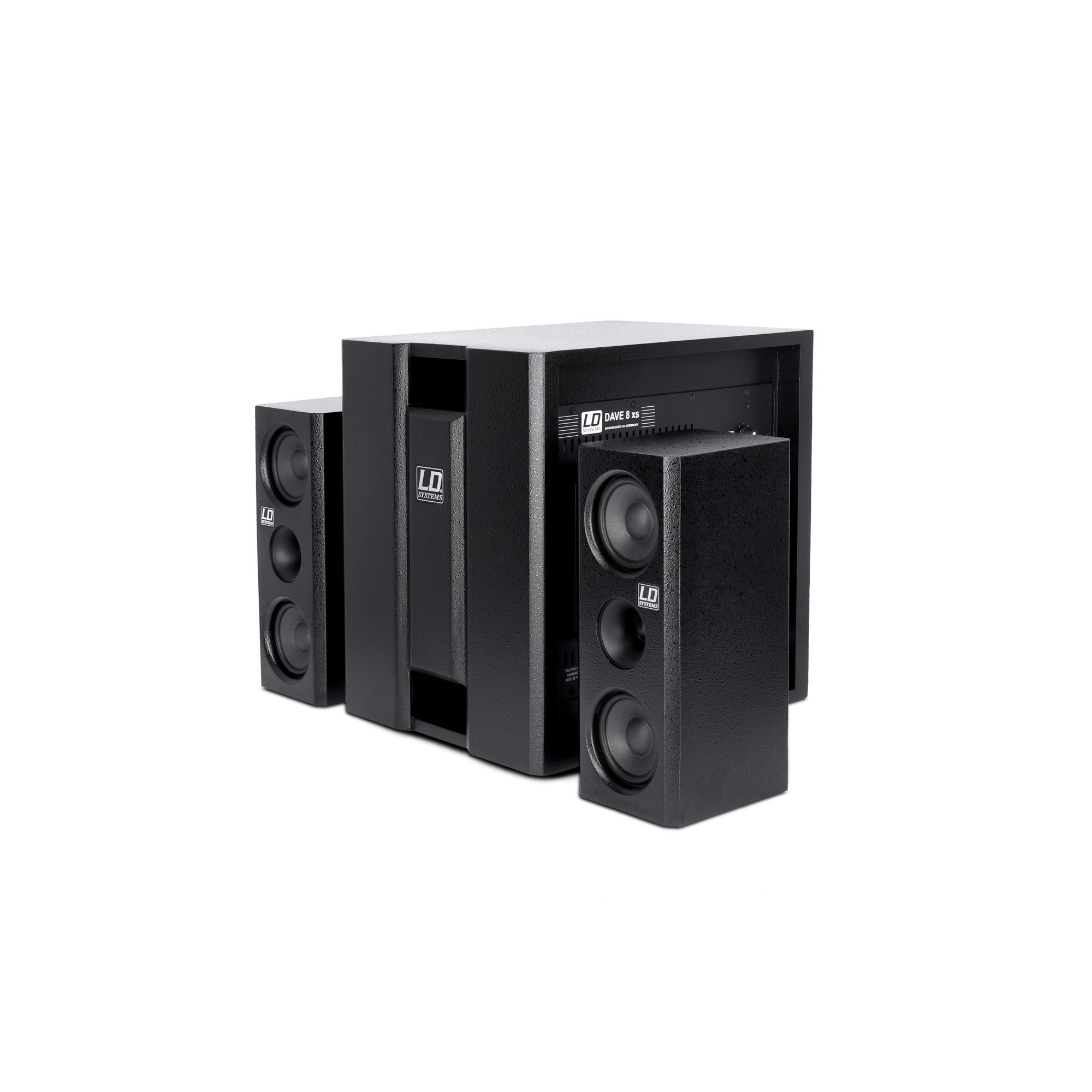

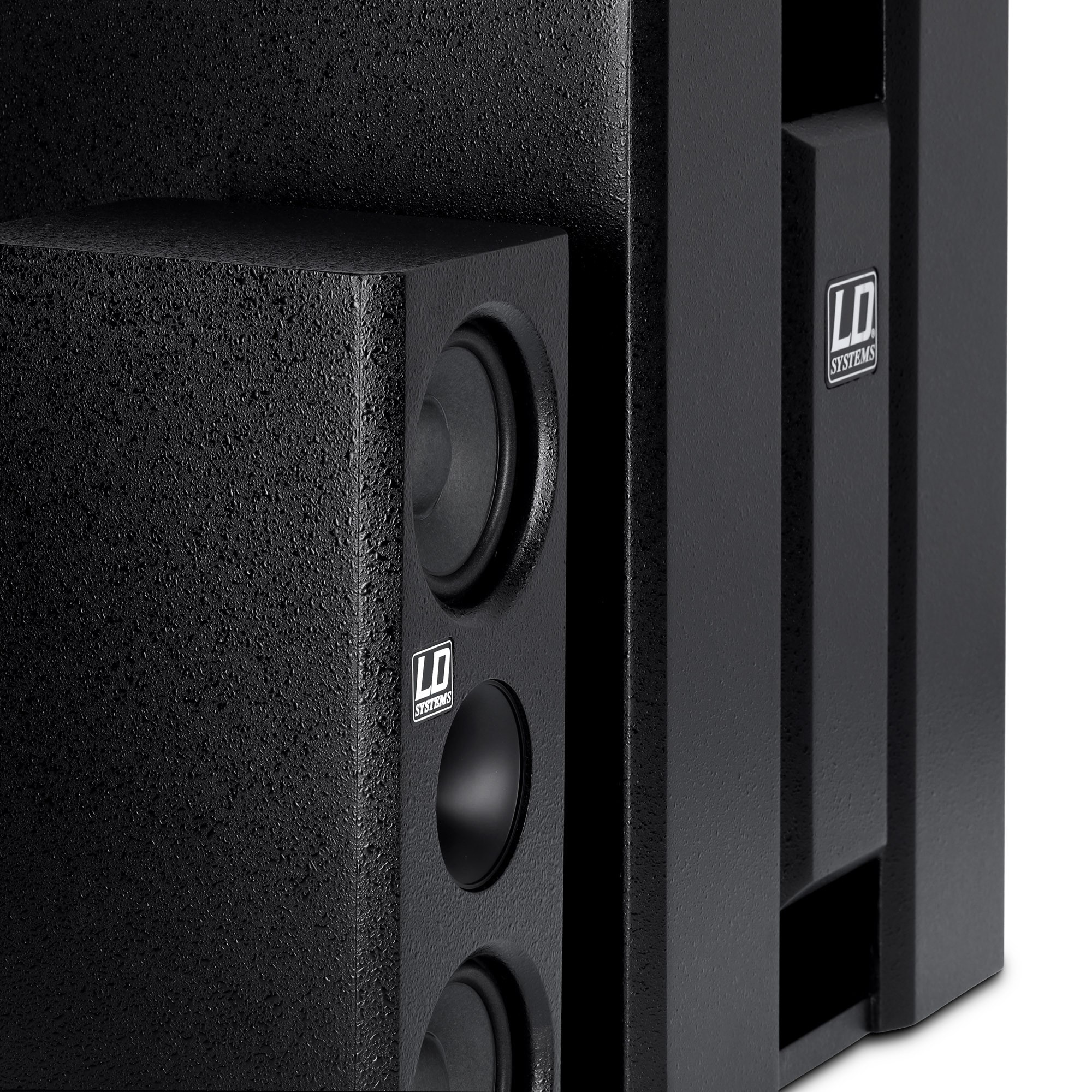

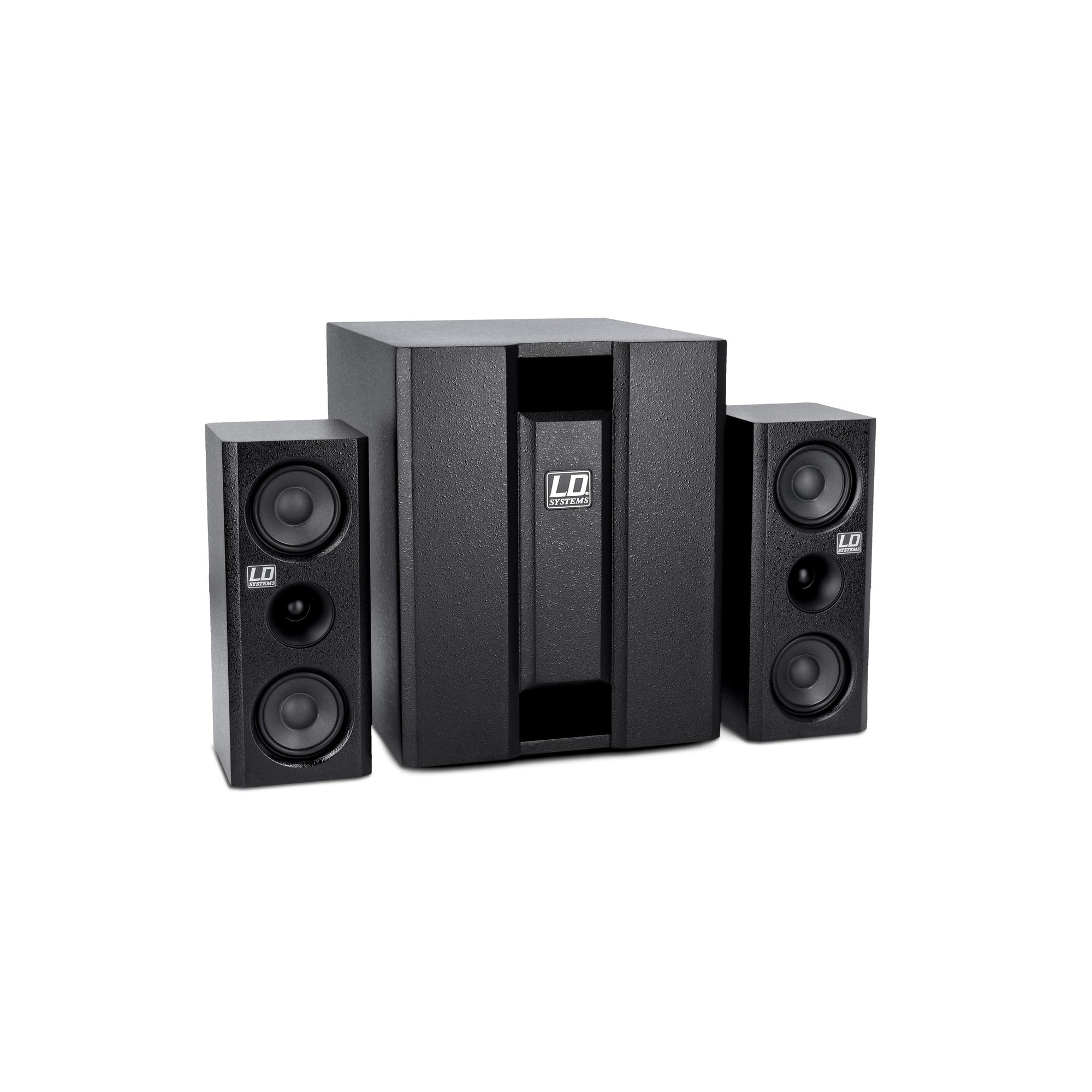

LD Systems Dave 8 XS - Compact 2.1 PA/Media system, consisting of an active Bandpass subwoofer equipped with an 8" speaker, and two satellite speakers, each equipped with two 4" speakers and 1" silk dome tweeters. It delivers clear and crystal sound, being specially dedicated for multimedia applications (gaming or home PA), and can be used as a monitoring system for DJs, keyboards, and synthesizers, or as a sound system in small club venues or cafés. The powerful A/B amplifier built into the subwoofer amplifies both the subwoofer and the satellites. It offers XLR and RCA inputs and is equipped with all standard protection types. It also has a built-in limiter that protects the system against overload. On the side of the subwoofer, in addition to the ON/OFF switch and phase selector (180°), there is a potentiometer for controlling the subwoofer volume, facilitating an ideal frequency calibration, balanced in high, mid, and low frequencies. The satellites are equipped with stand mounting systems with a diameter of 16 mm.

Technical specifications of the system:

  • System type: active
  • Colour: black
  • Maximum sound pressure level SPL: 117dB
  • Frequency response: 45 - 19,000Hz
  • Dispersion (H x V): 60 x 60°
  • Weight: 29kg

Technical specifications of the subwoofer:

  • Low-mid speaker: 8" / 203mm
  • Speaker magnet: Ferrite
  • Cabinet type: Bandpass
  • Cabinet material: MDF 15 mm
  • Cabinet finish: textured paint
  • Dimensions (WxHxD): 352 x 430 x 434mm

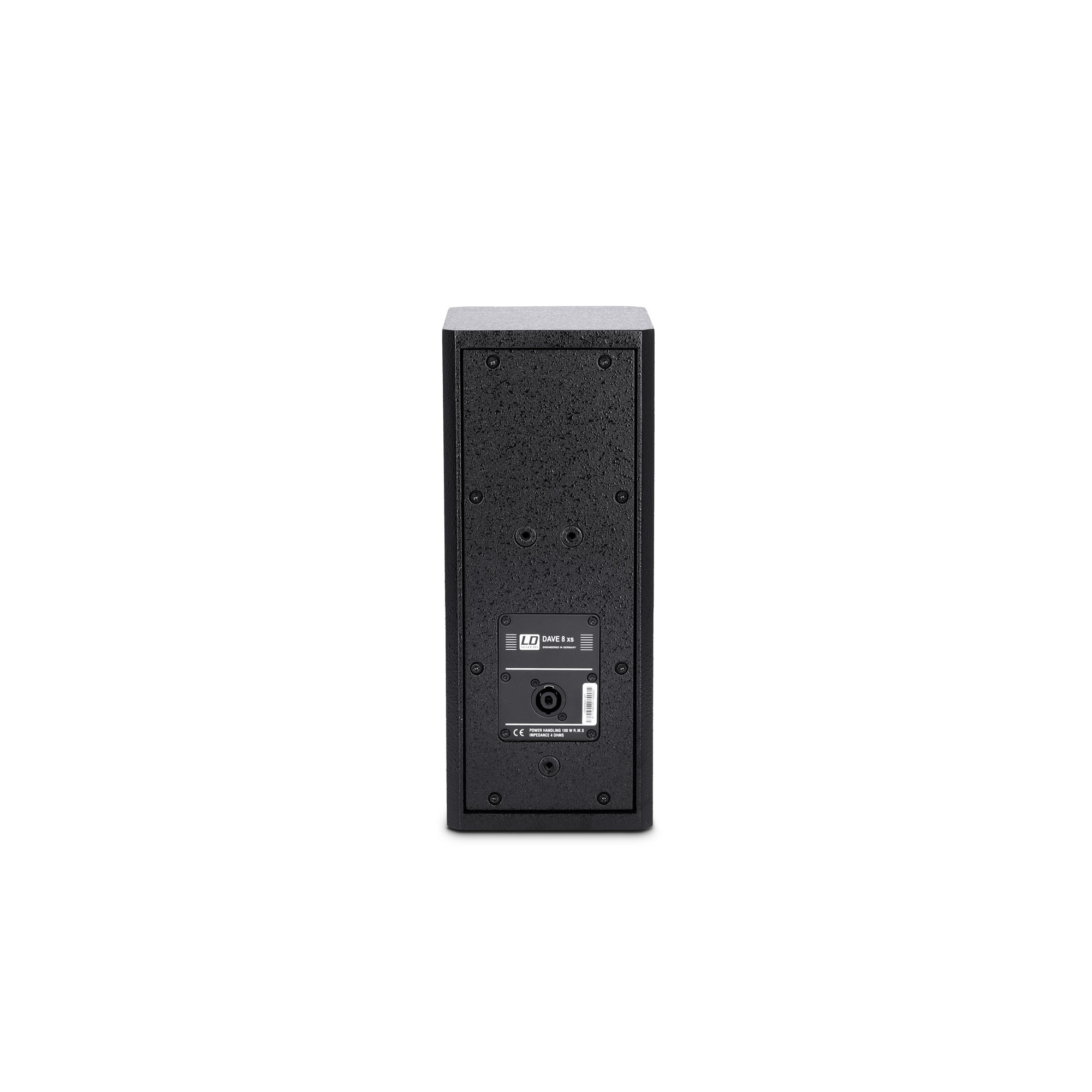

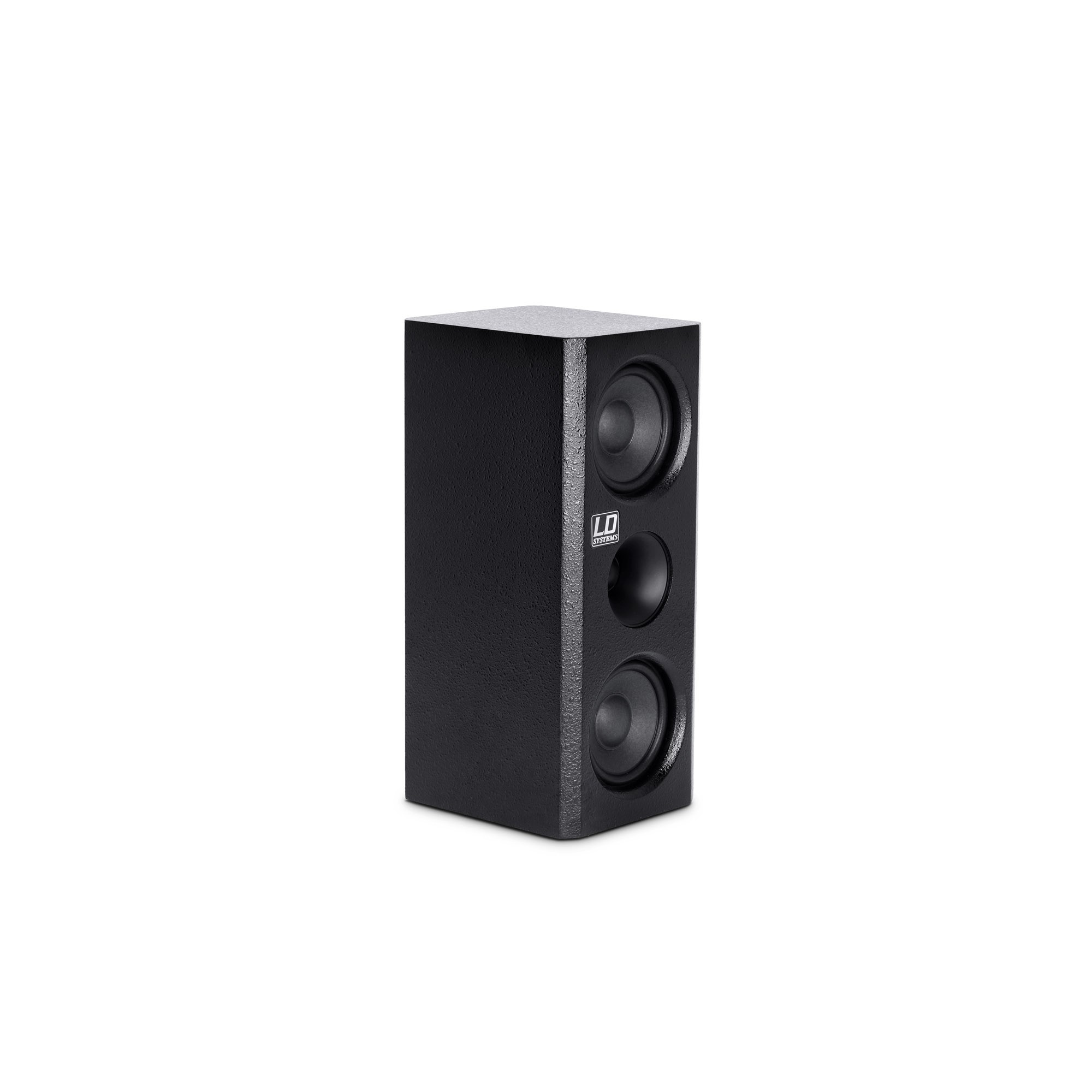

Technical specifications of the satellites:

  • Mid speakers: 2 x 4" / 2 x 101mm
  • Speaker magnet: Ferrite
  • Tweeter dimensions: 1" / 25.4mm
  • Tweeter magnet: Ferrite
  • Satellite impedance: 4 Ohms

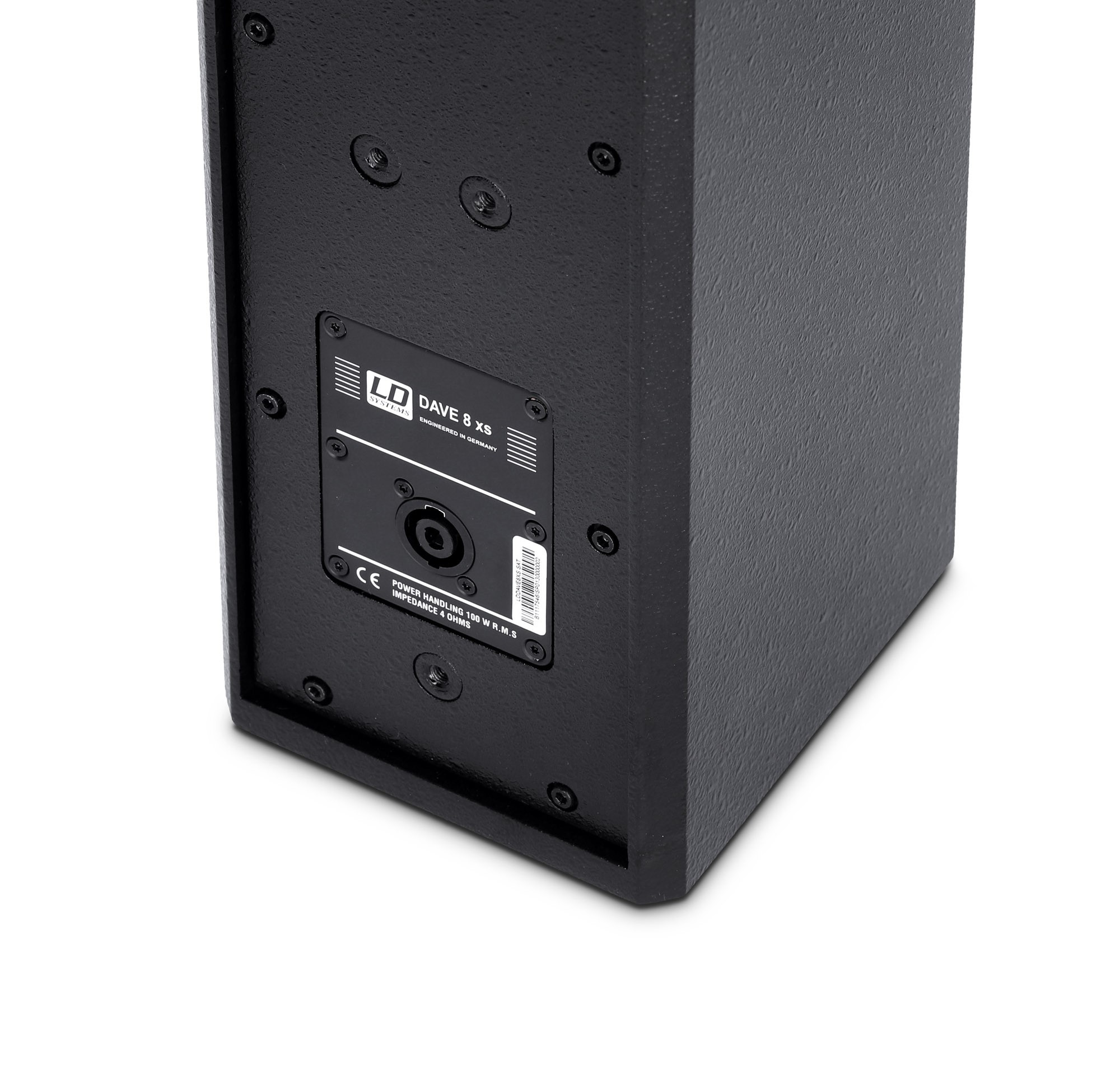

  • Input connectors: Speakon
  • Cabinet type: closed
  • Cabinet material: MDF 12 mm
  • Cabinet finish: textured paint
  • Dimensions (WxHxD): 144 x 350 x 170mm

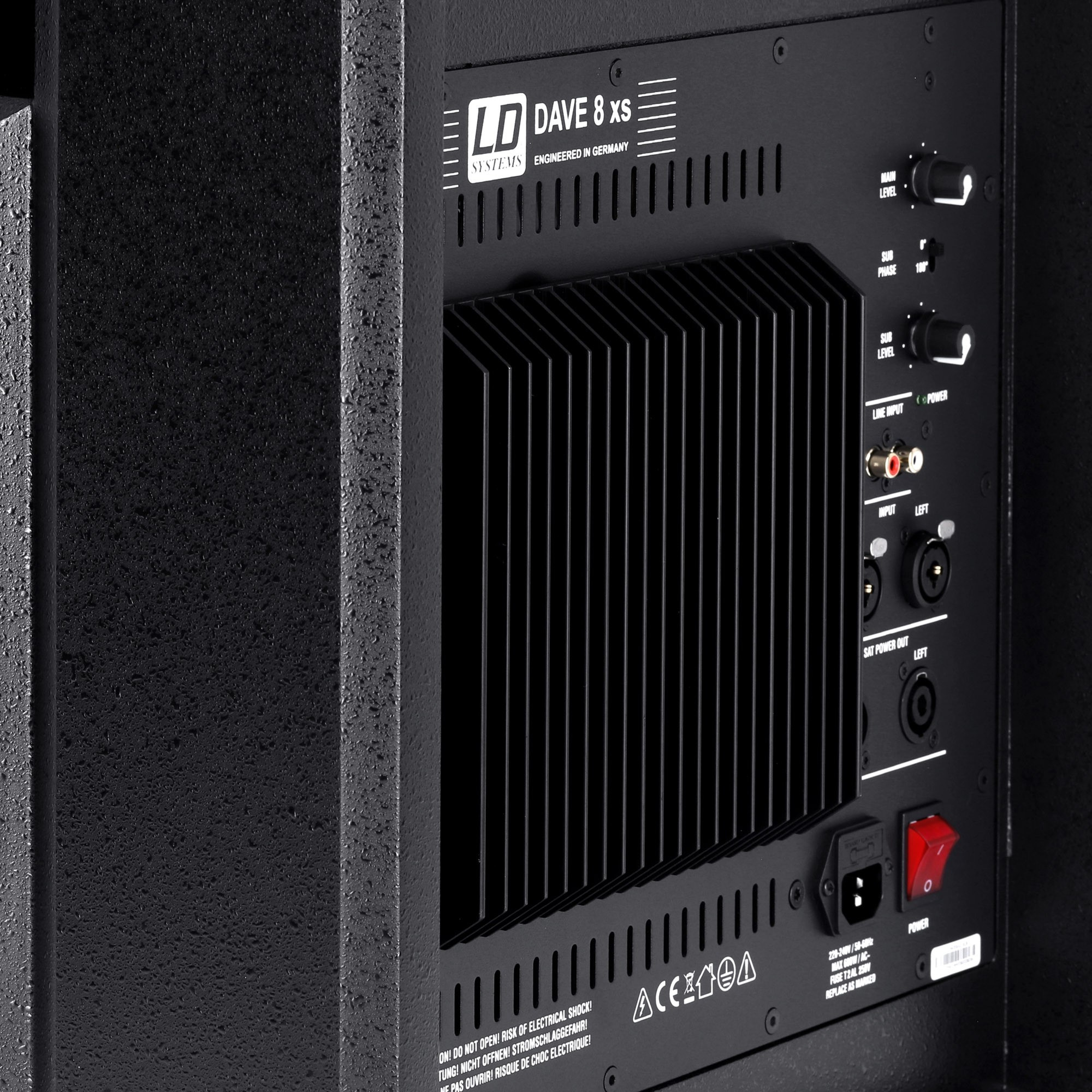

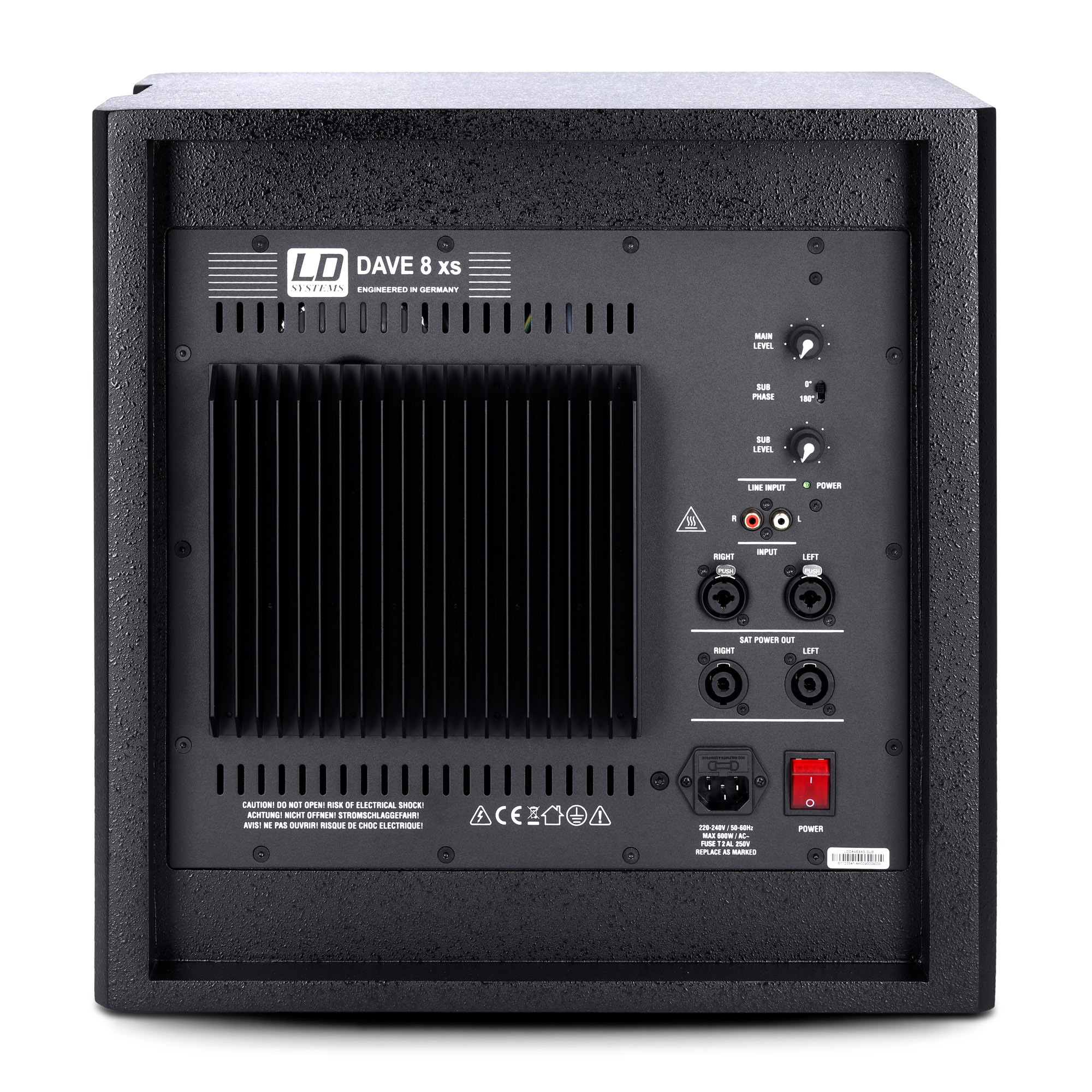

Amplification:

  • Amplifier class: Class A/B (Bi-amp)
  • Output power (RMS): 350W
  • Output power (peak): 1400W
  • Protection circuits: limiter, short-circuit, overload
  • Cooling: aluminium radiator
  • Controls: subwoofer volume, switch (on/off), volume, phase inverter Subwoofer
  • Indicators: Power
  • Power supply voltage: transformer, 220 V AC - 240 V AC, 50-60 Hz
  • Input connectors: XLR, 6.3 mm Jack, RCA
  • Speaker output connectors: Speakon

Interconnection cables are purchased separately.

Product code: LDDAVE8XS

Unit of sale: pereche
