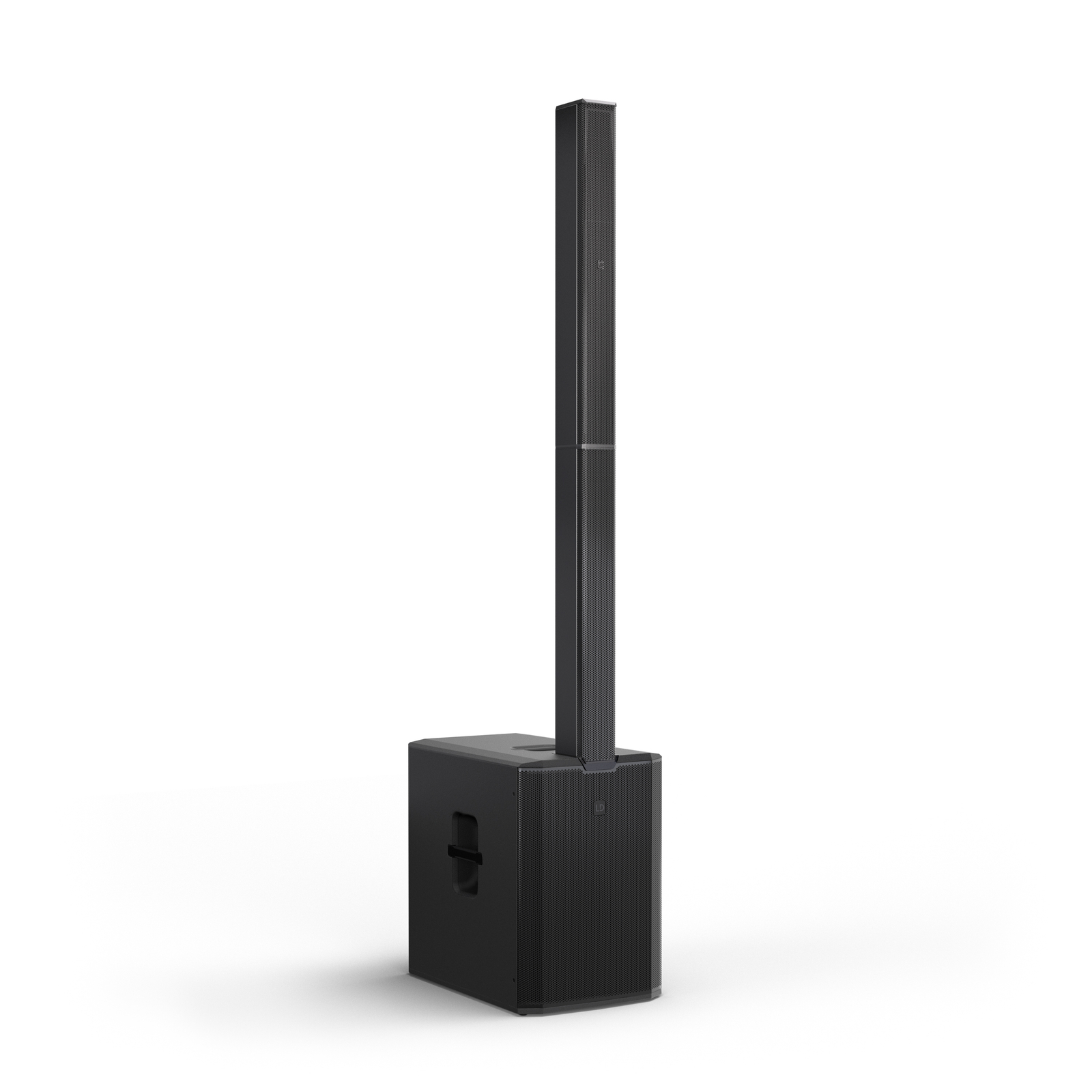

LD Systems MAUI 44 G3 - 4-Way Cardioid Column PA System

LD Systems MAUI 44 G3 - active column PA system, featuring a 4-way configuration and a 15" subwoofer. It offers a power of 1,800 W RMS, a maximum sound pressure level of 133 dB, and Bluetooth 5.4 connectivity. The cardioid column reduces sound emission to the rear.

• Active column PA system
• Configuration: 4-way system, passive cardioid column
• RMS Power: 1,800 W
• Peak Power: 3,600 W
• Maximum SPL: 133 dB
• Frequency Response (-6 dB): 37 Hz – 20 kHz
• Frequency Response (-10 dB): 34 Hz – 20 kHz
• Amplification: Class D
• DSP Processing: DynX® Gen. 2, with limiters for peaks, RMS and temperature
• Dispersion: 120° horizontal × 25° vertical
• Cardioid attenuation to the rear: Up to 18 dB (100 Hz – 1 kHz)
  • Drivers
  • Subwoofer: 1 × 15", neodymium magnet, bass-reflex enclosure
  • Midrange drivers: 14 × 3.5", with neodymium magnets
  • High-frequency drivers: 4 × 1", compression drivers with waveguide
• Crossover Frequencies: 200 Hz / 700 Hz / 1,800 Hz
• Audio Inputs: 2 × XLR/TRS combo
• Audio Outputs: 3 × XLR
• Bluetooth: Version 5.4
• Bluetooth Codecs: AAC, SBC, aptX™
• Integrated Mixer: No
• SysLink®: No
• AD/DA Conversion: 24/32 bits, 48 kHz
• Signal-to-Noise Ratio: Minimum 106 dB
• Extension: Compatible with a second MAUI 44 G3 subwoofer for low-frequency extension or cardioid configuration
• Power Supply: 100–240 V AC, 50–60 Hz
• Nominal Consumption: 900 W
• Protections: Limiter and overheat protection
• Subwoofer Material: 18 mm thick multilayer birch plywood
• Subwoofer Finish: Polyurea coating
• Column Material: Electrostatic painted aluminium
• Front Grill: Steel
• Handles: 4 on subwoofer and 2 on column

Physical Parameters:

• Overall Dimensions (L × H × D): 434 × 2,259 × 638 mm
• Total Weight: 46.5 kg
• Subwoofer Dimensions (L × H × D): 434 × 634 × 638 mm
• Subwoofer Weight: 34.5 kg
• Column Dimensions (L × H × D): 103 × 1,626 × 136 mm
• Column Weight: 12 kg
• Included Accessories: Power cable
• Colour: Black
