Fonestar SKY-8T

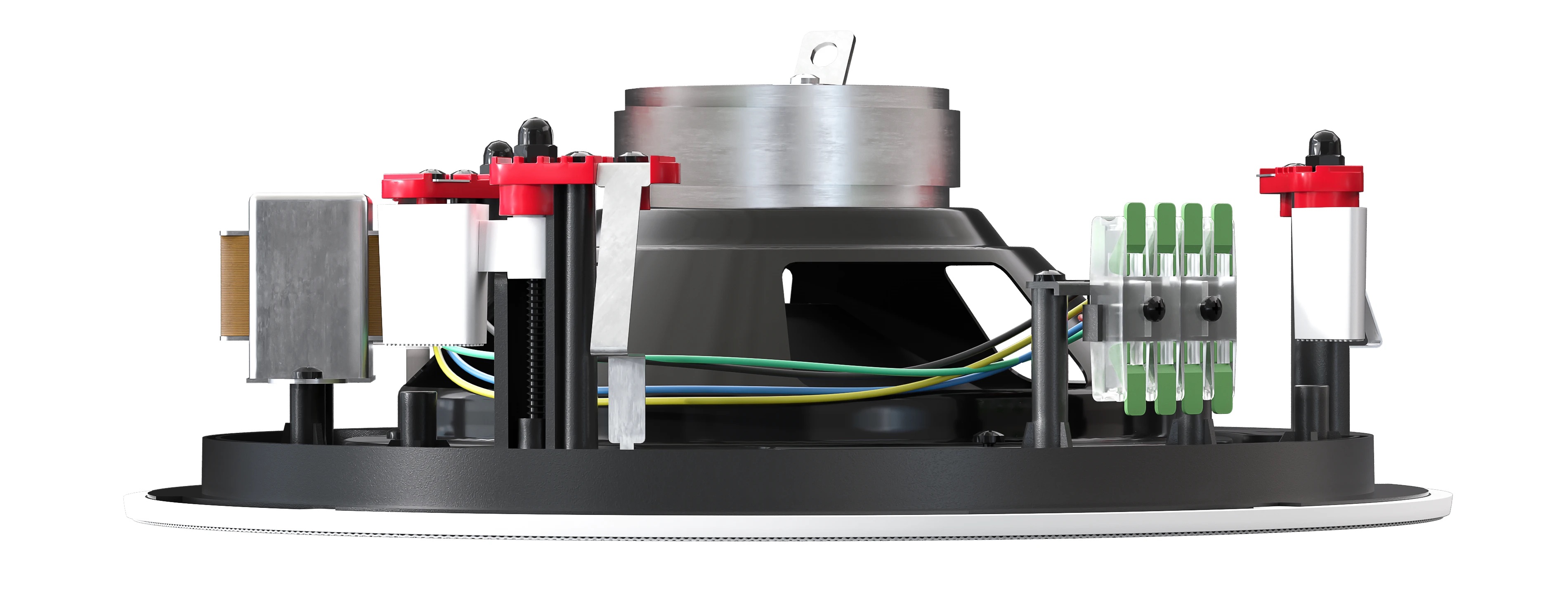

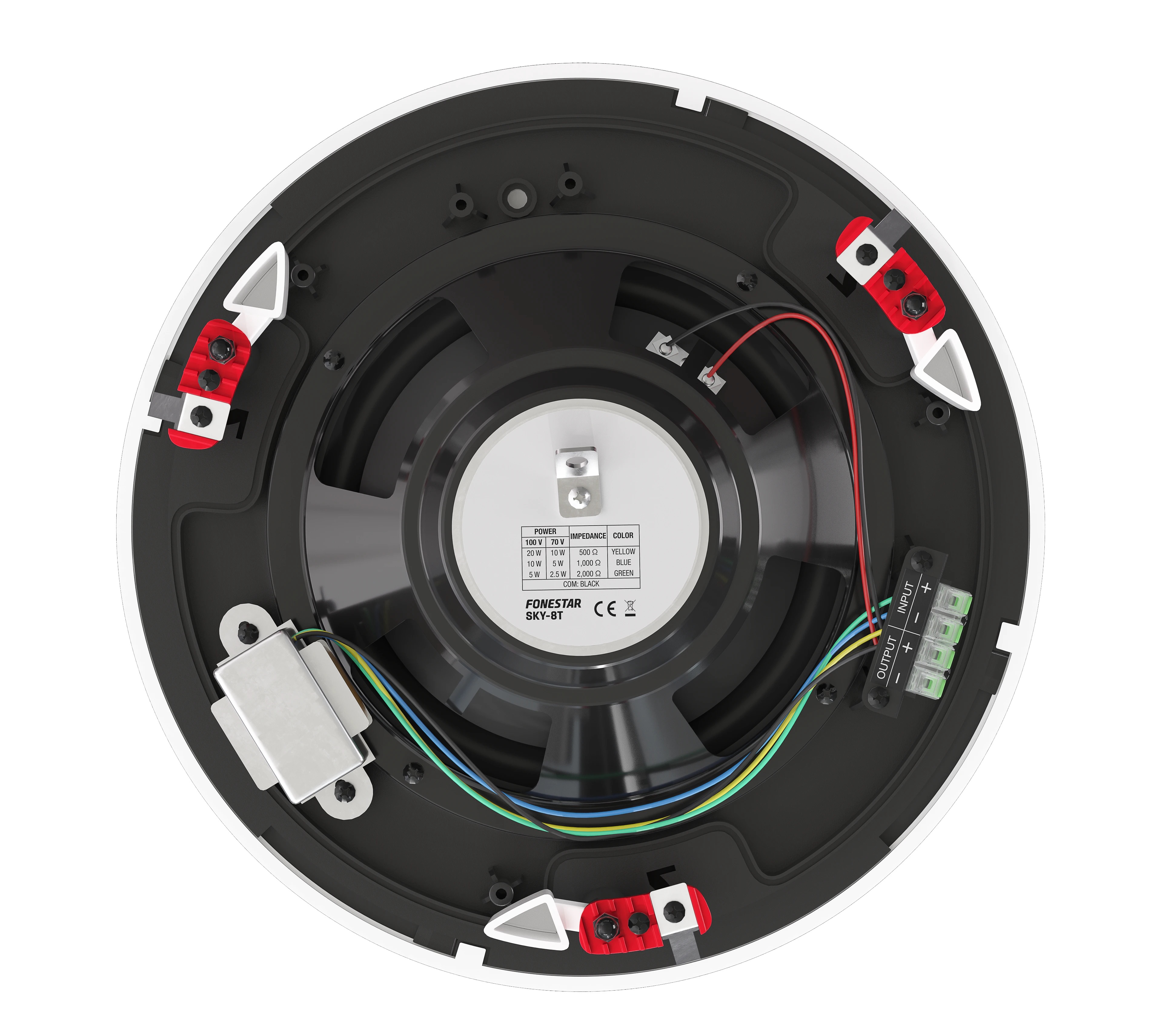

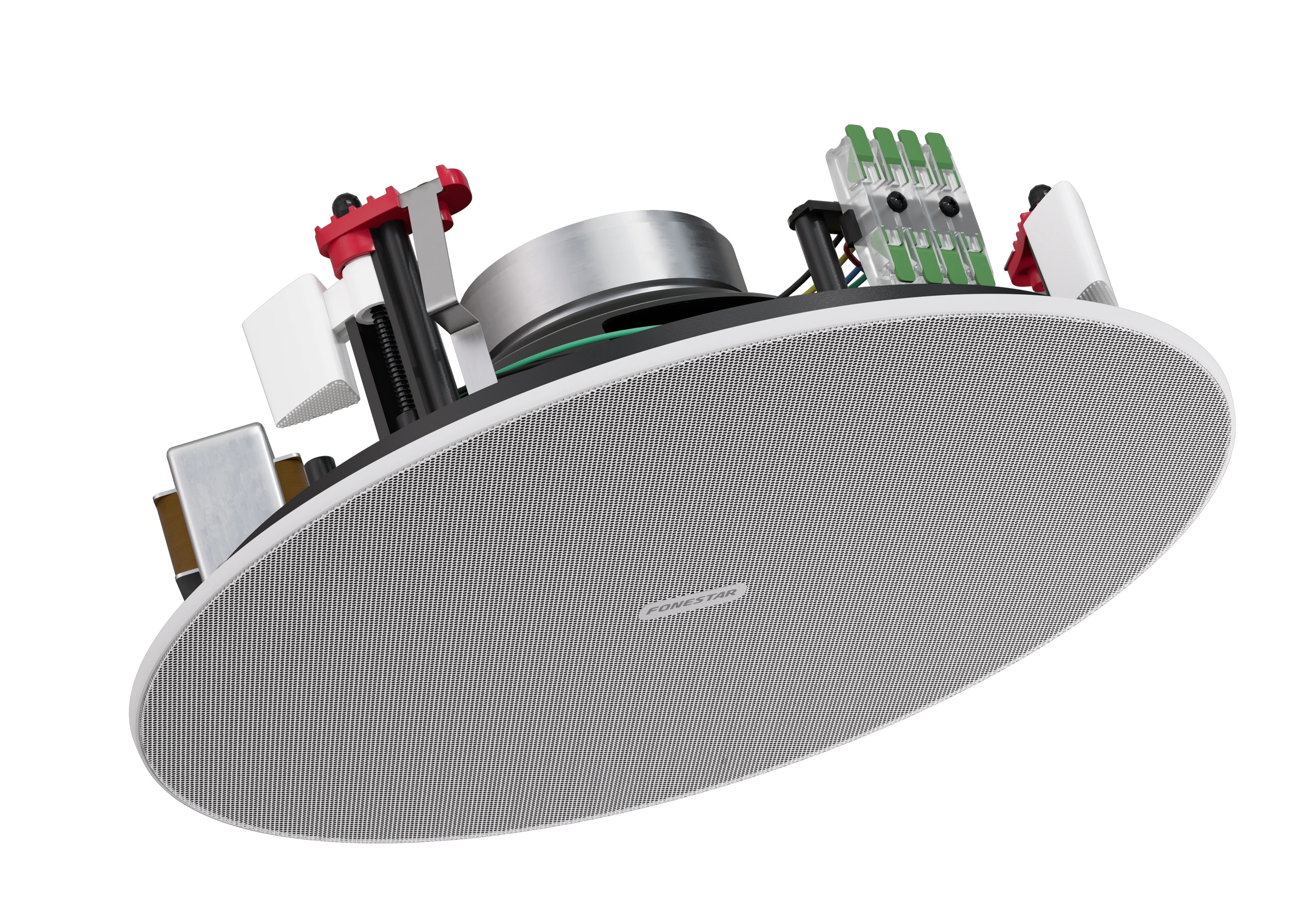

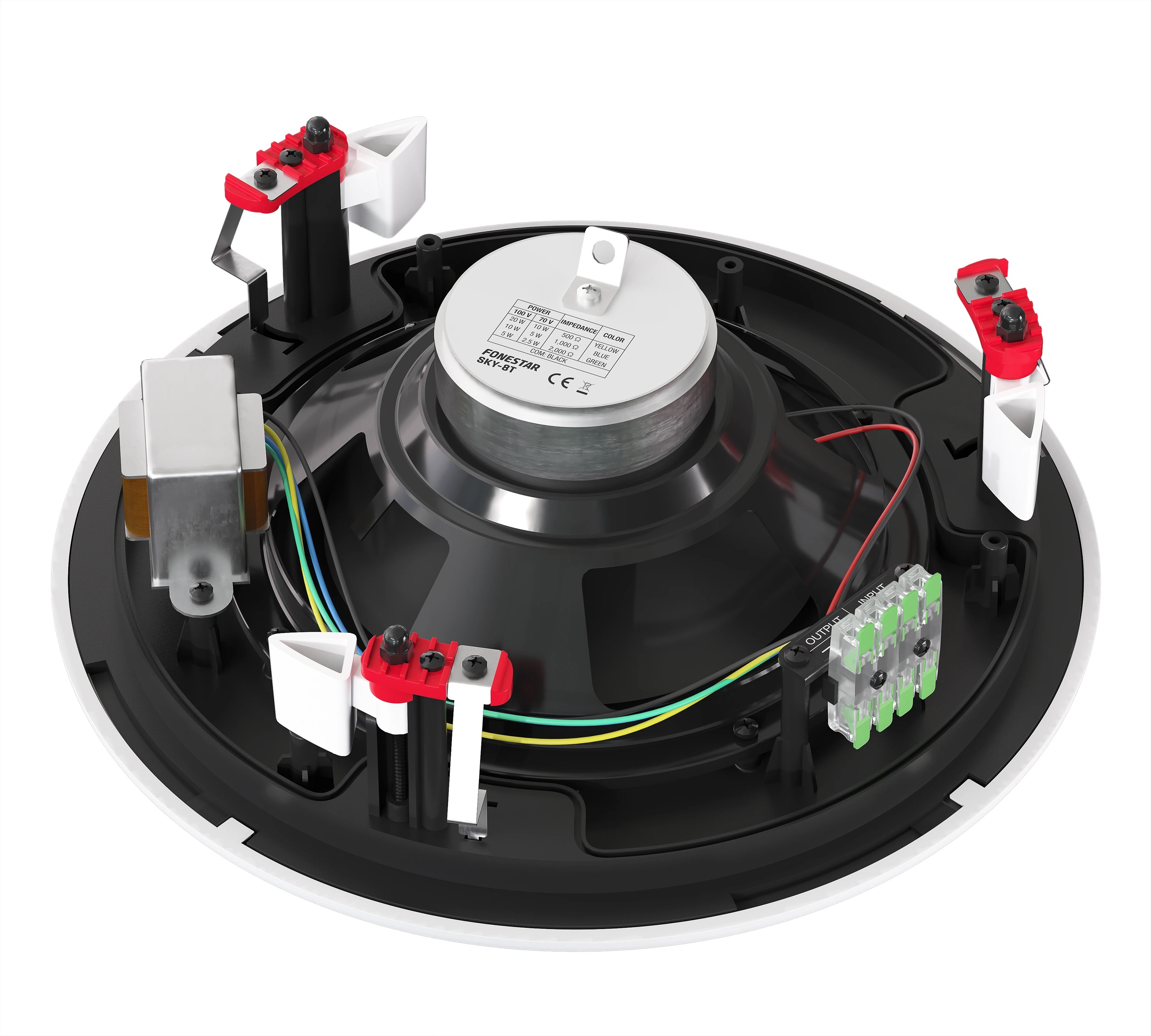

Fonestar SKY-8T - Ceiling speaker with a 100 V line transformer, designed for professional audio installations in commercial, industrial, or residential spaces. With a sleek, frameless design and corrosion-resistant materials, it offers excellent acoustic performance and discreet aesthetic integration.

This model features an 8” dual diaphragm speaker with a power of 20 W RMS, providing precise frequency response between 40 and 15,000 Hz and a sensitivity of 88 dB, for clear and balanced sound, even in large spaces.

Constructed from UV-resistant ABS and with a painted aluminium grille, the SKY-8T is IP-44 certified for protection against dust and water. Installation is safe and efficient, thanks to the anti-fall system, safety hooks, and stable mounting with a screw mechanism. Quick terminals facilitate connection, and the detachable grille can be painted to match any decor.

FEATURES:

• Ceiling speaker with a 100 V line transformer

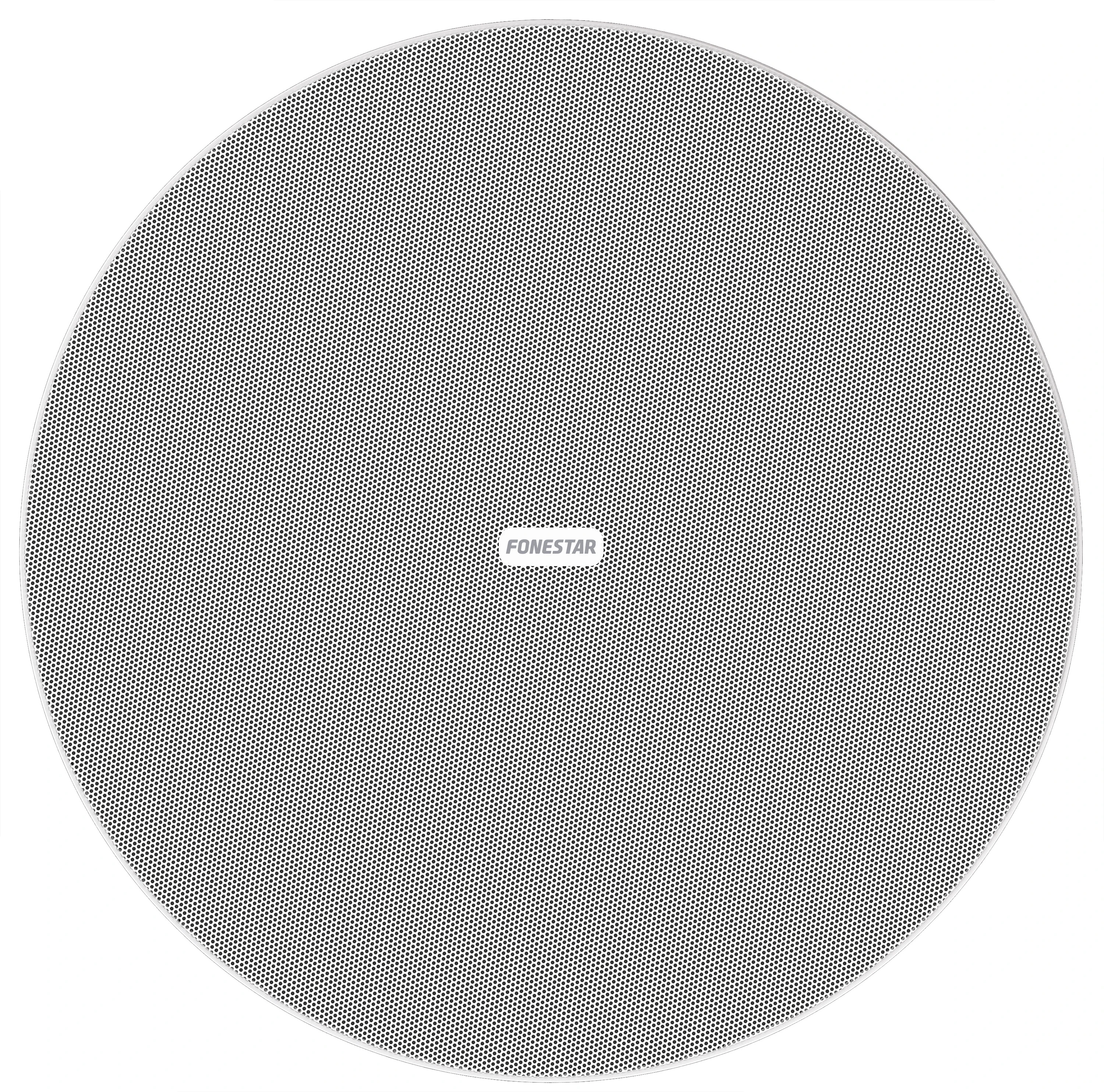

• Frameless grille with a low profile, made of corrosion-resistant aluminium

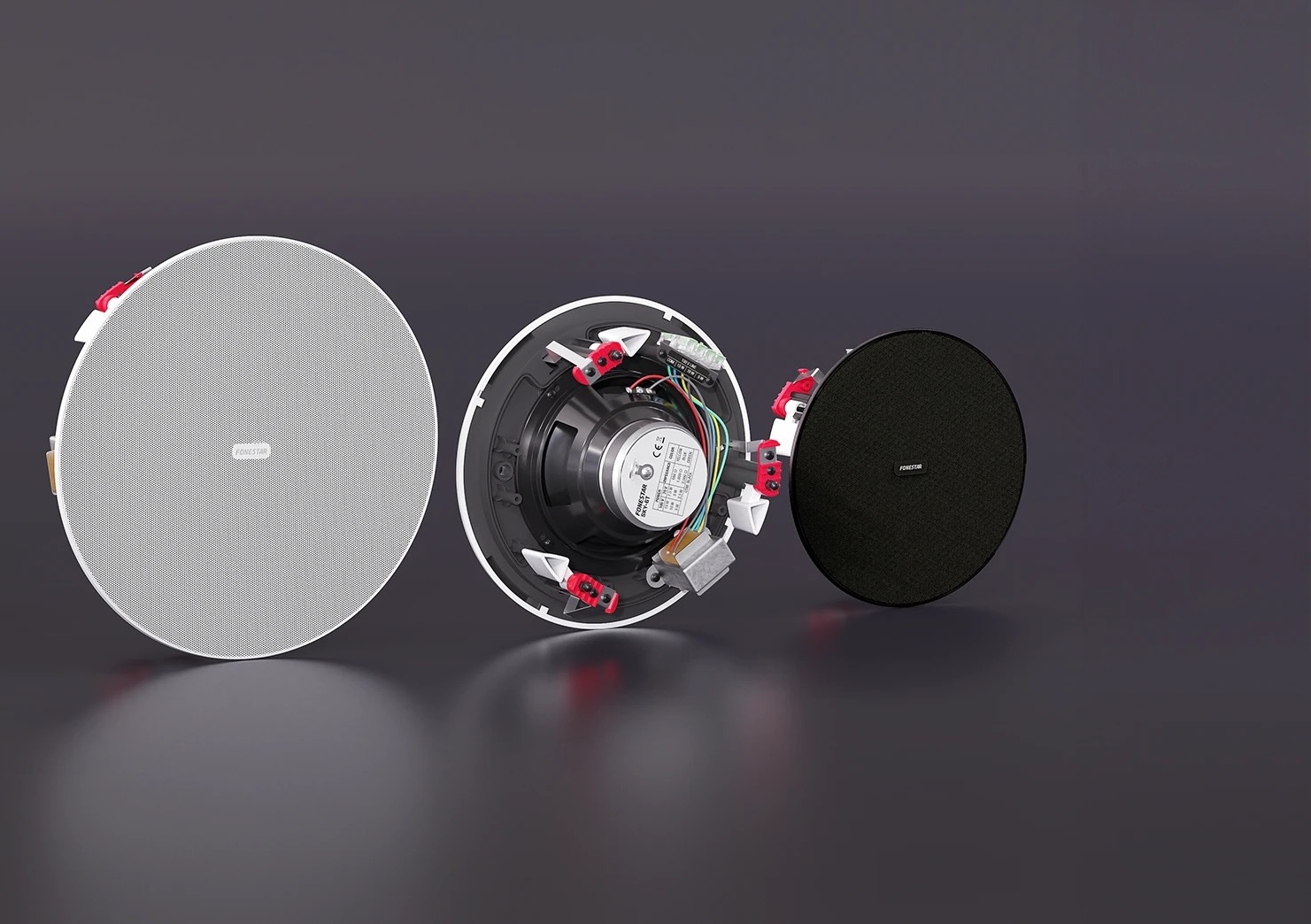

• Detachable grille with a rotating fixing system; logo can be removed and painted

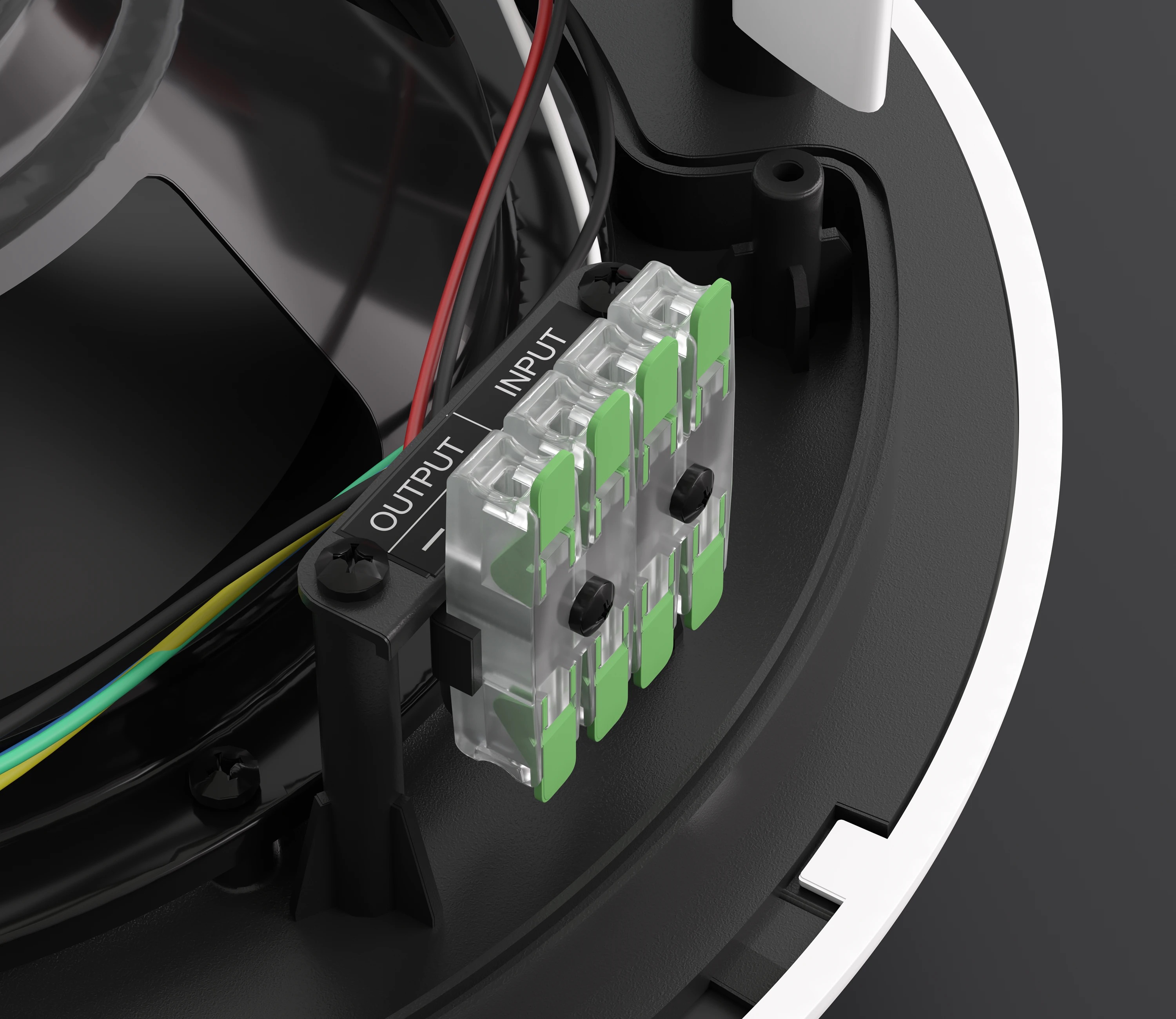

• Quick terminals with high conductivity
• Anti-fall system for installation assistance
• Safety cable hook
• Stable ceiling mounts with screw-type fastening
• Protection against dust and water

POWER:

• 20 W RMS
• 27 W MAX

LOUDSPEAKER:

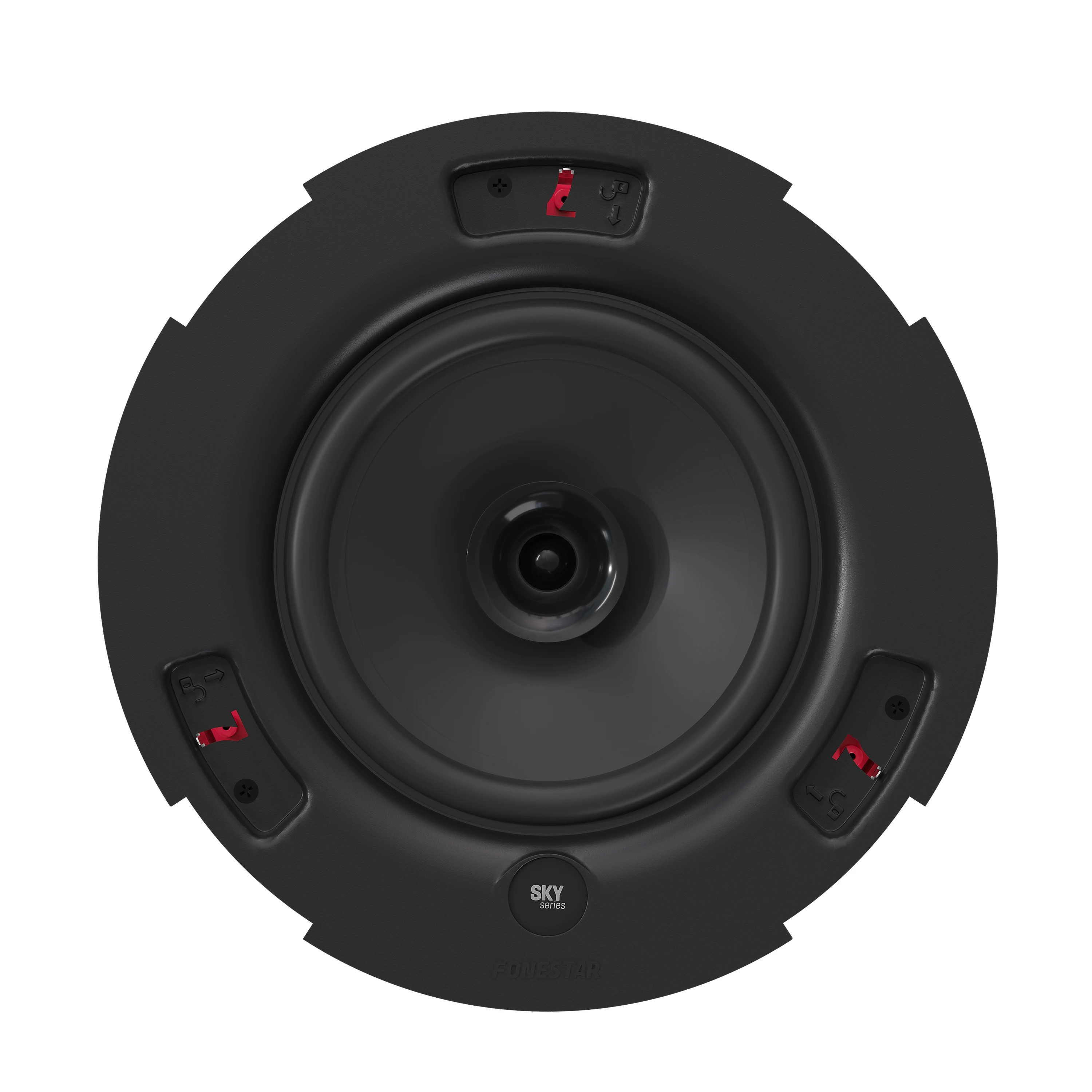

• 8'' polypropylene dual diaphragm speaker

FREQUENCY RESPONSE:

• 40-15,000 Hz @ -10 dB
• 90-15,000 Hz @ -3 dB

IMPEDANCE (selectable):

• 20 W RMS @ 100 V (500 Ω)
• 10 W RMS @ 100 V / 70 V (1,000 Ω / 490 Ω)
• 5 W RMS @ 100 V / 70 V (2,000 Ω / 980 Ω)
• 2.5 W RMS @ 70 V (1,960 Ω)

SENSITIVITY:

• 88 dB @ 1 W / 1 m

MAXIMUM ACOUSTIC PRESSURE:

• 103 dB @ continuous maximum power
• 105 dB @ peak

COVERAGE ANGLE:

• 90º @ 1 kHz (-6 dB)

PROTECTIONS:

• IP-44 according to IEC 60529
• Salt mist test EN ISO 9227:2006

MATERIAL:

• UV-resistant ABS housing
• Painted aluminium grille in liquid field

CONNECTORS:

• Quick terminals for cables of 0.4 ~ 4 mm²

OPERATING TEMPERATURES:

• From -20°C to 70°C (48 h)

STORAGE TEMPERATURES:

• From 10°C to 40°C

MAXIMUM HUMIDITY:

• 95%

COLOUR:

• White (RAL 9003)

DIMENSIONS:

• Total diameter: 306 mm
• Total height: 114 mm
• Recessed height: 107 mm
• Cutout diameter: 273 mm
• Maximum ceiling thickness: 30 mm

WEIGHT:

• 1.7 kg

ACCESSORIES:

• Installation template
