DAP EDCS-526

Ceiling Speaker

5" recessed ceiling speaker for 100 V line audio installations.
adjustable volume with multiple power taps for system compatibility.
available in white and black, ideal for various sound reinforcement applications.
reduced mounting diameter of Ø 145 mm for easy installation.
power handling options of 3 W / 6 W with a maximum SPL of 97 dB.

Variante:

16⁸⁸ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

88 points of loyalty

Shipping 13.00 €

Warranty 24 months

Returns 14 days

request details

DAP EDCS-526 Add to cart: 16⁸⁸ €

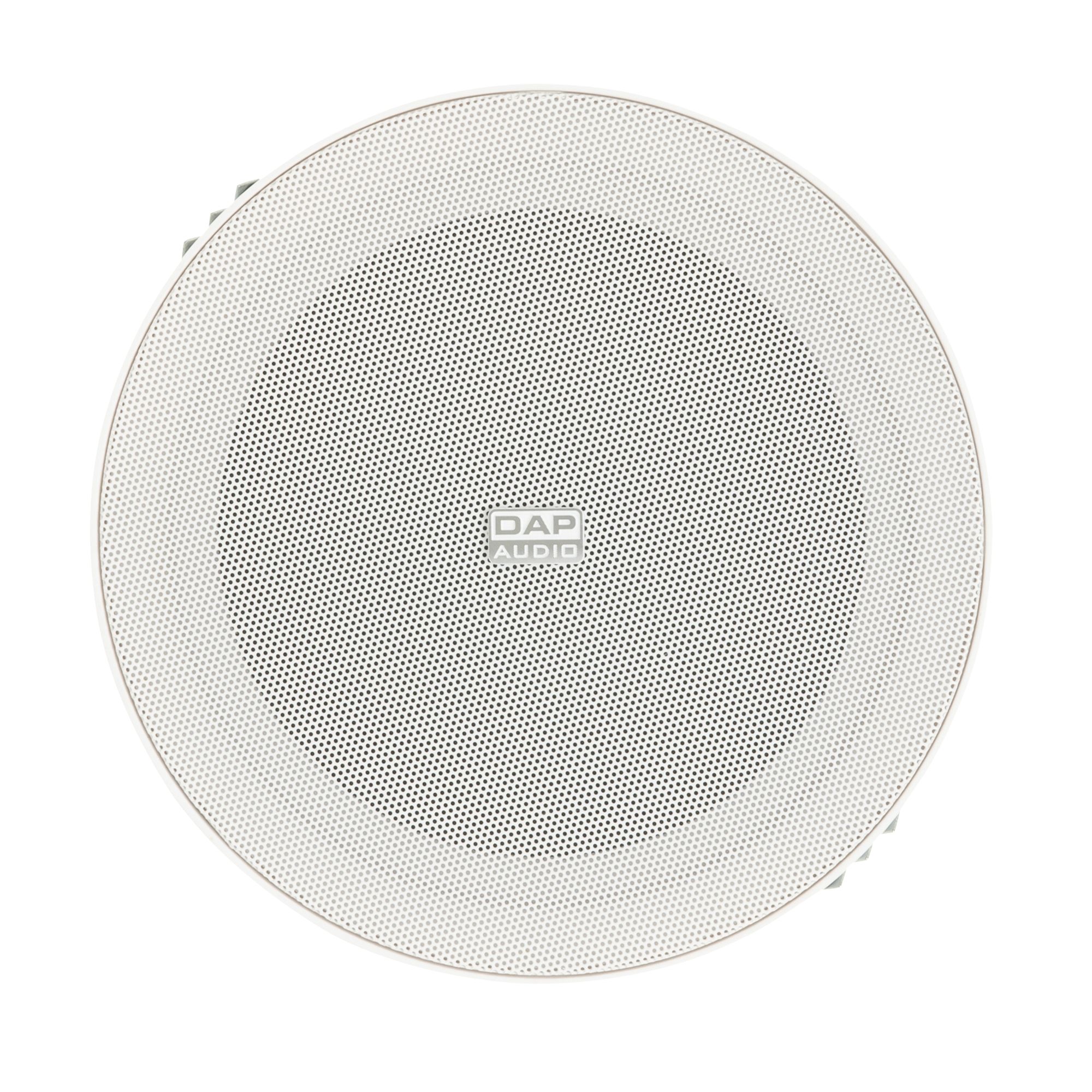

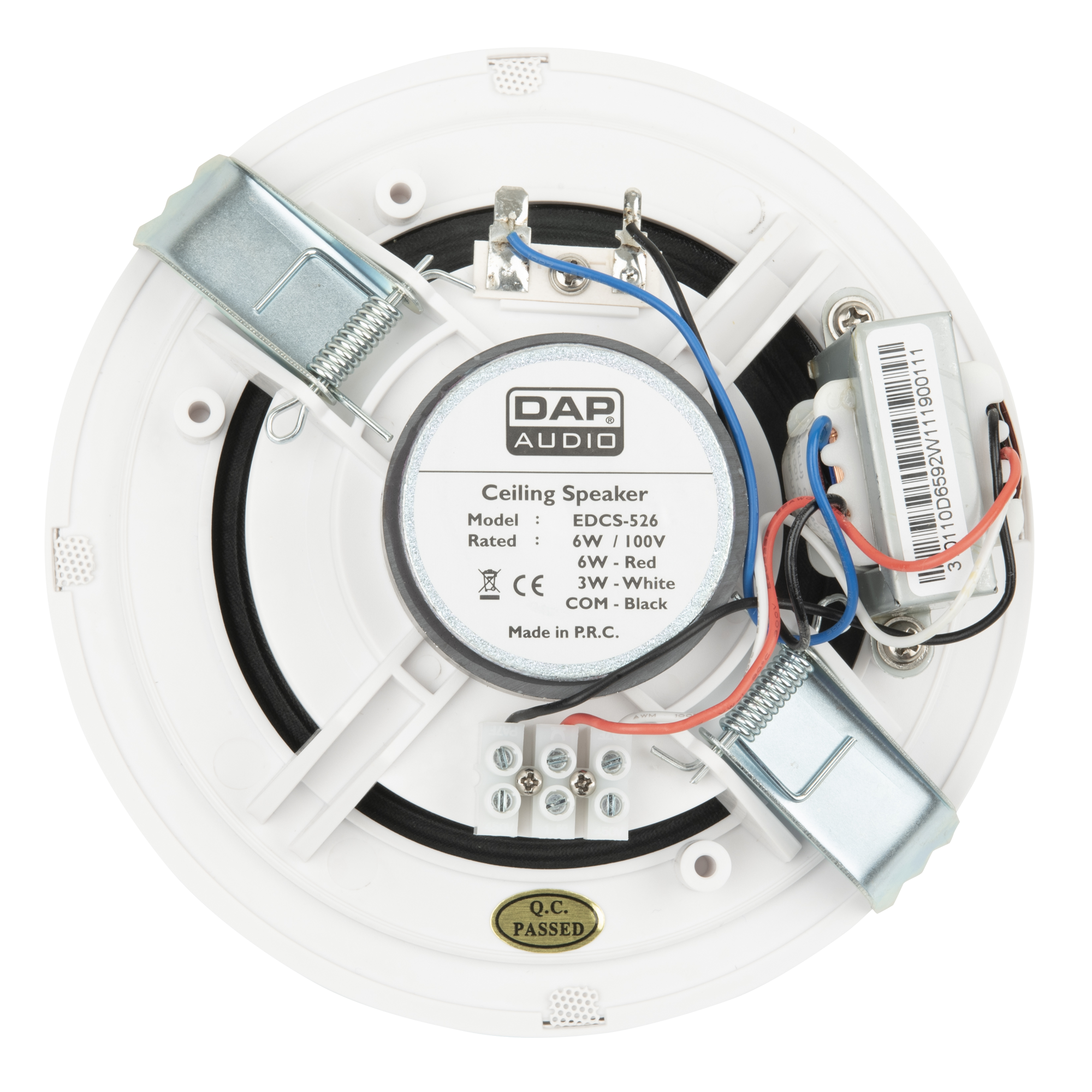

DAP EDCS-526 is a 5" recessed ceiling speaker, suitable for 100 V line audio installations. The volume can be adjusted to match other components of the system due to the multiple power taps of the transformer. The DAP EDCS series combines good sound quality with an elegant design, providing an affordable solution for commercial audio installations.

The EDCS-526 model is available in both white and black variants and represents a suitable choice for various sound reinforcement applications. It has a reduced mounting diameter of only Ø 145 mm, and installation is straightforward thanks to the integrated mounting system.

Power handling (100 V): 3 W / 6 W
Connections: bare wire ends
Coaxial system
Sensitivity (1 W / 1 m): 93 dB
Maximum sound pressure level (SPL) at 1 m: 97 dB
Frequency response: 100 Hz – 15,000 Hz
Woofer diameter: 127 mm (5")
Dimensions:
- Height: 54 mm
- Width: 160 mm
- Length: 160 mm
Weight: 0.5 kg
Housing: ABS
Mounting diameter: Ø 145 mm
Colour: white
