DAP CS-36


Ceiling Speaker

  • 3" passive ceiling speaker for 100 V line audio installations.
  • power handling options: 3 W / 6 W with adjustable volume.
  • iP40 rated for protection against solid objects over 1 mm.
  • sensitivity of 87 dB and frequency response from 120 Hz to 20,000 Hz.
  • compact dimensions: 80 mm height and 103 mm width.
DAP
1498
Currently unavailable. Request details
Central warehouse: 0
Add to cart
also deliverable via  Deliverable via parcel locker
78 points of loyalty
Shipping 13.00 €
Warranty 24 months
Returns 14 days

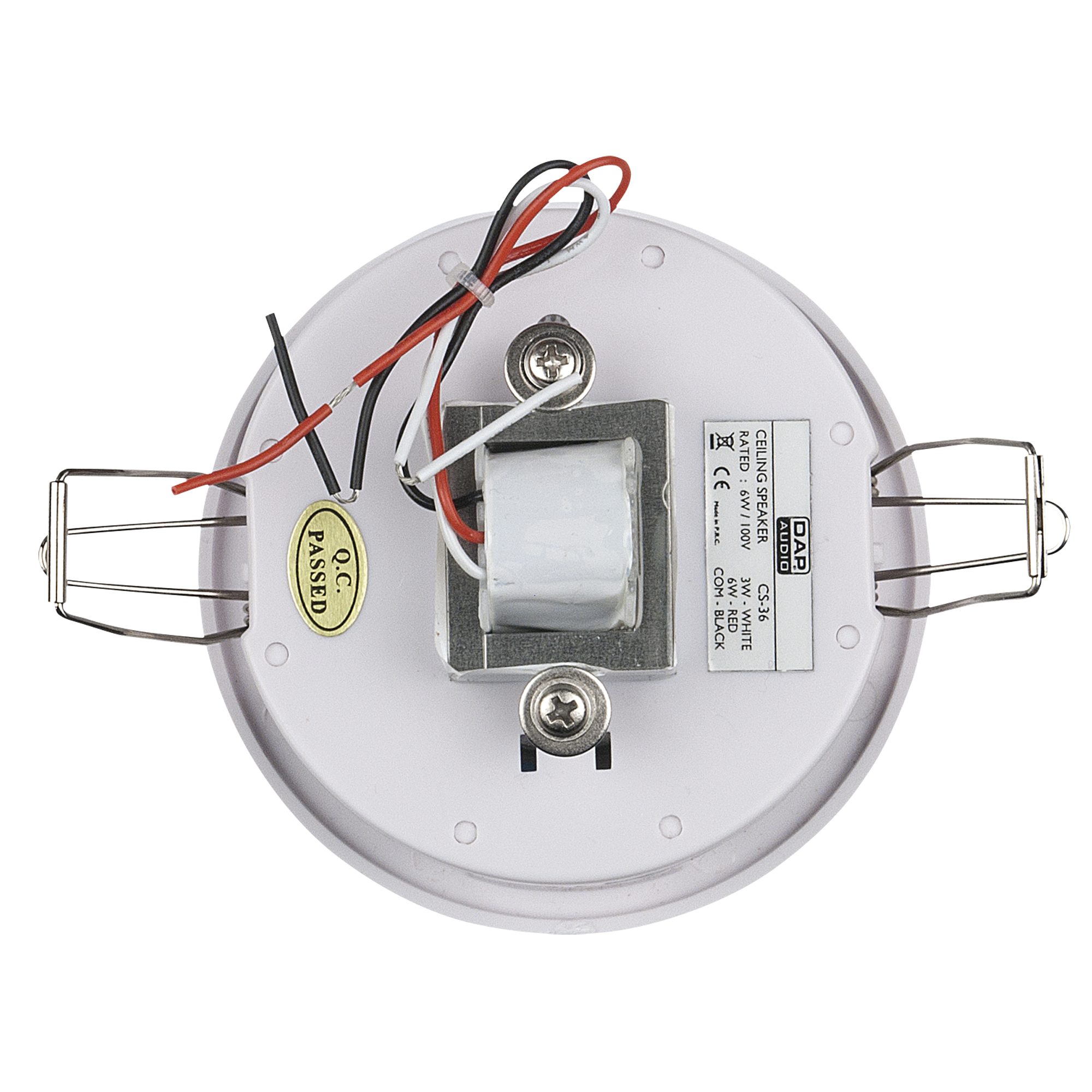

DAP CS-36 is a 3" passive ceiling speaker designed for 100 V line audio installations. This 6 W white in-ceiling speaker features a discreet metal grille. The volume can be adjusted to match the level of other components in the system, through the multiple power taps of the transformer.

This simple speaker effectively serves its purpose, providing ambient music in a discreet and unobtrusive manner. Due to its metal housing and protection against the ingress of solid bodies with a diameter greater than 1 mm (IP40), it represents a robust and reliable solution for numerous indoor applications.

  • Power handling (100 V): 3 W / 6 W
  • Connections: bare wire ends
  • Coaxial system
  • Sensitivity (1 W / 1 m): 87 dB
  • Frequency response: 120 Hz – 20,000 Hz
  • Woofer diameter: 3"
  • Horizontal dispersion: 140°
  • Dimensions:
    • Height: 80 mm
    • Width: 103 mm
    • Length: 103 mm
  • Weight: 0.4 kg
  • Housing: ABS
  • Mounting diameter: Ø 95 mm
  • Colour: white

Product code: D6574

Specifications:
EN54 / EN60849 certificate: no
Power at 100V: 6 / 3 W
IP protection code: IP40
