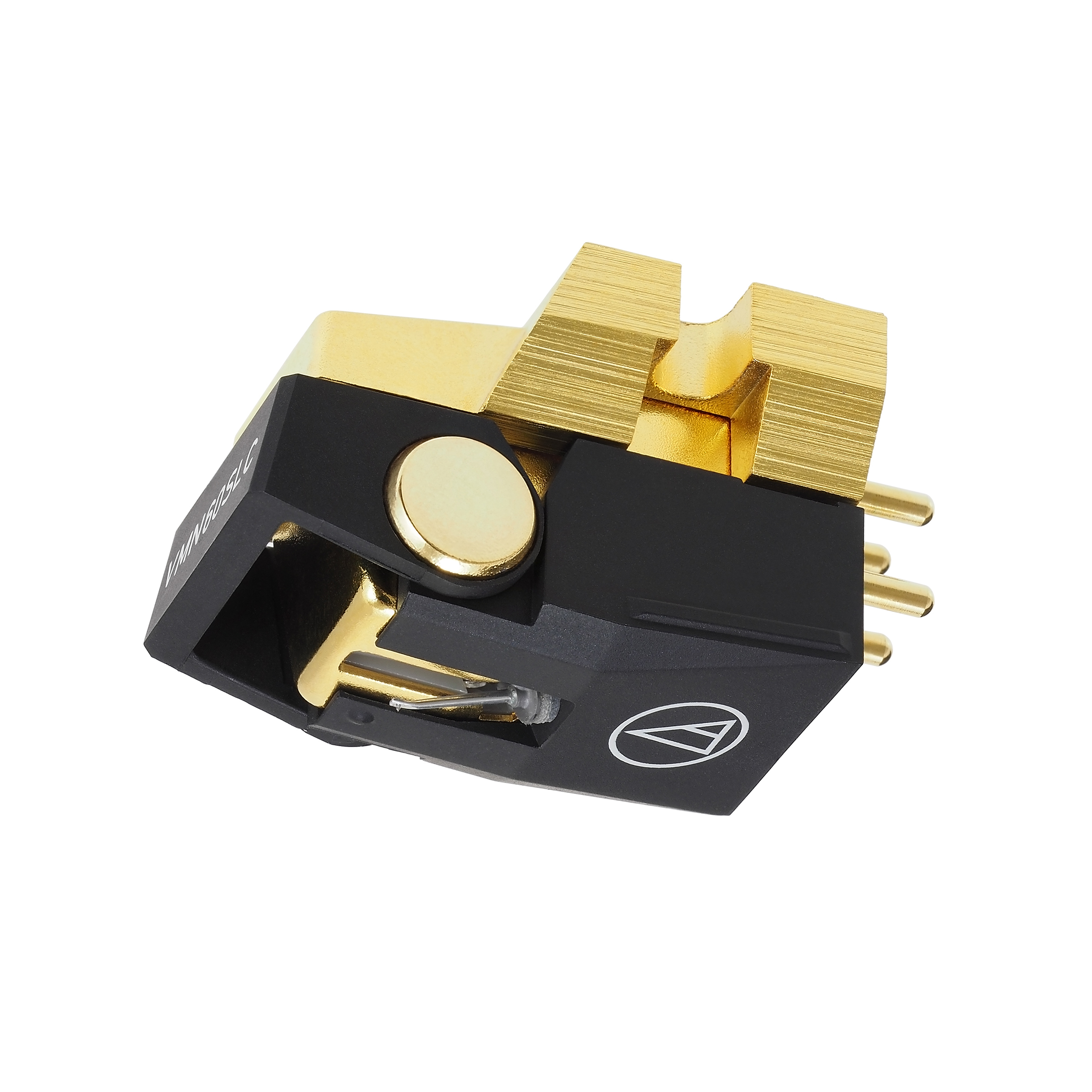

Audio-Technica VM-760 SLC


Replacement cartridge for turntables

  • vârful seriei VM
  • beneficiază de magneți duali poziționați astfel încât să corespundă cu canalele left/right
  • ac special line contact de 1.5 x 0.28 mil
Audio-Technica
58662
Currently unavailable. Request details
Central warehouse: 0
Add to cart
also deliverable via  Deliverable via parcel locker
3038 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

Audio-Technica VM-760 SLC - replacement cartridge for turntables, being the flagship of the VM series, features dual magnets positioned to correspond with the left/right channels of a stereo recording, ensuring precise channel separation and extended frequency response. The 1.5 x 0.28 mil special line contact stylus is lightweight, reduces abrasion, and provides low tracking distortion along with high accuracy sound reproduction rich in frequencies.

Features:

  • VM cartridge with dual magnets and special line contact stylus
  • Shielded aluminium cantilever
  • Paratoroidal coils
  • Central shielding between left and right channels to reduce crosstalk
  • Aluminium alloy housing reduces vibration and adds natural shielding


Technical specifications:

  • Frequency response: 20-30,000 Hz
  • Channel separation: 30 dB (1 kHz)
  • Vertical tracking force: 1.8-2.2 g (2.0 g standard)
  • Stylus construction: Nude rectangular shank
  • Recommended load impedance: 47,000 ohms
  • Output: 4.0 (mV at 1 kHz, 5 cm/sec)
  • Channel balance: 1.0 dB (1 kHz)

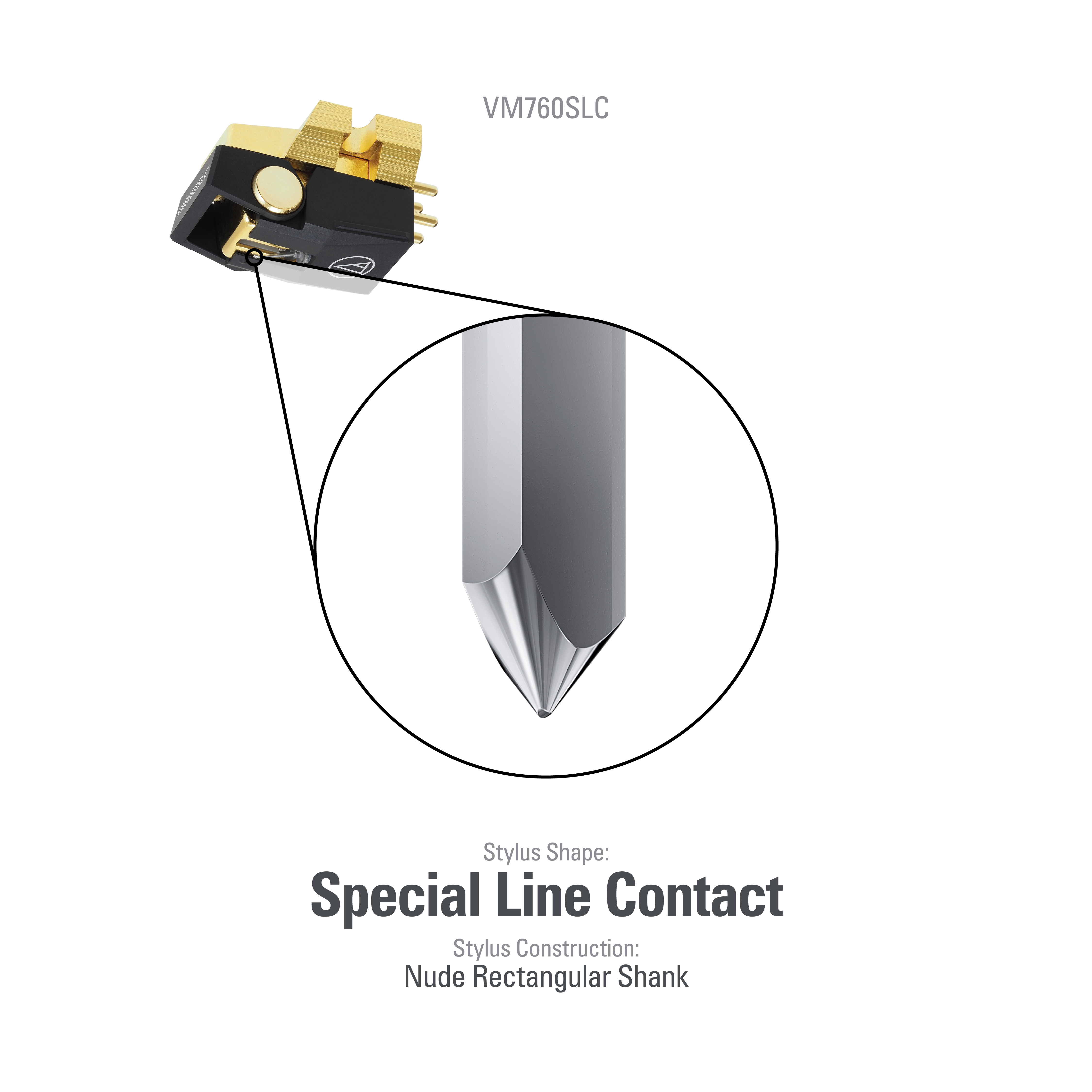

  • Stylus shape: 1.5 x 0.28 mil special line contact
  • Cantilever: shielded aluminium tube
  • Mount: half-inch
  • Replacement stylus: VMN60SLC
  • Coil impedance: 2,700 ohms (1 kHz)
  • DC resistance: 800 ohms
  • Loading capacitance: 100-200 pF
  • Coil inductance: 460 mH (1 kHz)
  • Vertical tracking angle: 23°
  • Dimensions (WxDxH): 17.0 x 28.2 x 17.3 mm
  • Weight: 8.0 g
  • Included accessories: 4 cartridge installation screws (5 mm x 2, 10 mm x 2), 2 washers, 2 nuts, non-magnetic screwdriver, brush

Product code: VM760SLC

Unit of sale: piece
