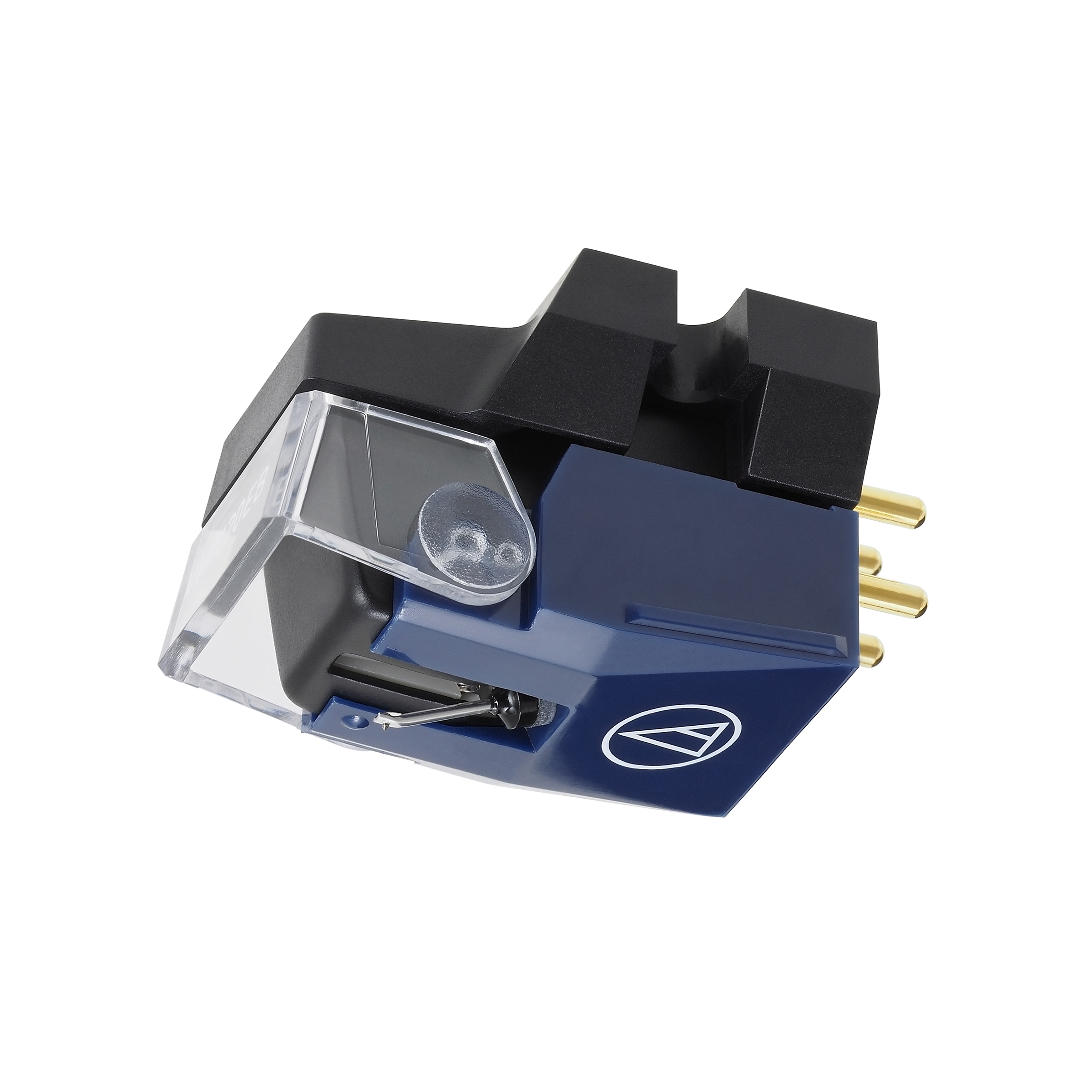

Audio-Technica VM-520 EB


Replacement cartridge for turntables

  • dual magnet VM cartridge with 0.3 x 0.7 mil elliptical stylus for precise audio reproduction.
  • aluminium cantilever and paratoroidal coils for enhanced sound quality.
  • central shielding reduces crosstalk between channels.
  • recommended load impedance of 47,000 ohms for optimal performance.
  • includes installation screws, washers, and nuts for easy setup.
Audio-Technica
10426
Currently unavailable. Request details
Central warehouse: 0
Add to cart
also deliverable via  Deliverable via parcel locker
540 points of loyalty
Shipping 13.00 €
Warranty 24 months
Returns 14 days

Audio-Technica VM-520 EB - replacement cartridge for turntables, part of the 500 series of the VM line. It features dual magnets positioned to correspond with the left/right channels of a stereo recording, ensuring precise channel separation and extended frequency response. The 0.3 x 0.7 mil bonded elliptical stylus accurately reproduces recordings and significantly reduces record wear.

Features:

  • VM cartridge with dual magnets and 0.3 x 0.7 mil elliptical stylus
  • Aluminium cantilever
  • Paratoroidal coils
  • Central shielding between left and right channels to reduce crosstalk
  • Durable polymer housing with reduced resonance

Technical specifications:

  • Frequency response: 20-23,000 Hz
  • Channel separation: 27 dB (1 kHz)
  • Vertical tracking force: 1.8-2.2 g (2.0 g standard)
  • Stylus construction: Bonded round shank
  • Recommended load impedance: 47,000 ohms
  • Output: 4.5 (mV at 1 kHz, 5 cm/sec)
  • Channel balance: 1.5 dB (1 kHz)

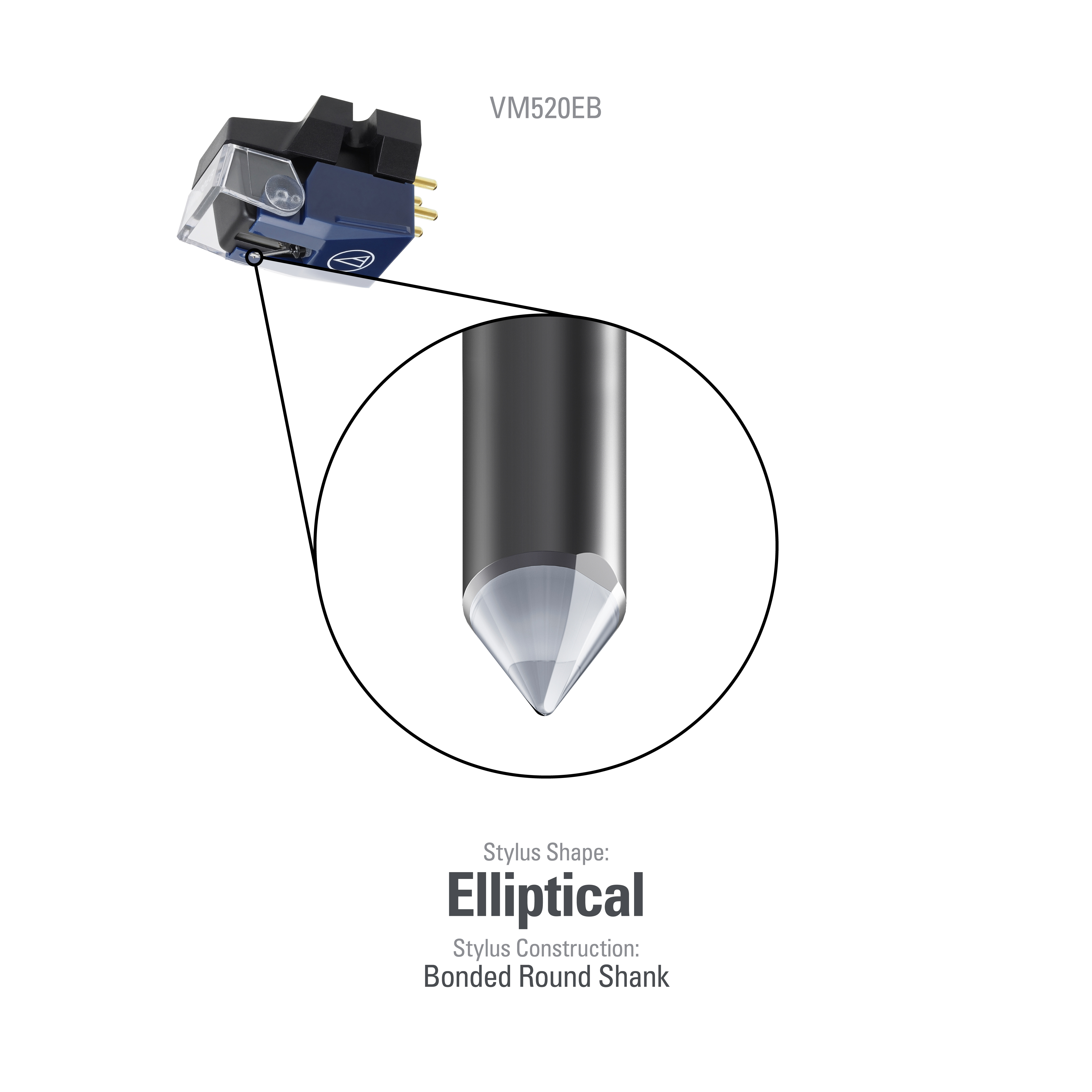

  • Stylus shape: 0.3 x 0.7 mil elliptical
  • Cantilever: aluminium tube
  • Mount: half-inch
  • Replacement stylus: VMN20EB
  • Coil impedance: 2,700 ohms (1 kHz)
  • DC resistance: 800 ohms
  • Load capacitance: 100-200 pF
  • Coil inductance: 460 mH (1 kHz)
  • Vertical tracking angle: 23°
  • Dimensions (WxDxH): 17.0 x 28.2 x 17.3 mm
  • Weight: 6.4 g
  • Included accessories: 4 cartridge installation screws (5 mm x 2, 10 mm x 2), 2 washers, 2 nuts

Product code: QN-VM520EB

Unit of sale: piece
