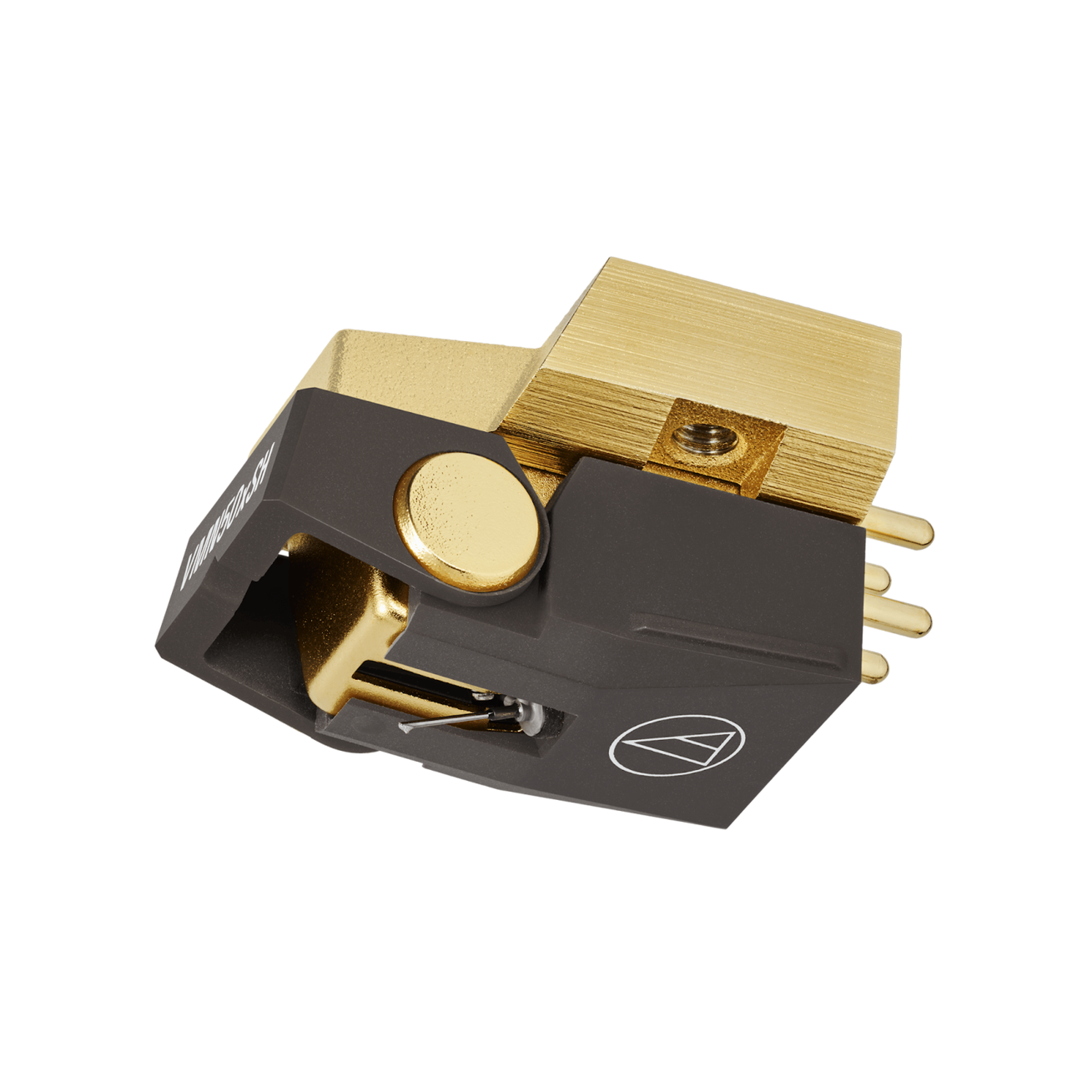

Audio-Technica AT-VM750xSH - Pickup cartridge with dual moving magnets, nude Shibata stylus and boron cantilever, designed for a high-resolution, balanced and dynamic sound experience. The AT-VM750xSH is part of the premium range of the VMx series, dedicated to audiophiles seeking a balance between fidelity, expressiveness and top-notch construction.
Recommended for audiophiles, high-end turntables, detailed playback of stereo vinyl, and complex music genres (jazz, progressive rock, classical, high-quality electronic). Ideal for those who desire a rich reproduction of harmonics and precise stereo separation.
Main features:
Pickup cartridge for audiophiles, high-end turntables, detailed playback of stereo vinyl

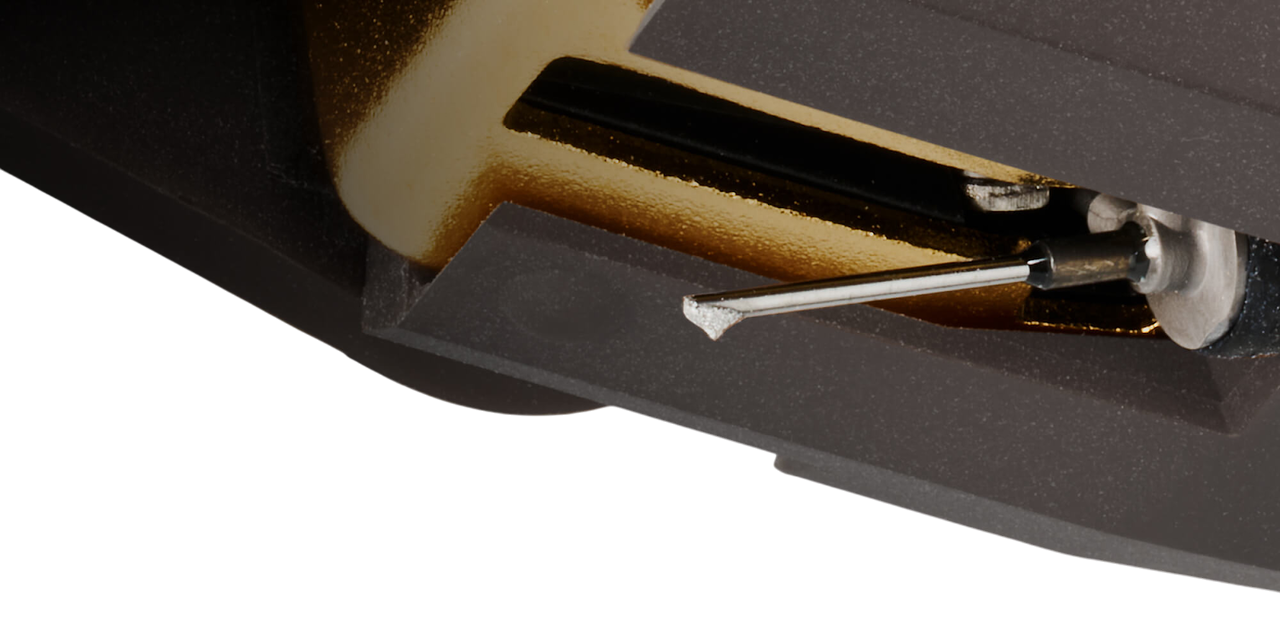

Nude Shibata stylus – excellent for fine details and frequency extension
Solid boron cantilever – fast response, excellent clarity in dynamic passages
Output voltage: 3.7 mV
Channel separation: 26 dB at 1 kHz
Extended frequency response: 20 – 27,000 Hz
Rigid die-cast aluminium body – reduces vibrations and distortions
Detachable stylus and compatible with other VM/VMx models for easy customisation
Quick mounting – threaded inserts + stylus protector with V-guidance

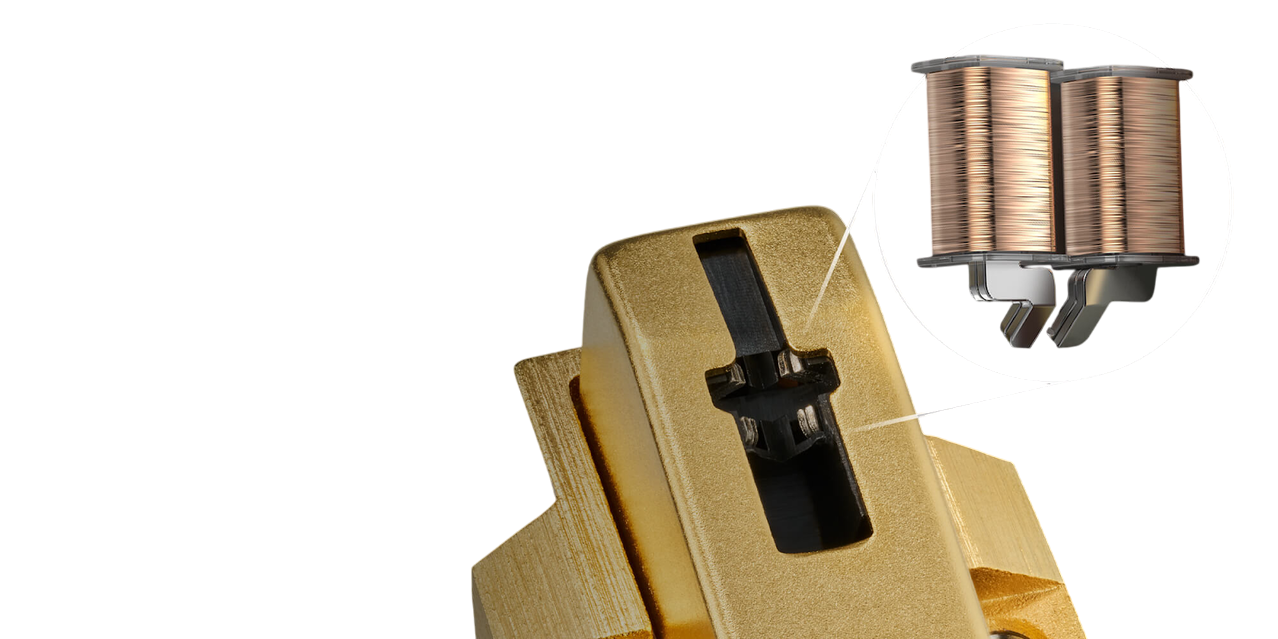

Toroidal coil and PCUHD copper®
Double-layer coils on each channel for increased electromagnetic efficiency
Ultra-pure copper wire (PCUHD) – rich and nuanced audio reproduction
Reduced number of turns – better transient response for clean and realistic sound
Included:
M2.6 screws (lengths: 10 mm × 2, 8 mm × 2, 5 mm × 2)
Washers × 2
Non-magnetic screwdriver
Stylus cleaning brush
Threaded hole: M2.6 × 2
Technical specifications:
Type: Dual moving magnet (VMx)
Stylus: Nude Shibata (2.7 × 0.26 mil)
Boron rod, Ø 0.28 mm
Coil impedance: 3.2 kΩ
Coil inductance: 480 mH
DC resistance: 750 Ω
Recommended load impedance: 47 kΩ
Recommended load capacitance: 150 – 250 pF
Vertical tracking angle: 20°
Static compliance: 20 × 10⁻⁶ cm/dyne
Dynamic compliance: 7 × 10⁻⁶ cm/dyne (100 Hz)
Channel balance: 1.0 dB (1 kHz)
Dimensions: 29 × 18.3 × 17.5 mm
Weight: 8.8 g
Compatible replacement stylus:

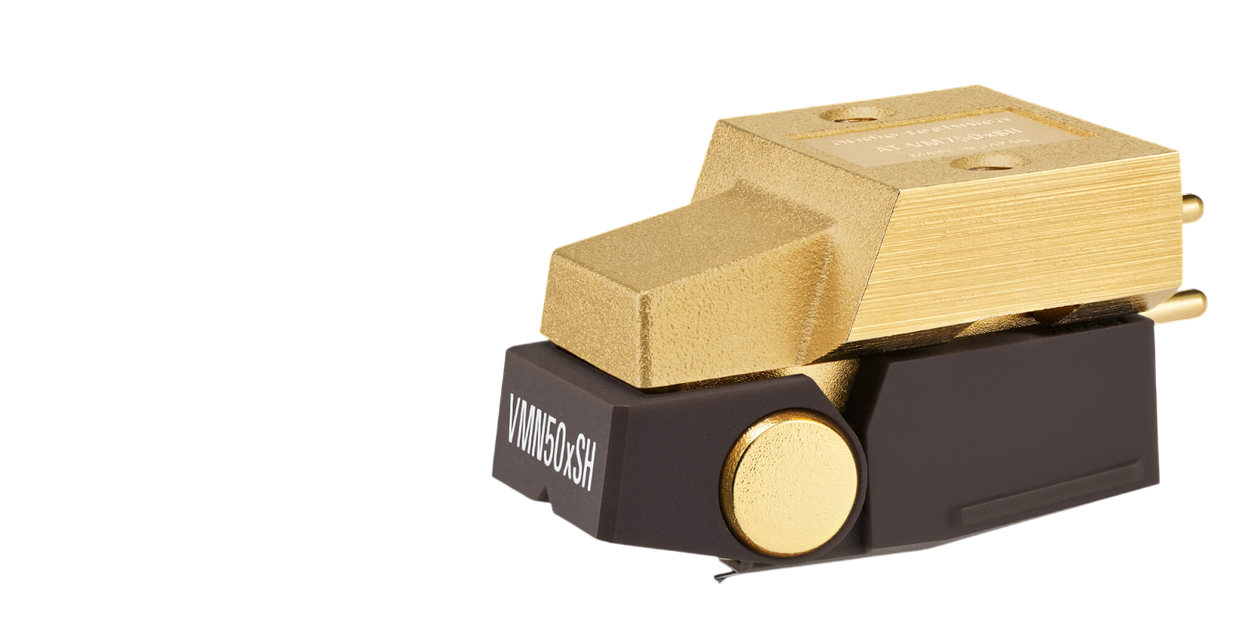

AT-VMN50xSH (includes nude Shibata, solid boron) ✔ Compatible with all styluses from the VMN/VMNx series for customisation:
