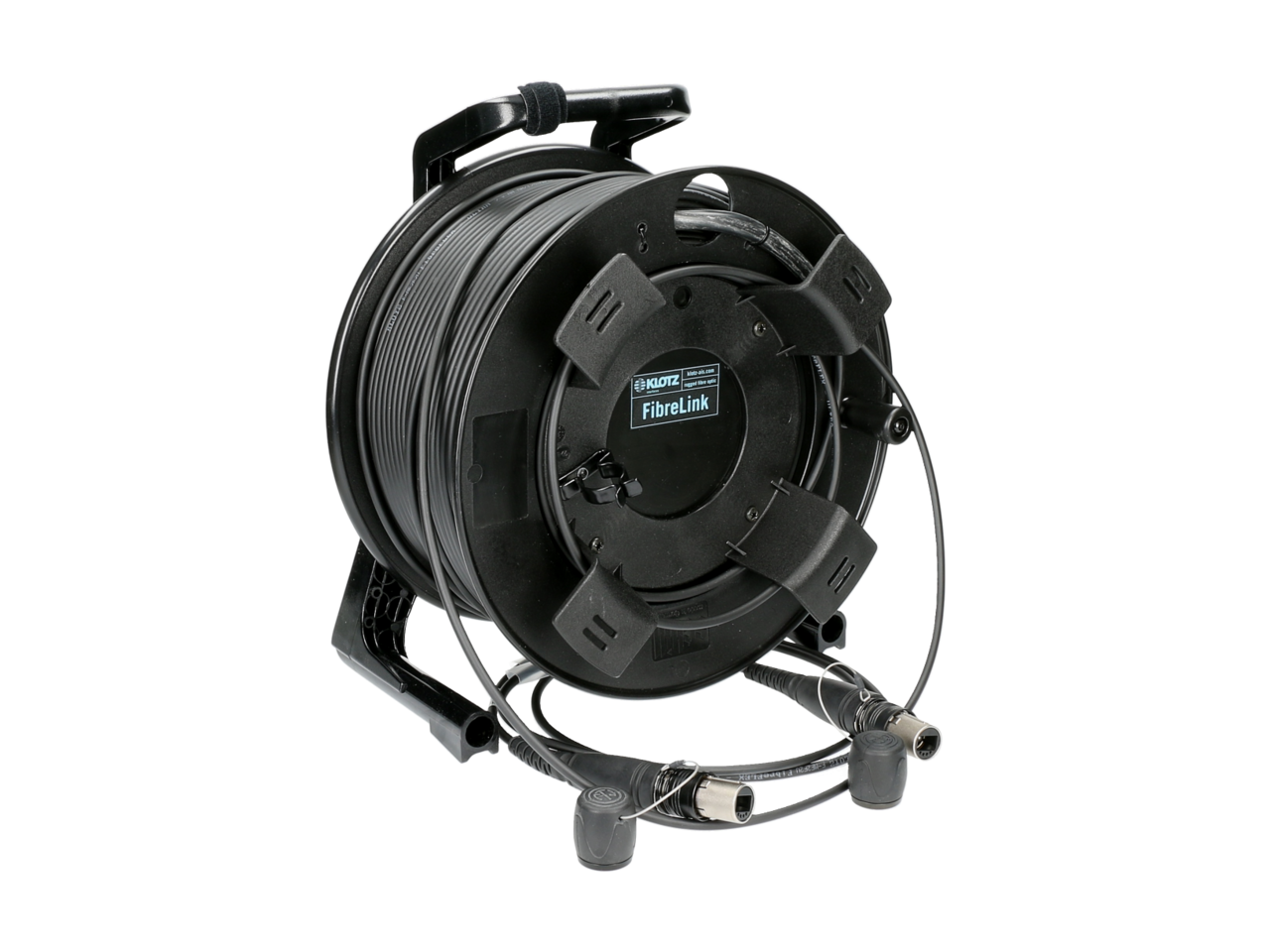

Klotz opticalCON QUAD connecting cable on cable drumFiberLink - multimode OM4 - 400 m - HT481

• opticalCON DUO based on conventional LC duplex technology, secure, dust-protected and robust connection, with dust cap
• FiberFlex ULTRA cable - OM4BI fibers 50/125 µm, 900 µm tight buffered, PUR jacket
• 10 Gbit/s transmission up to 550 m (specification bulk cable)
• very low attenuation
• extremely rugged and highly flexible, suitable for outdoor use, ideal for the most challenging situations
• great mechanical strength, strong resistance to shear pressure, narrow bending ranges possible and low kinking sensitivity, strain relief due to aramid yarns

The standard LC duplex connector is encased in a rugged metal housing. The FO fibres are in physical contact when connected. The automatically closing protective cap with silicone seal provides protection from dirt and water ingress to IP 65 rating. Other features proven in practice include the push-pull lock and extra-strong strain relief. This extra-slim two-strand FO cable (external diameter less than 6 mm) delivers transmission rates of 10 Gbit/s over distances of up to 300 m. Its highly flexible design, featuring 500 μm primary coating and 900 µm tight buffered fibre layers, protects the conductors (2 x 50/125 µm, multimode) from external influences while keeping bending radius to a minimum. The individual optical fibres are protected and separated by an extra thick acrylate layer. Ultra-low attenuation of less than 0.7 dB/km ensures superb signal quality throughout the entire transmission distance.

cable

fiber: multimode OM4

connectors

connector 1: opticalCON ADVANCED DUO cable plug (LC-Duplex), metal shell, IP65, incl. strain relief and push-pull latch lock

connector 2: opticalCON ADVANCED DUO cable plug (LC-Duplex), metal shell, IP65, incl. strain relief and push-pull latch lock

Caracteristici

length	400 m
connectors	opticalCON DUO
fiber category	Multimode OM4
cable drum	HT481
cable color	black
