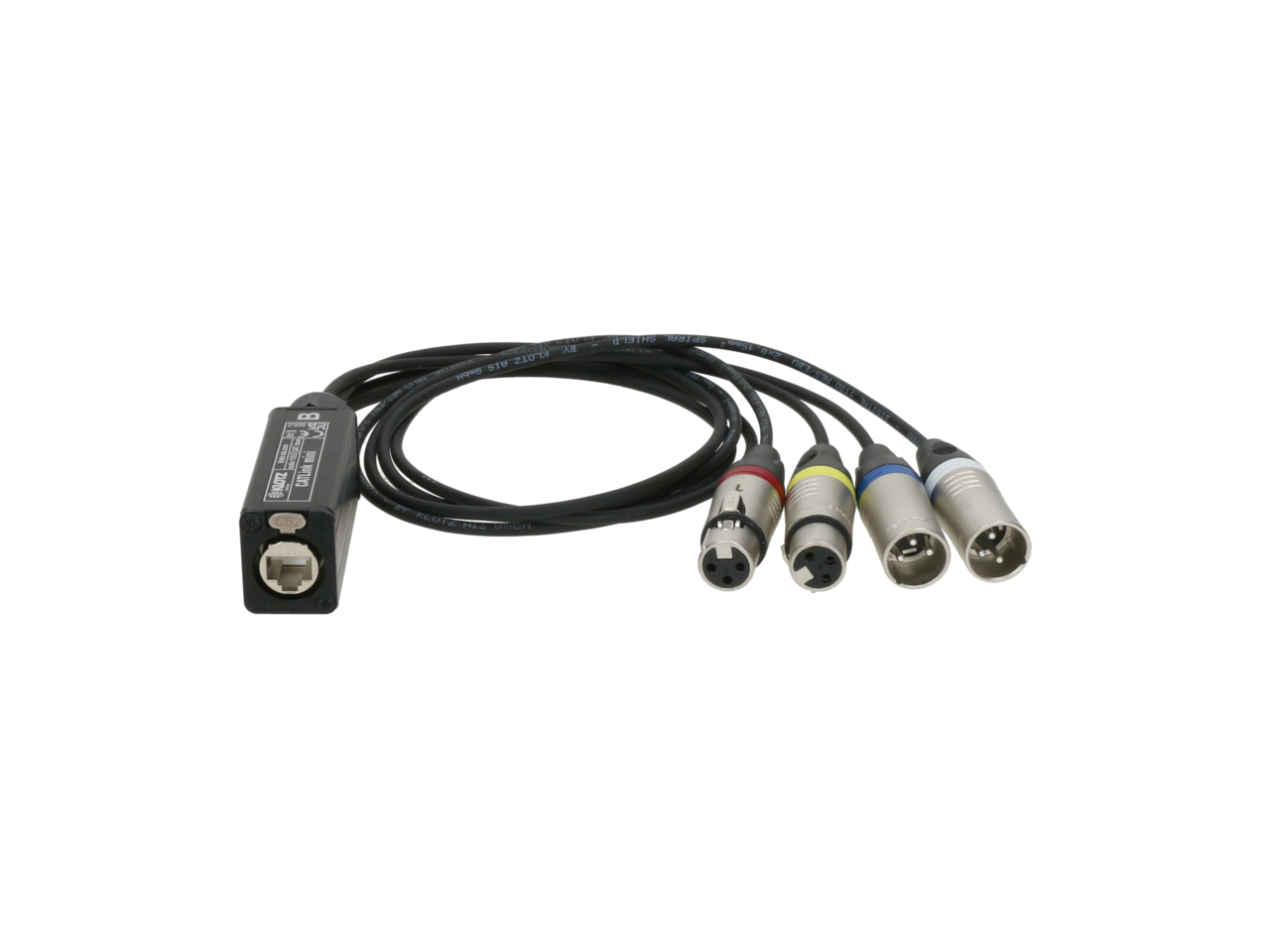

Klotz CATLink MINI 2/2-channel multicore adapteretherCON F - 2/2 x XLR 3p F/M

• CATLink 2/2-channel Mic / Line / AES in/out adapter
• channel 1/2 XLR 3p F and channel 3/4 XLR 3p M
• transmission of 4 audio signals analog (Line, Mic, 48V)
• transmission of 4 AES/EBU audio signals digital (4x stereo / 8x audio)
• ultra-compact and extremely solid aluminium frame
• clear channel labeling with color coding and laser engraving
• flexible cabling over 80 cm long fanout
• for network cables with complete shielding (e.g. RC5EE)

KLOTZ CATLink products are able to transmit four analogue audio signals (mic, line), eight digital audio signals (4x AES/EBU) or four DMX/MIDI signals over distances of up to 100 m with complete stability via a network conductor with overall shield. The CATLink mini Multicore System comprises a compact, rugged aluminium housing with etherCON socket on one side and an 80 cm 4-channel pigtail on the other. KLOTZ’ choice of mic/line/patch cable is a highly flexible digital cable with low external diameter, designed specifically for the CATLink mini series. KLOTZ products feature clear channel labelling, colour-coding and laser-engraved XLR connectors as standard, making it child’s play to distinguish the various channels. The CATlink mini series comprises an array of models with XLR 3p (mic, line, AES/EBU), XLR 5p (DMX) and TRS (line) to cover all connection needs. We recommend using a network conductor with overall shield (KLOTZ RC5EE) as a connection cable to ensure the four separate channels share a common earth.

cable

channels: 4

cable typ: OmniTRANS, digital, 110 Ohm, double shielded

jacket: PVC

connectors

connector 1: 2x etherCON socket

connector 2: 2/2 x XLR 3p F/M, metal shell, nickel, engraved

Caracteristici

connector 1	1x etherCON female
connector 2	2/2 x XLR 3p F/M
cable length	0.8 m
housing	76 x 31 x 25 mm
cable color	black
