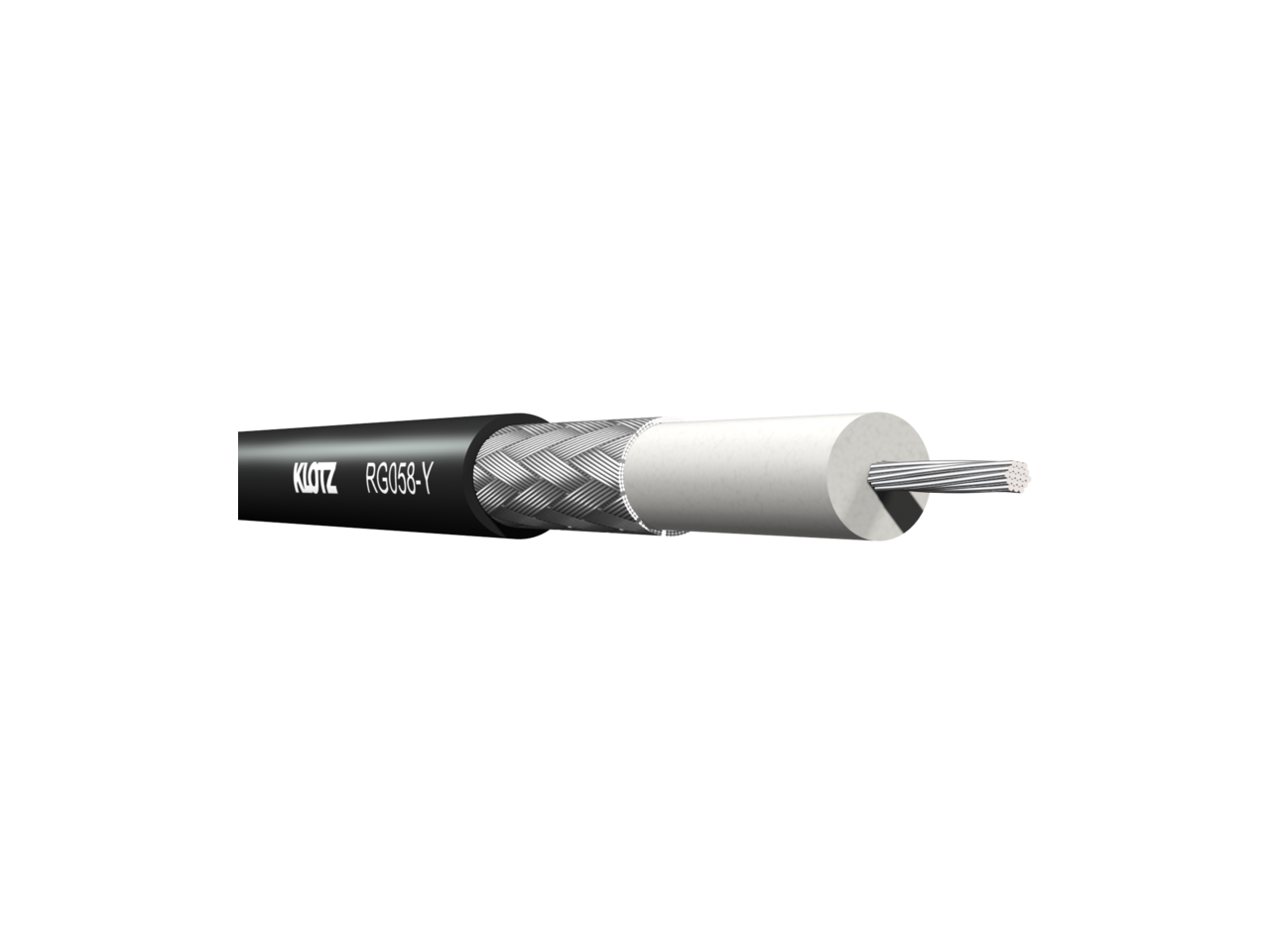

Klotz 50 Ohm - coax cable RG58C/UPVC - Eca - 200 m

• 50 Ohm characteristic impedance
• tinned copper braid shield
• CPR class Eca acc. to EN50575 (IEC 60332)

This 50 Ω coaxial cable transmits high-frequency signals and is the standard cable for connecting receiving antennas of wireless microphones over medium distances. Please observe the technical specifications of your wireless transmission system with respect to maximum transmission distance. The inner conductor comprises a flexible tinned copper wire with polyethylene dielectric medium. The extra-densely woven copper shield provides effective protection against electromagnetic scattering. The cable is available with an outer jacket of FRNC - the latter flame-retardant and halogen-free material is particularly recommended for installations.

design

inner conductor: stranded tinned copper, 19x 0.18 mm

insulation: PE, Ø 2.95 mm

shielding: tinned copper braid, 92% coverage

overall diameter: 5.0 mm

mechanics

min. bending radius: 25 mm

operating temperature: -20°C / +70°C

electric

characteristic impedance: 50 ± 2 Ω

velocity of propagation: 66 %

DC resistance:

outer conductor: 17 Ω/km

nom. attenuation [dB/100m]:

50 MHz: 10.4

100 MHz: 15.0

200 MHz: 21.9

400 MHz: 32.2

800 MHz: 48.1

1000 MHz: 54.8

Caracteristici

ref. type	RG58C/U
outer jacket	PVC
operating temperature	-20°C / +70°C
cable color	black
length	200 m
