Yamaha CBR-10

Passive Speaker

compact two-way passive speaker with bass reflex design.
10" low-frequency driver and 1" high-frequency driver.
frequency response from 50 Hz to 20 kHz, ideal for various applications.
power handling of 700W Peak and 350W RMS, with 8Ω impedance.
maximum sound pressure level of 123 dB SPL.

358³⁷ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

1859 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Yamaha CBR-10 Add to cart: 358³⁷ €

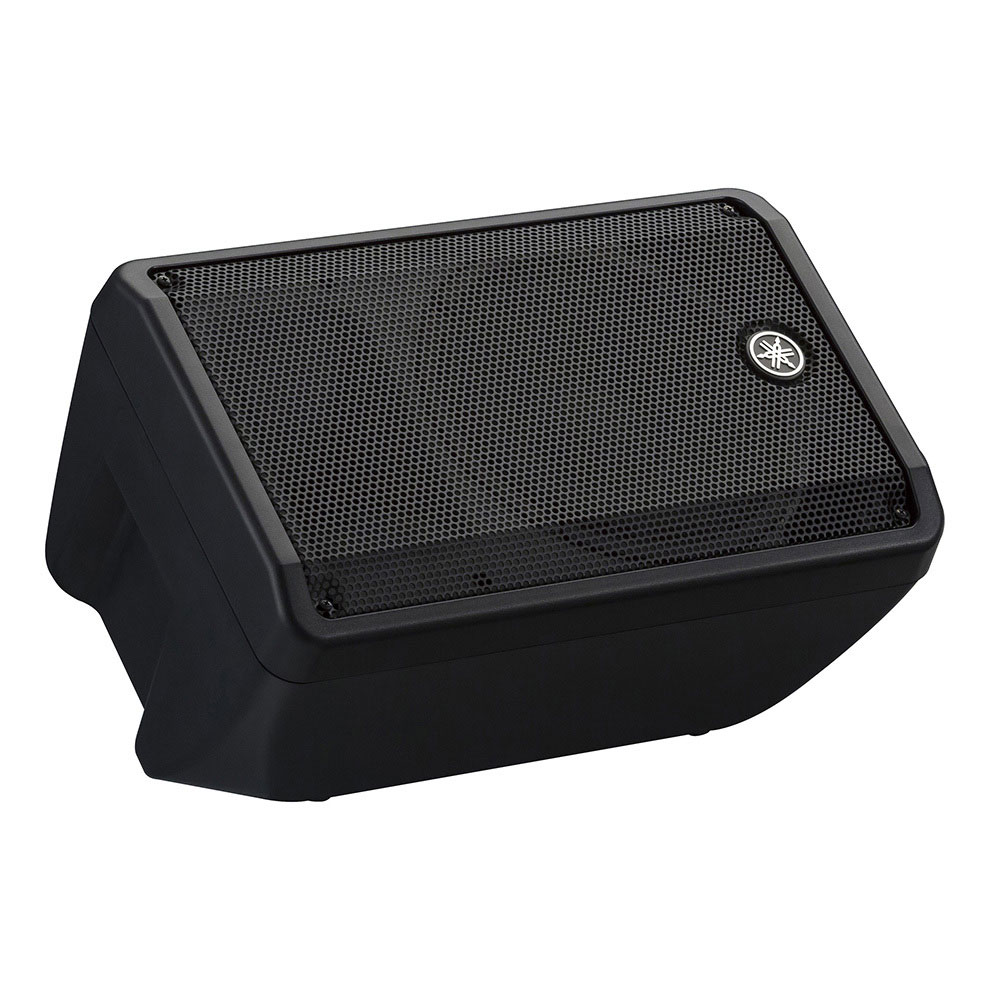

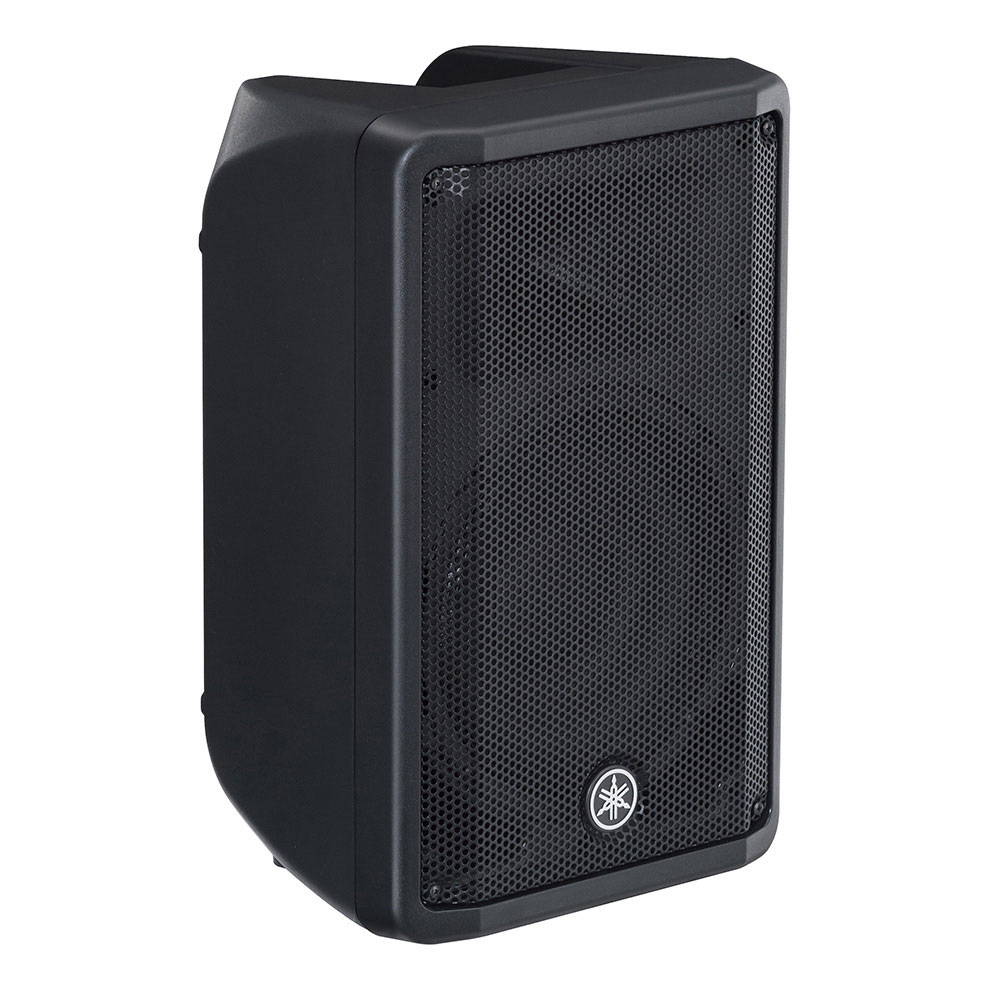

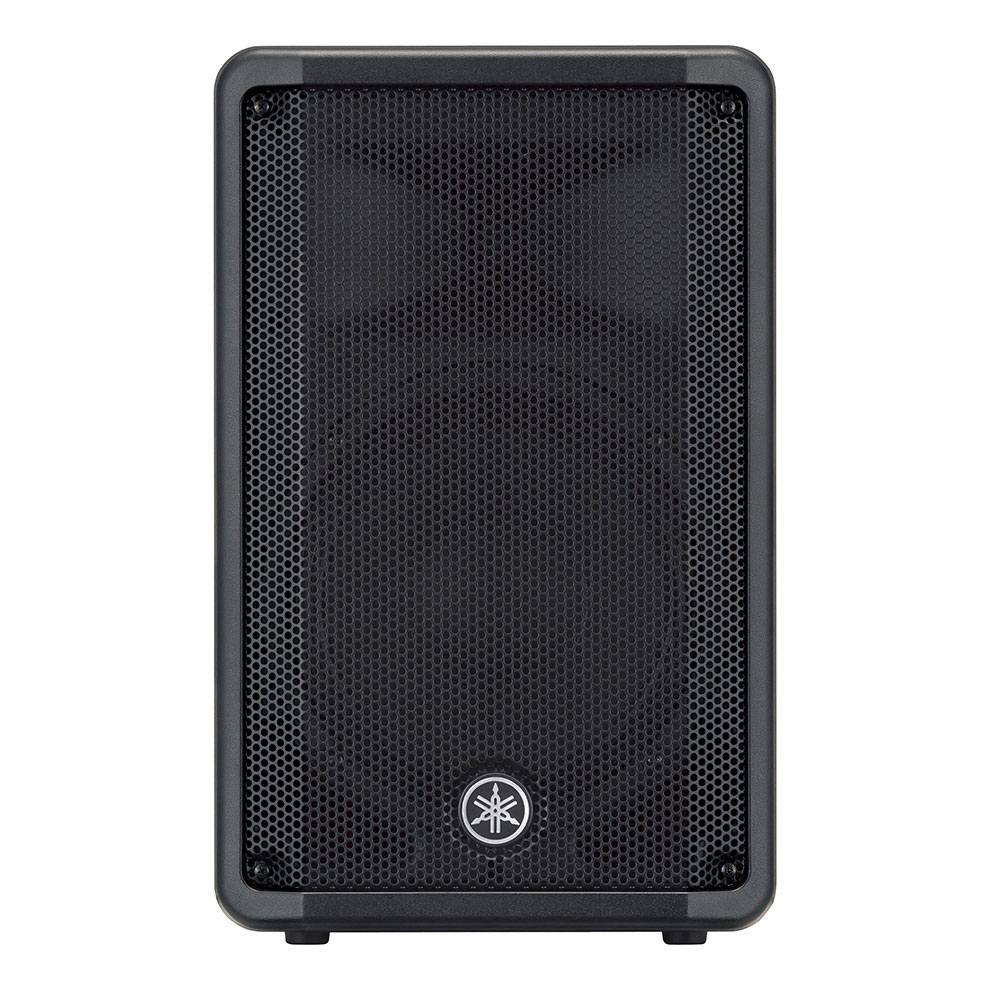

Yamaha CBR-10 - passive speaker with two-way configuration and bass reflex enclosure, is the smallest and most compact in the CBR series, equipped with a 10" low-frequency driver and a 1" high-frequency driver. It is ideal both as a fixed unit or portable, its construction allowing it to be used as a floor monitor.

Type: passive speaker with two-way configuration and bass reflex
Frequency response: 50 Hz - 20 kHz (-10dB)
Low-frequency driver: 10" with 2" voice coil (Ferrite Magnet)
High-frequency driver: 1"
Crossover frequency: 2.8 kHz
Power: 700W Peak / 350W RMS
Impedance: 8Ω
Sensitivity: 94 dB (1W; 1m on axis)
Maximum sound pressure level: 123 dB SPL

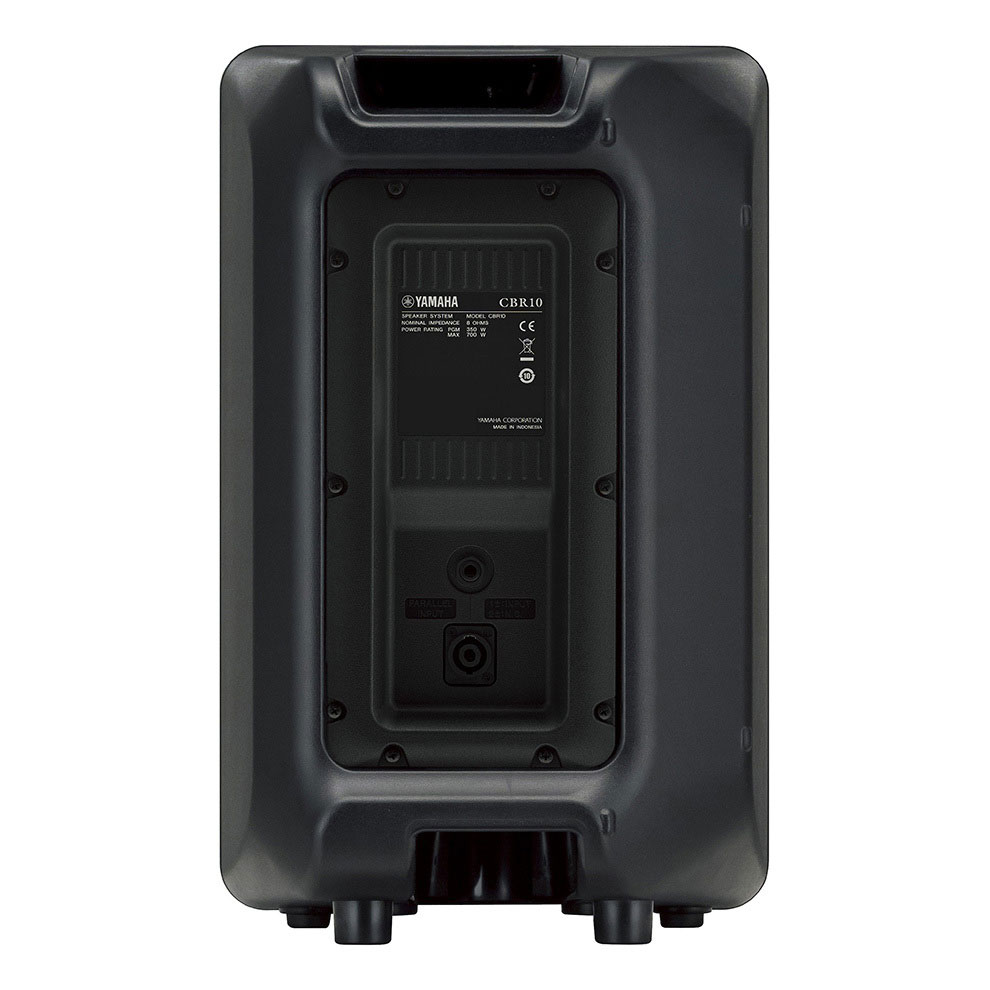

Connectors: 1/4" Phone x 1, speakON NL4MP x 1
Cabinet material: plastic
Finish colour: black
Dimensions (WxHxD): 308 x 493 x 289mm
Weight: 9.4 kg
