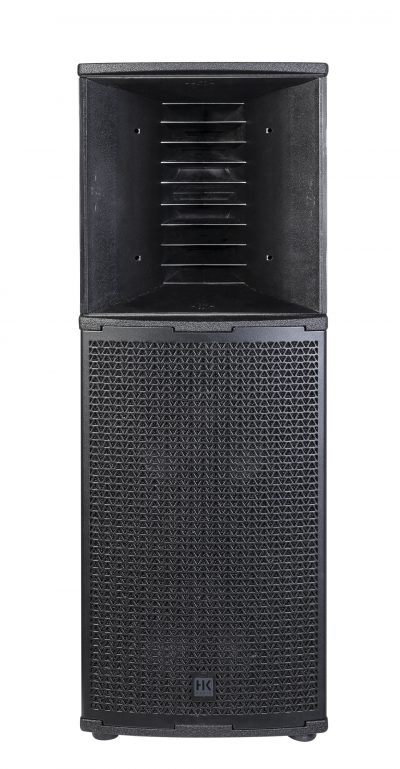

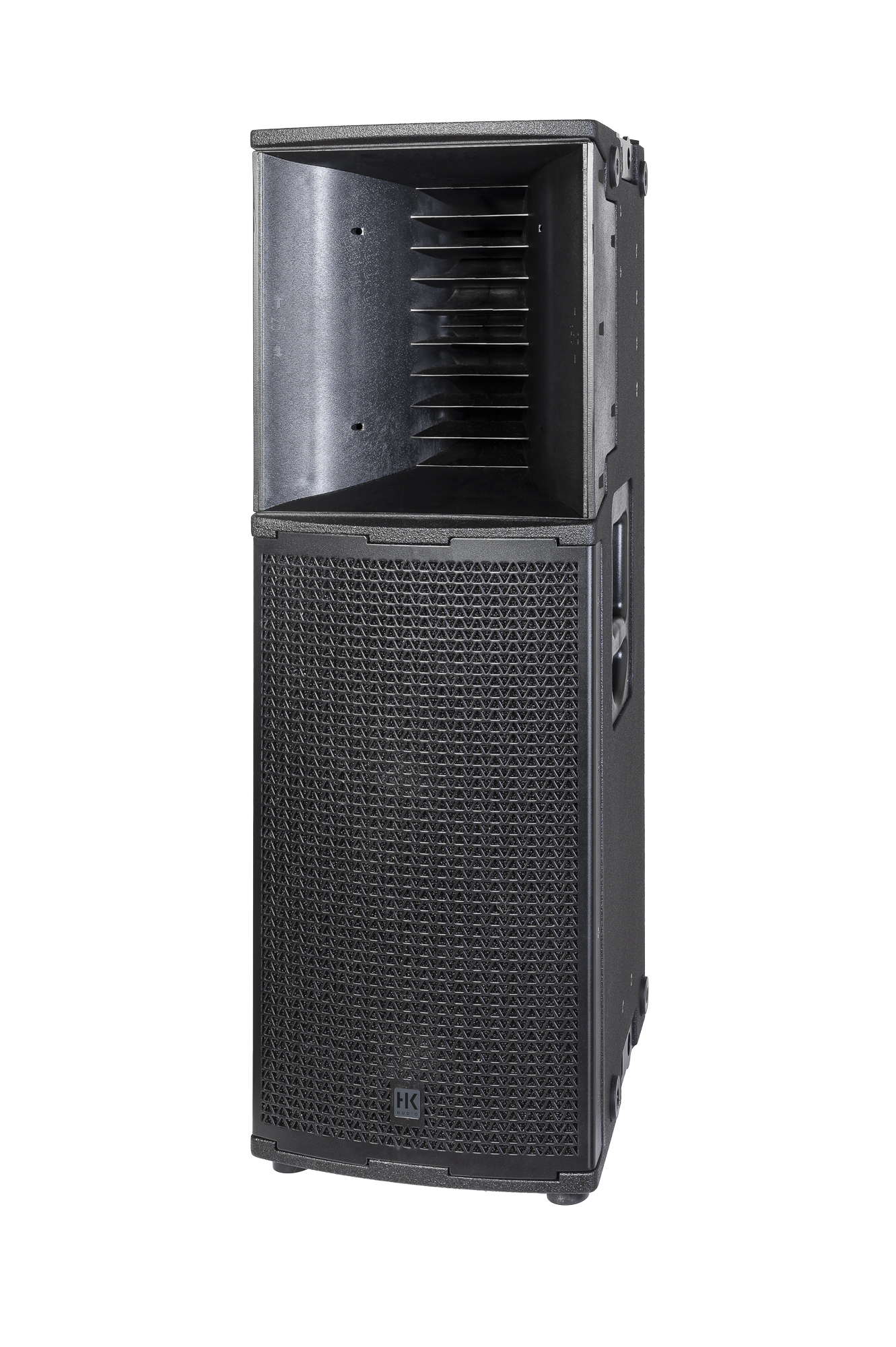

HK Audio CX-210 LT

HK Audio Contour X 210 LT is a professional passive speaker with a long-range point source that meets the highest demands regarding sound quality and sound pressure. It complements the CONTOUR X series with a flexible and exceptionally powerful sound reinforcement tool – as a mid/high unit of a main PA, front fill, side fill, or outfill.

The large horn with MCT (Multicell Transformer), which can be rotated for cluster operation, offers very precise dispersion and uniform, defined coverage of the sound area. The high-quality passive system with a 24 dB/oct crossover protects the power amplifier channels and allows use even without an appropriate DSP filter. The high-resistance birch multiplex with a durable PU coating makes the housing robust and suitable for daily touring use.

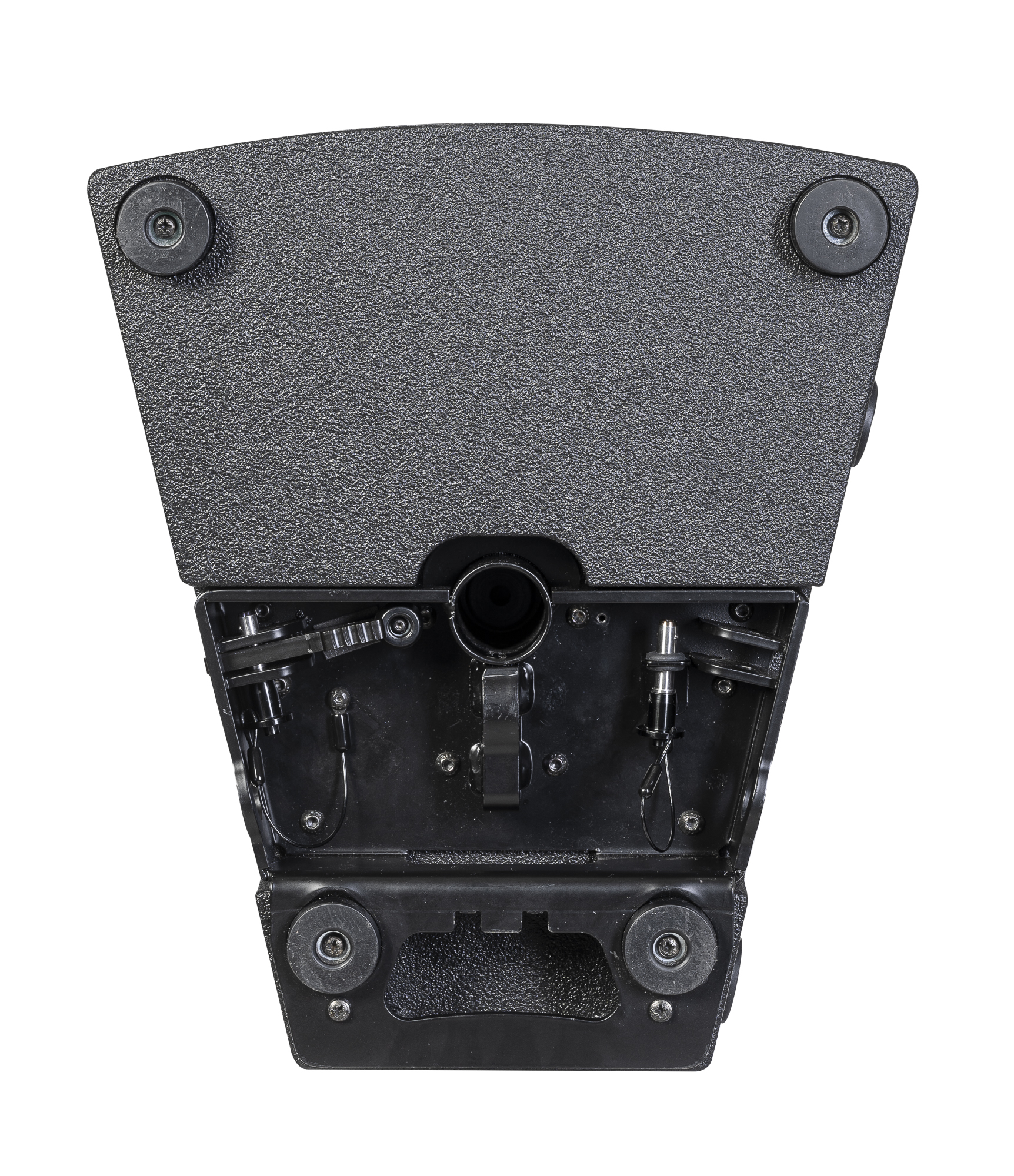

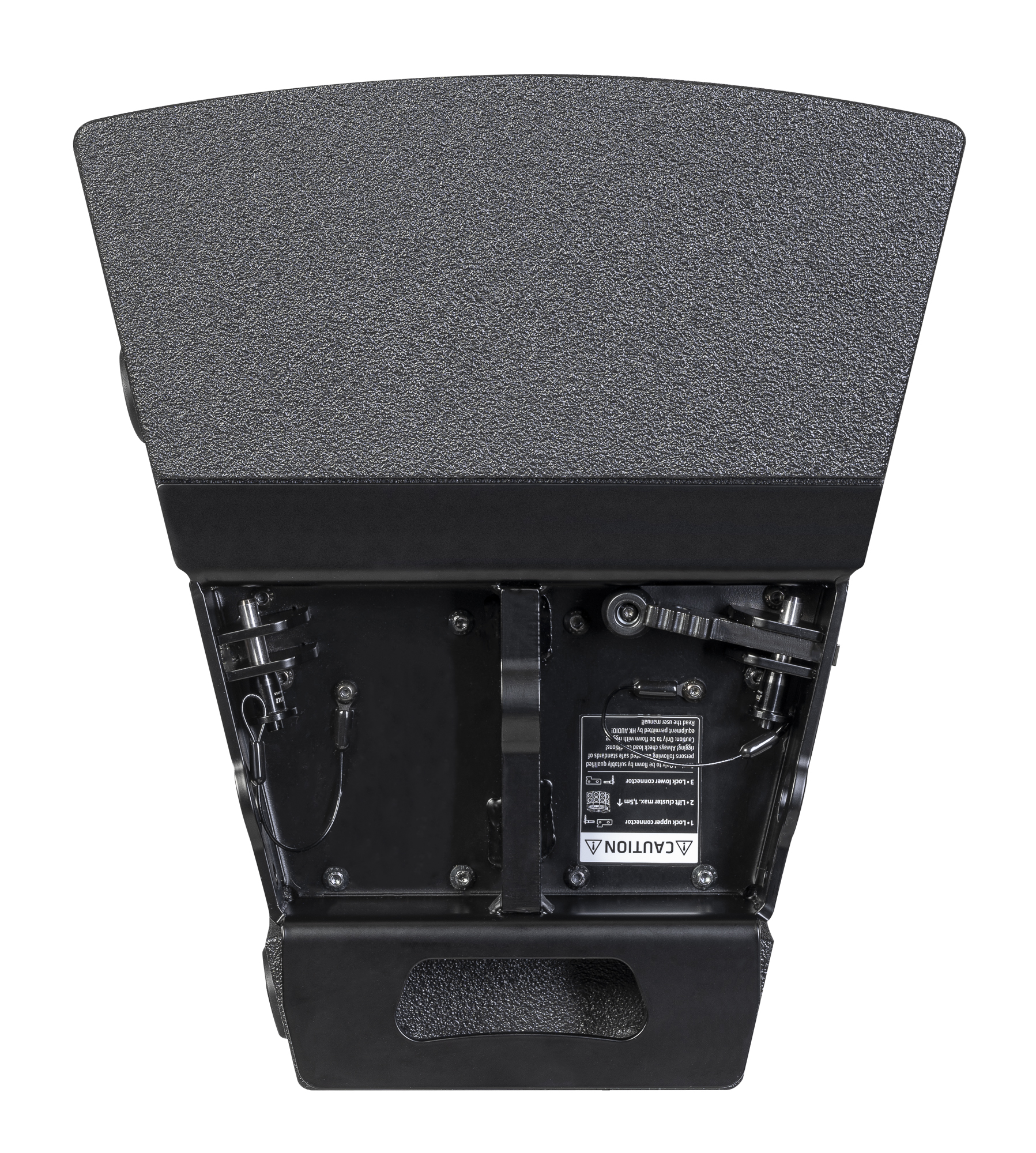

The integrated ICF (Integrated Cluster and Flyware) mechanism allows for the cluster setup in the shortest time – without additional clusters and hardware. With the optional tilt angle CRX-210, the CX 201 LT can be suspended alone or with up to four CONTOUR X 210 LT in a horizontal matrix at any angle.

• passive mid/high frequency unit
• bass-reflex type housing
• manageable power:
  • RMS: 800W
  • program: 1600W
  • peak: 3200W
• impedance: 8 Ohms
• maximum sound pressure level:
  • average (measured): 128 dB
  • peak (measured): 132 dB
  • peak (calculated): 138 dB
• sensitivity 1W/1m: 99 dB
• crossover frequency: 1.1 kHz
• frequency response:
  •  -6 dB: 75 Hz - 18 kHz
  • -10 dB: 68 Hz - 19 kHz
• coverage: 60° x 25°
• components:
  • 2 x 10" SIKA speakers with neodymium magnets and 2.5" voice coils
  • 1 x 1.4" B&C compression driver with neodymium magnet and 2.5" voice coil
  • crossover:
    • High pass: 18dB/Oct.,
    • Low pass: 24 dB/Oct.
  • rotatable MCT horn

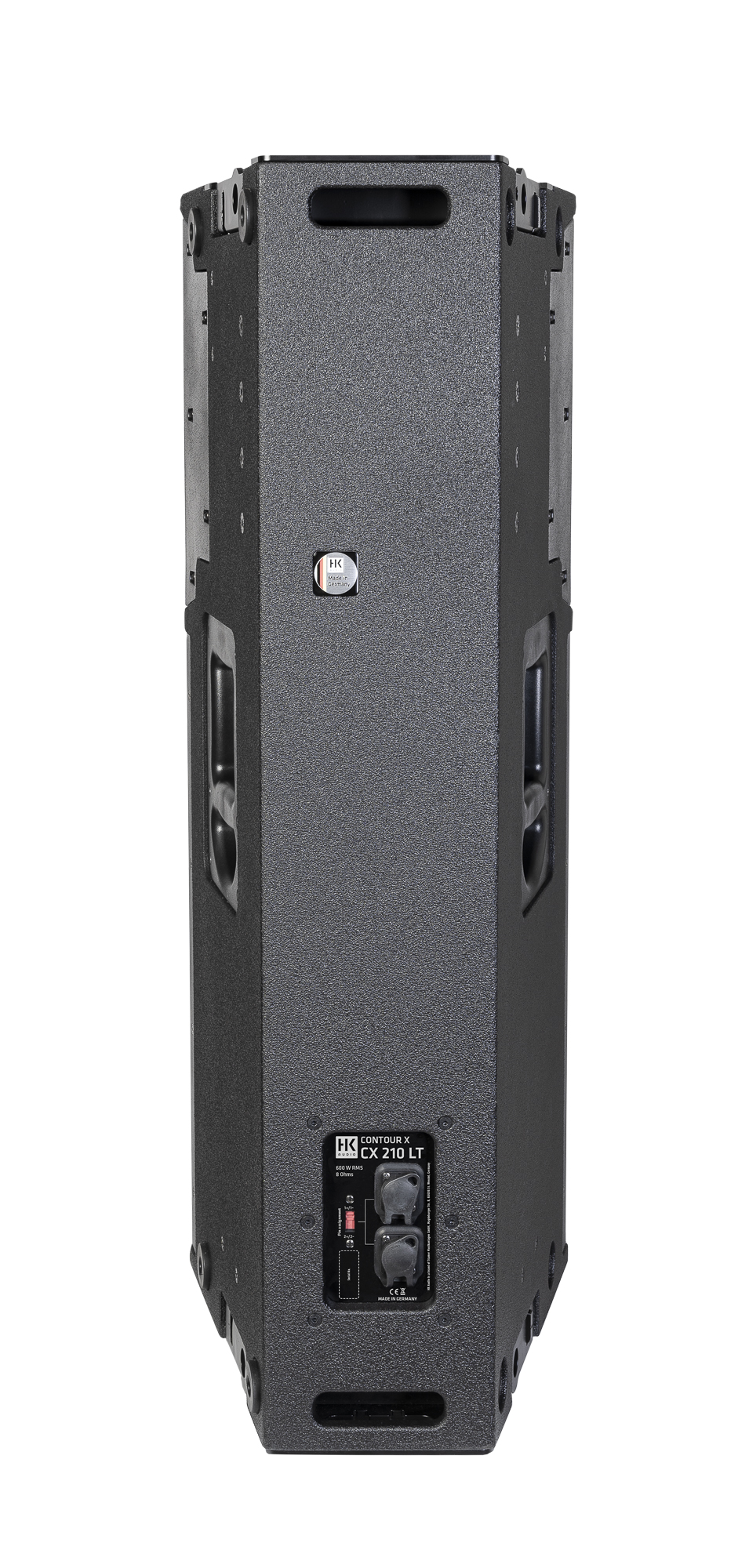

• connections:
  • 1x NL4 Speakon input
  • 1x NL4 Speakon output
• presets available for Powersoft and Lab.Gruppen amplifiers
• dimensions: 33.5 x 96 x 39 cm
• weight: 38.5 kg
