Yamaha DHR-15

Active speaker

2-way, bass reflex design for enhanced sound quality.
frequency response from 44 Hz to 20 kHz for versatile audio performance.
max SPL of 131 dB, ideal for live performances.
class D amplification with 465 W RMS power.
durable plywood cabinet with side handles for easy transport.

800⁶³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

4152 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Yamaha DHR-15 Add to cart: 800⁶³ €

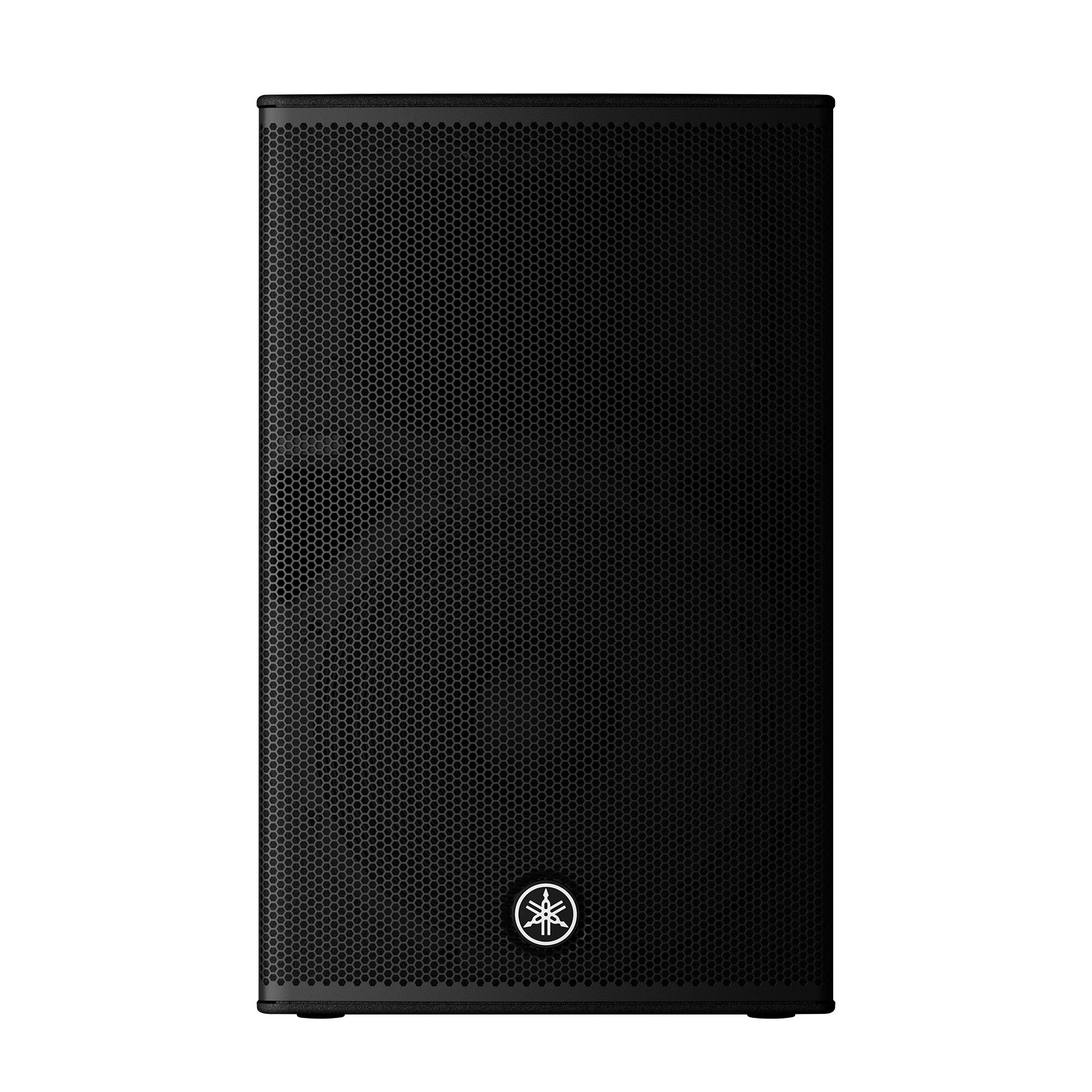

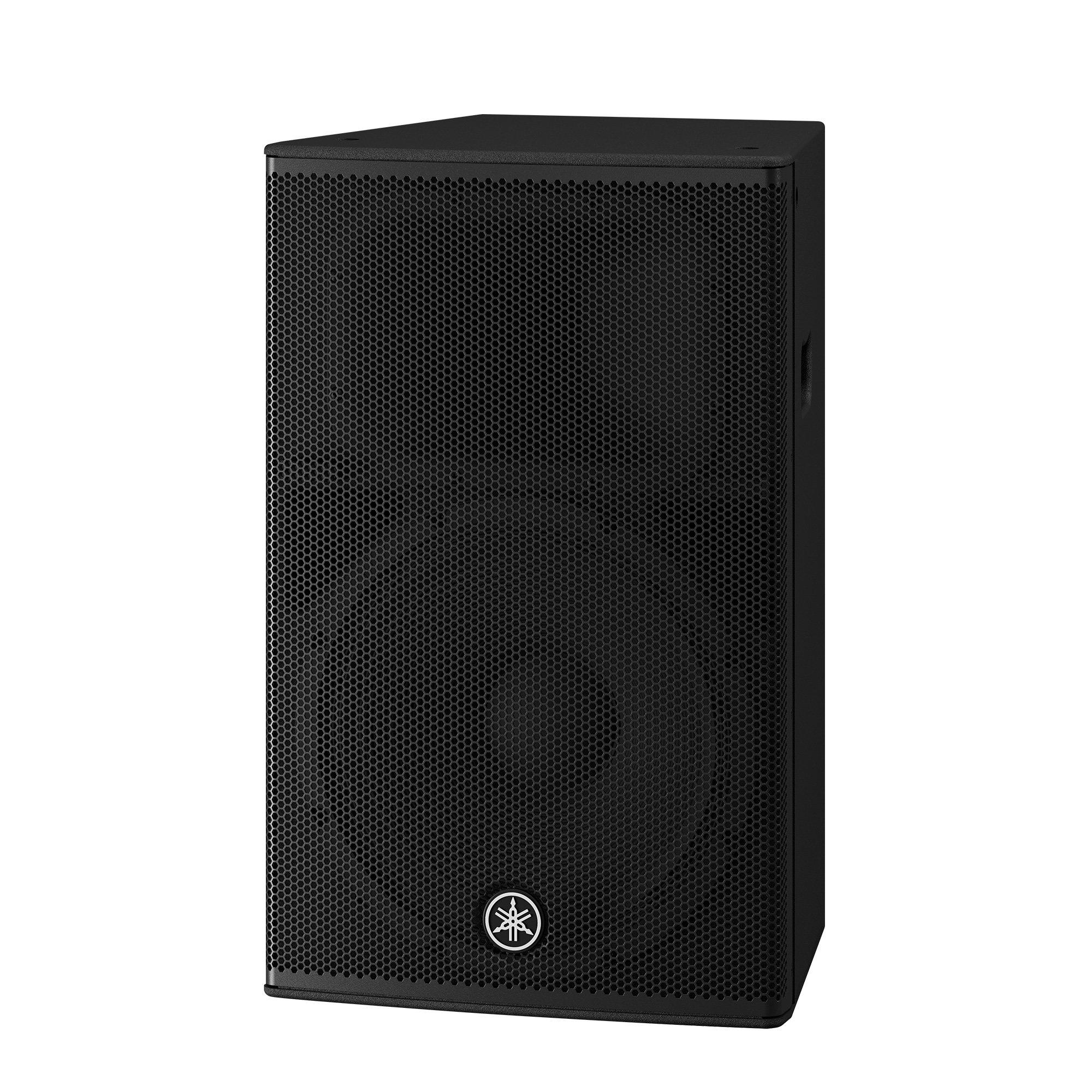

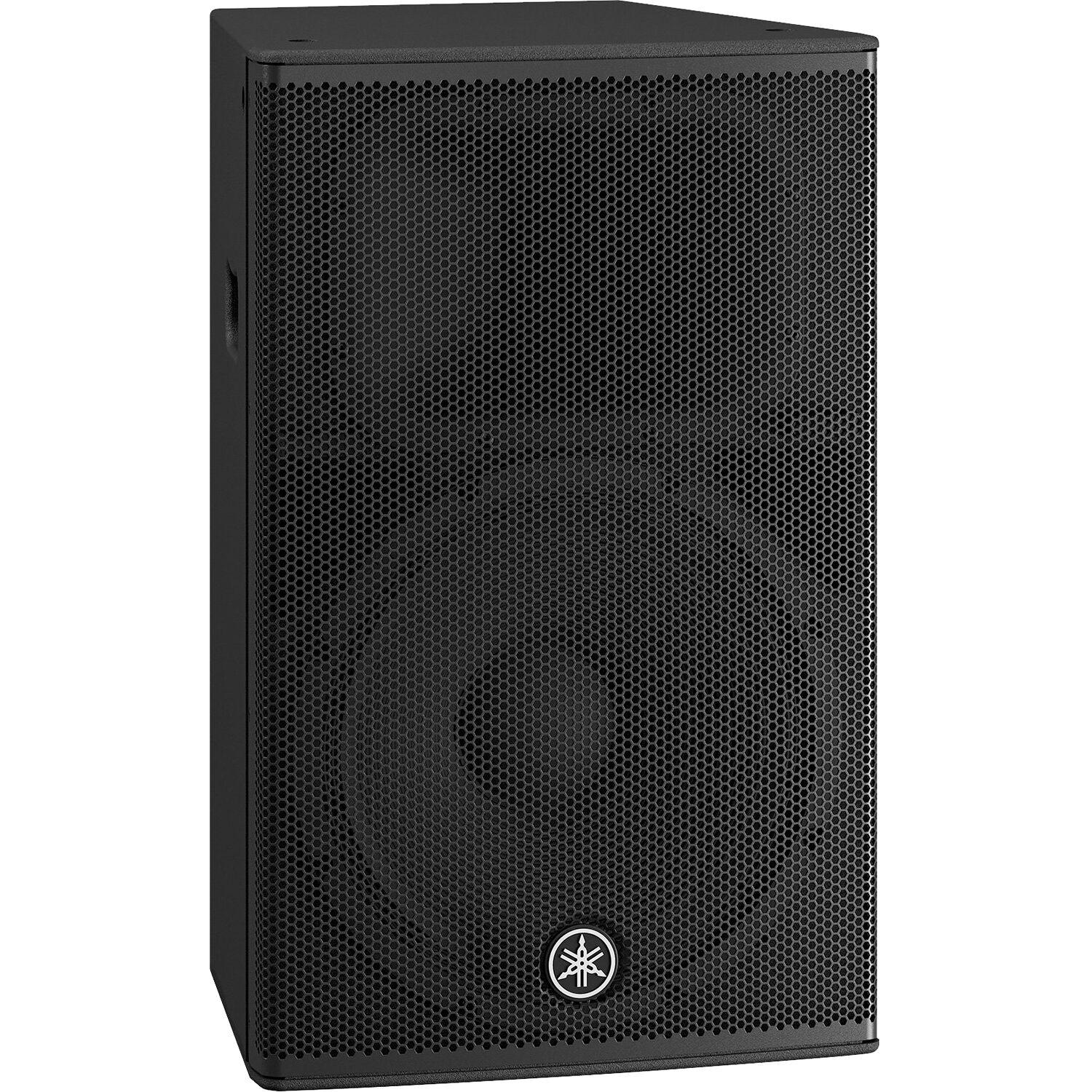

Yamaha DHR-15 - Active speaker with a robust, portable design made from durable plywood. It is the ideal choice for FOH applications and medium-sized events.

2-way, bass reflex design
Frequency response: 44 Hz - 20 kHz
Coverage: H90° x V60°
Crossover: 1.8 kHz FIR-X tuning (linear phase FIR filter)
Max SPL: 131 dB

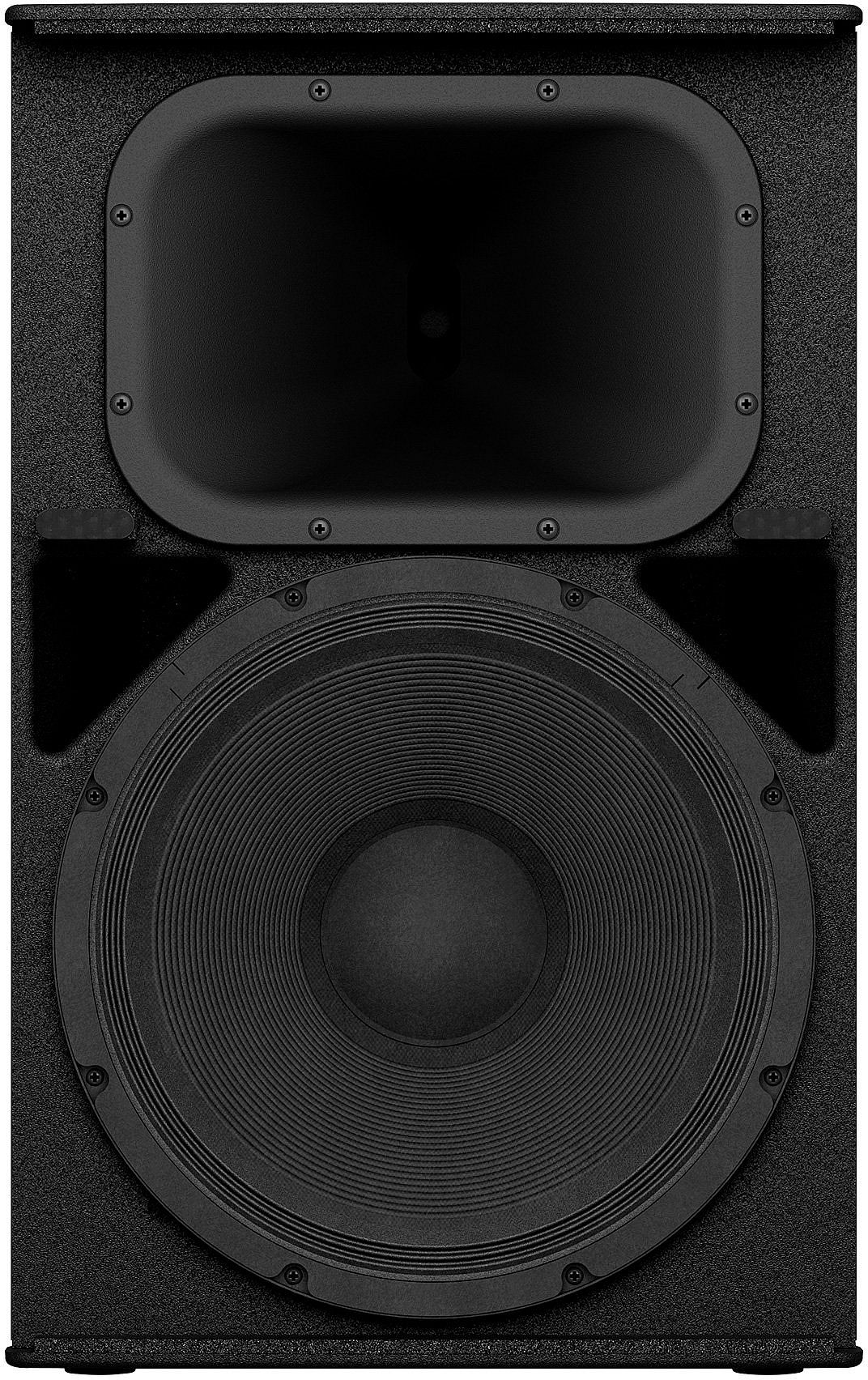

15” low-frequency driver, 2.5” voice coil
1.4” high-frequency driver, 1” voice coil
Class D amplification
RMS power: 465 W (LF: 400 W, HF: 65 W)
Peak power: 1,000 W (LF: 800 W, HF: 200 W)
4-speed fan cooling
AD/DA converters: 24 bit 48 kHz
Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

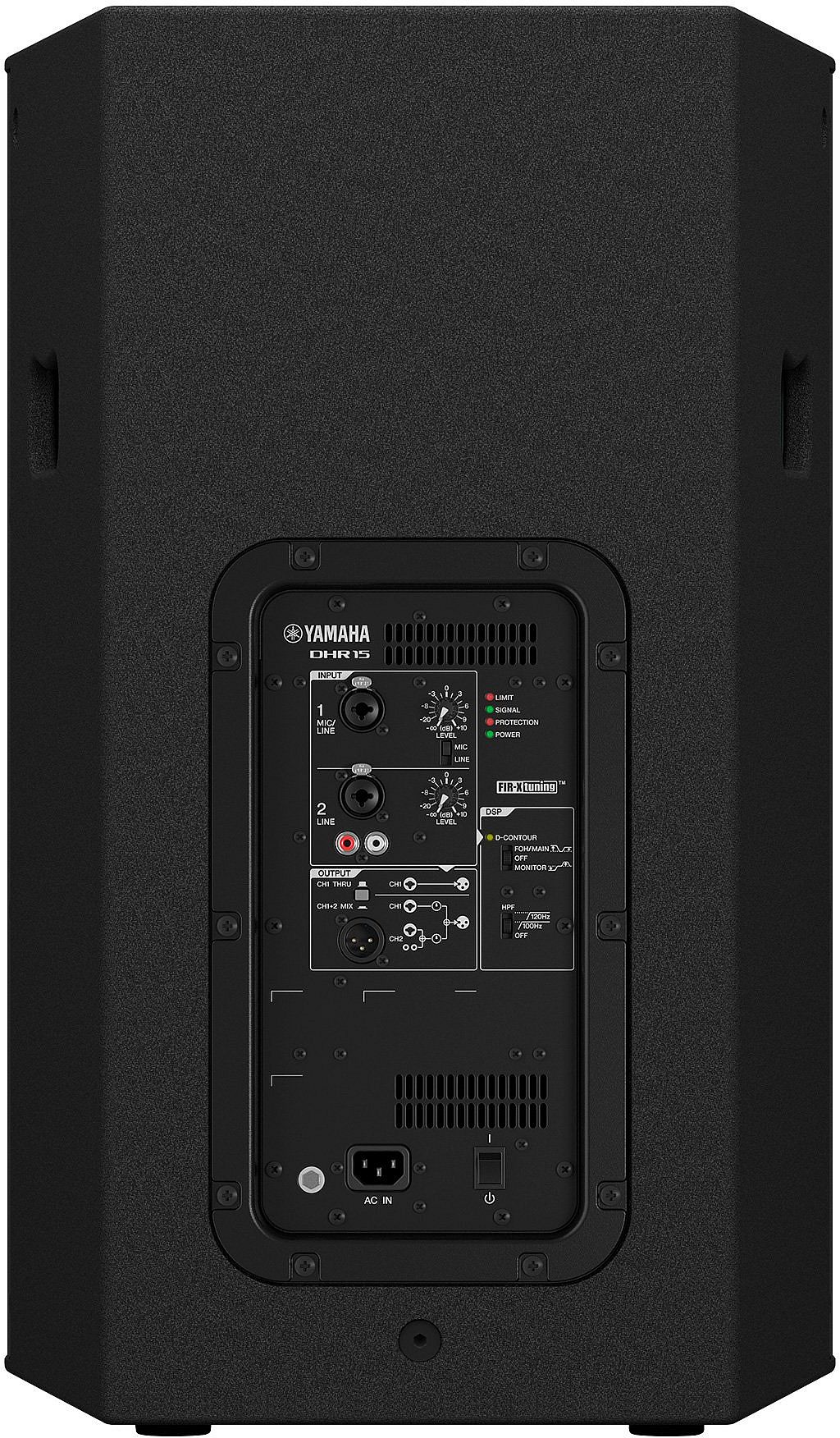

Input/output connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (unbalanced), OUTPUT: XLR3-32 x 1 (CH1 or mix CH1+CH2)
Cabinet material: plywood
Handles located on the sides of the speaker
Dimensions: 432 mm x 692 mm x 405 mm
Weight: 24 kg

Product code: VDJ6150

Unit of sale: piece

Specifications:

Amplification - continuous power:	456 W
Mid-bass speaker:	15"
High speaker:	1.4"
Lower frequency limit (Hz):	44 Hz
Upper limit high frequencies (kHz):	20 kHz
Maximum SPL (dB):	131 dB
Enclosure:	Wood
