Yamaha DHR-12M

Name: Yamaha DHR-12M
Brand: Yamaha
SKU: VDJ6240
Price: 631.98 EUR
Availability: OutOfStock

Active Speaker

2-way, bass reflex design for enhanced sound quality.
frequency response of 55 Hz - 20 kHz, ideal for various audio applications.
max SPL of 129 dB ensures powerful sound output.
class D amplification with RMS power of 465 W for reliable performance.
compact dimensions and lightweight design for easy transport.

631⁹⁸ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

3278 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Yamaha DHR-12M Add to cart: 631⁹⁸ €

Yamaha DHR-12M - Active speaker with a robust, portable design made from durable plywood. It represents the ideal choice for stage monitoring and small to medium-sized events.

2-way, bass reflex design
Frequency response: 55 Hz - 20 kHz
Coverage: H90° x V60°
Monitor angle: 57°
Crossover: 1.8 kHz FIR-X tuning (linear phase FIR filter)
Max SPL: 129 dB

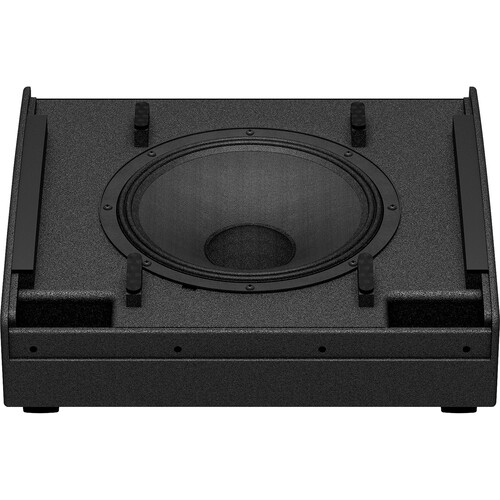

12” low-frequency driver, 2.5” voice coil
1.75” high-frequency driver, 1” voice coil
Class D amplification
RMS power: 465 W (LF: 400 W, HF: 65 W)
Peak power: 1,000 W (LF: 800 W, HF: 200 W)
4-speed fan cooling
AD/DA converters: 24 bit 48 kHz
Processors: HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF

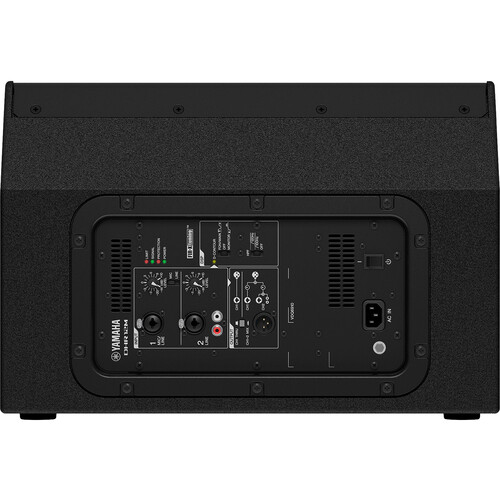

Input/output connectors: INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (unbalanced), OUTPUT: XLR3-32 x 1 (CH1 or mix CH1+CH2)
Cabinet material: plywood
Handle located on the side of the speaker
Dimensions: 500 mm x 343 mm x 454 mm
Weight: 16.5 kg

Product code: VDJ6240

Unit of sale: piece

Specifications:

Amplification - continuous power:	456 W
Mid-bass speaker:	12"
High speaker:	1.75"
Lower frequency limit (Hz):	55 Hz
Upper limit high frequencies (kHz):	20 kHz
Maximum SPL (dB):	129 dB
Enclosure:	Wood
