RCF ART 915-AX

RCF ART 915-AX - Active speaker, a top solution for any audio application, offering 48V microphone preamplifiers and line inputs, an internal 6-channel digital mixer with advanced DSP, stereo Bluetooth® audio input, with the option to pair with two speakers.

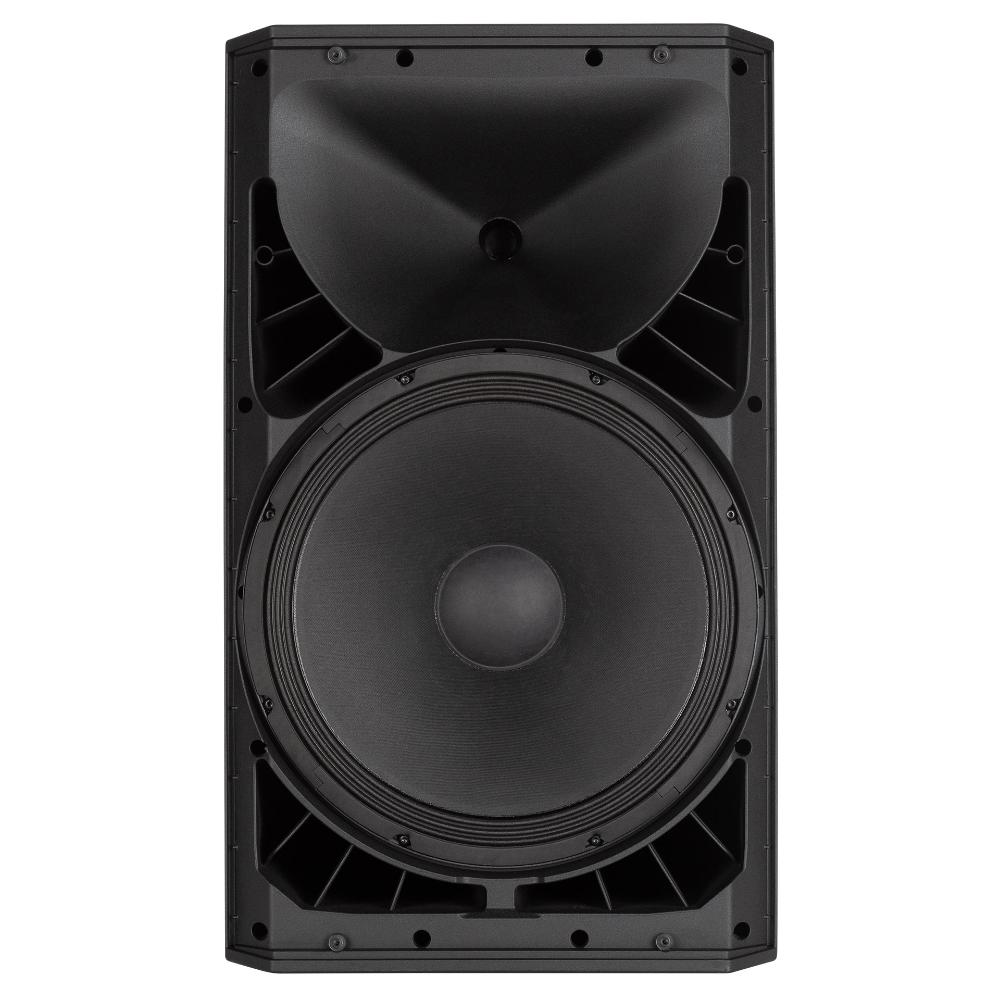

The combination of a 1.75" compression driver, a 15" woofer, and a 2100 W dual-channel amplifier produces a constant directivity coverage of 100° x 60° for the listening area up to 131 dB SPL, delivering sound without distortion. The cabinet is made from a special composite polypropylene material, with an internal M-brace reinforcement, making it easy to transport and securely mount on a pole, wall, or truss, using the multiple mounting points available.

Features:

• Built-in 6-channel digital mixer
• Advanced user interface with touch panel and remote control
• 1.75" compression driver and 15" woofer.
• Sound pressure level of up to 131 dB
• 2100 W Class D bi-amplification
• Dual combo preamplifier with 48 V power and mini-jack stereo input
• Stereo Bluetooth® audio input, with the option to pair with two speakers
• True resistive waveguide, FiRPHASE and bass motion control

Technical Specifications:

• Frequency response: 45 - 20,000 Hz
• Max SPL at 1 m: 131 dB
• Horizontal coverage angle: 100°
• Vertical coverage angle: 60°
• Compression driver: 1 x 1.0'', 1.75'' v.c
• Woofer: 15'', 2.5'' v.c
• Input signal: balanced/unbalanced
• Input connectors: Combo XLR/Jack
• Output connectors: XLR
• Input sensitivity: -2 dBu/+4 dBu
• Mic. Input sensitivity: -32 dBu
• Crossover frequencies: 1600 Hz
• Protections: Thermal, RMS
• Limiter: Soft Limiter
• Controls: Colour touch panel, data/volume encoder, dedicated app for iOS and Android
• Total power: 2100 W peak, 1050 W RMS
• High frequencies: 700 W peak, 350 W RMS
• Low frequencies: 1400 W peak, 700 W RMS
• Cooling: Convection
• Connections: VDE
• THD+N, gain 20dB, output 0dBu: 0.005% weighted A
• Processing channels: 6
• Signal processing: 24 bits
• A/D-D/A conversion: 32 bits at 48.0 kHz
• Dynamic range: 110
• Inputs:
  • Microphone: 2
  • Remote-controlled gain: Yes
  • Gain range: 0 dB - 42 dB
  • Input noise level: -114 dBu weighted A
  • Microphone input impedance: 6 kohms
  • Low Cut: 20 Hz - 400 Hz
  • Phantom Power +48V: Yes
  • Mono line: 2
  • Gain selection: 0 dB - 22 dB
  • Line input impedance: 21 kohms
  • A/D dynamic range: 114 dB
  • Stereo line: 1
  • Gain selection: 0 dB - 10 dB
  • Stereo line input impedance (kOhm) 13 kohms
• Outputs: Main MIX: 1
• Main output impedance: 150 ohms
• Main output level: 22 dBu
• D/A dynamic range: 114 dB
• RCF Compressors: Compressors on MIC/LINE inputs CH1 and CH2
• EQ:

  • Input channel EQ: 2 Shelving 1
  • 3-band EQ: High and low shelving, MID band peak on IN
  • 5-band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on amplifier and MAIN output
• Send Effects: 1
• Cabinet/material: Composite PP

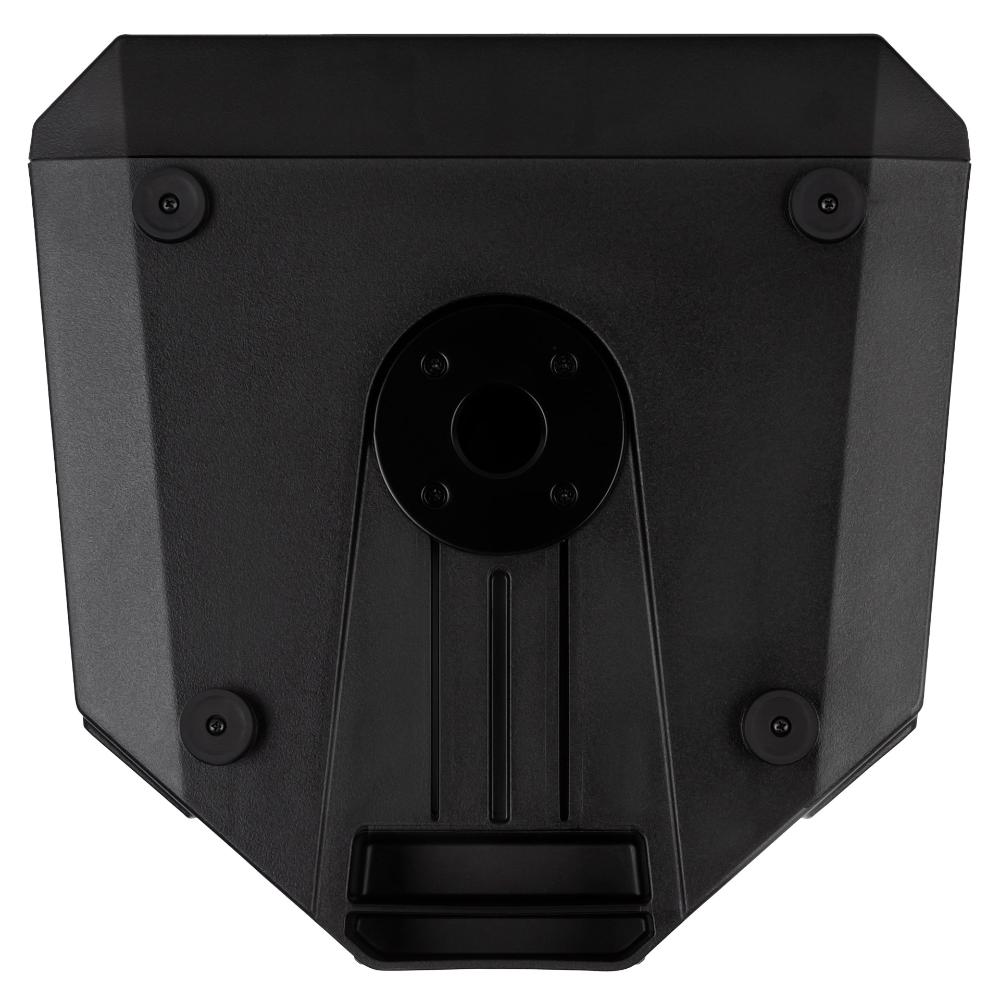

• Hardware: 1 x M10 top, 1 x M10 on each side

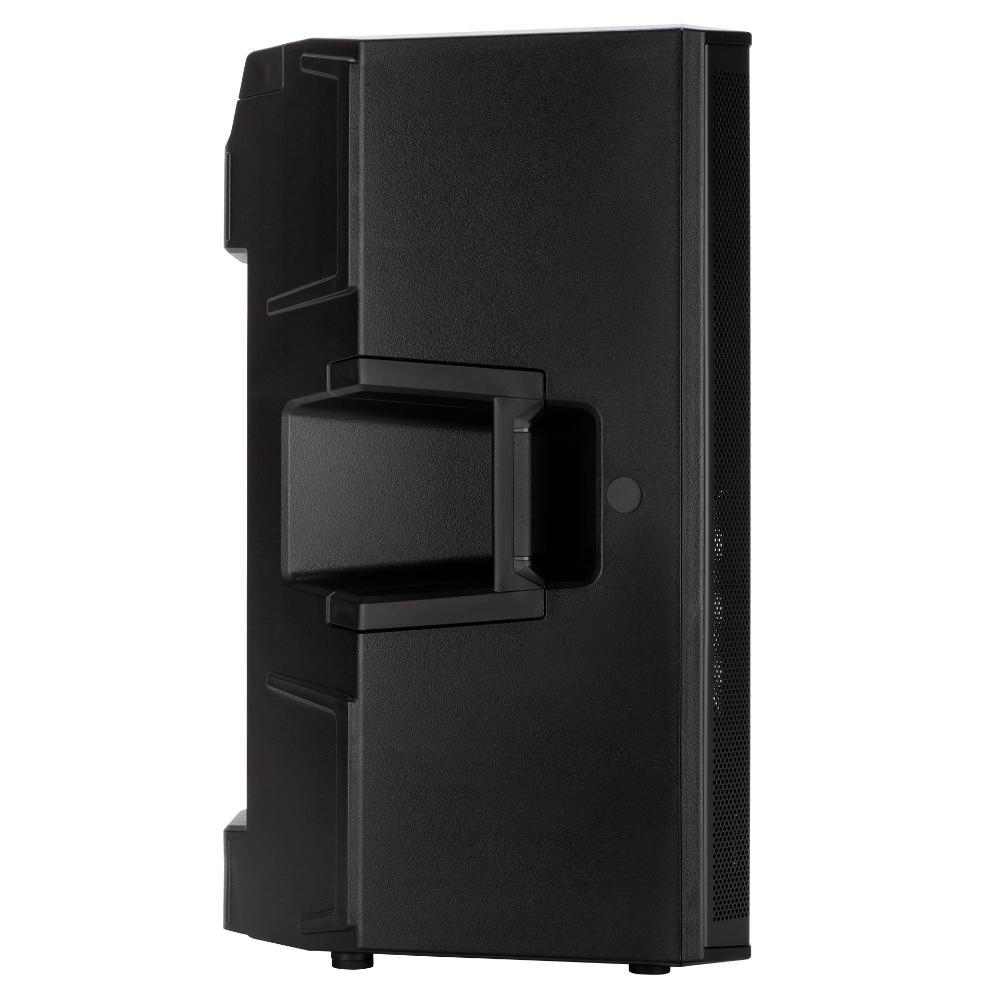

• Handles: 1 on top, 1 on each side
• Pole mount: Yes
• Grille: Steel
• Colour: Black
• Dimensions: 717 x 415 x 410 mm
• Weight: 21.8 kg
• Shipping dimensions: 760 x 470 x 475 mm
• Shipping weight: 24 kg
