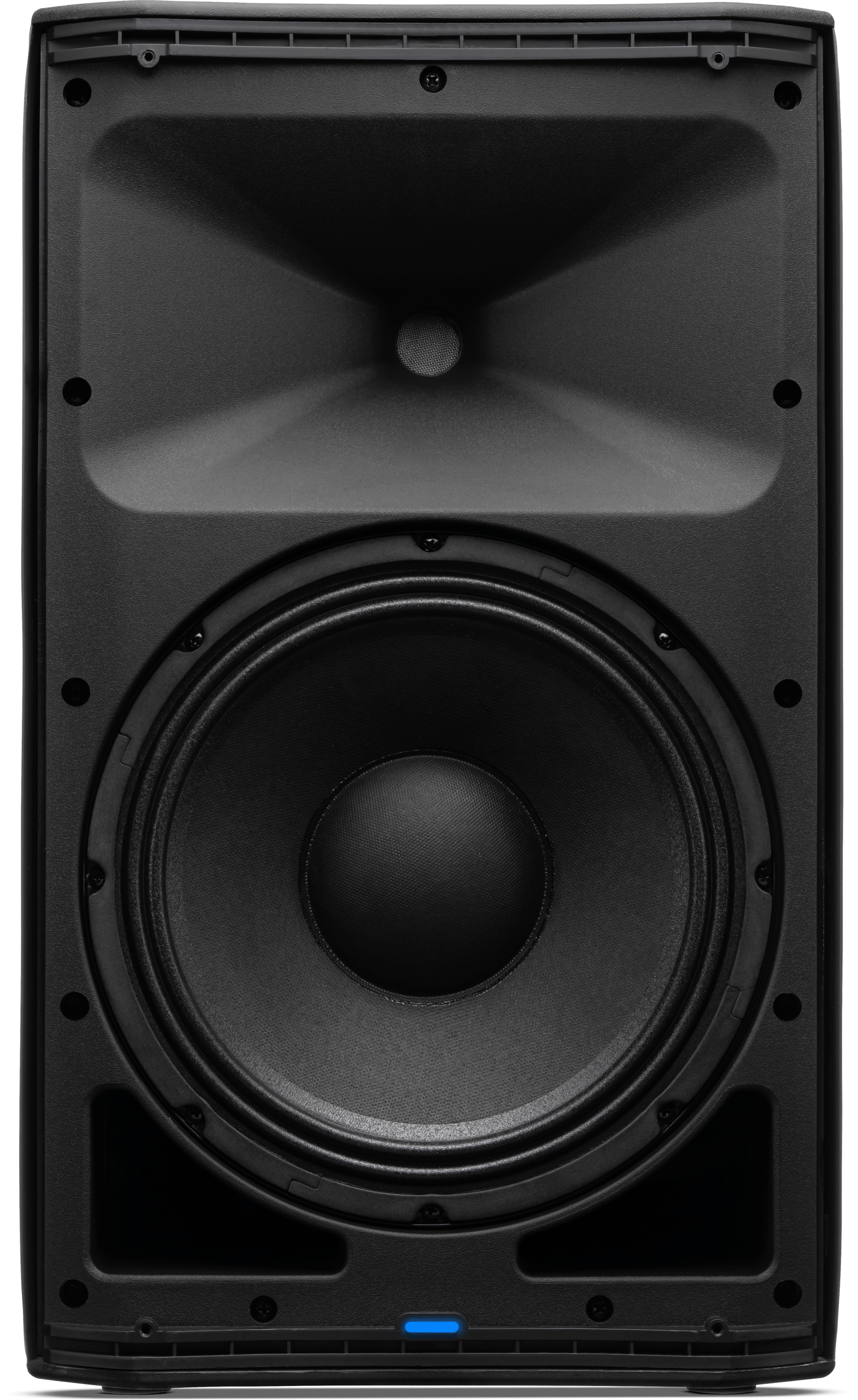

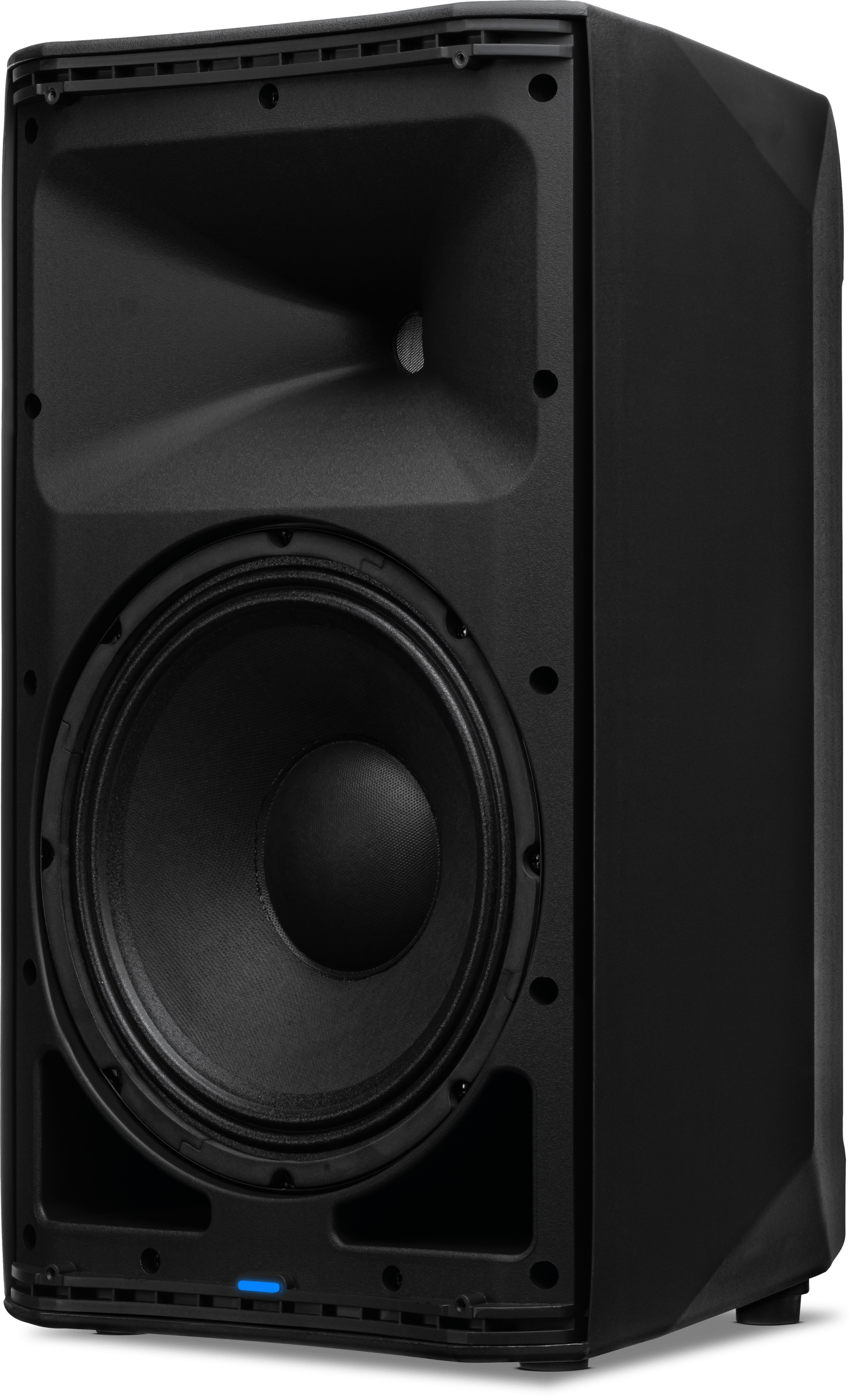

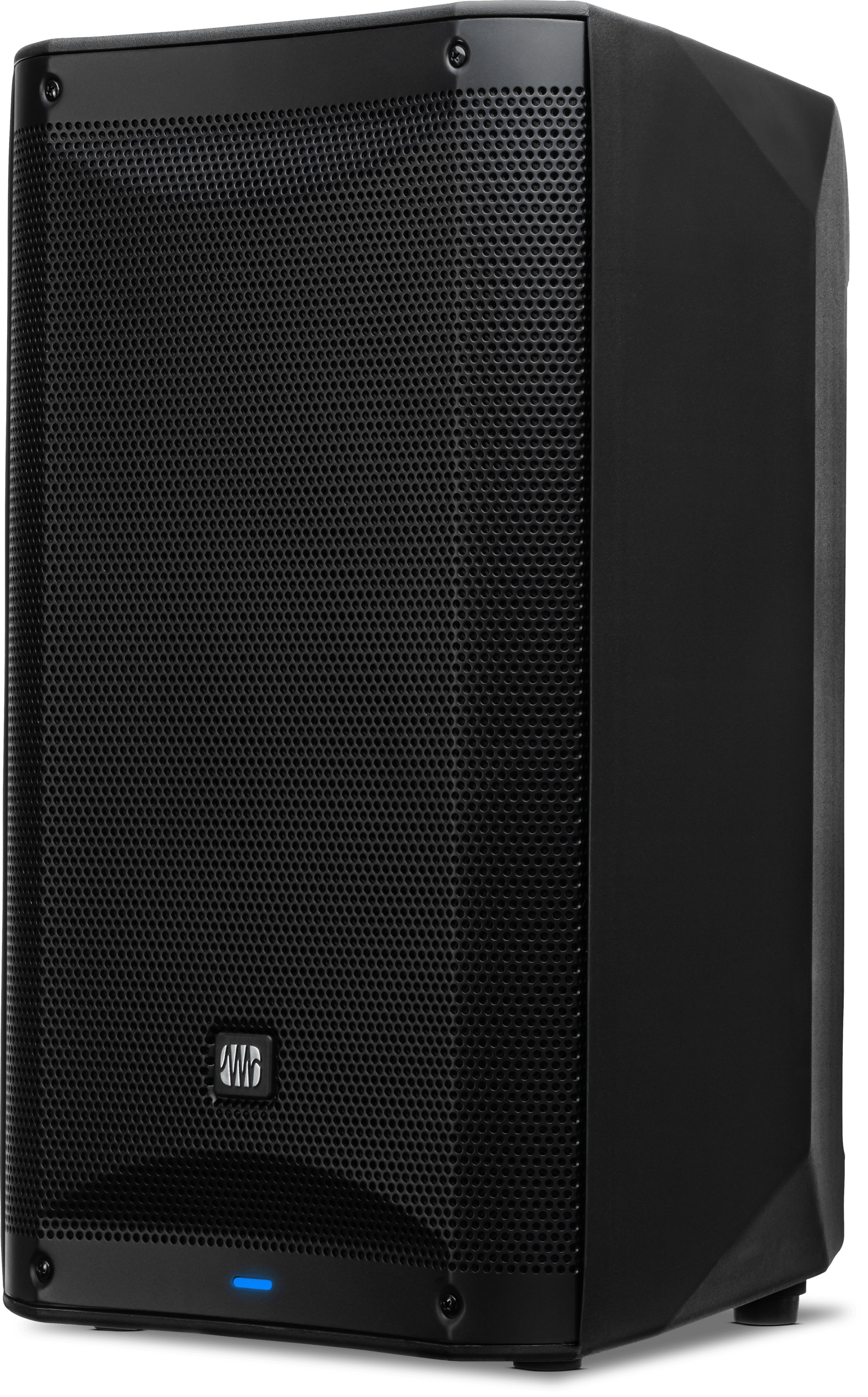

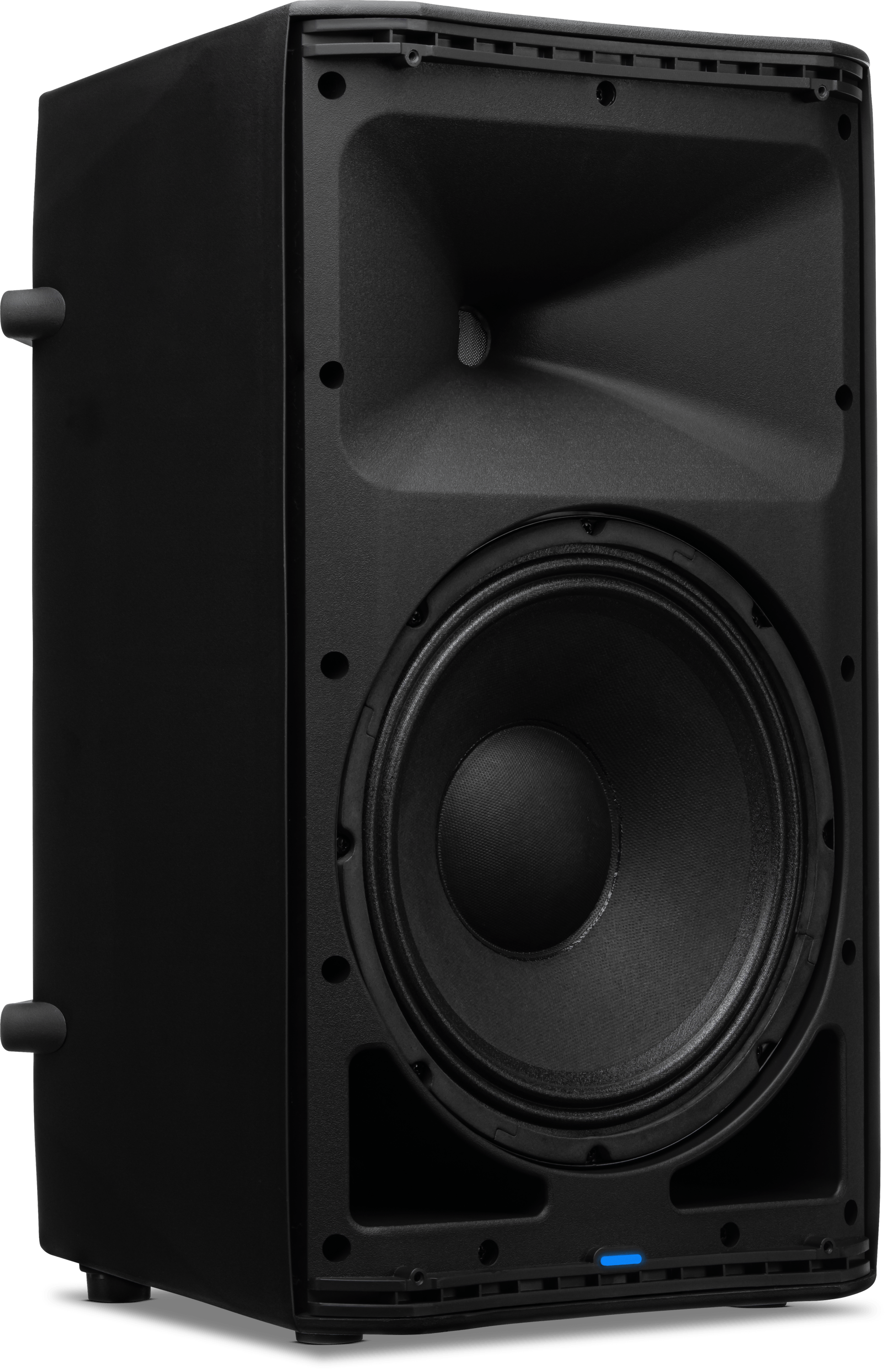

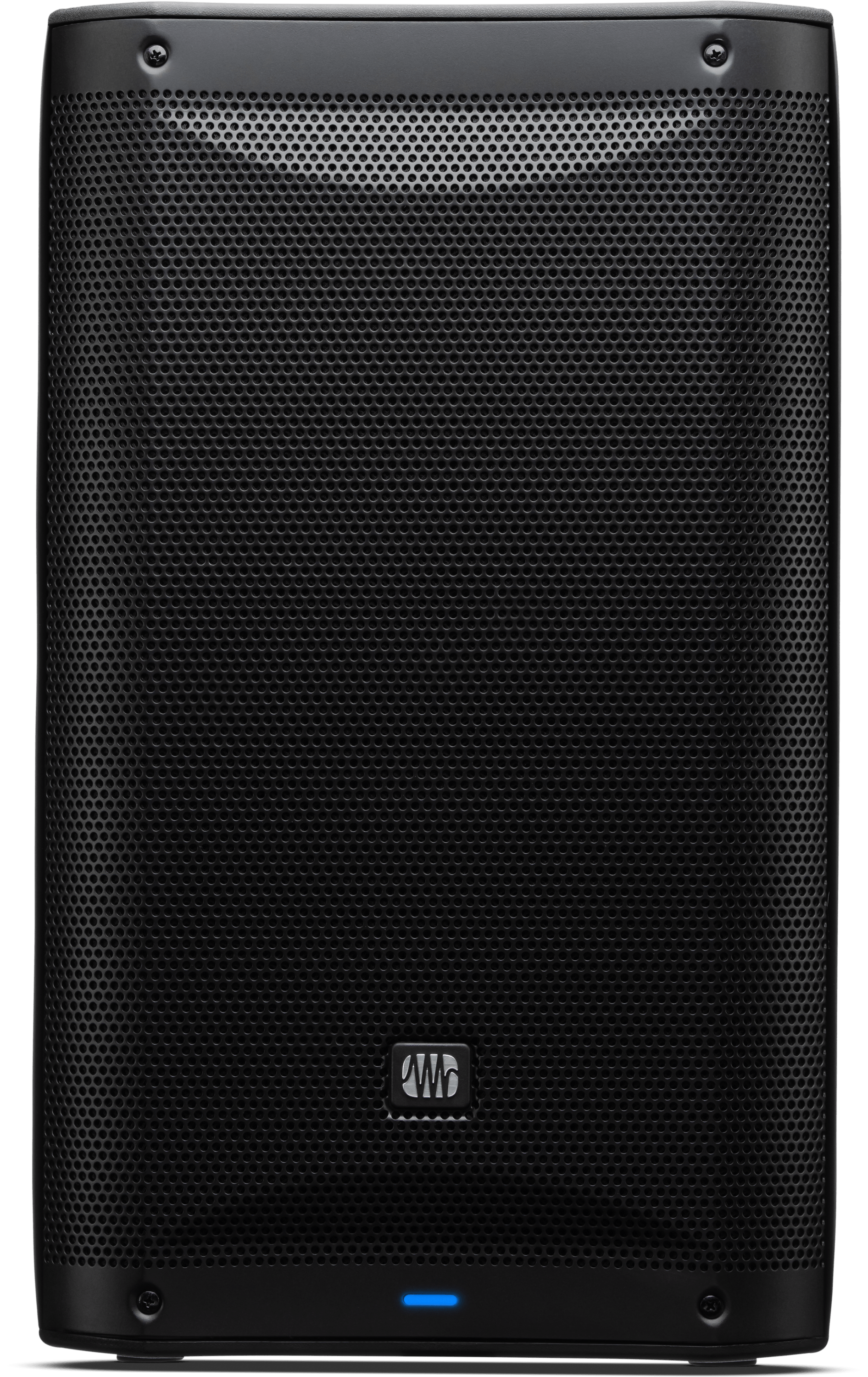

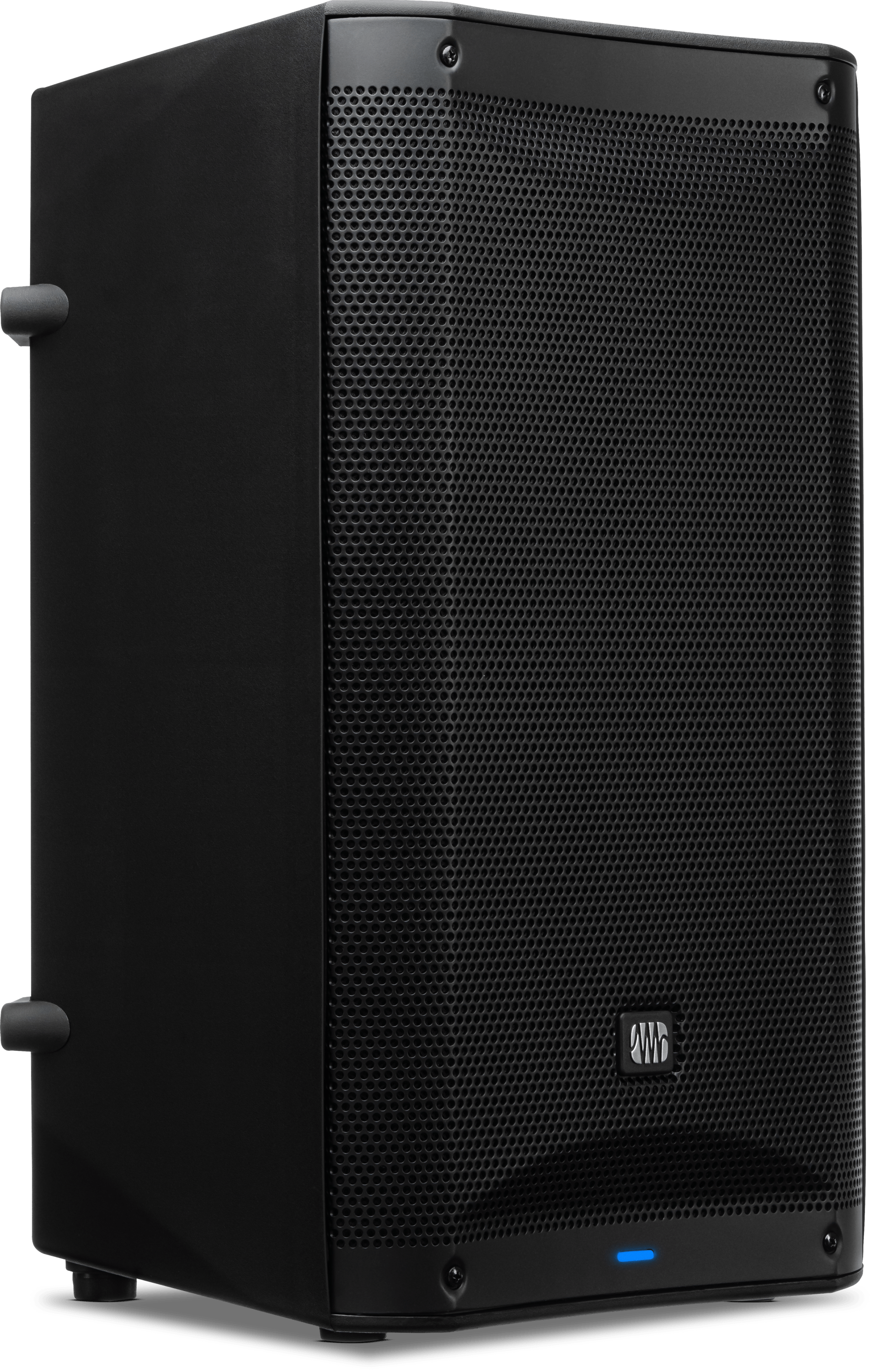

Presonus AIR XD 10 - Full-range active speaker that delivers clear sound, dynamic bass, and detailed highs thanks to specialized drivers. It features Class D bi-amplification of 1,500 W, reaching up to 130 dB SPL. It includes DSP processing with presets and equalizer, an intuitive colour display for quick control, and Bluetooth connectivity with TWS mode for wireless stereo pairing.
The integrated mixer with mic/line combo and aux inputs ensures flexibility, while the robust housing, with ergonomic handles and multiple mounting options, makes it ideal for mobile DJs, corporate events, and quick installations.
Features:
- 10” low-frequency driver with a 2.36” voice coil for extended low-frequency response down to 55 Hz
- 1-inch compression driver for high frequencies, with PEEK diaphragm for clear highs
- 1,500W Class D bi-amplifiers for clean and efficient power, with a maximum level of up to 130 dB SPL
- Built-in DSP processing with performance presets, ±10 dB equalizer, and tuning modes for speech, music, FOH, or monitoring
- 2.6” colour LCD screen for quick, intuitive measurement and control of the system
- Integrated Bluetooth with TWS Bridge mode for wireless stereo pairing
- Horizontal dispersion of 90° and vertical of 60°
- Frequency response: 66 Hz – 20 kHz (-3 dB), 55 Hz – 20 kHz (-10 dB)
- Integrated mixer with 3 channels, mic/line combo and auxiliary inputs for flexible connectivity

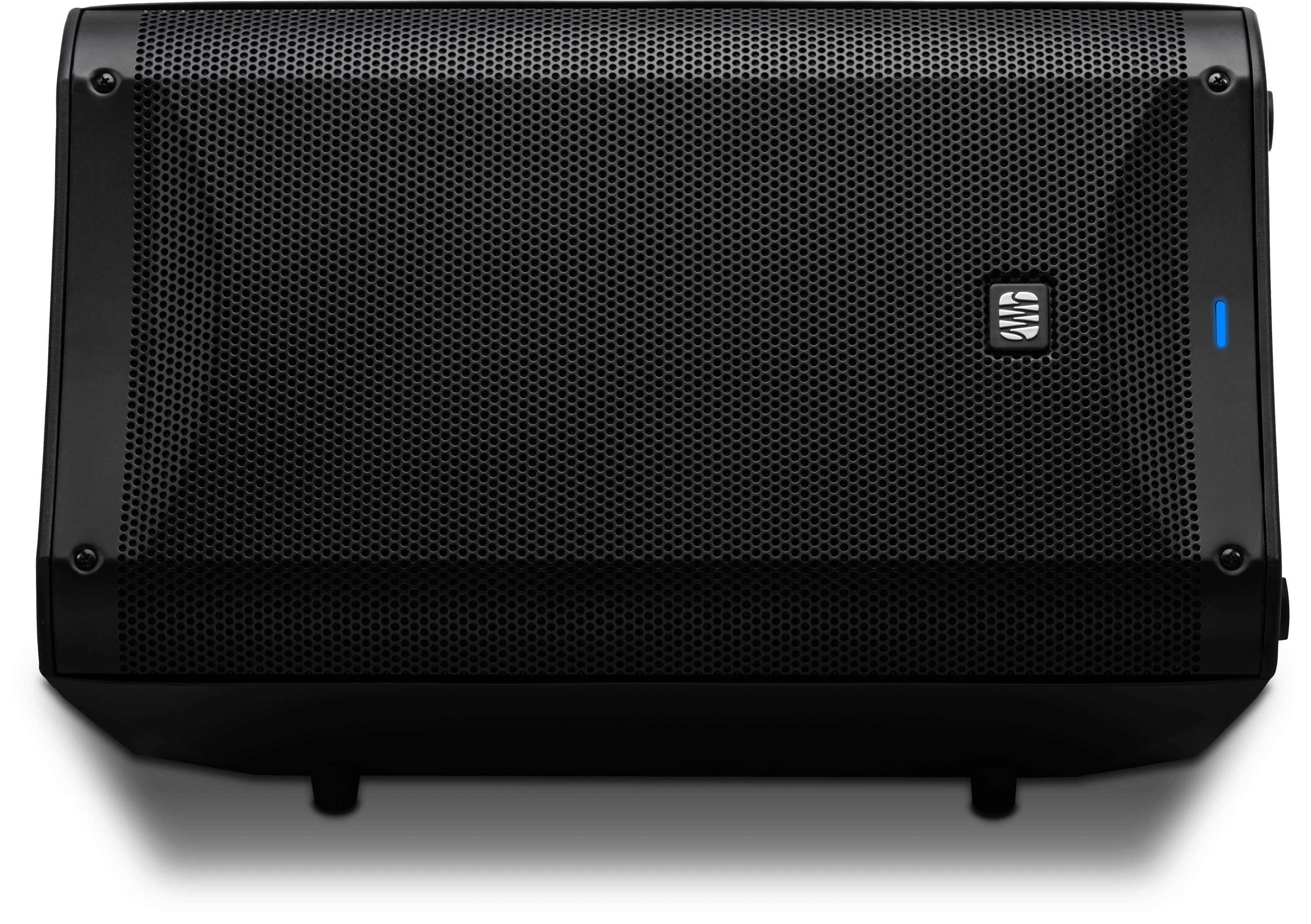

- Robust and portable housing, with ergonomic handles and multiple mounting options: suspended, tripod mounted, placed on the ground, or used as a floor monitor
Specifications:
- System Type: active, 2-way
- Bi-amplification: Class-D
- Power
- High-frequency power: 468W
- Low-frequency power: 1060W
- Total output power: 1500 W
- Drivers:
- Woofer: 10 inch with 2.36 inch voice coil
- Tweeter: 1 inch compression driver
- Maximum SPL: 130 dB
- Crossover frequency: 2.2 kHz
- Coverage pattern: 90° horizontal × 60° vertical
- Frequency response:
- 66 Hz – 20 kHz (-3 dB)
- 55 Hz – 20 kHz (-10 dB)

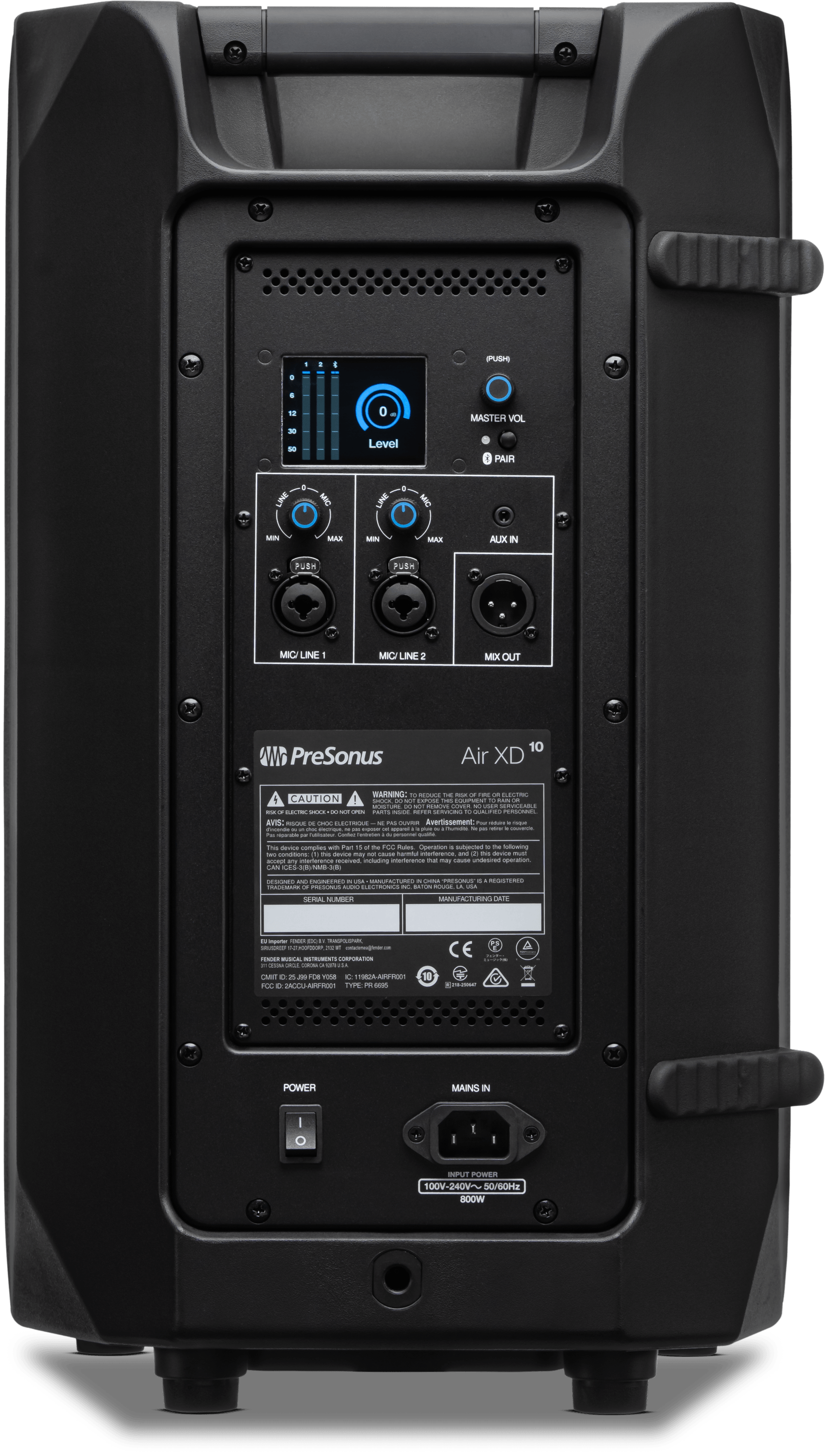

- Connectivity:
- Line output: XLR male, balanced
- Inputs: 4 (2 x XLR/TRS combo mic/line, 1 x 3.5 mm TRS stereo, Bluetooth stereo)
- Wireless via Bluetooth: version 5.0
- Integrated mixer:
- Channels: 3 channels
- Audio control: Gain, Volume, High/Low EQ
- DSP processing with presets and equalizer
- 2.6” colour LCD screen for quick measurement and control
- Power
- Power consumption: 3.3 A (230V-50 Hz), 6.6 A (120V)
- Voltage: 100-240 VAC, 50-60 Hz
- Housing material: H-PP molded
- Cooling: via passive radiator
- Grille: 1.2 mm steel
- Handle: 1 top handle
- Tripod socket: dual positions (0°, 7.5°)
- Dimensions (H x W x D): 291 x 300 x 516 mm
- Weight: 13.9 kg
