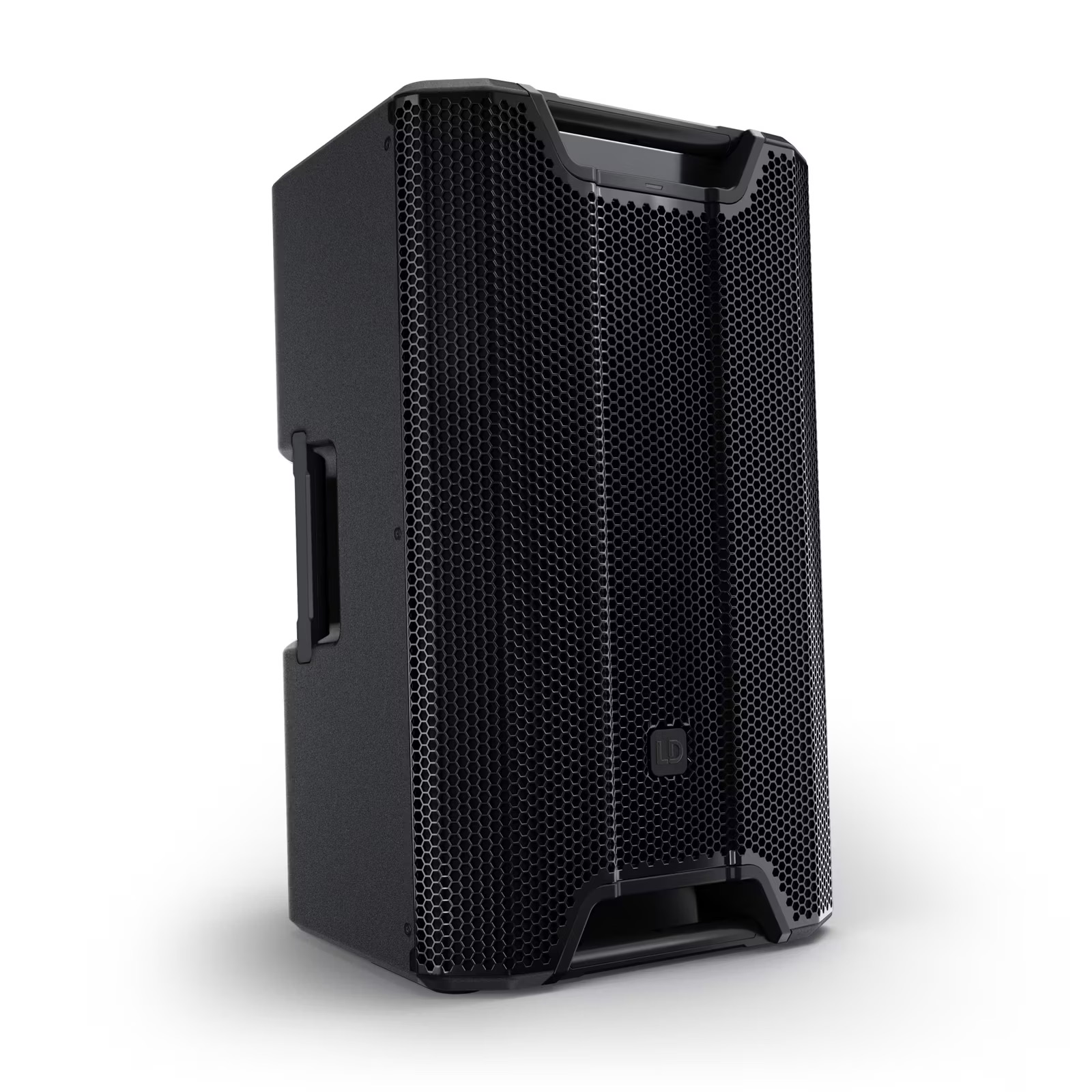

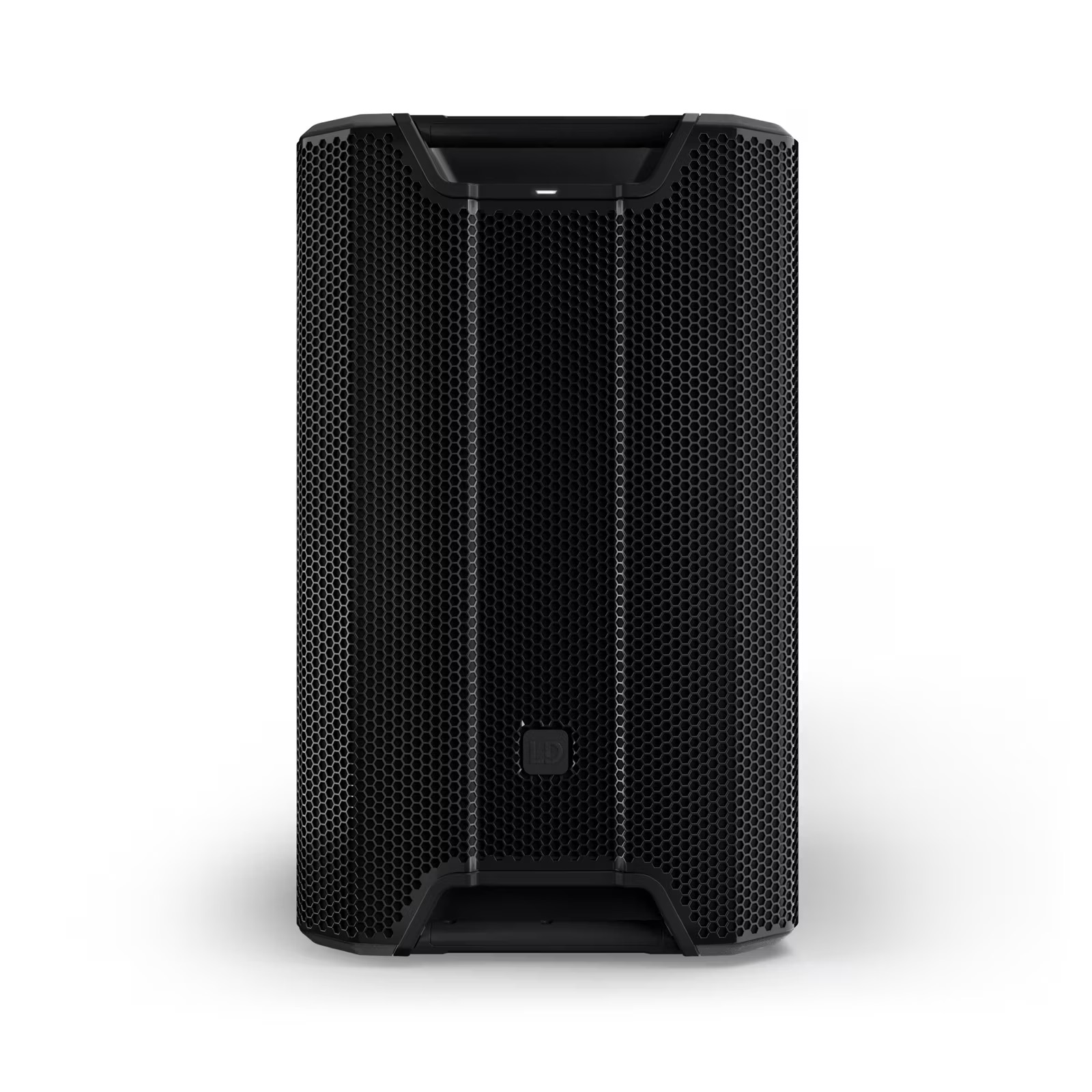

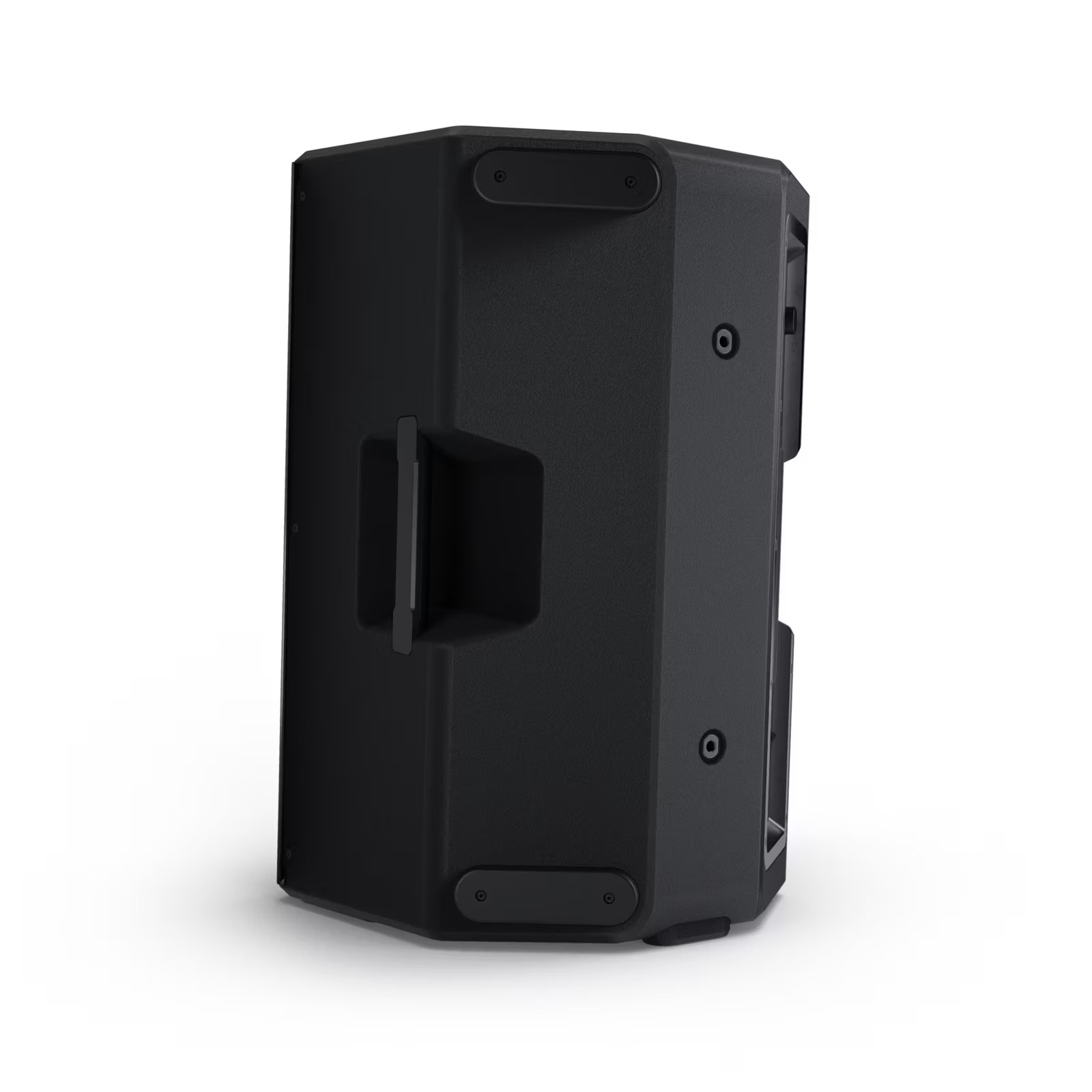

LD Systems ICOA PRO 15A

Adam Hall ICOA PRO 15 A - Active speaker with a 15” woofer and Bluetooth connectivity, ideal for live concerts, events, or fixed installations. With a peak power of 3,000 W and an RMS power of 1,500 W, it delivers an impressive SPL of up to 135 dB, covering a wide frequency range from 53 Hz to 20,000 Hz.

The 2-way coaxial design ensures even sound dispersion, and the Bluetooth connectivity along with easy control via the app provides total freedom for configuration and adjustment. Additionally, due to its 50° monitoring angle, it can also be used as a versatile stage monitor.

• System type: active, with Bluetooth connection

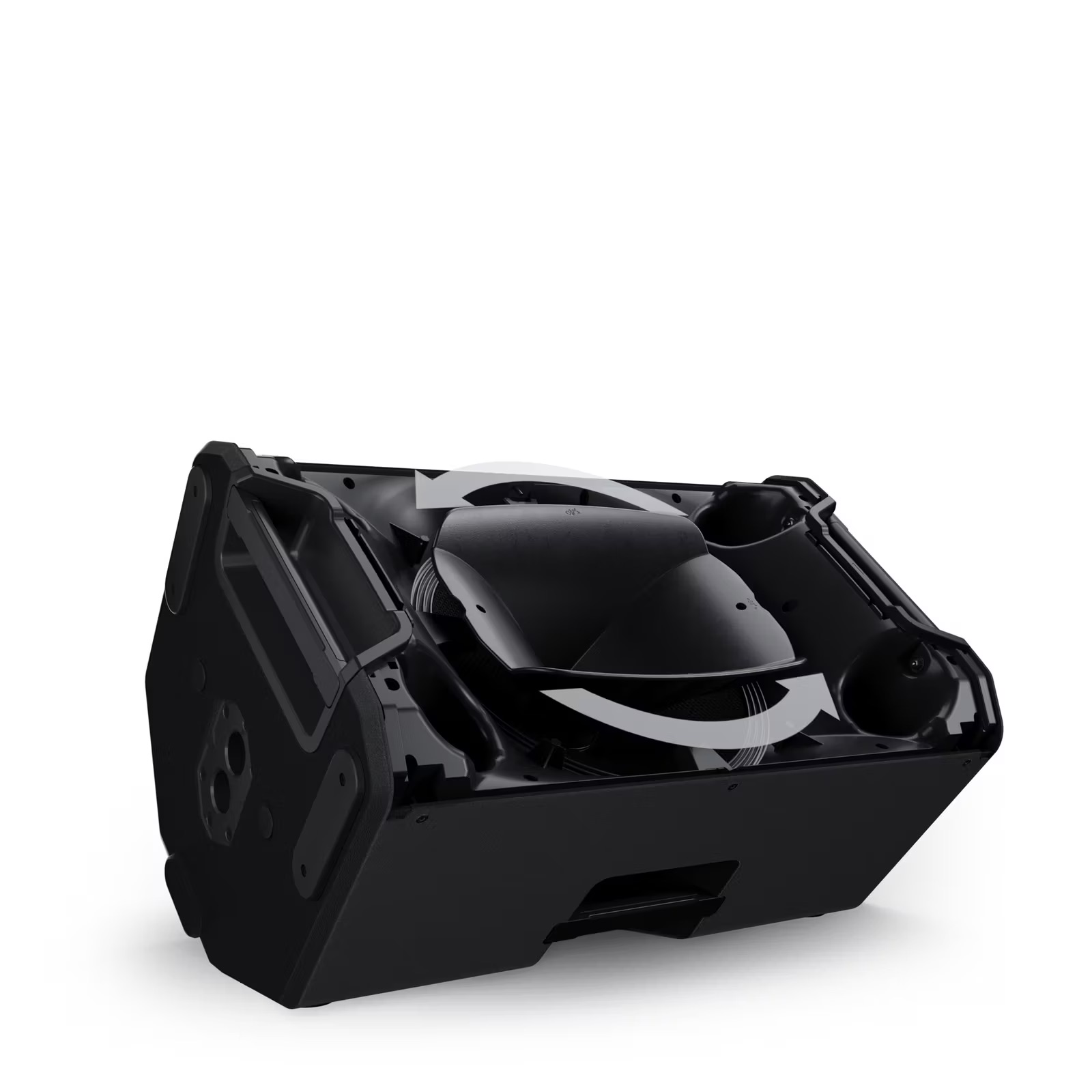

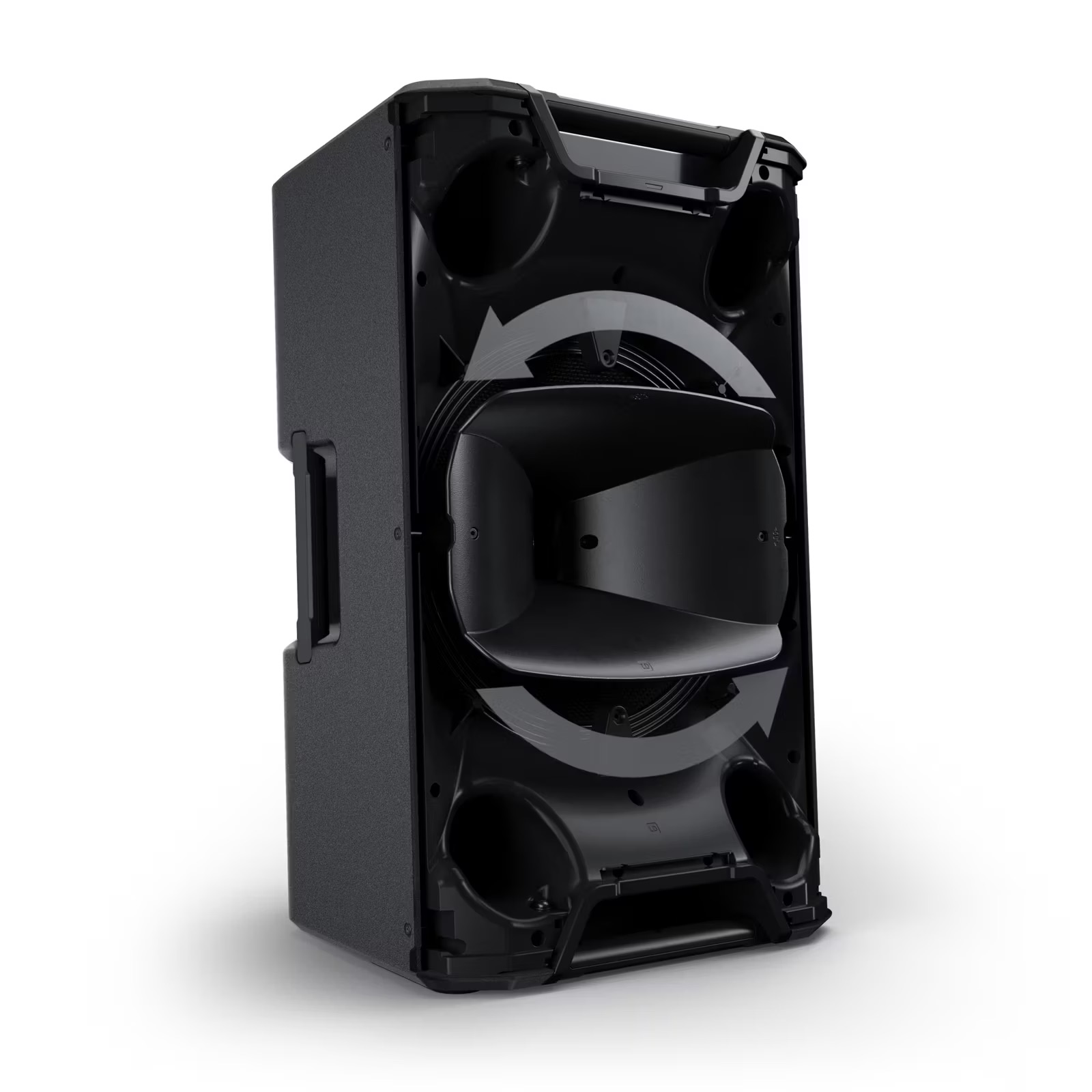

• 2-way architecture, coaxial design
• Power:
  • Peak: 3000 W
  • RMS: 1500 W
• Drivers:
  • 15” woofer with a 3” voice coil
  • 3” tweeter with a 3” voice coil
• Class D amplifier
• Max SPL: 135 dB
• Frequency response: 53 – 20,000 Hz
• Crossover frequency: 800 Hz
• Dispersion angle: 90° (horizontal) / 50° (vertical)

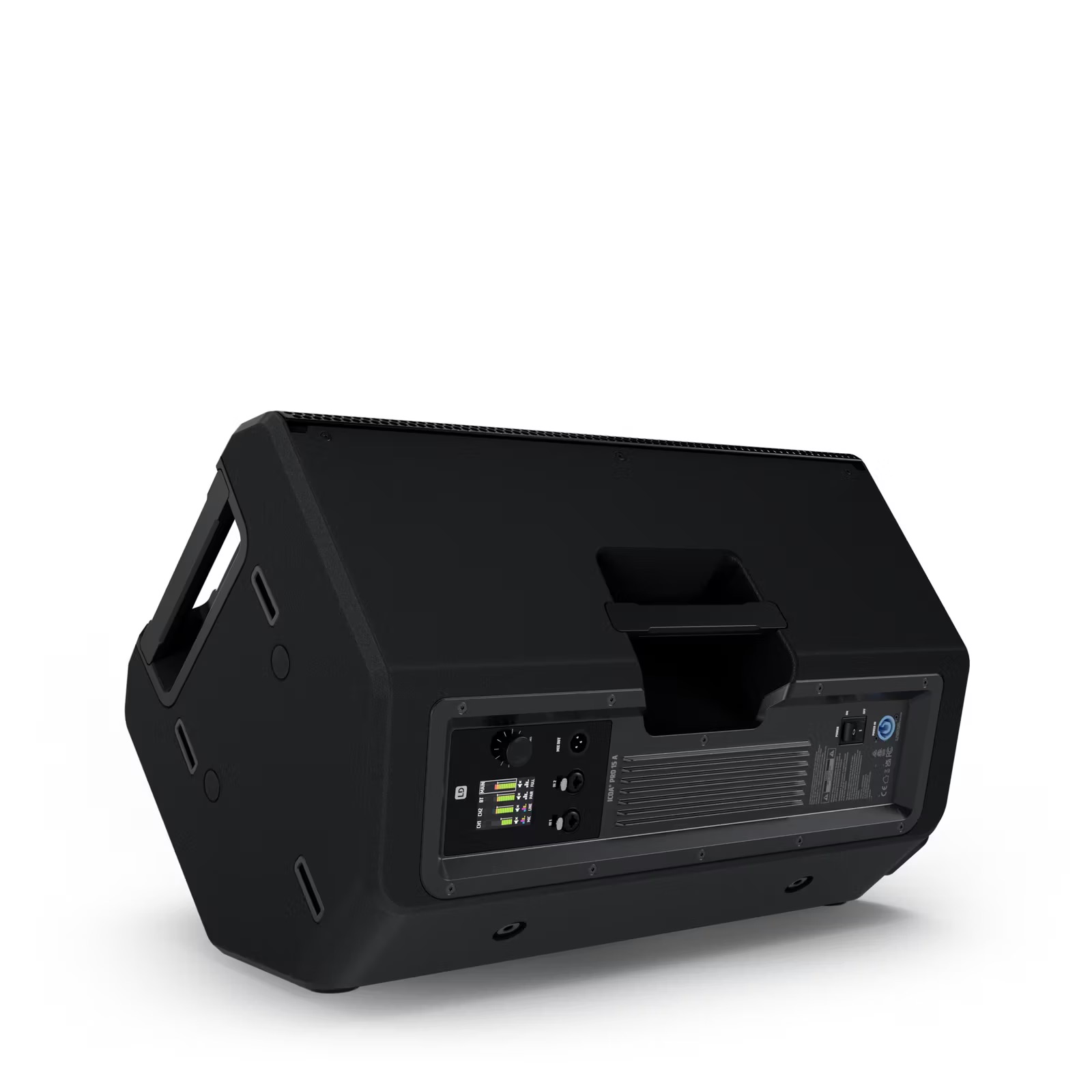

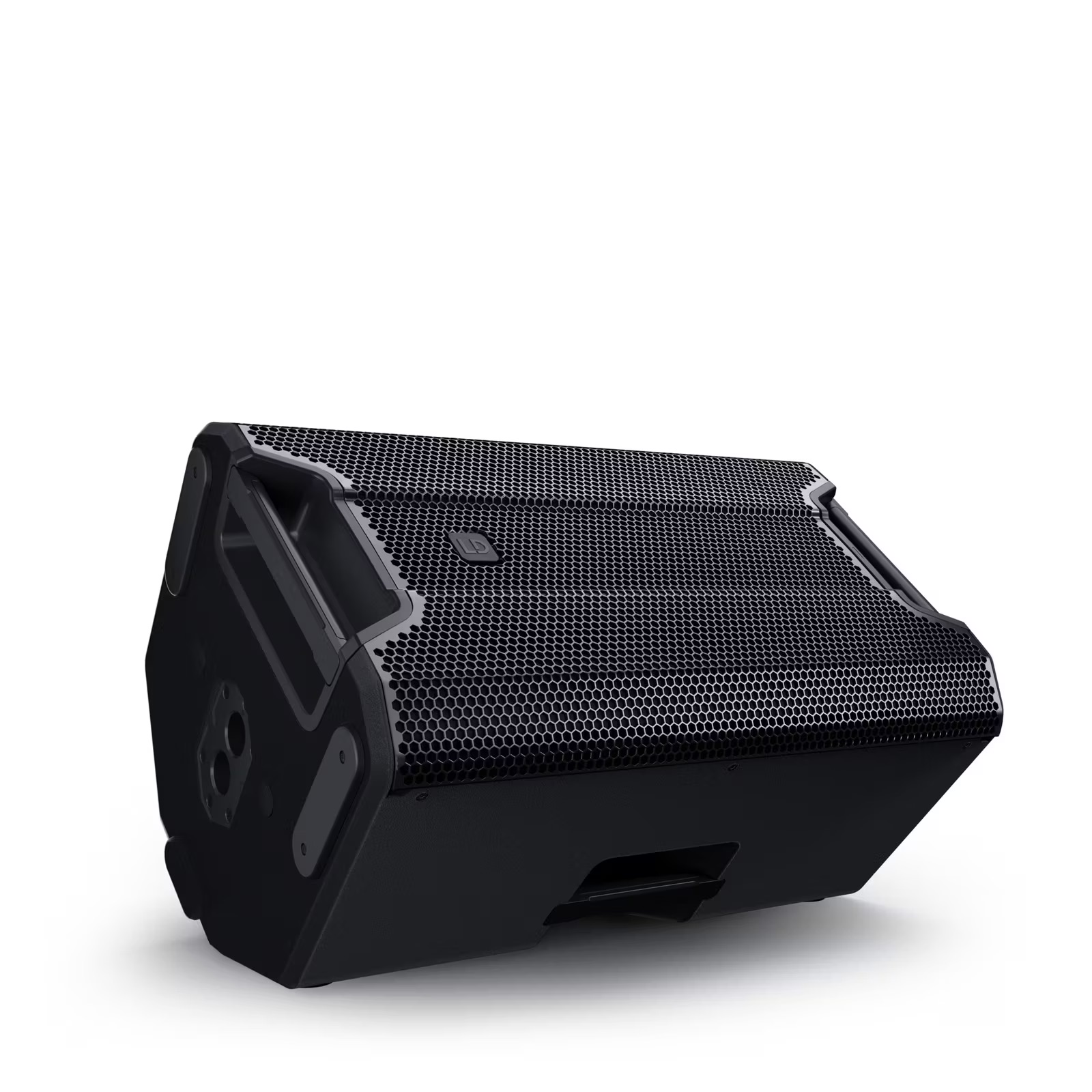

• Angle in stage monitor position: 50°
• Protections:
  • Multiband limiter
  • Short circuit
  • Overheating
  • DC
• Bluetooth 5.1 connection (Audio Streaming or A2DP, TrueWireless™ Stereo, TrueWireless™ Mirroring, App control)

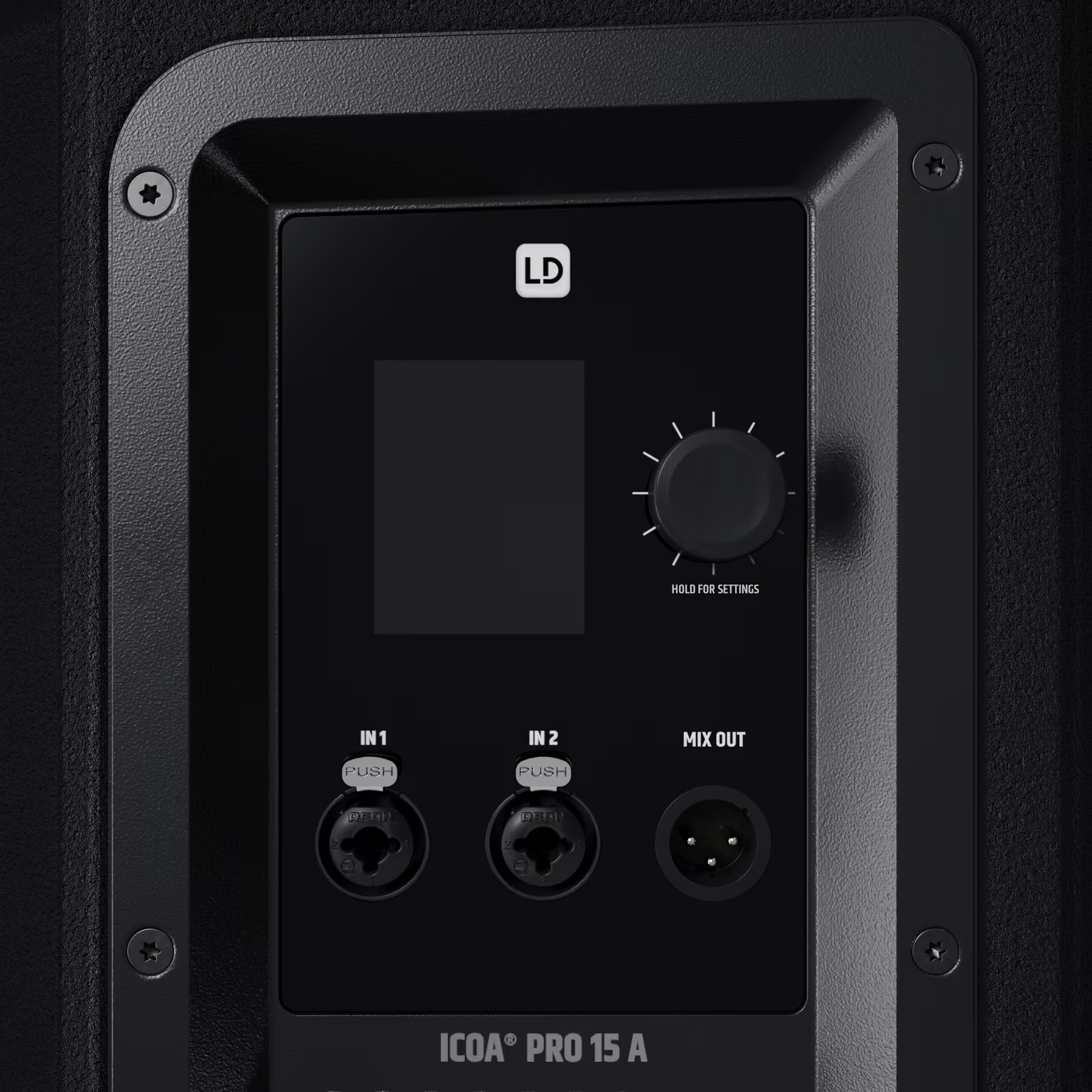

• Connections:
  • 2 combo XLR/Jack inputs
  • 1 XLR output

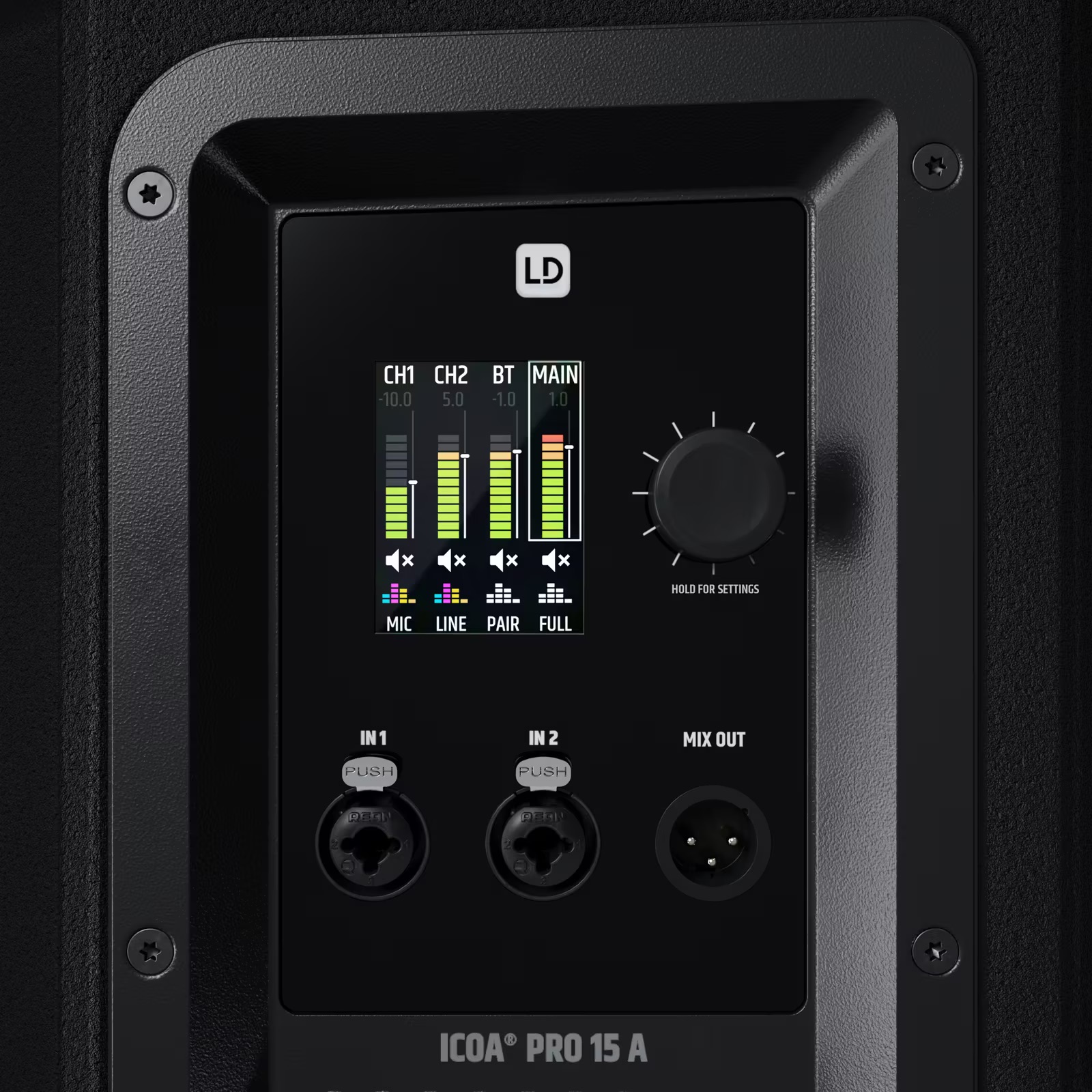

• DSP:
  • SysCore with FIR/IRR filters
  • 24 bit / 48 kHz processing
  • 4-band EQ, 4 presets & Delay function
• Easy control via IOS / Android app

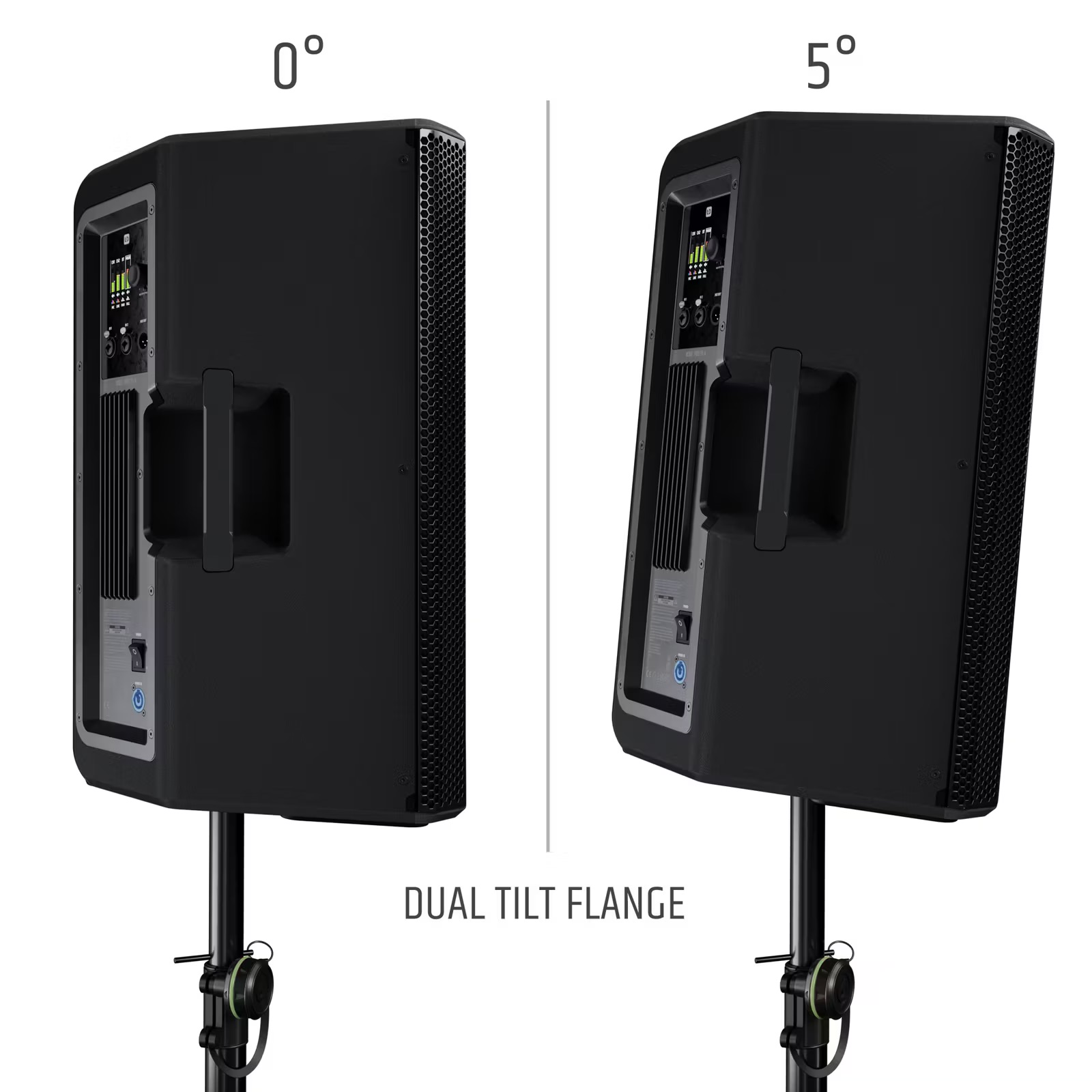

• Mountable on a 3.5 mm diameter pole, with a tilt function of 0-5°
• Signal-to-noise ratio: 108 dB
• Bass Reflex cabinet, made of ABS
• Cooling through convection
• Dimensions: 417 x 690.7 x 414.8 mm
• Weight: 25.8 kg
• Colour: black
