HK Audio Linear 9 210 LTA

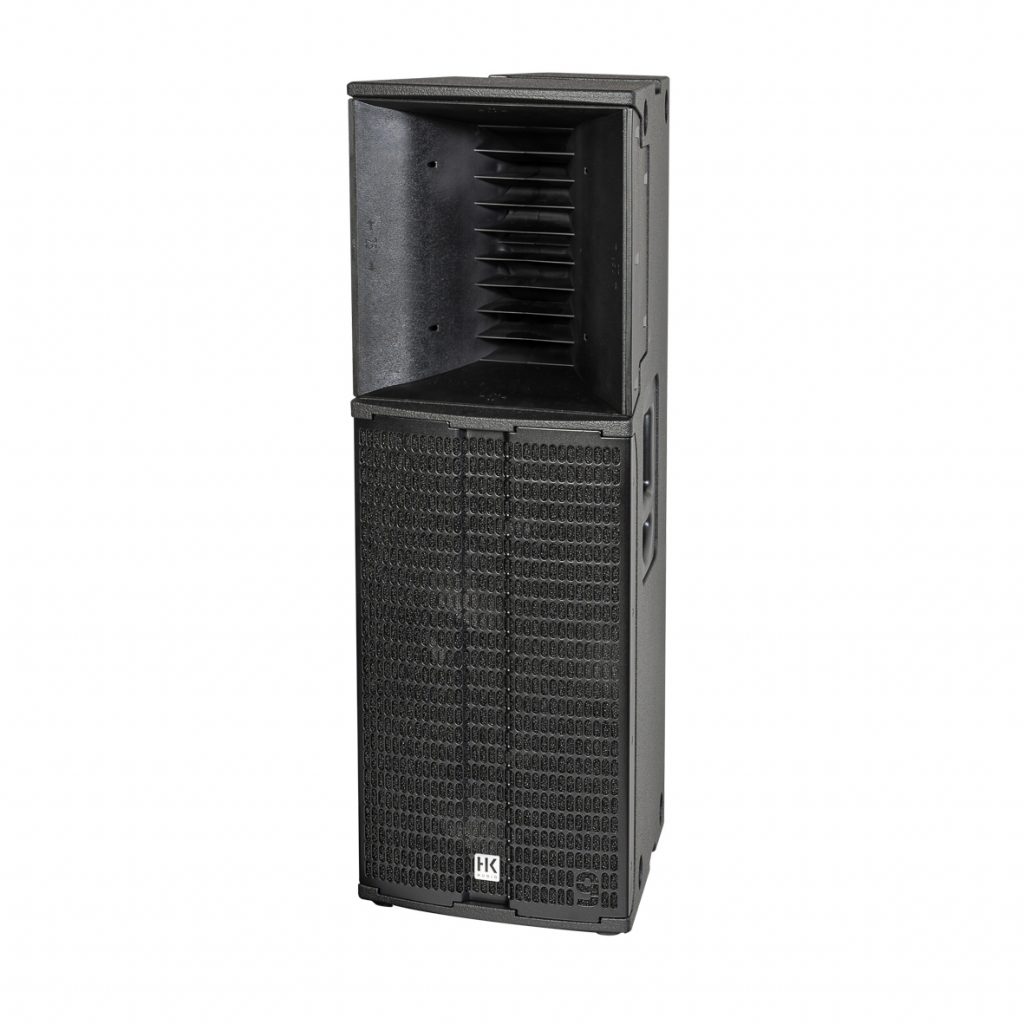

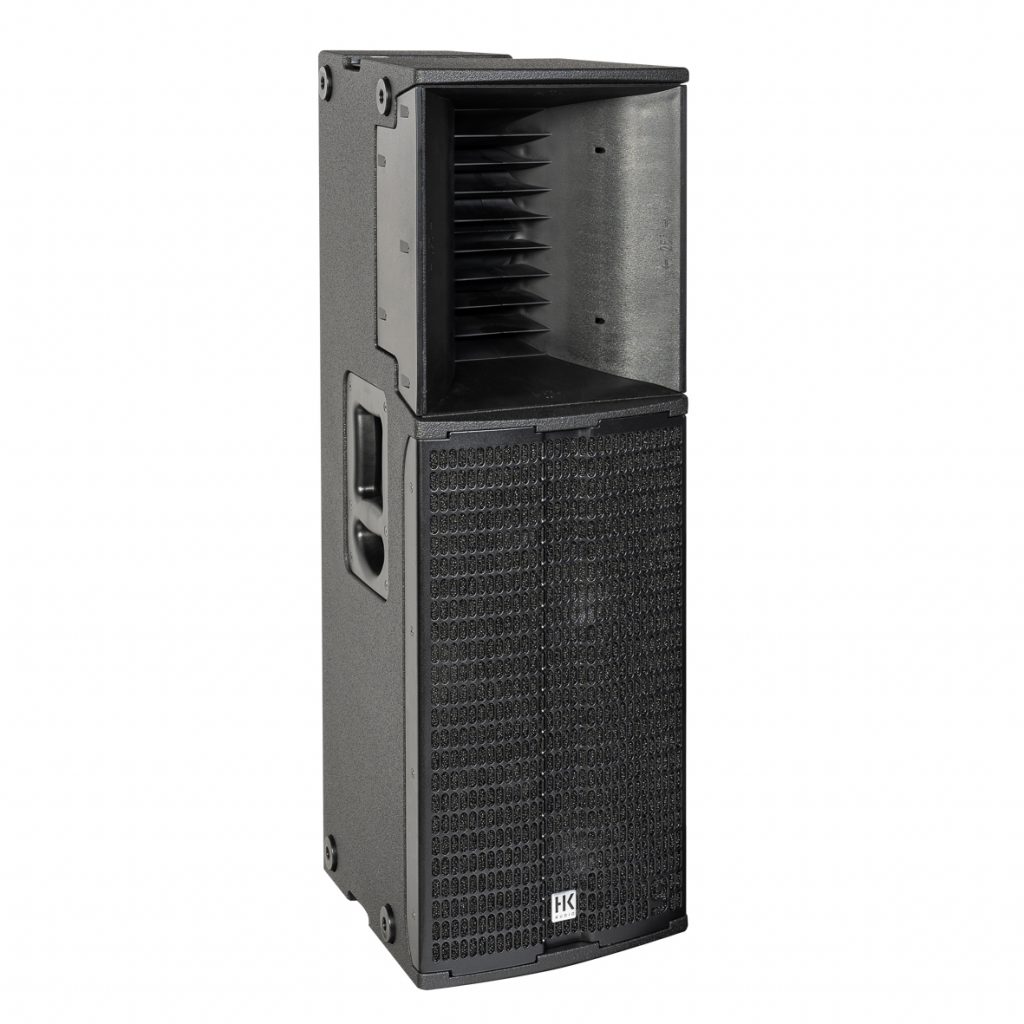

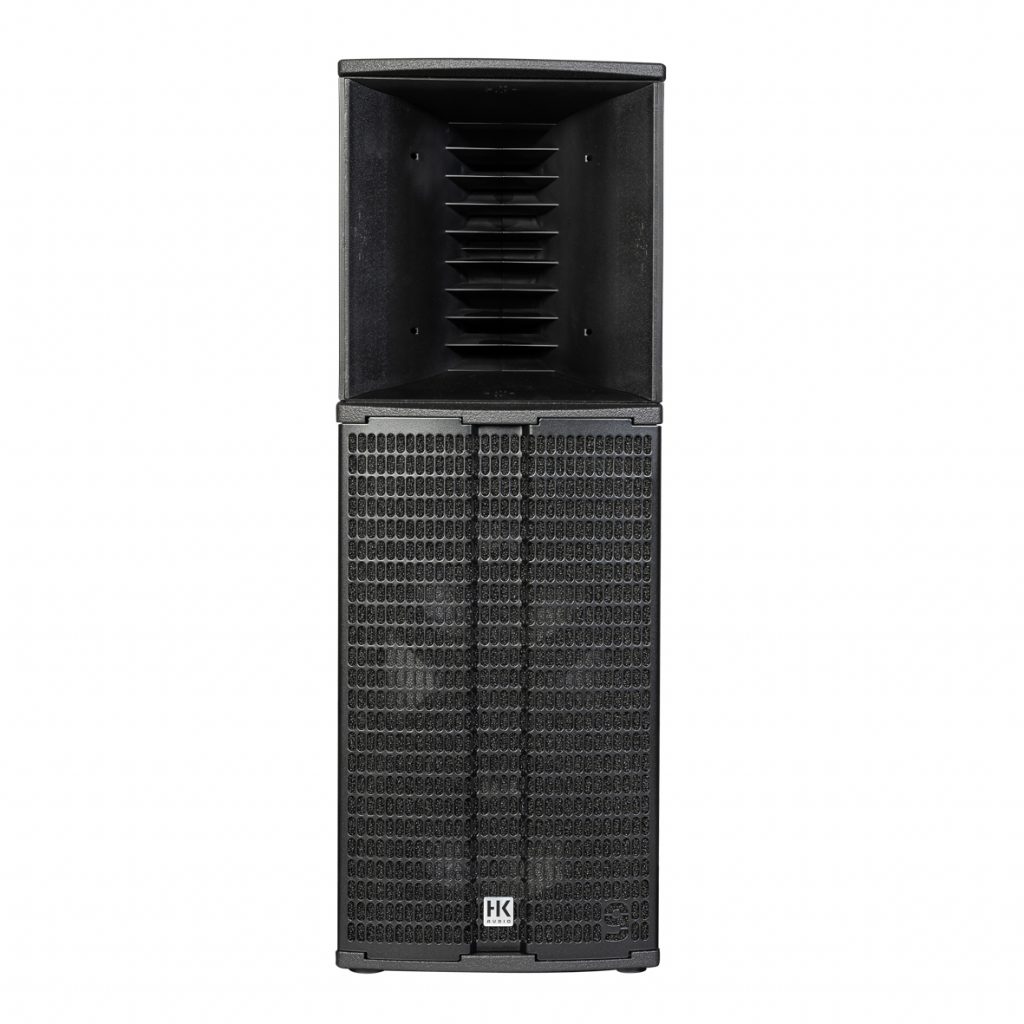

HK Audio Linear 9 210 LTA - Long-throw active speaker, a pure mid/high unit equipped with a 60° x 25° rotatable horn and a powerful 1.4" driver along with two vertically arranged 10" speakers, which are additionally directed by a carefully calculated waveguide, this speaker achieves a remarkably high efficiency. The perfect interaction of these components with the powerful electronics and large waveguides provides impressive results, with a clearly defined directivity at a constant frequency.

• Max. SPL @ 10% THD: 133 dB half space (88 Hz – 12 KHz on average)
• Max. Peak SPL @ 10 % THD: 142 dB half space
• Frequency response +/-3 dB: 88 Hz - 19 KHz
• Frequency response -10 dB: 82 Hz - 20 KHz
• Power amplifier output (RMS): 1000 W
• Amplifier type: Class D - Biamped
• Low/mid speaker: 2 x 10", 2.5" voice coil

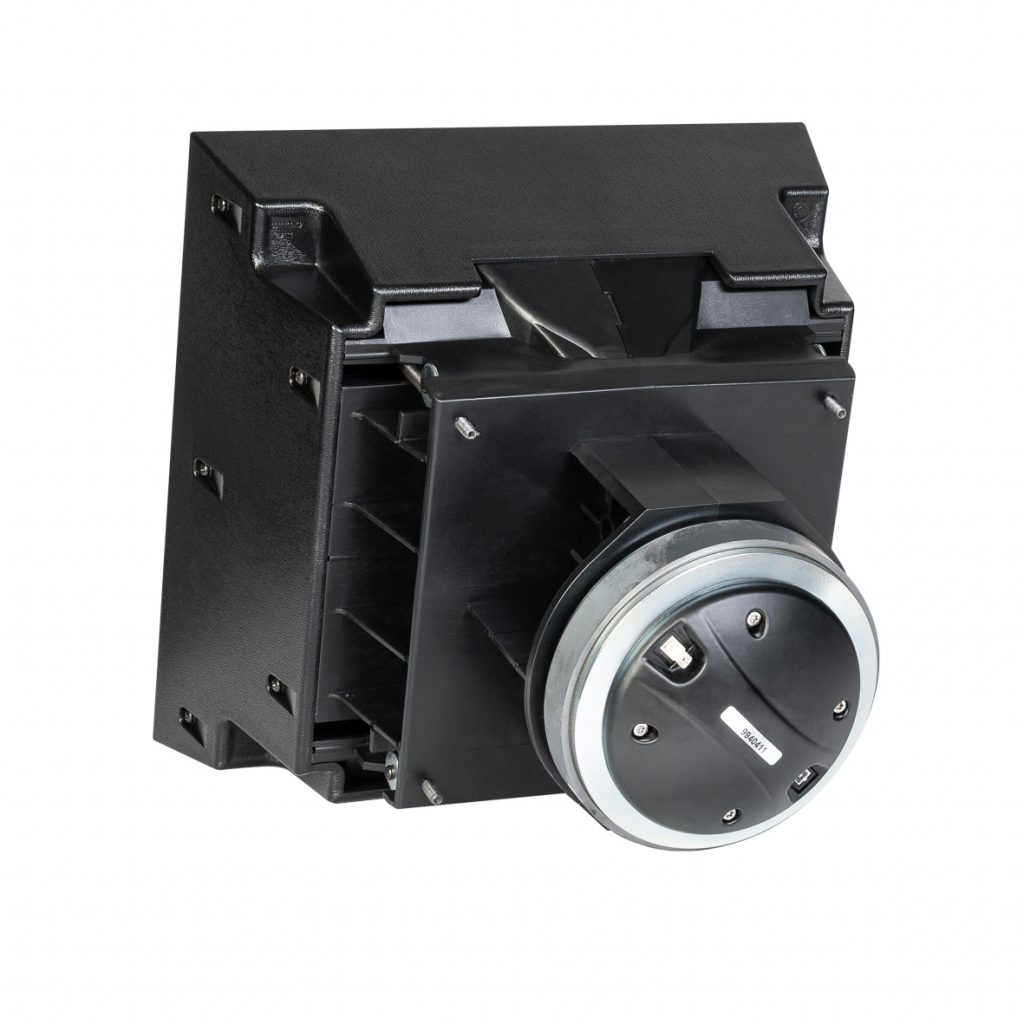

• HF driver: 1.4", 2.5" voice coil

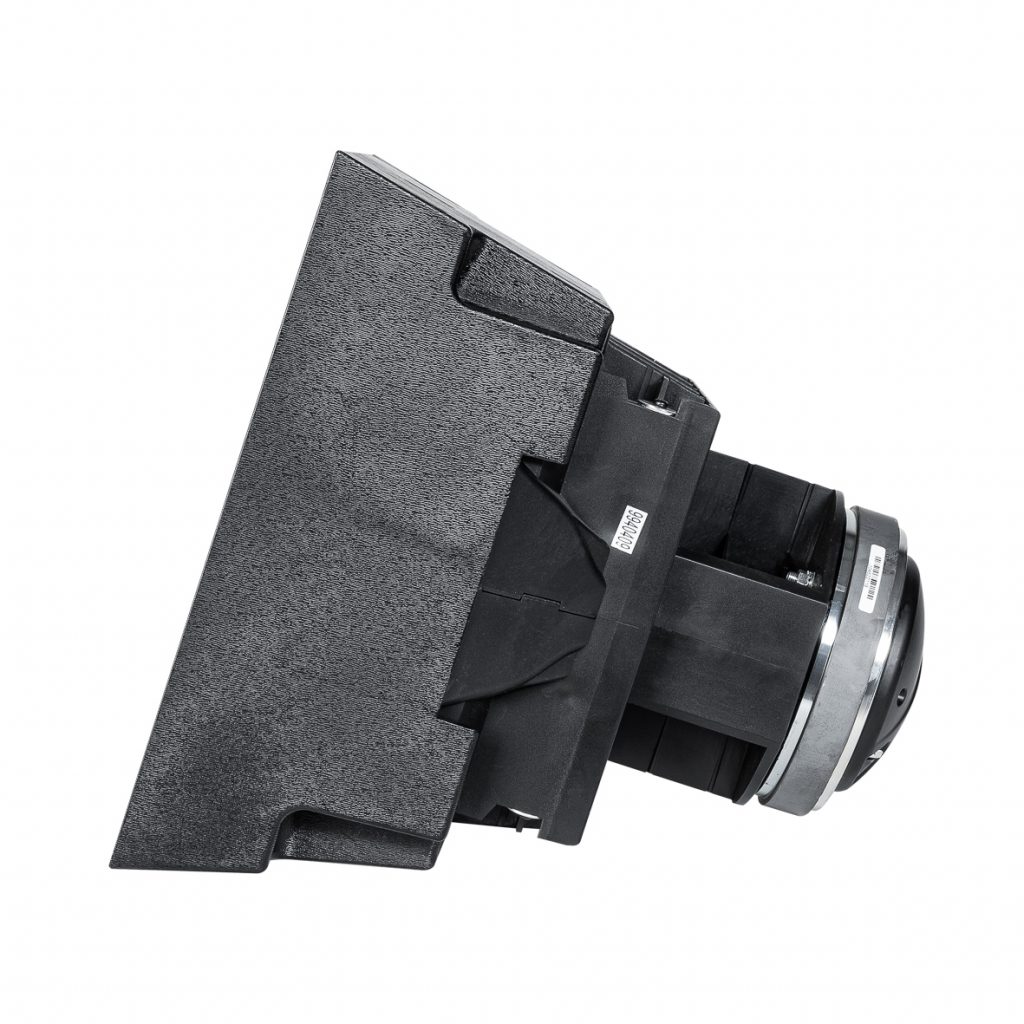

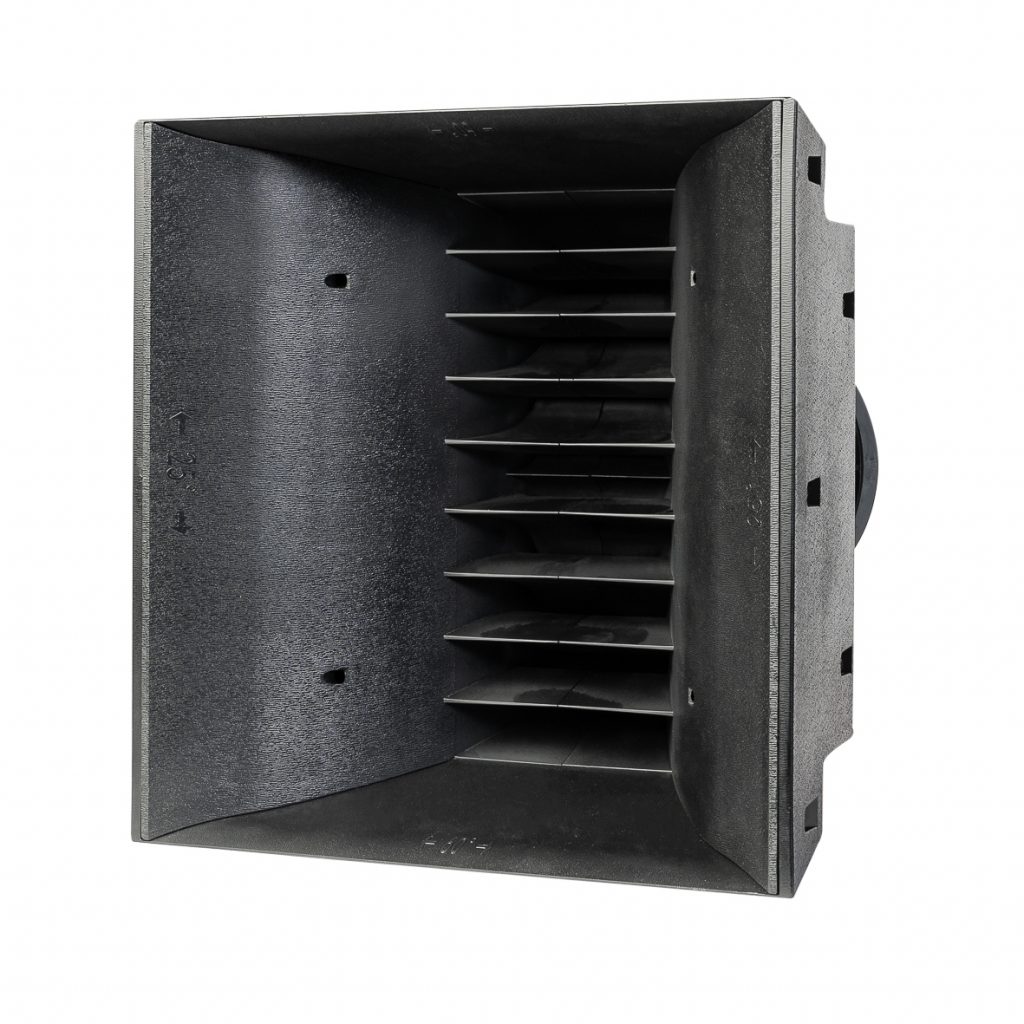

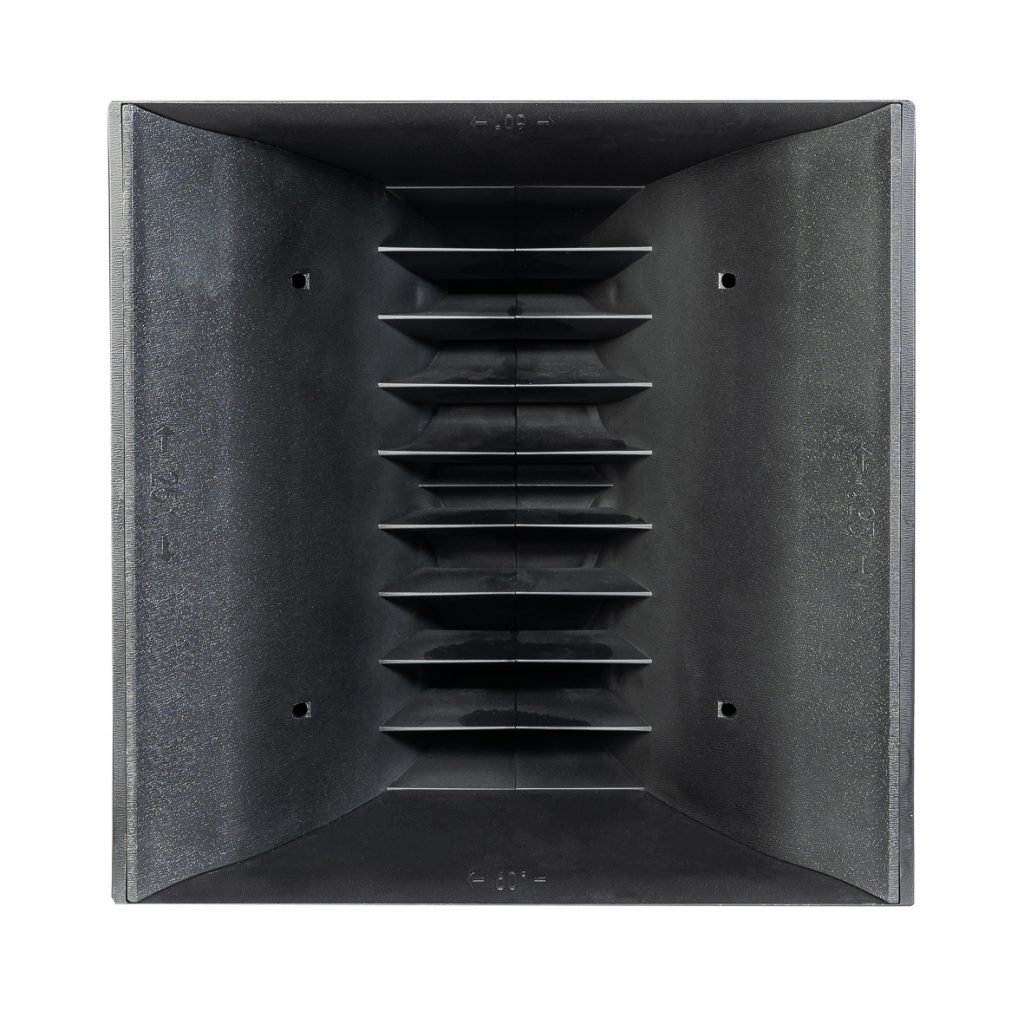

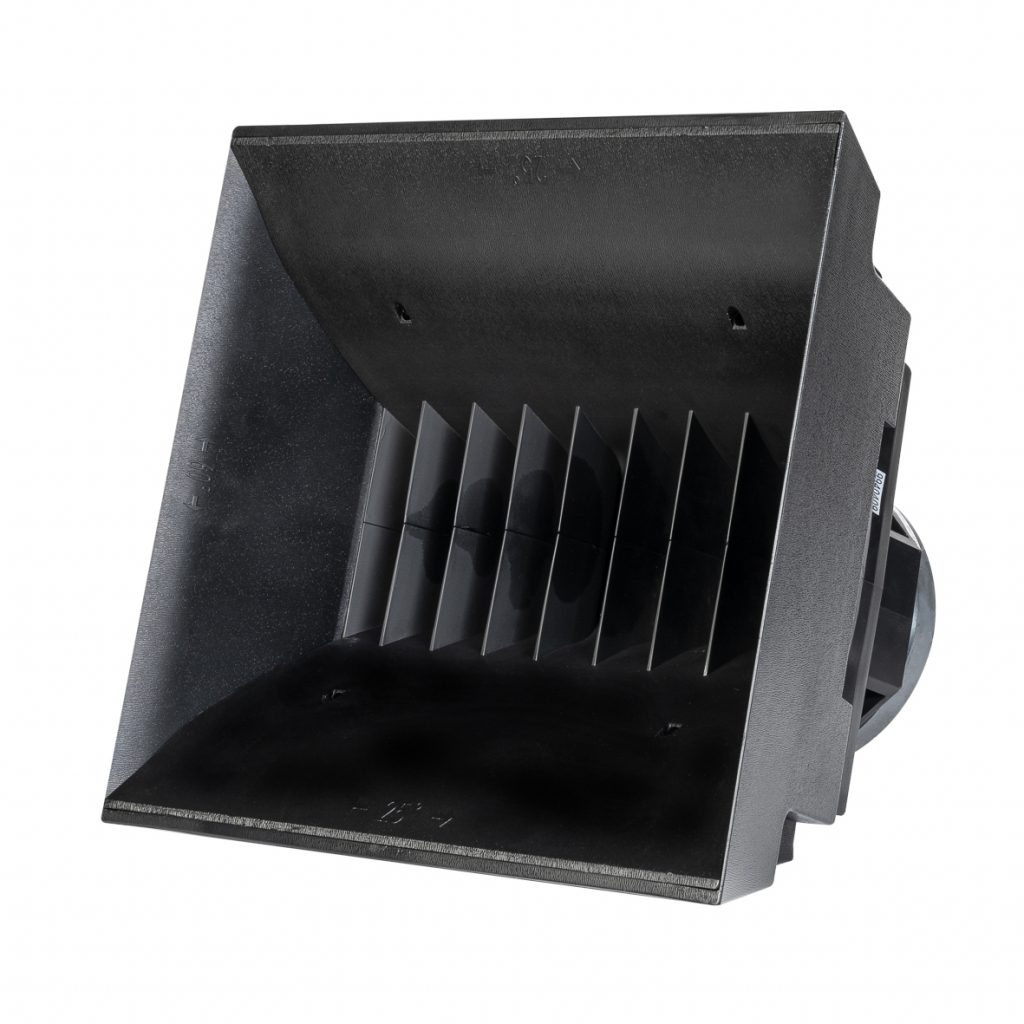

• Speaker directivity: 60° x 25° MCT horn, rotatable
• Active crossover frequency: 1.35 kHz FIR X-over with 72 dB/oct
• Maximum input level: +20 dBu

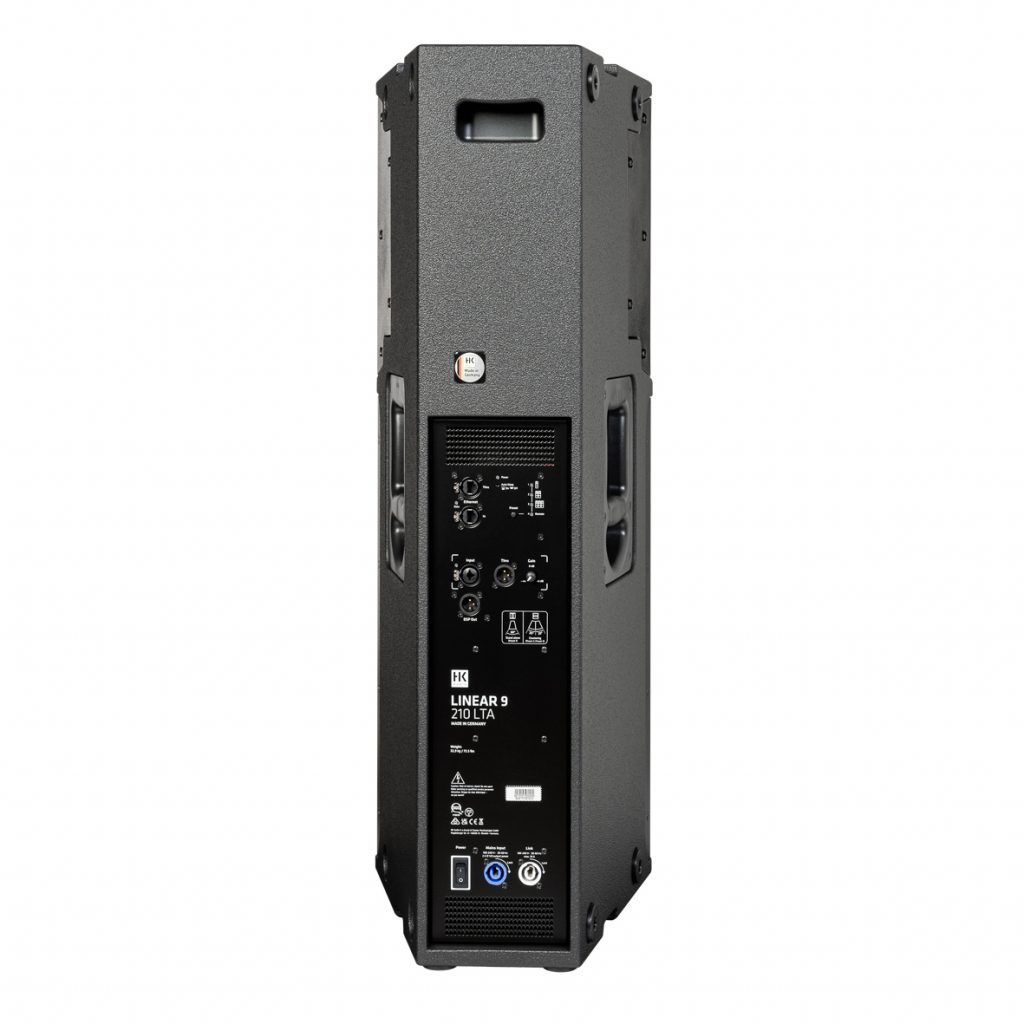

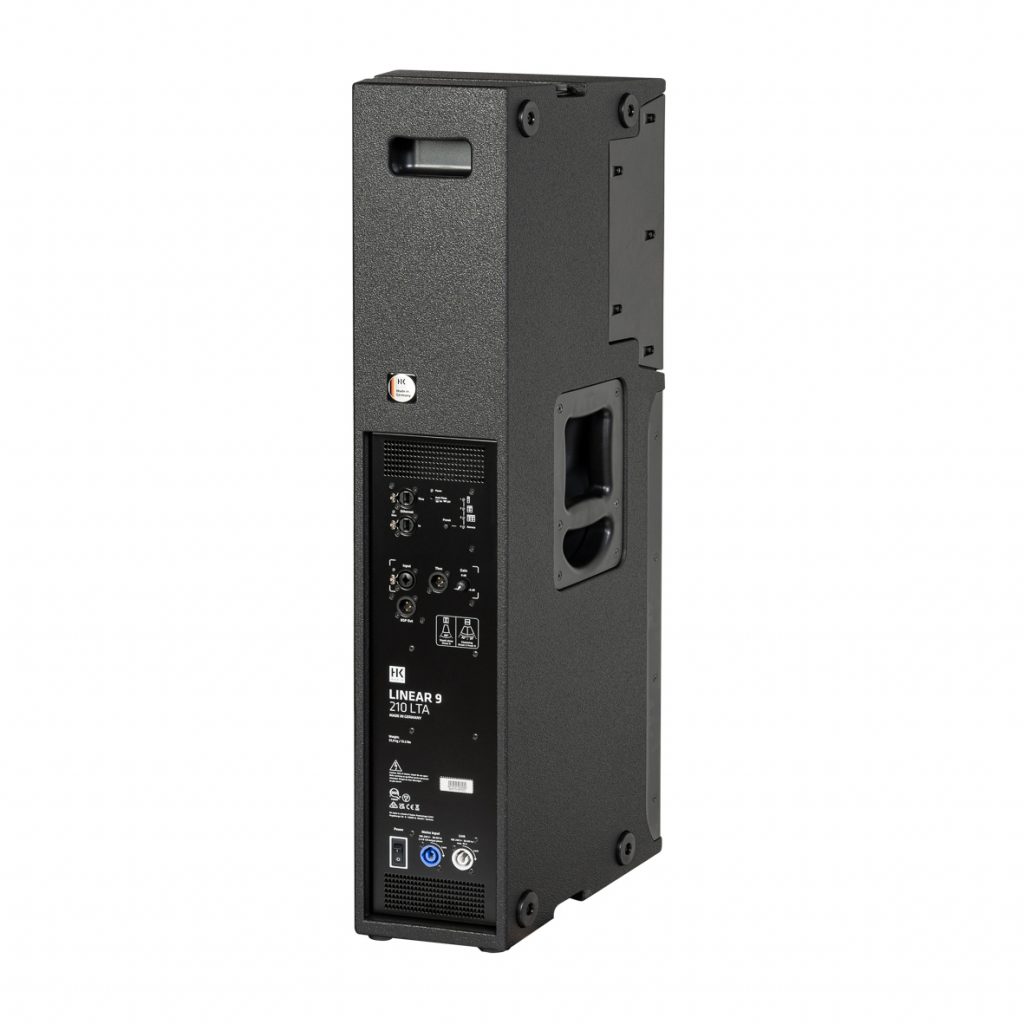

• Analog inputs: 1 x balanced XLR combo
• Analog thru: 1 x balanced XLR
• DSP output: 1 x balanced XLR
• Network port: Ethercon RJ45, 1 x In, 1 x Thru
• Preset filters: Stand Alone, Cluster (2), Cluster (3), Remote
• Remote software: DSP CONTROL (Windows, macOS)
• DSP functions: Full parametric EQ with 10 bands with variable filter characteristics, high-pass filter, low-pass filter, polarity, level, delay, limiter, mute
• Sampling frequency: 96 kHz
• System latency: Less than 2.9 ms
• Network connector: 1 x Powercon NAC3 In, 1 x Powercon NAC3 Thru, 100–240 V
• Power consumption: 2.5 A / 100–240 V nominal according to EN 62368-1

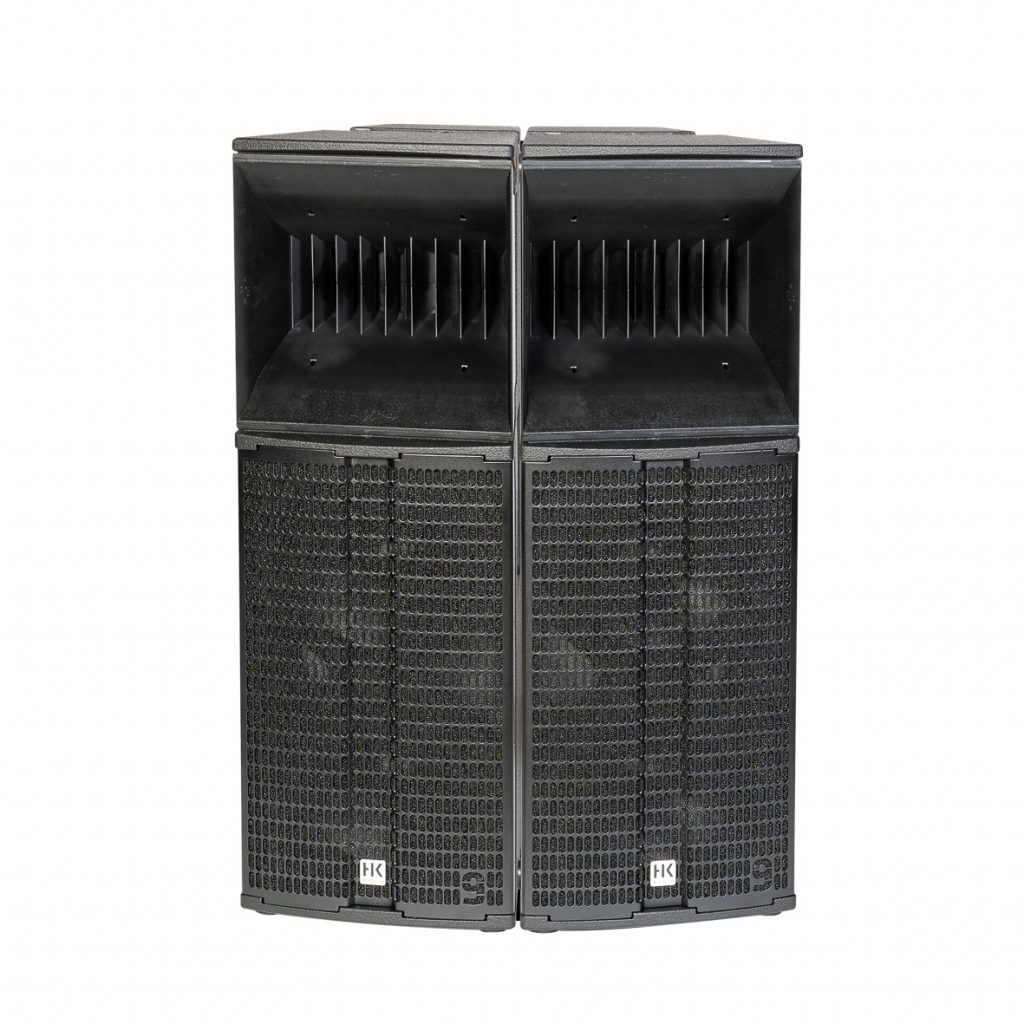

• Grouping angle: 25°
• Pole mount: DuoTilt 3°/7°

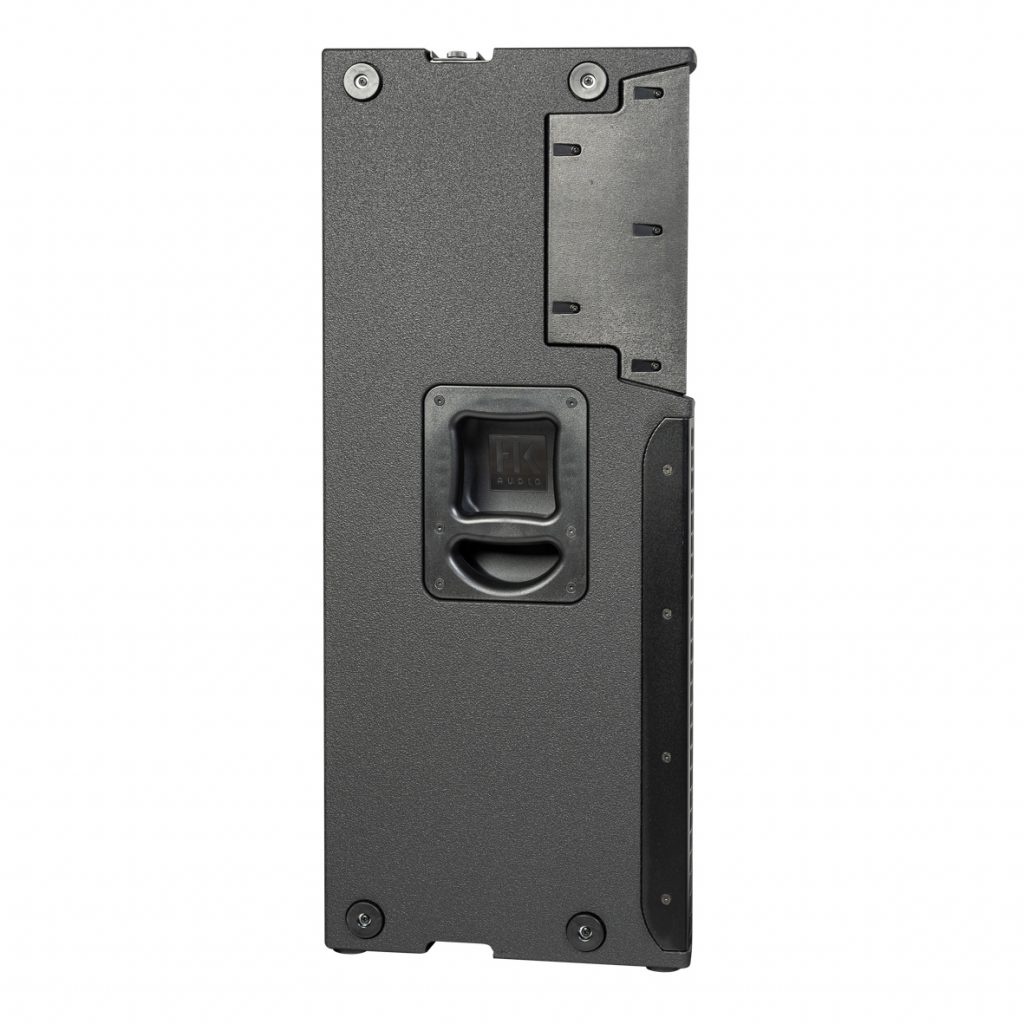

• Carrying handles: 2 x MultiGrip
• Housing: Birch multiplex
• Finish: Black PU coating
• Front grille: 2 mm metal grille supported with black acoustic foam
• Dimensions (L x H x D): 34 x 96 x 39 cm
• Weight: 33 kg
