img Stage Line TXS-1800

Wireless Receiver

192 selectable UHF frequencies (1785-1800 MHz) in 16 groups of 12 channels.
automatic scanning function for easy frequency selection.
true Diversity system with detachable antennas for improved reception.
adjustable volume and noise threshold (squelch) settings.
lCD display for frequency, RF reception level, and audio level.

238⁰⁰ €

In stock and deliverable.

Central warehouse: 1

Add to cart

also deliverable via

1219 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details better price?

img Stage Line TXS-1800 Add to cart: 238⁰⁰ €

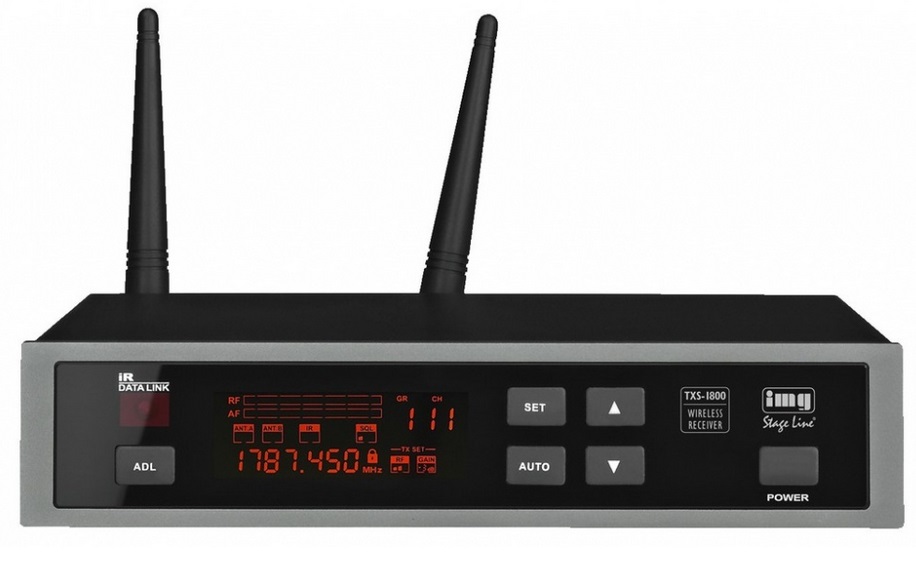

Stage Line TXS-1800 is a multi-frequency receiver unit with UHF PLL technology. 192 selectable UHF frequencies (1785-1800 MHz), in 16 groups of 12 channels. The ADL function transmits the selected frequency to the pocket transmitter TXS-1800HSE or to the handheld microphone TXS-1800HT via infrared signal. Diversity system with detachable antennas (BNC connector). Automatic scanning function.

The volume and noise threshold (squelch) can be adjusted. Auto lock operating mode. LCD display for frequency, antenna A/B, RF reception level, audio AF level, channel/group. XLR and 6.3mm jack output connections. Supplied with power supply and adapters for rack installation.

Carrier frequency: 1785-1800 MHz
Signal-to-noise ratio: 105dB
Audio frequency: 60-16,000Hz
Distortion: < 0.8%
Dynamic range: 95 dB
Audio output signal: 50 mV / 1 kOhm (jack); 50 mV / 150 Ω (XLR, balanced)
Operating temperature: 0-40°C
Dimensions: 212x47x175 mm
Weight: 1300g
