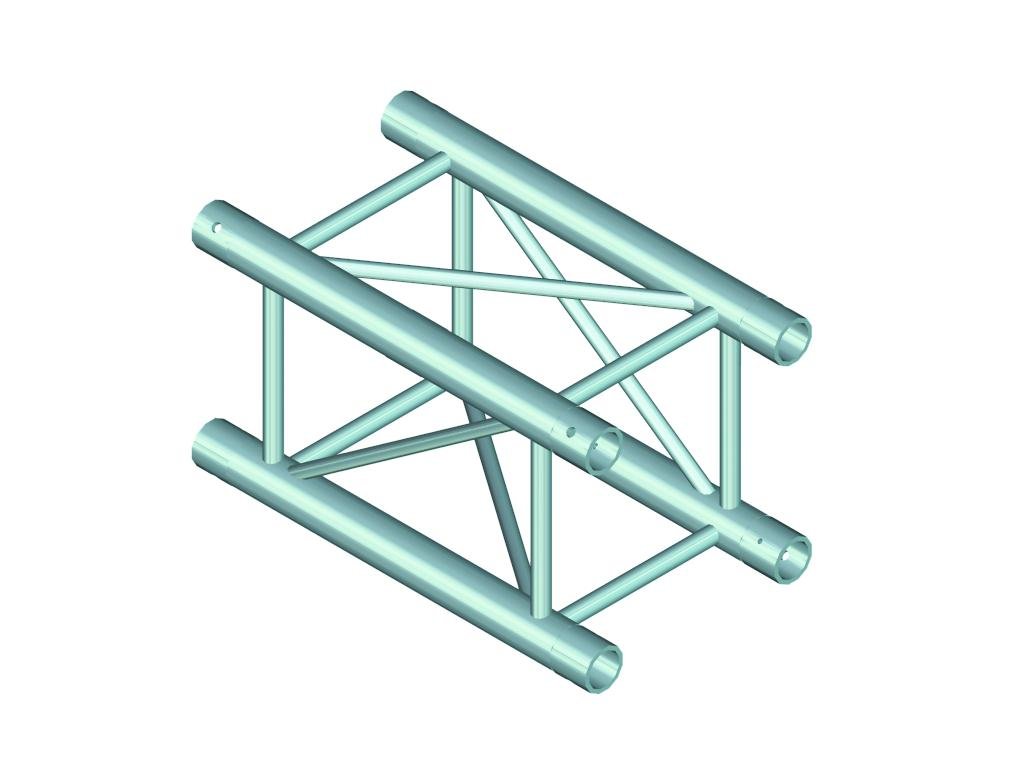

Alutruss TowerTruss TQTR-2000

Truss

4-point truss system made from durable aluminium.
connected by four cones, pins, and bolts for stability.
manufactured from EN-AW 6082 T6 alloy for high load capacity.
dimensions: 2 m length, 29 cm width and depth.
lightweight design at 17.75 kg for easy transport.

465⁶⁰ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

2381 points of loyalty

Shipping free

Warranty 24 months

Returns 14 days

request details

Alutruss TowerTruss TQTR-2000 Add to cart: 465⁶⁰ €

Alutruss TowerTruss TQTR-2000 - This is a 4-point truss system made of aluminium. The individual elements are connected by four cones, pins, and bolts. The TOWERTRUSS TQTR is manufactured from EN-AW 6082 T6 (AlMgSi1 T6) alloy with 20 mm braces for high loads. The four main bars are made from 50 mm aluminium tube with a wall thickness of 4 mm and provide a good balance between strength and weight.

Trusspipe: 50 mm x 4 mm
Welding technique: TIG welding
Welding material: AlMg 5
Alloy: AlMgSi 0.5
Diameter x thickness: 20 x 2mm
Dimensions:
- Length: 2 m
- Width: 29 cm
- Depth: 29 cm
Weight: 17.75 kg

Product code: 60304420

Unit of sale: piece
