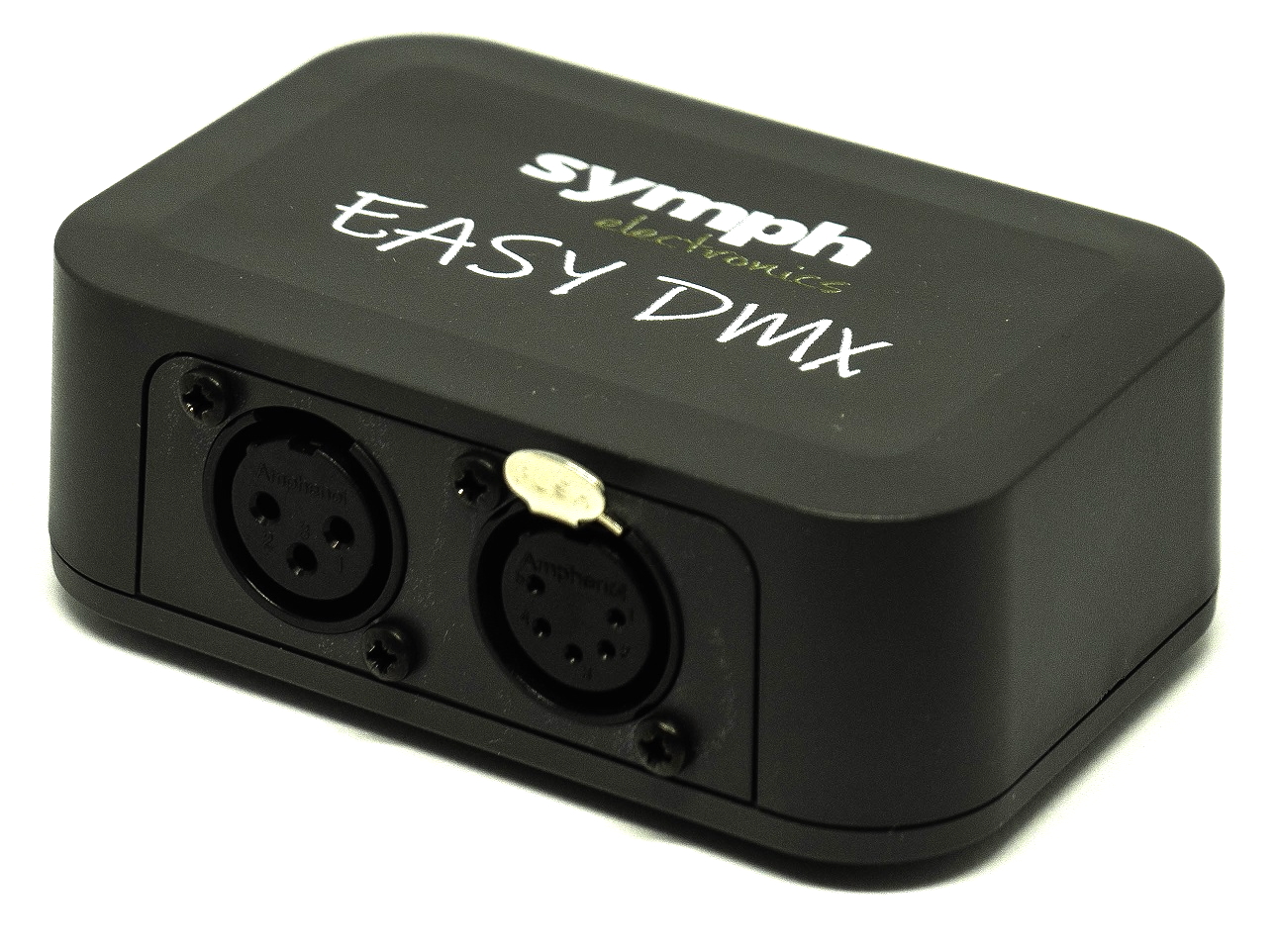

Symph Electronics EasyDMX - DMX interface for lighting control.
Features:
Optical isolation ensures complete electrical isolation between the computer and DMX lines
Both 3-pin and 5-pin XLR outputs do not require XLR adapters
Each output is amplified – you can connect up to 32 units to each XLR connector
Industrial-grade protection circuit for the DMX line – each output contains a protection circuit against electrostatic discharges, electrical transients, and overvoltage.
What's inside the box:
Simple DMX interface
USB-A to USB-B cable
Connections and indicators:
USB connector – connection to the PC
RED LED – indicates the POWER status of the device
GREEN LED - flashes – DMX is being sent by Easy DMX
On (continuous) – communication has been interrupted, restore the connection
Off – IDLE state, waiting for DMX signal
DMX OUT – 3-pin and 5-pin XLR connector used to send DMX signal to compatible devices
DMX bodies
Technical Specifications:
Power:
Powered via USB
DC 5V, 500mA
Output ports: 5-pin and 3-pin female XLR
Each output is buffered
USB: 1x USB 2.0, type A male connector
Galvanic isolation: input and output ports are isolated up to 1000V
DMX line protection: The device is equipped with industry-grade level 4 protection against electrostatic discharge, rapid electrical transients, and overvoltage.
Software: Freestyler DMX and many different Windows-based DMX software
