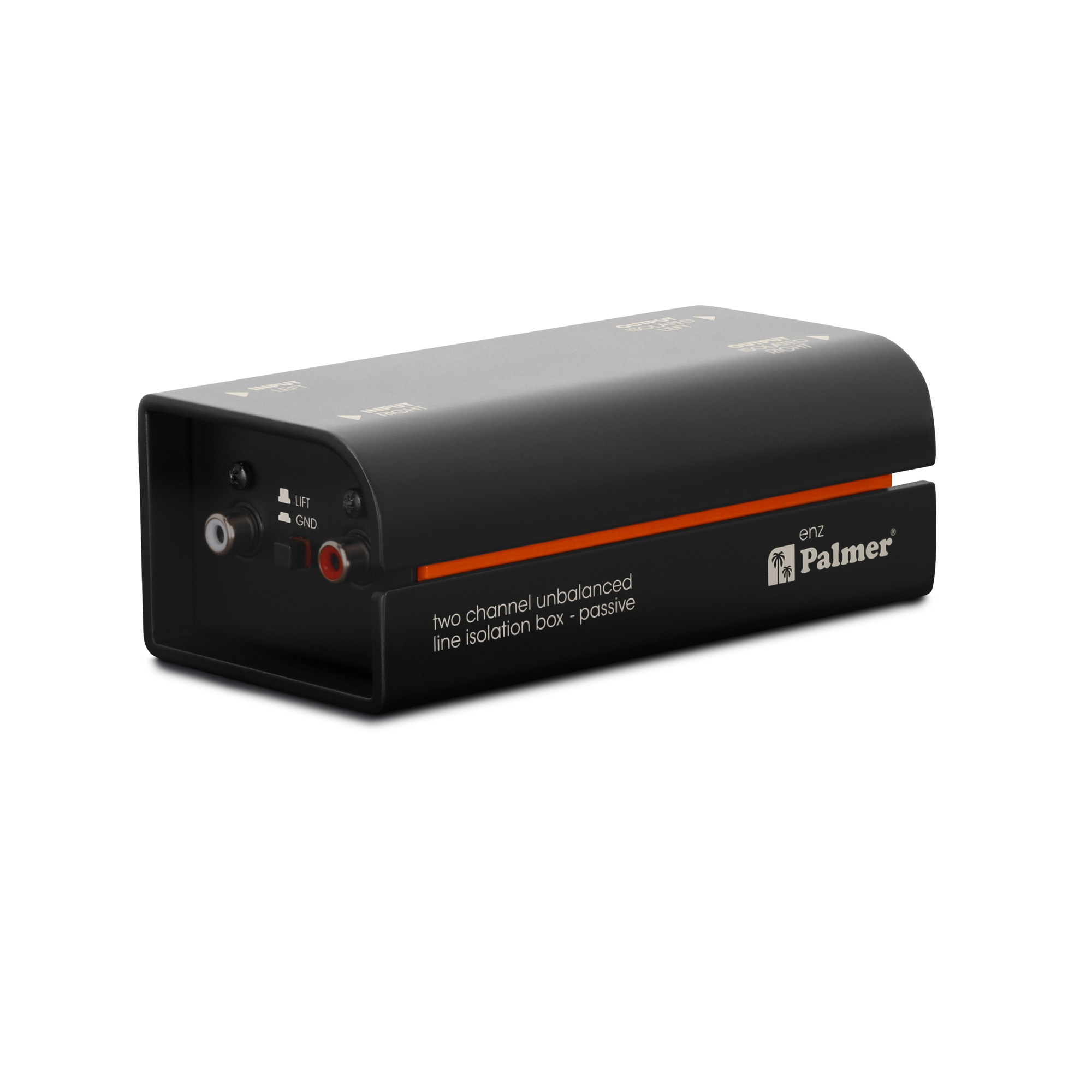

Palmer RIVER enz
11354 €
Currently unavailable.
Request details
Central warehouse: 0
Specifications:
Product type: line isolator
Type: passive
Channels: 2
Transformer isolated: Yes
Number of inputs: 2
Input type: unbalanced
Input connectors: RCA
Number of outputs: 2
Output type: Unbalanced
Output connectors: RCA
Ground lift switch: Yes
Housing: Aluminium continuous casting
Dimensions (W x H x D): 50 x 140 x 68 mm
Weight: 0,42 kg
Ambient temperature (in operation): - 20 - 70 °C
Relative Humidity: < 80% (non-condensing)
Accessories (included): Inscription label (tour label), rubber feet
Max. input level (< 1% THD, 20 Hz): + 14 dBu
Max. input level (< 1% THD, 1 kHz): +32 dBu
Frequency response (±1dB, relative 1kHz): 5 Hz - 20 kHz
Input impedance (1 kHz, Setting: 0 dB Pad, THRU): 16 kOhm
Output impedance (1 kHz, Setting : 0 dB Pad, THRU): 1,3 kOhm
THD (30 Hz, +4 dBu, unity, unweighted): < 0.15 %
THD (1 kHz, +4 dBu, unity, unweighted): < 0,003 %
IMD (SMPTE) (60 Hz / 7 kHz, 4:1, +4 dBu): < 0,003 %
Transformer ratio: 1 : 1
Product code: PENZ
Unit of sale: piece
