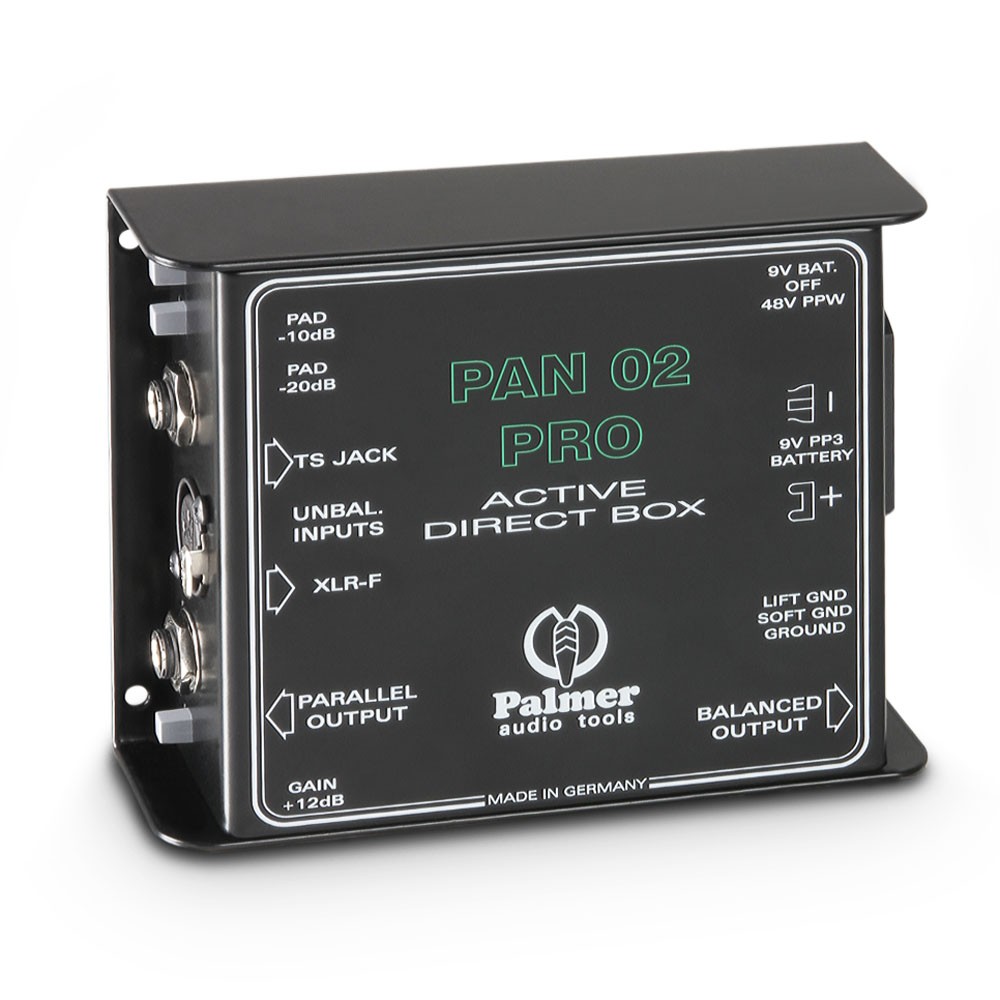

Palmer PAN-02 Pro, active DI box with 1 channel and remarkable additional features. These include an unbalanced XLR input, 3-way attenuator, 12 dB gain with a maximum output voltage of +20 dBu. The ground-lift switch allows adjustment between soft-lift and hard-lift. It can be powered by a 9V battery or Phantom Power +48V.
Active DI, 1 channel
2 x XLR / Jack inputs
maximum input level: + 45 dBu
input impedance:
-10 & -20 dB: 70 k Ohms
-30 dB: 40 k Ohms)
0 dB & 12 dB: 1 M Ohms
Attenuation PAD: 0 dB, -10 dB, -20 dB, -30 dB
1 x XLR output
1 x THRU jack output
maximum output level: + 20 dBu
frequency range: 20 Hz - 20 kHz
balancing transformer
ratio: 3.16:1, 10:1, 31.6:1, 1:4
controls: attenuator, battery/+ 48 V Power, boost, ground-lift
