LD Systems Dave 8 Roadie


Portable PA System

  • mobile PA system with a 3-channel mixer and peak power of 1400 W.
  • includes an 8" active Bandpass subwoofer and two satellite speakers.
  • features multiple input options for microphones, computers, and instruments.
  • built-in A/B amplifier with protection circuits for reliable performance.
  • lightweight design with ergonomic handles for easy transport.
LD Systems
50731
Currently unavailable. Request details
Central warehouse: 0
Add to cart
2588 points of loyalty
Shipping free
Warranty 24 months
Returns 14 days

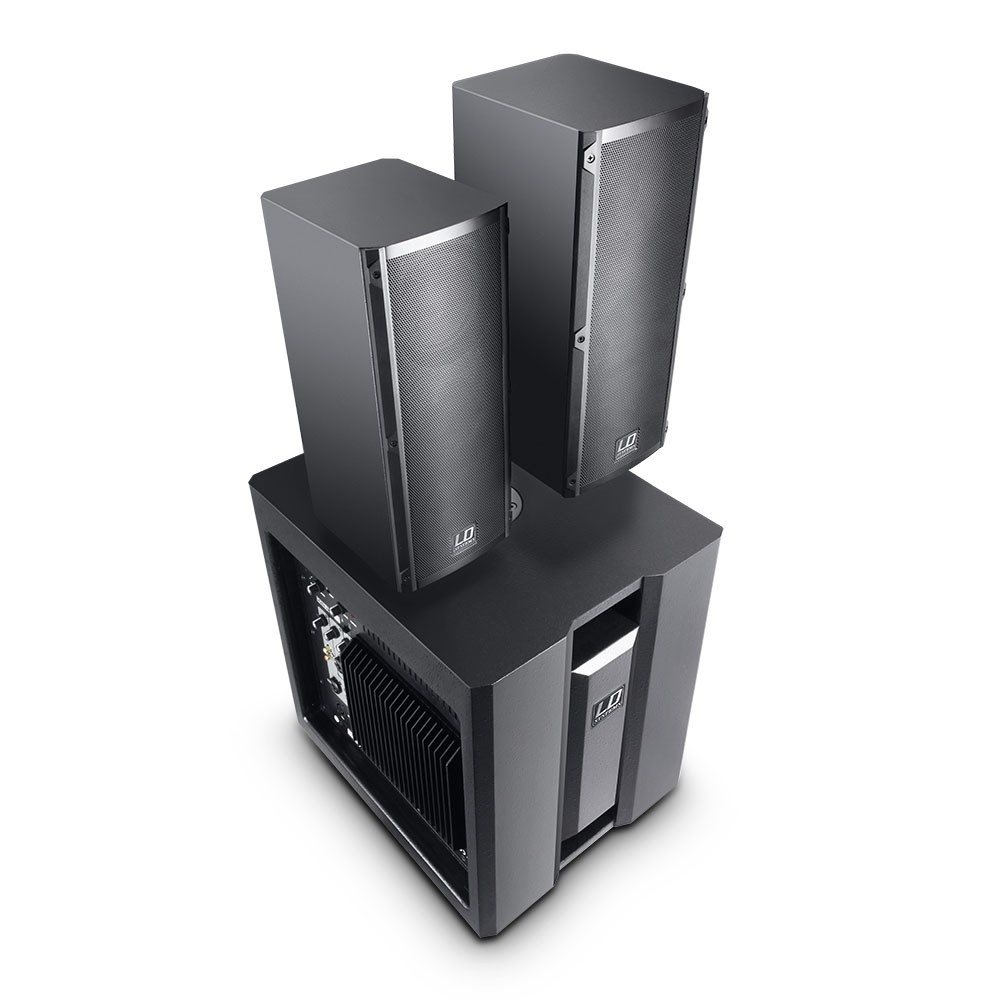

LD Systems Dave 8 Roadie - mobile PA system with an integrated 3-channel mixer, which embodies the motto "pro audio in motion". This complete PA system delivers a peak power of 1400 W and consists of an active Bandpass subwoofer equipped with an 8" speaker, and two satellite speakers, each featuring two 4" drivers and 1" radial horn tweeters, making it the ideal solution for musicians. It offers 3 input channels that can be used simultaneously. The first channel has a combo connector (XLR/jack) for dynamic microphones, the second channel provides dual RCA connectors for connecting computers and a combo connector (XLR/jack) for connecting mixers or keyboards. The third channel has 3.5 mm mini jack and 6.3 mm mono jack connectors for MP3 players or as a guitar input, selectable for the type of connection via a dedicated selector.

The powerful A/B amplifier integrated into the subwoofer amplifies both the subwoofer and the satellites. The amplifier is equipped with all standard protection types. It also features a built-in limiter that protects the system from overload. On the side of the subwoofer, in addition to the ON/OFF switch and phase selector (180°), there is a potentiometer for controlling the subwoofer volume, facilitating ideal frequency calibration, balanced across high, mid, and low frequencies. The satellites are equipped with stand mounting systems, and like the subwoofer, they have ergonomic handles and solid metal speaker protection grilles.

Technical specifications of the system:

  • System type: active
  • Colour: black
  • Maximum sound pressure level SPL: 117dB
  • Frequency response: 45 - 19,000Hz
  • Dispersion (H x V): 60 x 60°
  • Weight: 29.1 kg

Technical specifications of the subwoofer:

  • Low-mid speaker: 8" / 203mm
  • Speaker magnet: Ferrite
  • Voice coil diameter: 1.5" / 38.1mm
  • Cabinet type: Bandpass
  • Cabinet material: 15 mm MDF
  • Cabinet finish: painted
  • Dimensions (WxHxD): 352 x 430 x 434mm

Technical specifications of the satellites:

  • Mid speakers: 2 x 4" / 2 x 101.6 mm
  • Speaker magnet: Ferrite
  • Voice coil size: 1" / 25.4mm
  • Tweeter dimensions: 1" / 25.4mm
  • Tweeter magnet: Ferrite
  • Horn: radial
  • Satellite impedance: 4 Ohms
  • Input connectors: Speakon
  • Cabinet type: closed
  • Cabinet material: 12 mm MDF
  • Cabinet finish: painted
  • Dimensions (WxHxD): 150 x 350 x 170mm
  • Satellite weight: 4.2 Kg / piece

Amplification:

  • Amplifier class: Class A/B (Bi-amp)
  • Output power (RMS): 350W
  • Output power (peak): 1400W
  • Protection circuits: limiter, short-circuit, overload
  • Cooling: aluminium heatsink
  • Controls: subwoofer volume, switch (on/off), volume, subwoofer phase inverter, input selector (MP3 / Hi-Z),
  • Line Level, sub level, MP3 / Hi-Z Level, Main Level
  • Indicators: Power, protect (protection circuit activated)
  • Power supply voltage: transformer, 220 V AC - 240 V AC, 50-60 Hz
  • Input connectors: XLR, 6.3 mm Jack, RCA
  • Microphone connectors: 6.3 mm Jack, XLR
  • MP3 player connectors: 3.5 mm jack
  • Speaker output connectors: Speakon

Product code: LDDAVE8ROADIE

Unit of sale: sistem
