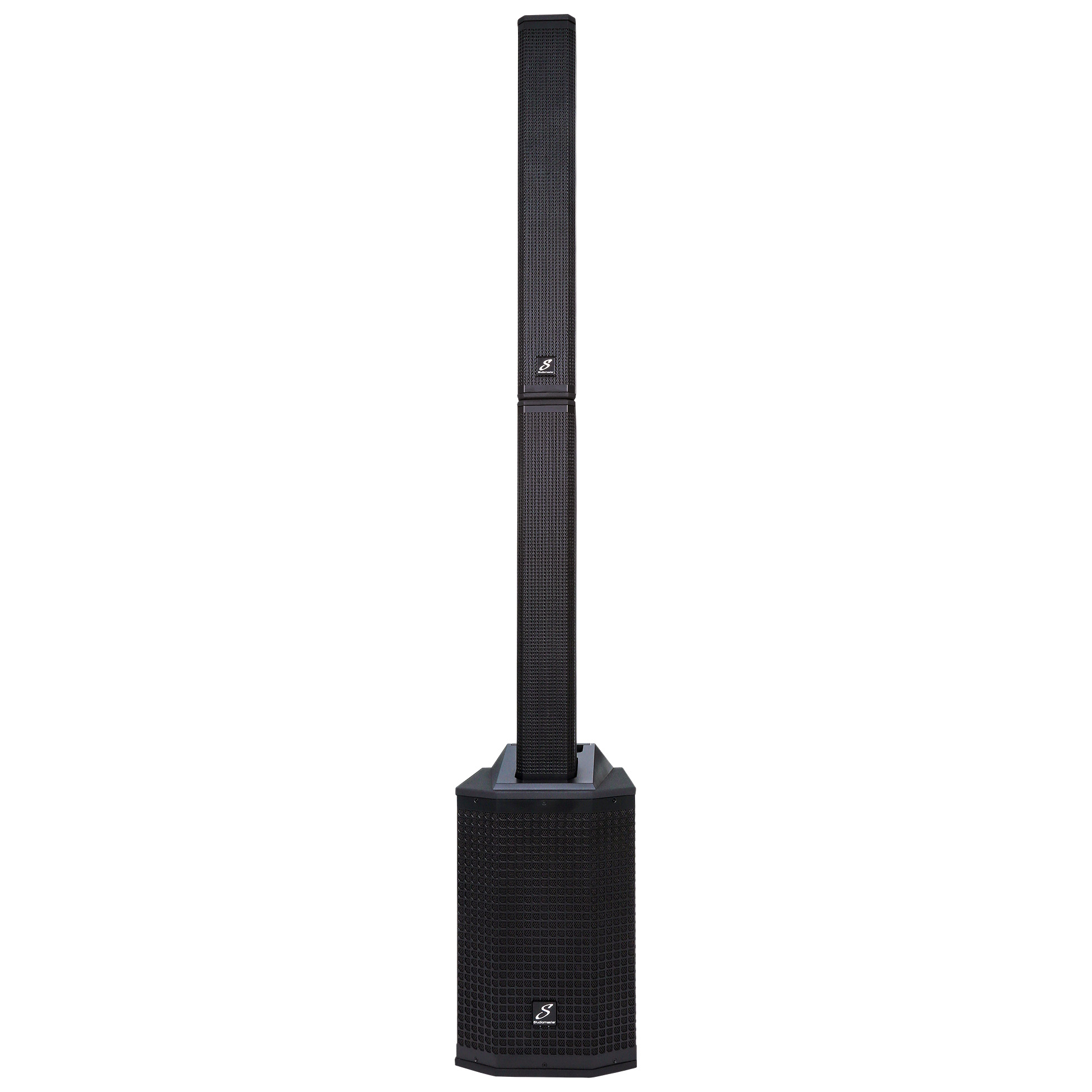

Studiomaster DIRECT 101MX - Designed for DJs, small bands, presentations and education, the DIRECT MX series is a vertical column type PA solution, featuring a powerful built-in 2000 W amplifier, 4-channel mixing, Bluetooth 5.0 playback (with TWS) and reverb effects on the input channels.
All Direct models have a transducer of 6 x 3" combined with a 1" compression driver to provide clear highs and vocal or instrument clarity.
The 10" active subwoofer delivers strong response, capable of reproducing the lowest frequencies through its bass-reflex design.
DirectMX comes equipped with a 4-channel DSP mixer, which includes 2 switchable MIC/LINE inputs with gain and reverb controls, 1 HI-Z instrument input, 1 stereo RCA / Bluetooth input, and an XLR line output. There is also an independent SUB LEVEL control for quick bass adjustment. A powerful 24-bit DSP interface with display allows for adjustment of 3 operating modes: music, DJ, speaking. 3-band EQ with mid frequency and storable presets, digital gain control, high-pass filter, dual-channel limiter, digital delay for delay zones up to 100 m (in 0.25 m steps), and Bluetooth connection, all controlled via a simple ONE CONTROL encoder. DirectMX uses Bluetooth 5.0 stereo with a wide range of Bluetooth playback with TWS (true wireless stereo).
Regardless of your application, the DIRECT MX series offers the connectivity options you need. The integrated 4-channel mixer comes with 2 MIC/Line inputs with a useful vocal reverb feature, a Hi-Z instrument input for connecting electric guitars, and a stereo input for playback either through phono connections or via Bluetooth 5.0. DSP allows for simple setup with 3 preset systems: Music, DJ or Speaking, along with a master 3-band EQ and a useful output delay if used as a delay speaker in a larger system.
Column:
- MF: 6 x 3" mid speaker
- HF: 1 x 1" compression driver
- Coverage: Advanced coverage 120° x 30°
- Nominal power: 180 W (RMS)
- Nominal impedance: 6 ohms
- Dimensions: 117 x 807 x 124.3 mm (each section)
- Weight: 8 kg (total for both sections)
Submodule:
- Direct subwoofer:
- Speaker type: 1 x 10" transducer
- Nominal power: 250 W (RMS)
- Nominal impedance: 4Ω
- Dimensions: 357 x 612 x 437 mm
- Weight: 22.5 kg
- Direct amplifier:
- Nominal power: 2 x 300 W RMS
- Frequency range: 20Hz - 20kHz
- DSP connection: 24 bits (1in-2out)
DSP mixer with reverb:
- Inputs: 4 channels: 2x Mic/Line, 1x Hi-Z, 1x RCA/Bluetooth)
- Input connectors: Combo XLR/6.35 mm jack, unbalanced 6.35 mm jack, 1x RCA jack
- Impedance: MIC/LINE: 10k Ohms, HI-Z: 470k Ohms, RCA: 10k Ohms
- Output connector: Mix output: XLR (PRE DSP)
- Controls: DSP adjustment, Secondary level, Channel gain, MIC/LINE reverb
- DSP: 24-bit dip with display
- DSP functions: Mode, EQ, Gain, HPF, Limit, Delay, Bluetooth
- Connectivity: Bluetooth 5.0
DIRECT 101MX:
- 1 x vertical matrix
- 1 x 10" active subwoofer with mixer
- System power: 2000w
- Max SPL: 126 dB
- Frequency response: 38Hz-20kHz
- System dimensions: 357 x 2075 x 437 mm
- System weight: 30.5 kg
