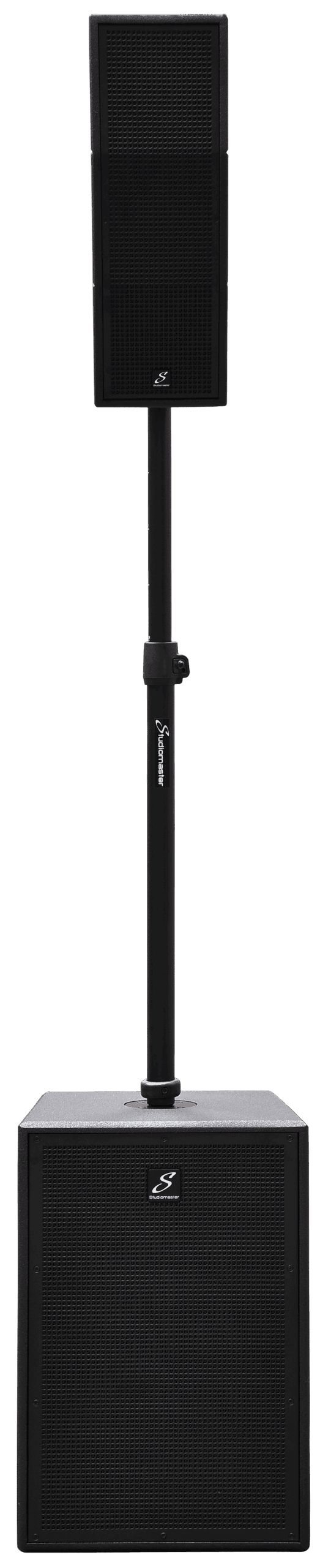

The new CORE system from Studiomaster uses a specially designed curved array that ensures controlled and highly efficient sound dispersion.
The curved array is combined with a powerful bass reflex subwoofer, up to 2800 W for low frequencies. The entire system thus offers 4000 W peak (1000 W RMS) in a compact and portable format, with the coverage and sound quality you expect from an ultra-compact array system.
For a complete system, CORE comes with a built-in 4-channel mixer, DSP control, and Bluetooth® connectivity.
The CORE system is designed to be easy to install and use. The adjustable distance bar, with pneumatic suspension, has integrated cabling, so you just lift the curved array, easily, and place it above the bar. Connect the power and you're ready to play!
A true ALL-IN-ONE system, perfect for any type of event.
- vertical line array audio system with integrated mixer
- max SPL 124 dB
- frequency response 40 Hz – 18 kHz
- array satellite:
- 3 x 5" full range MF speaker with neodymium
- 9 x 1" dome HF tweeters
- handling power 300 W (RMS)
- coverage angle 100° (H) x 55° (V)
- dimensions 185 x 495 x 220mm (315 mm max)
- net weight 8 kg
- subwoofer:
- 1 x 12" speaker
- handling power 700 W (RMS)
- integrated amplifier: 700 W (LF) + 300 W (MF/HF) (RMS)
- dimensions (L x H x D) 405 x 590 x 470mm
- net weight 27 kg
- mixer:
- 24-bit DSP module with control for mode,
- EQ, limiter, delay, and mix level
- Inputs
- 2 x microphone (XLR) / line (6.35 mm jack), balanced
- 1 x Hi-Z instrument (6.35 mm jack)
- 1 x stereo line (RCA) / Bluetooth®
- Outputs:
- 2 x line / link balanced (XLR)
- 1 x line / link MIX balanced (XLR)
