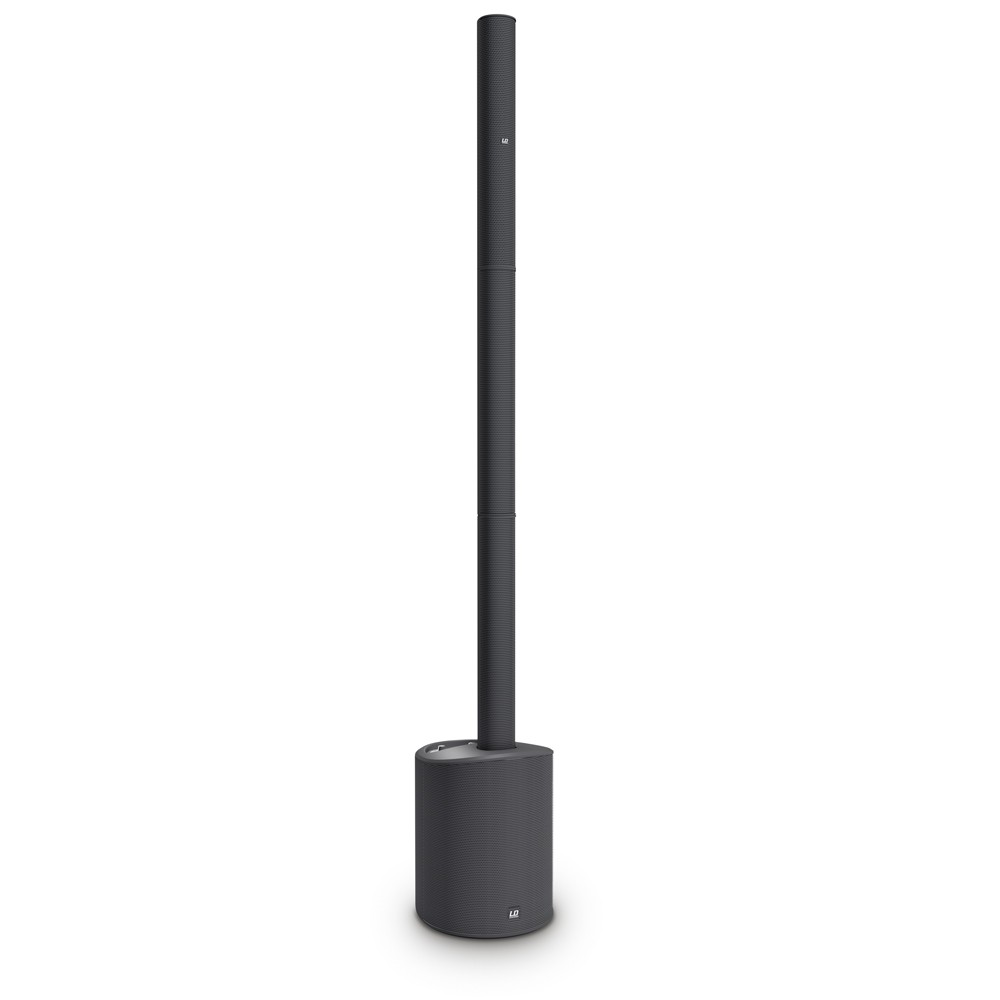

LD Systems MAUI 5

LD Systems MAUI-5, active vertical/column array system with integrated mixer and Bluetooth receiver, ultra-compact system, weighing 11 Kg delivering 120 dB of sound pressure and peak amplification of 800W. Maui 5 is equipped with DSP with LECC processing system and features a 4-channel mixer and integrated Bluetooth receiver.

System specifications:

• Class D amplification, power of 200W RMS / 800W peak
• DSP processing
• Max SPL: 120 dB
• Frequency range: 50 Hz - 20 kHz
• Horizontal x vertical dispersion: 120° x 20°
• Height: 1985 mm
• Weight: 11.3 kg

1 x Subwoofer:

• Subwoofer with 8" speaker
• 2" voice coil
• Bass reflex enclosure
• ABS cabinet
• Dimensions: 305 x 405 x 395 mm

Mid/high section:

• 4 x 3" speakers with neodymium magnets
• Multi-pin connection, plug and play
• ABS cabinet
• Dimensions: 82 x 535 x 105 mm

Amplification and mixer module - integrated in the subwoofer:

• Power: 200W RMS / 8000W peak
• Integrated protections: short-circuit, overheating, multi-band limiter
• Convection cooling
• Controls: Bluetooth switch, Hi-Z level, line level, Main level, mono/stereo switch, MP3/Bluetooth level, SUB level
• Proprietary LECC DSP
• 24-bit / 48 kHz AD/DA converter
