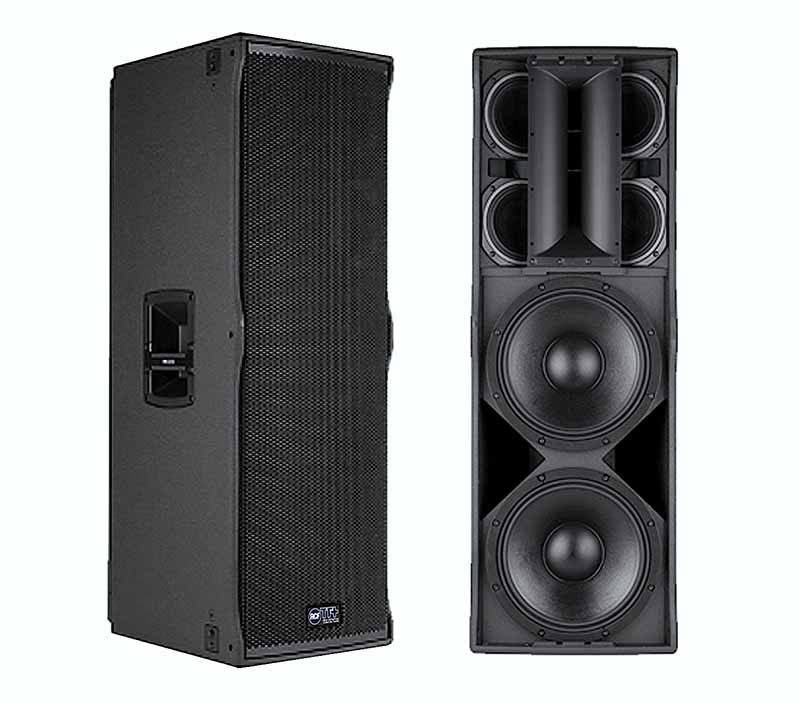

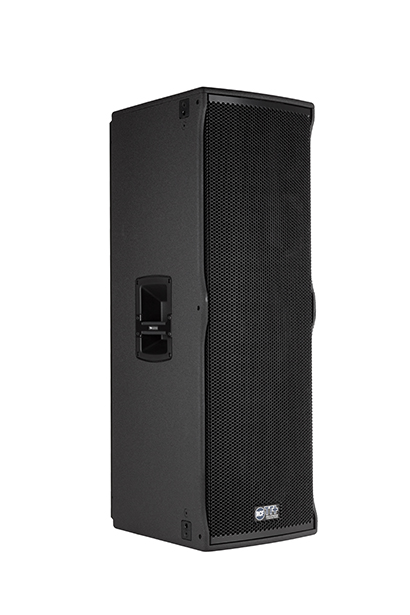

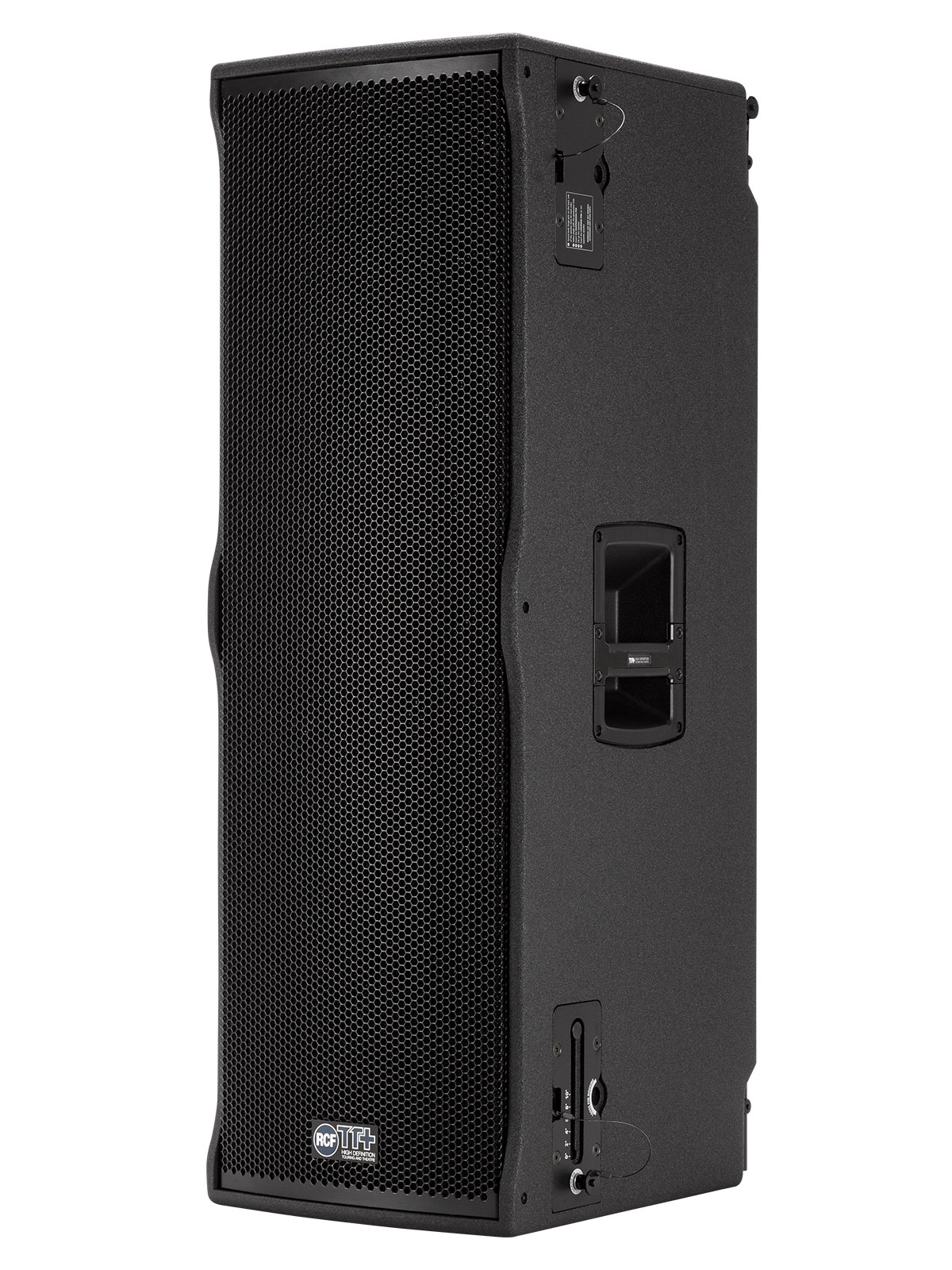

RCF TTL6A - active 3-way Array speaker module, designed to provide a high-fidelity output signal, suitable for indoor or outdoor use in medium to large spaces. It benefits from Array technology, which offers directivity, extended range, and uniform sound distribution, with ease of use. It is ideal for stacked systems or in situations where greater sound dispersion is required. It is equipped with 2 x 12" low-frequency drivers, 4 x 6.5" mid-frequency drivers, and a 3" compression driver high-frequency driver. Thanks to the 4-channel digital amplification and digital signal processing, it sets a new standard for efficiency.
Features:
- 4 x Class D amplification, 2200 W maximum power
- Premium DSP quality with optimised phase response
- 2 x 12" bass drivers
- 1.4" neo compression driver high-frequency driver, with a 3" voice coil
- 4 x 6.5" mid-range drivers
- Maximum SPL of 139 dB
- Dispersion 90° x 30° (+5°, -25°)
- RDNet compatible
Acoustic specifications:
- Frequency response -3 dB: 45 Hz ÷ 20 Hz
- Maximum SPL: 139 dB
- Horizontal coverage angle: 90°
- Vertical coverage angle: 30°
- High-frequency driver: 1.4", with a 3" voice coil
- Mid-range drivers: 4 x 6.0" neo, with a 2.0" voice coil
- Bass drivers: 2 x 12" neo, with a 3.0" voice coil
Input/output section:
- Input connectors: XLR, RDNet Ethercon
- Output connectors: XLR, RDNet Ethercon
- Input sensitivity: +4 dBu
Processing section:
- Crossover frequency: 200, 800 Hz
- Protections: Thermal, RMS
- Limiter: soft limiter
- Controls: Close, Linear, Far, 2x Presets
Amplifier specifications:
- Total power: 2200 W RMS
- High frequencies: 400 W RMS
- Mid frequencies: 700 W RMS
- Low frequencies: 1100 W RMS
- Cooling: convection
- Connections: Powercon In-Out
Cabinet:
- Cabinet material: Baltic birch plywood
- Hardware: Installation/Rental fittings
- Handles: 2 on the sides, 2 on the back
- Pole mount: yes
- Protective grille: steel
- Colour: black
- Dimensions (WxHxD): 378 x 1100 x 468 mm
- Weight: 53 kg
