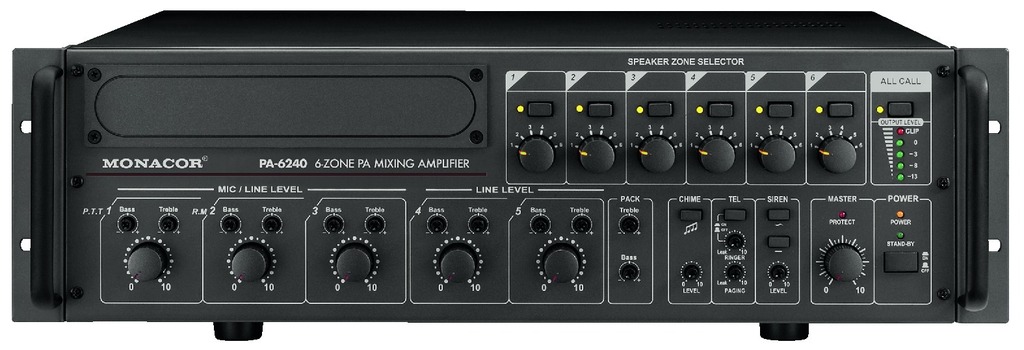

Monacor PA-6240 is a highly versatile equipment for 100V installed systems, featuring an integrated mixer with 3 microphone inputs with preamplification and 2 line inputs, a routing matrix with 6 zones, and 240W amplification. To facilitate announcements and zone selection, the PA-6480 has a connection for the PA-6000RC announcement microphone (optional).
mixer-amplifier with 6 call zones
power of 240W (6 x 40W) RMS, 340W max
each zone can be controlled individually
continuous sound facilities, automatic mute, chime with 2 or 4 tones
tone control: 2-band EQ, input level control
Phantom power supply of 17V for electret microphones
the front panel can be expanded with functional inserts like PA-1120DM (emergency message broadcasting) or tuner or CD player
the back panel also has 3 facilities for module extension inserts: PA-6FD fault detection, PA-6FM fault monitoring, PA-6FR anti-feedback
