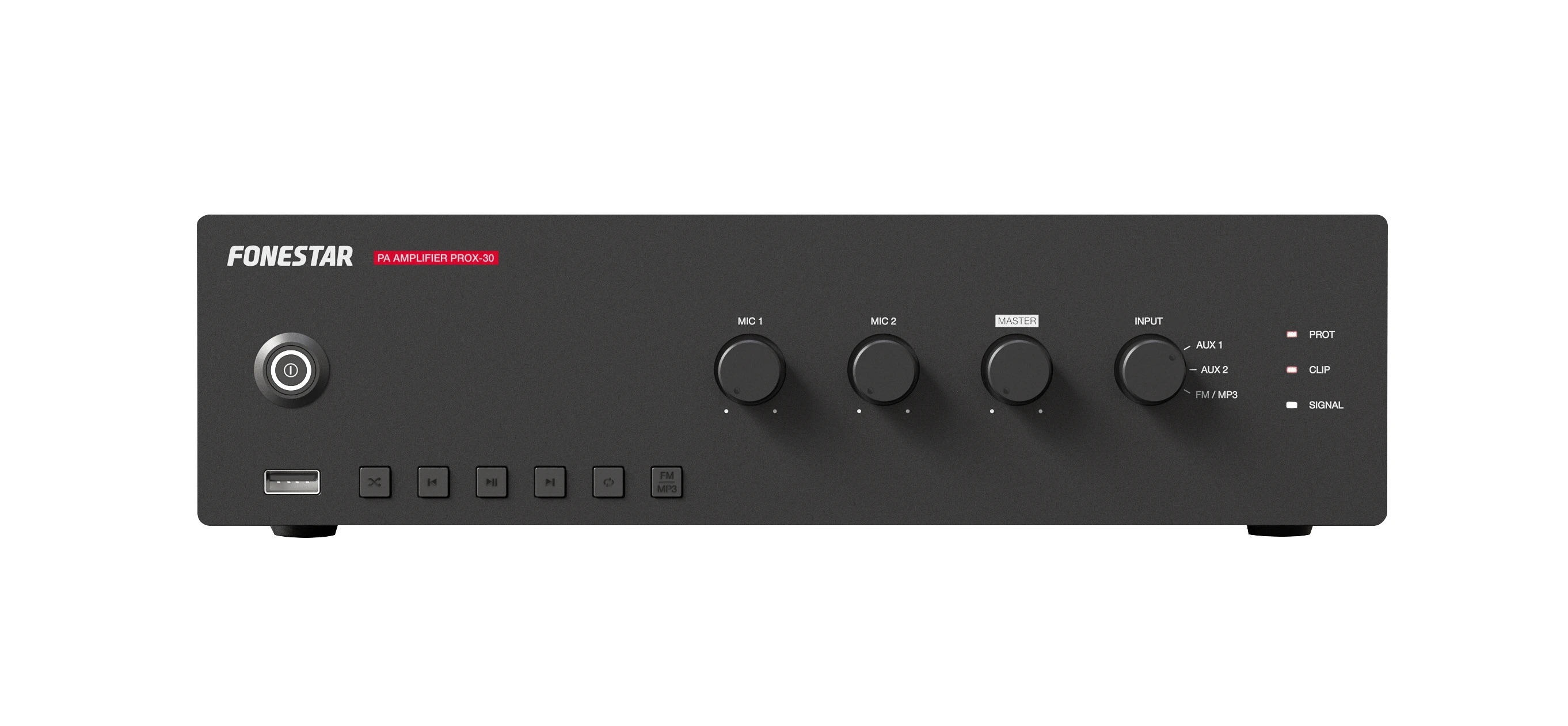

Fonestar PROX-30

Fonestar PROX-30 - Compact mono zone PA amplifier, ideal for sound reinforcement applications in commercial, educational, or entertainment environments. With a power output of 30 W RMS, it delivers excellent sound quality and is equipped with an integrated USB/FM player that automatically starts upon power-up, playing ambient music without interruptions. Its modern and discreet design allows for use on a desk as well as rack mounting, easily adapting to various installation environments.

Connectivity is ensured through secure and easy-to-use euroblock connectors, while priority functions and volume control allow for efficient management of audio signals, including in emergency situations. This amplifier represents an affordable and reliable solution for megaphone systems and ambient music with 100 V line speakers or low impedance.

FEATURES

• Compact PA amplifier with USB/FM player
• Includes mixer, microphone and AUX inputs
• Compatible with 100 V and 4 Ω speakers
• Easy to use, ideal for small budgets
• Reliable euroblock connectors
• Quality sound, modern design
• Usable on a desk, perfect for commercial and educational spaces

POWER

• 30 W RMS

FREQUENCY RESPONSE

• 20-20,000 Hz ± 3 dB

DISTORTION

• Harmonic: <1% at 1 kHz

INPUTS

• 1 balanced/unbalanced microphone, euroblock/jack 6.3 mm, 600 Ω, 6 mV RMS
• 1 balanced microphone, euroblock, 600 Ω, 6 mV RMS
• 2 auxiliary, euroblock/2 x RCA, 47,000 Ω, 300 mV RMS
• 1 line 100 V, euroblock

FUNCTIONS

• Input priority
• Emergency 100 V input with maximum priority, attenuates all other inputs
• Mute via contact closure, attenuates all inputs except for the 100 V emergency input
• Microphone 1 and 2 with priority over Aux and Player inputs, based on signal level, selectable
• Indicator lamps for power, protection, signal peak, and output signal
• Passive cooling, without fan

CONTROLS

• Microphone volume
• Volume for selected input
• Input selector
• Controls for USB/FM player
• Tone controls: bass and treble
• Gain and microphone priority

PLAYER

• USB player with automatic playback on startup
• Digital FM tuner with station memory and automatic scanning
• Memory for the last selected mode (USB or FM), last song played or last FM station
• Automatic playback in sequential order

IMPEDANCE

• 4 Ω and 100 V line, euroblock

POWER SUPPLY

• 230/115 V AC, 100 W

DIMENSIONS

• 286 x 84 x 252 mm depth

WEIGHT

• 3.8 kg

ACCESSORIES

• FM antenna
