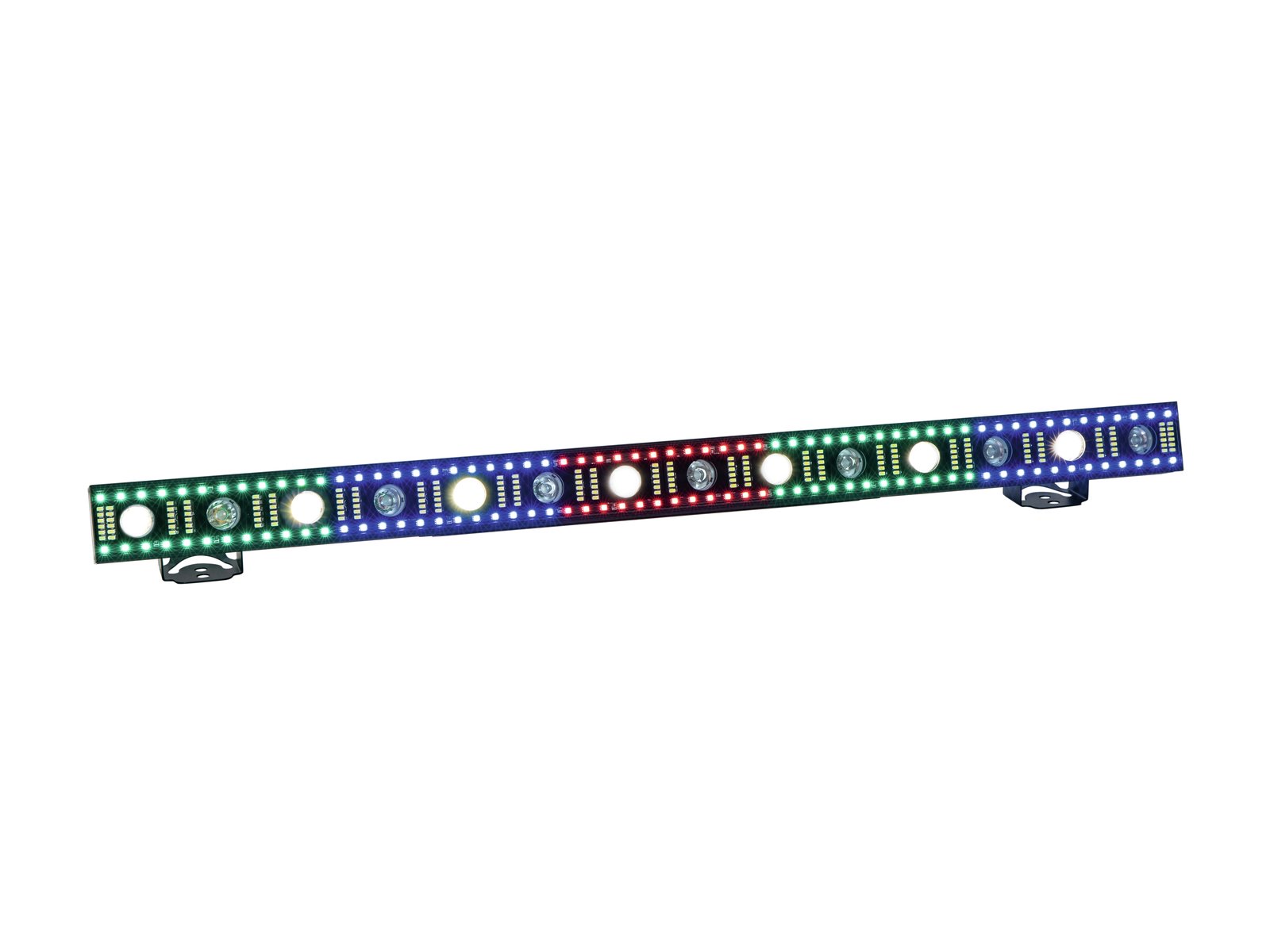

3in1-LED-Sunbar with warm white beam effects, stroboscope and ambient lightThe EUROLITE STP-14 Sunbar is equipped with three effects in one device: Beam effect, stroboscope and ambient light. It is therefore very suitable for your stage equipment, for decorative lighting, for example in shops or for use in discotheques. You can also use the LED bar in theatres or at galas: Due to pure convection cooling via cooling fins, this effect does not require a fan and is therefore particularly quiet in operation. The flicker-free STP-14 Sunbar is equipped with 14 warm-white 3-watt LEDs with a beam angle of 6.5° for narrow beams. 120 bright RGB LEDs behind the transparent cover provide appealing mood lighting and color animations, while 180 cold white LEDs provide fast, dynamic strobe effects. These lighting effects are particularly effective when you use fog.RGB color mixing is infinitely variable. The effects available are chases, dimmers and strobe effects with variable speed and via the random generator.All three LED types are divided into different segments which can be controlled individually via DMX. In addition, you can control the Sunbar STP-14 by music control via the integrated microphone with adjustable microphone sensitivity and in master/slave mode. Addressing and settings are made via the integrated control unit with four-digit LED display.The power supply of up to eight devices is possible via a P-Con mains connection.
LED sunbar with 3 effects: warm white beam effects, strobe and ambient light
3 striking effects in one device: beam effect, stroboscope and ambient light
When fog is used, this effect becomes especially attractive
180 powerful LEDs SMD 3535 cold white (CW) segments separate controlling
120 powerful LEDs SMD 5050 3in1 TCL RGB (homogenous color mix) segments separate controlling
14 powerful LEDs 3 W high-power warm white (WW) segments separate controlling
Color change adjustable; Dimmer electronic; color blend stepless; running light adjustable
Strobe effect
Integrated Showprograms
Direct color selection for 10 preset colors
Can be operated in 2; 6; 34; 37 CH mode
The device is cooled by passive convection cooling
Controlling by DMX; Master/slave function; stand-alone; Sound to light
Flicker-free
With a beam angle of 6,5°

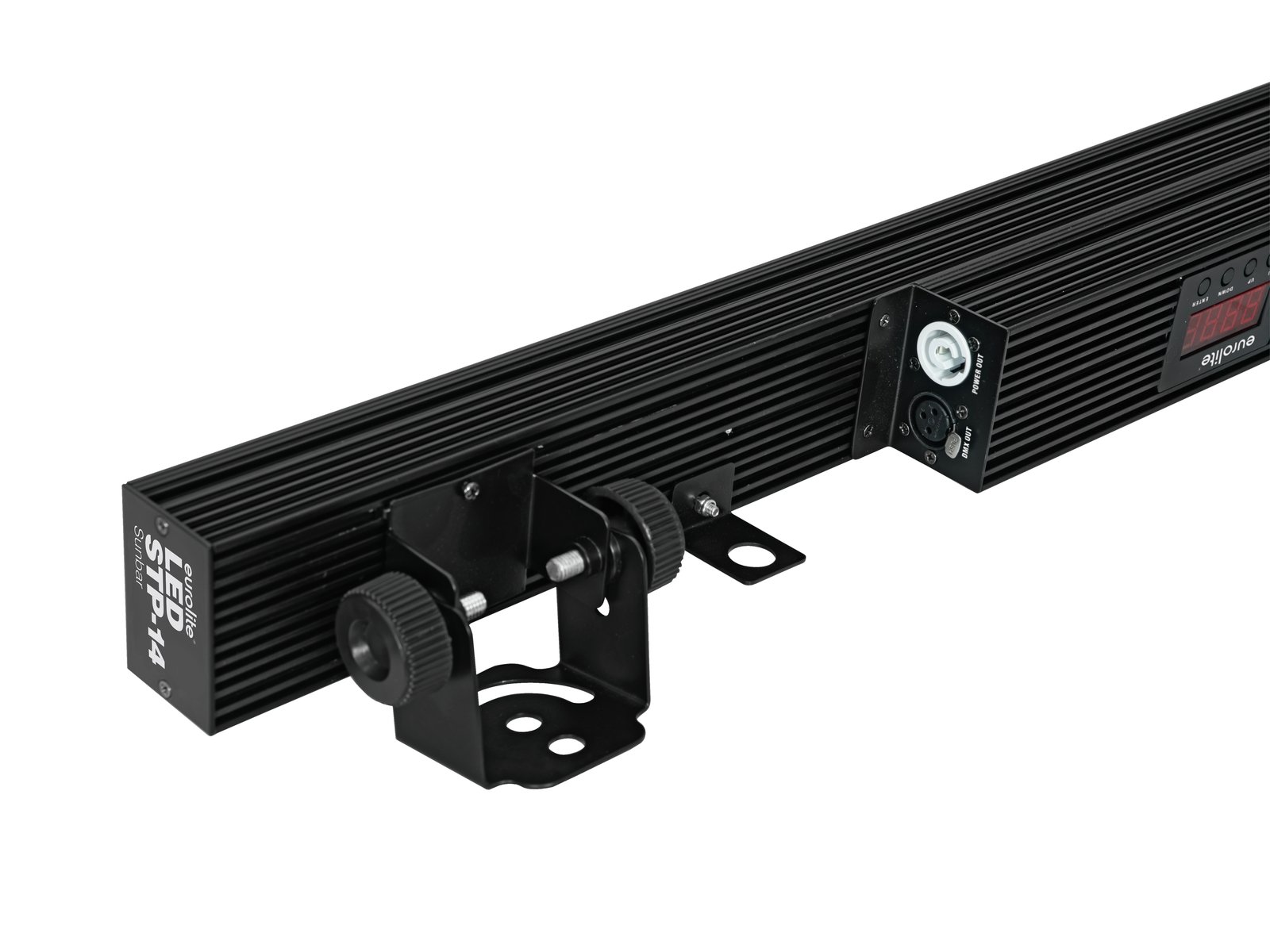

With Mounting bracket
CREE LED built-in
Preprogrammed in Light´J; LED PC-Control 512; Light Captain
Mains input and output for power linking up to 8 units
Silent operation
Package contents
1 x light effect, 1 x user manual, 1 x power cord
Power supply:
100-240 V AC, 50/60 Hz
Power consumption:
95 W
IP classification:
IP20
Protection class:
Protection class I
Power connection:

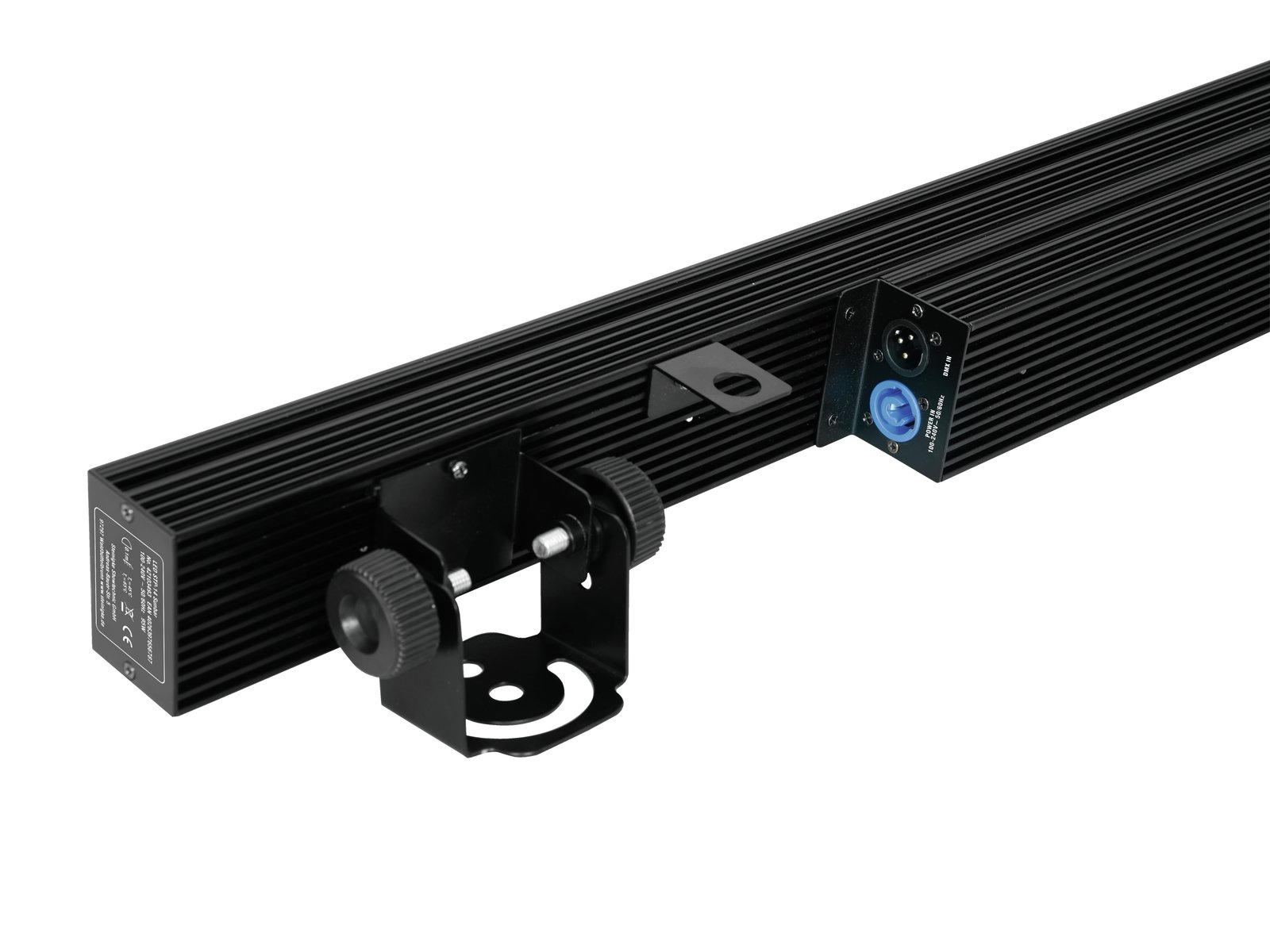

Mains input via P-Con (blue), mounting version power supply cord with safety plug
Lamp type:
LED lamp
LED:
180 x SMD 3535 cold white (CW) 120 x SMD 5050 3in1 TCL RGB (homogenous color mix) 14 x 3 W high-power warm white (WW)
DMX channels:
2; 6; 34; 37
DMX input:
1 x 3-pin XLR (M) mounting version
DMX output:
1 x 3-pin XLR (F) mounting version
Cooling:
Passive convection cooling
Control:
DMX; Master/slave function; stand-alone; Sound to light
