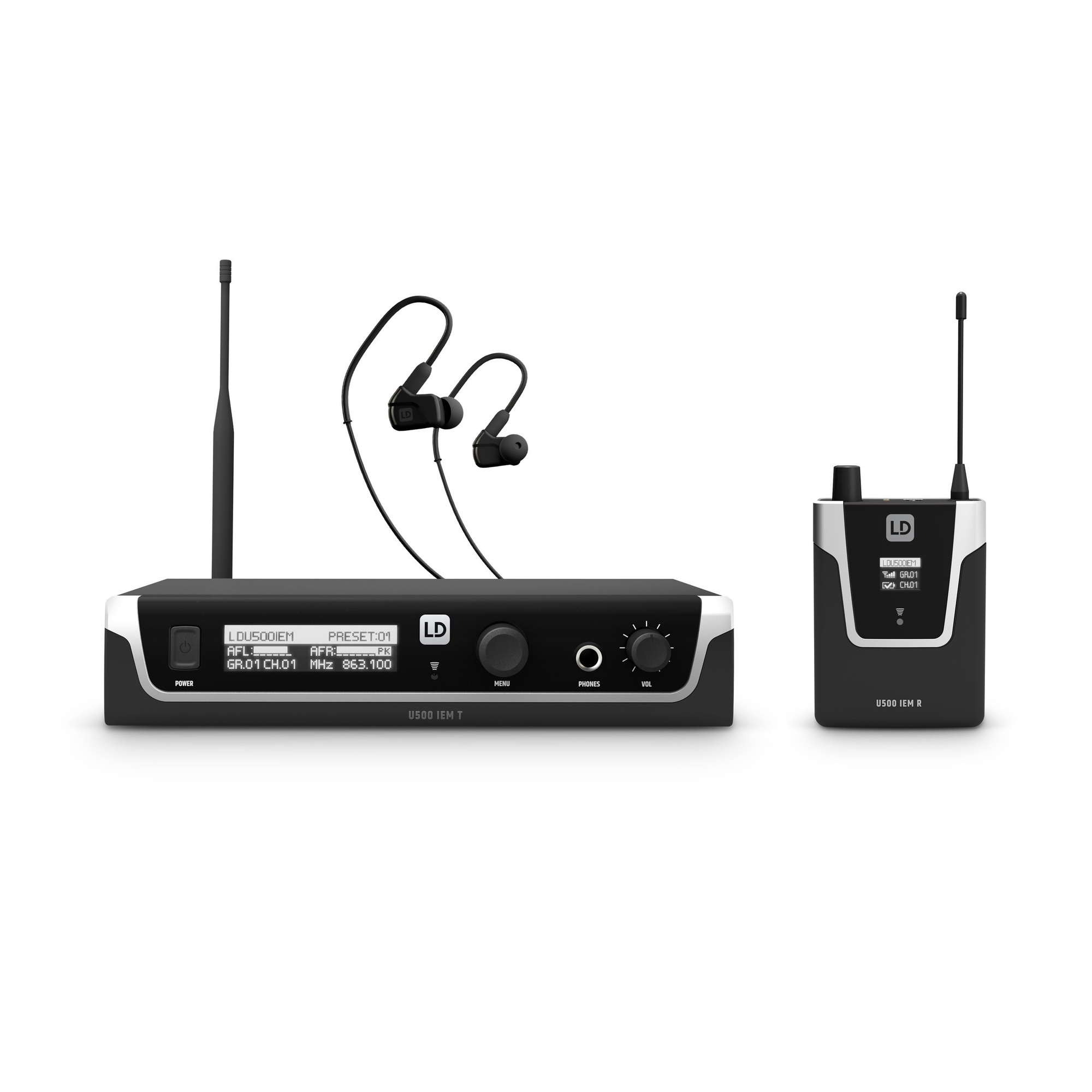

LD Systems U506 IEM HP

In-ear monitoring set

uHF band: 655 - 679 MHz with a 100m operating range.
supports 12 simultaneous systems on the frequency band.
in-ear headphones with a frequency response of 20 - 18,000 Hz and 32 ohm impedance.
transmitter with variable RF power options: 2mW, 10mW, 30mW.
receiver features metal housing and 12 preset UHF frequencies.

460²⁵ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping free

Warranty 24 months

Returns 14 days

request details

LD Systems U506 IEM HP Add to cart: 460²⁵ €

U506 IEM HP - In-ear monitoring set:

UHF band: 655 - 679 MHz
operating range 100m in open field
allows the use of 12 simultaneous systems on the frequency band
in-ear headphones
- frequency response: 20 - 18,000 Hz
- impedance: 32 ohms
- cable length: 1.5 m
transmitter U506 BP
- variable RF power 2mW, 10mW, 30mW
- powered by included power supply (12 - 18 V DC)
- transmission method: Stereo/Mono
- controls: Volume for headphones
receiver U506R:
- metal housing
- audio frequency range (+/-3 dB): 40 Hz - 16 kHz
- 12 preset UHF frequencies
- squelch
- power: 2x AA 1.5V batteries
