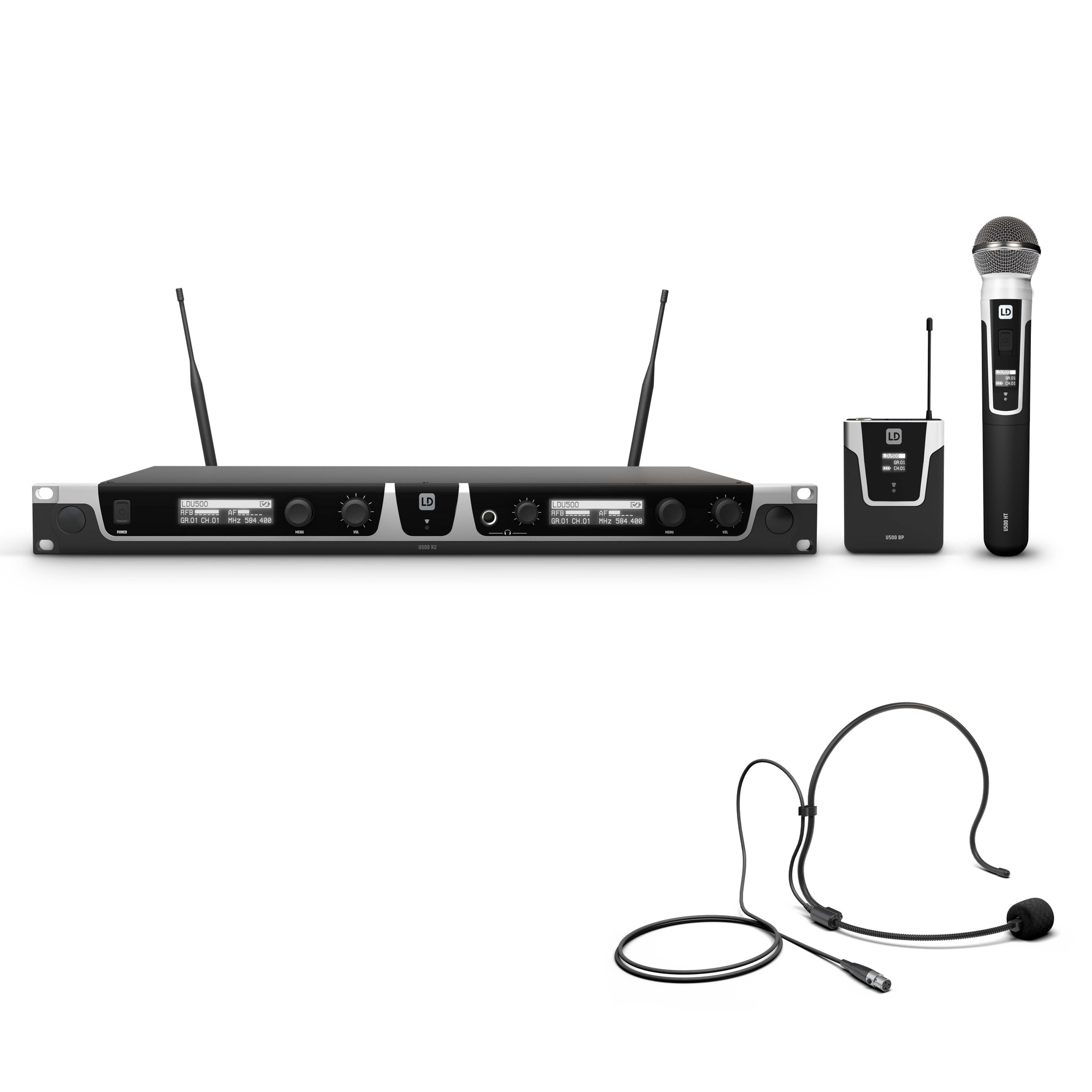

LD Systems U506 HBH2 - wireless system consisting of a dual receiver, belt transmitter with headset microphone and handheld transmitter with dynamic microphone. The transmission power is selectable up to 30 mW and allows a transmission distance in free field of over 100 m. The system features automatic scanning to find the best free frequency and convenient infrared synchronisation between the receiver and transmitter. High-contrast OLED screens provide an excellent overview of functions, with indicators for group, channel, radio frequency, signal strength and battery status. You can even enter individual user names.
In addition to the squelch function, the silent pilot tone of the transmitter ensures safe operation, while interference protection interrupts the receiver if signals without this tone are present. The efficient U500 technology and high-quality components provide clear, distortion-free transmission with no latency. Low power consumption allows the transmitter to operate for up to 10 hours powered by 2 AA batteries.
Dual receiver - LD Systems U506 R2
UHF frequency range: 655 - 679 MHz
Type: true diversity
Modulation type: FM
Channels: 2 x 160
Groups: 2 x 10
Antenna inputs: 2
Antenna connector: BNC
Frequency response: 60 - 16,000 Hz
Noise reduction: squelch
Signal-to-noise ratio: > 105 dB
THD: < 0.1 %
Controls: volume
Audio output: balanced 2 x XLR connector
Indicators: 2 x LC display
Power supply: 13.5 V DC
Mix audio output: balanced, XLR connector
Mix audio output: unbalanced 2 x 6.3 mm TS jack
Maximum output level: -8 dBu
Headphone output: 1 x 6.3 mm TRS jack connector
Weight: 2.05 kg
IR frequency synchronisation: yes
Dimensions (W x H x D): 483 x 45 x 190 mm
Included accessories: power supply
U506 BP pocket/belt transmitter:
3-pin mini XLR connection
Signal-to-noise ratio: over 90 dB
Variable RF signal power: 2 mW, 10 mW, 30 mW
Power supply: 2 x AA batteries, autonomy of over 10 hours
Detachable antenna, pilot tone squelch, switchable gain
U506 MD handheld transmitter:
Microphone type: dynamic
Polar pattern: cardioid
Channels: 96 (8 groups of 12 channels)
Frequency response: 60 - 16,000 Hz
RF output power: variable (2mW, 10mW, 30mW)
Indicators: OLED display
Operating voltage: 2 x 1.5 V AA batteries
Operating time: >10 h (with alkaline batteries)
Dimensions (Length x diameter): 252 x 52 mm
Weight: 0.25 kg
Interchangeable microphone capsule
WS 100 MH headset microphone:
condenser type
cardioid pattern
frequency range: 20 - 20,000 Hz
impedance 680 Ohms
mini XLR connector compatible with LD Systems transmitters
