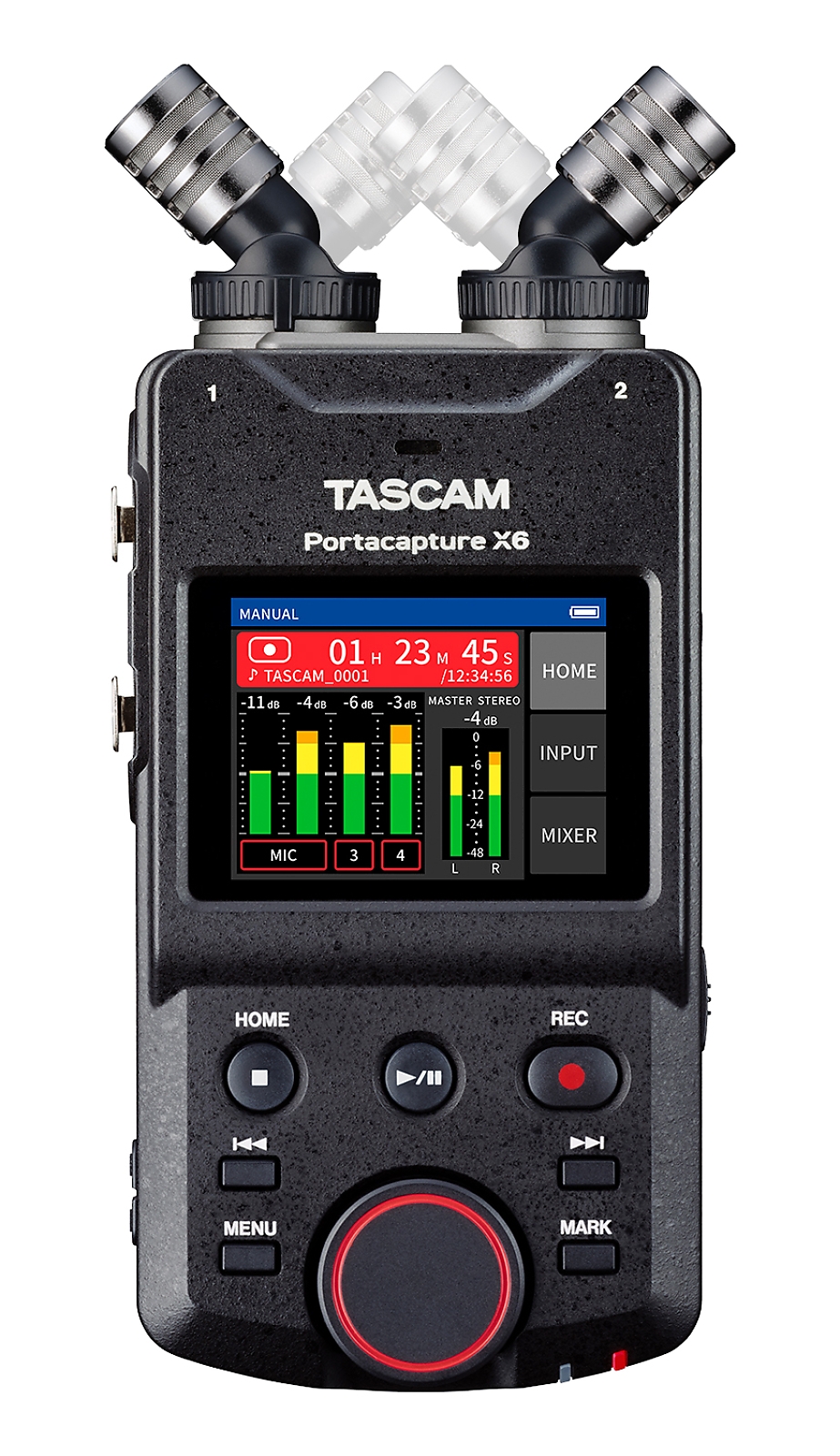

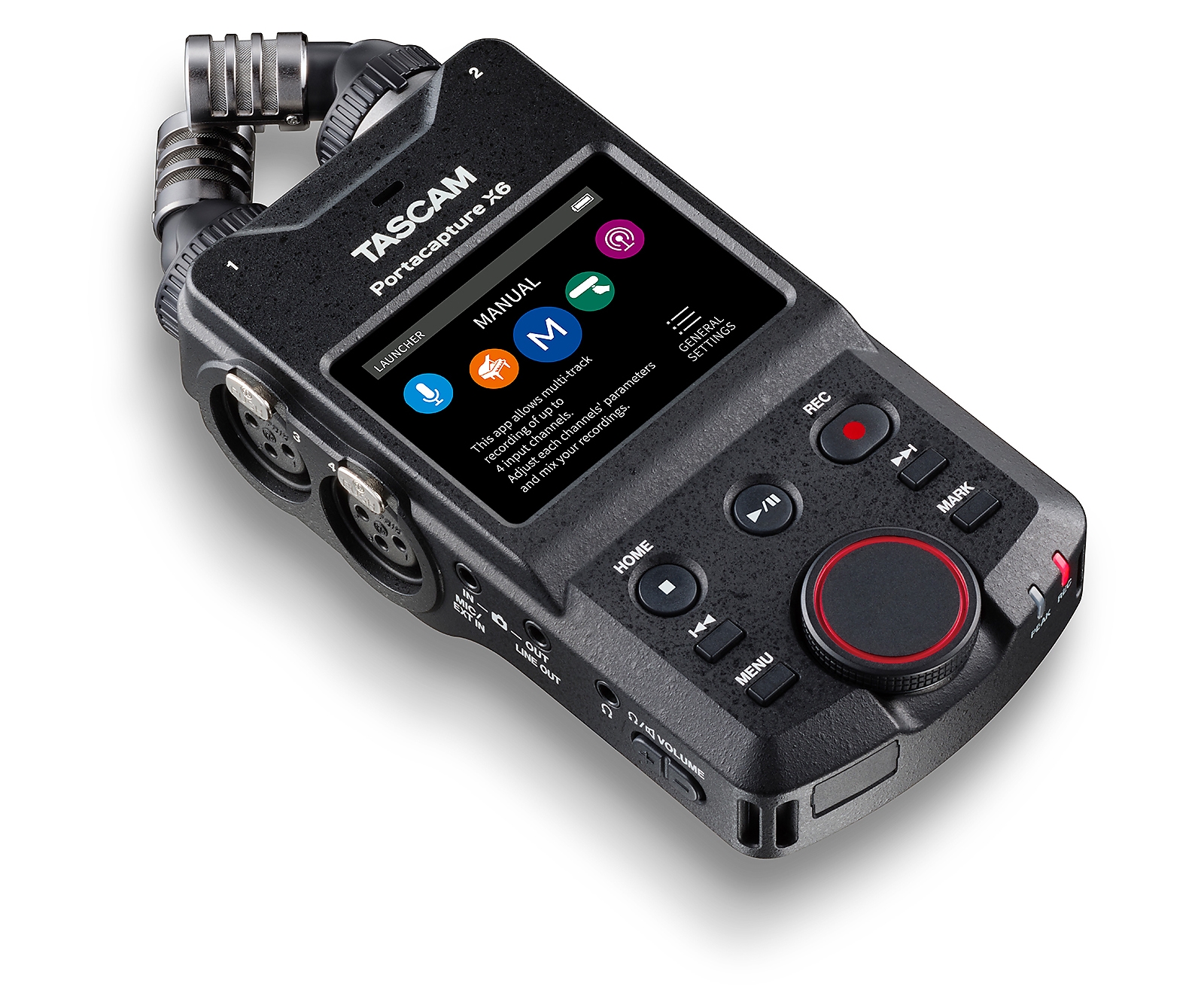

Tascam Portacapture X6

Tascam Portacapture X6 - The Portacapture X6 is a digital stereo recorder with interchangeable capsules. Ideal for numerous applications, both for musicians and for podcasting.

Technical Specifications:

• Storage media:

  • microSD card (64 MB – 2 GB)
  • microSDHC card (4–32 GB)
  • microSDXC card (48–512 GB)
• Recording/Playback Formats:

  • WAV (BWF): 44.1/48/96 kHz, 16/24 bit or 32 bit float
  • MP3: 44.1/48kHz, 128/192/256/320 kbit/s
• Input channels: 4 (maximum)

  • Recording tracks: 6 (4 tracks + stereo mix)

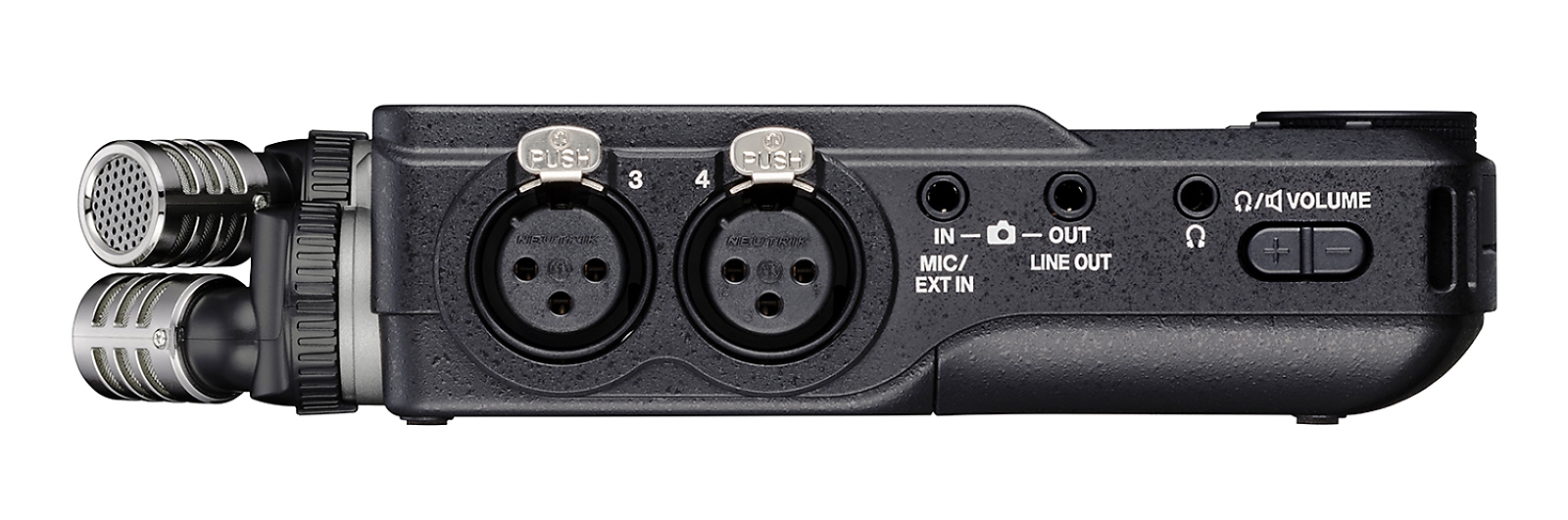

• Analog audio inputs:

  • Microphone inputs 3–4 (balanced) XLR-3-31; 6.3-mm TRS

    • Input impedance: ≥2.2 kΩ
    • Maximum input level: +2 dBu
    • Minimum input level: −75 dBu
  • Line inputs 3–4: XLR-3-31, 6.3-mm TRS

    • Input impedance: ≥9 kΩ
    • Maximum input level: +24 dBu
    • Minimum input level: −53 dBu
• MIC/EXT IN (unbalanced): 3.5-mm mini jack

  • Input impedance: 10 kΩ (plug-in power off); 1.8 kΩ (plug-in power on)
  • Maximum input level: 0 dBV
  • Minimum input level: −67 dBV
• Analog audio outputs: Line output (LINE OUT, unbalanced): 3.5 mm jack:

  • Output impedance: 200 Ω
  • Nominal output level: −14 dBV
  • Maximum output level: +6 dBV
  • Headphone output: 3.5 mm jack
  • Maximum power: 45 mW + 45 mW (THD+N: ≤0.1%, 32 Ω)
  • Built-in speaker: 0.4 W (mono)
• Audio performance:

  • Equivalent input noise (EIN, microphone inputs 3-4): ≤−125 dBu
• Frequency response (inputs 3-4 PCM):

  • Fs 48 kHz: 20 Hz – 20 kHz, +0/−0.3 dB (JEITA)
  • Fs 96 kHz: 20 Hz – 40 kHz, +0/−0.7 dB (JEITA)
• Dynamic range:

  • Inputs 3-4 at PCM data: ≥112 dB (48/96 kHz)
  • S/N ratio (20 kHz SPCL LPF, weighted A)
• Inputs 3-4: 112 dB (48/96 kHz)
• MIC / EXT IN:

  • 103 dB (48 kHz)
  • 105 dB (96 kHz)
• Total harmonic distortion (THD+N)

  • Inputs 3-4 (LINE IN) at PCM data: 0.008 %
  • Inputs 3–4 (MIC IN) at PCM data: 0.006 %
• Power supply:

  • 4 x AA batteries (alkaline, Ni-MH or lithium-ion)
  • USB power from PC
  • AC adapter (TASCAM PS-P520U, sold separately)
• Power consumption: 7.5 W (maximum)
• Display: 2.4-inch full-colour LCD touchscreen
• Dimensions: 75 × 174 × 37 mm
• Weight:

  • 365 g (with batteries)
  • 265 g (without batteries)
• Operating temperature range: 0–40 °C
