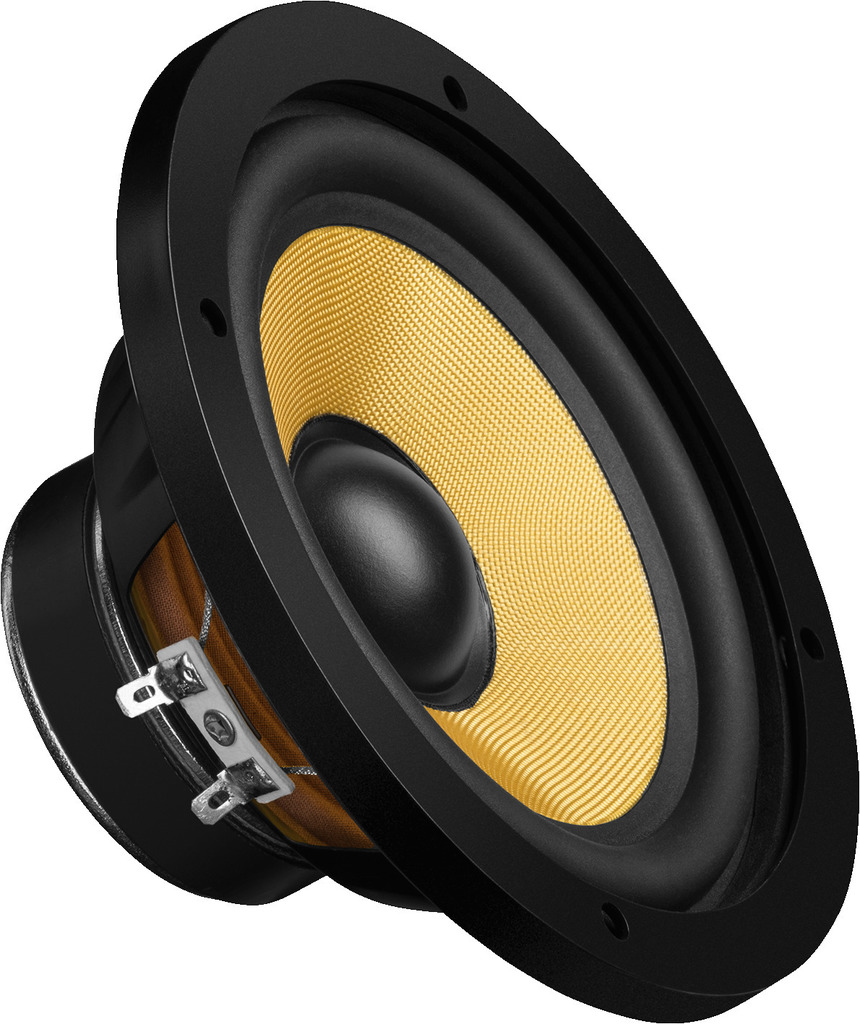

Monacor SPH-174KE

Monacor SPH-174KE - Mid-range speaker with a classic design, high-quality Kevlar cone, power of 50 W / 8 Ω, linear frequency response.

Specifications:

• Impedance (Z): 8 Ω
• Frequency range: f3-8000 Hz
• Resonance frequency: (fs) 42 Hz
• Power (RMS): 50 W RMS
• Peak power (PMAX): 100 W MAX
• Sensitivity: 88 dB/W/m
• Total Q Factor (Qts): 0.51
• Equivalent acoustic volume (Vas): 26 l
• DC Resistance (Re): 6.39 Ω
• Inductance of the coil (Le): 0.43 mH
• Coil diameter: Ø25 mm
• Voice coil former: aluminium
• Linear excursion (XMAX): ±3 mm
• Effective cone area (Sd): 137 cm2
• Magnet weight: 320 g
• Magnet diameter: Ø 80 mm
• Dimensions: Ø 168 mm x 75 mm
• Weight: 0.78 kg
