Furman PS-8R/E III

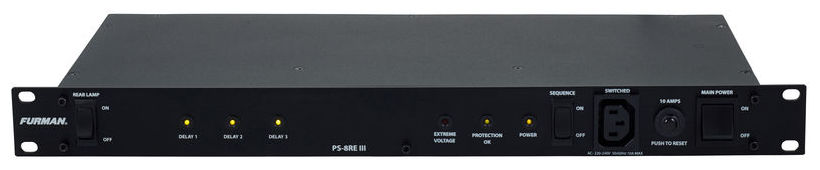

Furman PS-8R/E III - voltage stabiliser / distributor / sequencer, which utilises Multi Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS) over-voltage protection. All of these features make this unit the most advanced surge and spike protection available.

Features:

• Provides the highest level of protection against constant over-voltage and voltage spikes.
• Noise filtering through LiFT technology.
• Over-current protection via EVS circuits, which detect dangerous current levels and disconnect the equipment connected to the PS-8R/E III as well as the power unit to prevent damage.
• Bright LED indicators.
• 9 IEC C-13 output sockets for isolated power (6 on the back of the unit grouped into 3 sequenced groups, each group controlled by a separate relay, + 2 switched sockets + 1 convenience switched socket on the front of the unit), minimising interference between components and noise contamination.
• Momentary or maintained sequencing through the block terminal located on the back of the unit or via the switch on the front of the unit.
• 10 A rating.
• External configuration of the interface and delay.
• The BNC power socket located on the back of the unit allows for powering a standard gooseneck lamp (with a flexible neck) for lighting, with a switch on the front of the device.

Technical specifications:

• Maximum current: 10A, 220 - 240 VAC at 50 – 60 Hz
• Power cable: 1 mm2 x 3 with a length of 2.5m, with IEC-C13 female plug to CEE-7/7 Schuko plug
• Power socket (input): IEC-C14 (Male) with cable retention using a metal clamp
• Output sockets:
  • 1x Switched IEC C-13 on the front of the unit
  • 2x Switched IEC C-13 (1 duplex) on the back of the unit
  • 6x Sequenced IEC C-13 (3 duplexes, each controlled by a separate relay) on the back of the unit
• Surge protection: line to neutral, no ground leakage
• Maintaining voltage peaks within normal limits: peak of 376 VAC at 6,000 V /3,000 A
• Response time: 1 nanosecond
• Maximum surge: 6,500 A
• AC filtering: LiFT
• Noise attenuation: 10 dB at 10 kHz, 40 dB at 100 kHz, 50 dB at 500 kHz
• Dimensions: 482.6mm W x 180mm D x 44.5mm H
• Weight: 3.2 kg.
