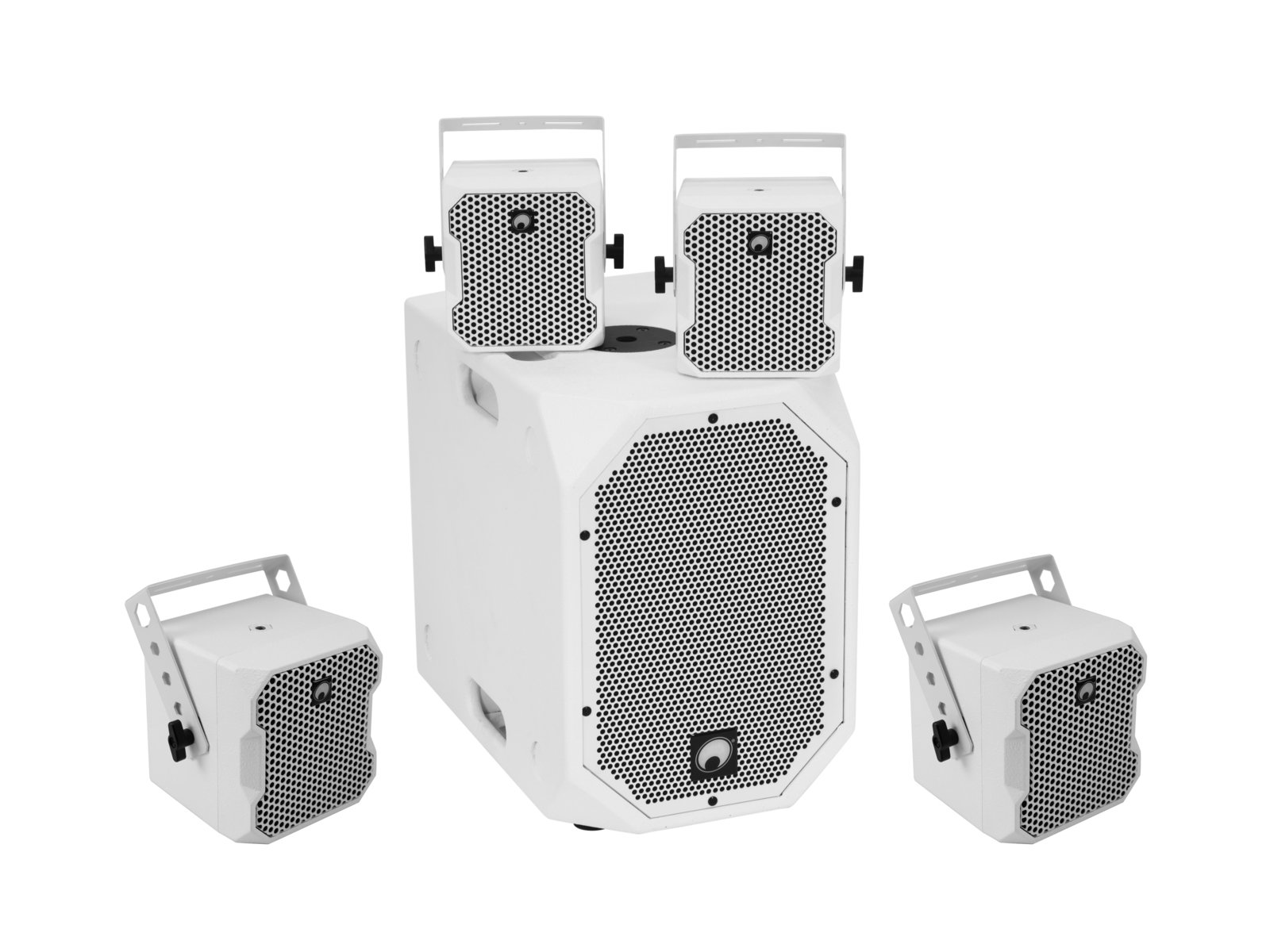

Omnitronic Set - Sound system with BOB-10A Active Subwoofer and 4 x 4" BOB-4 satellite speakers

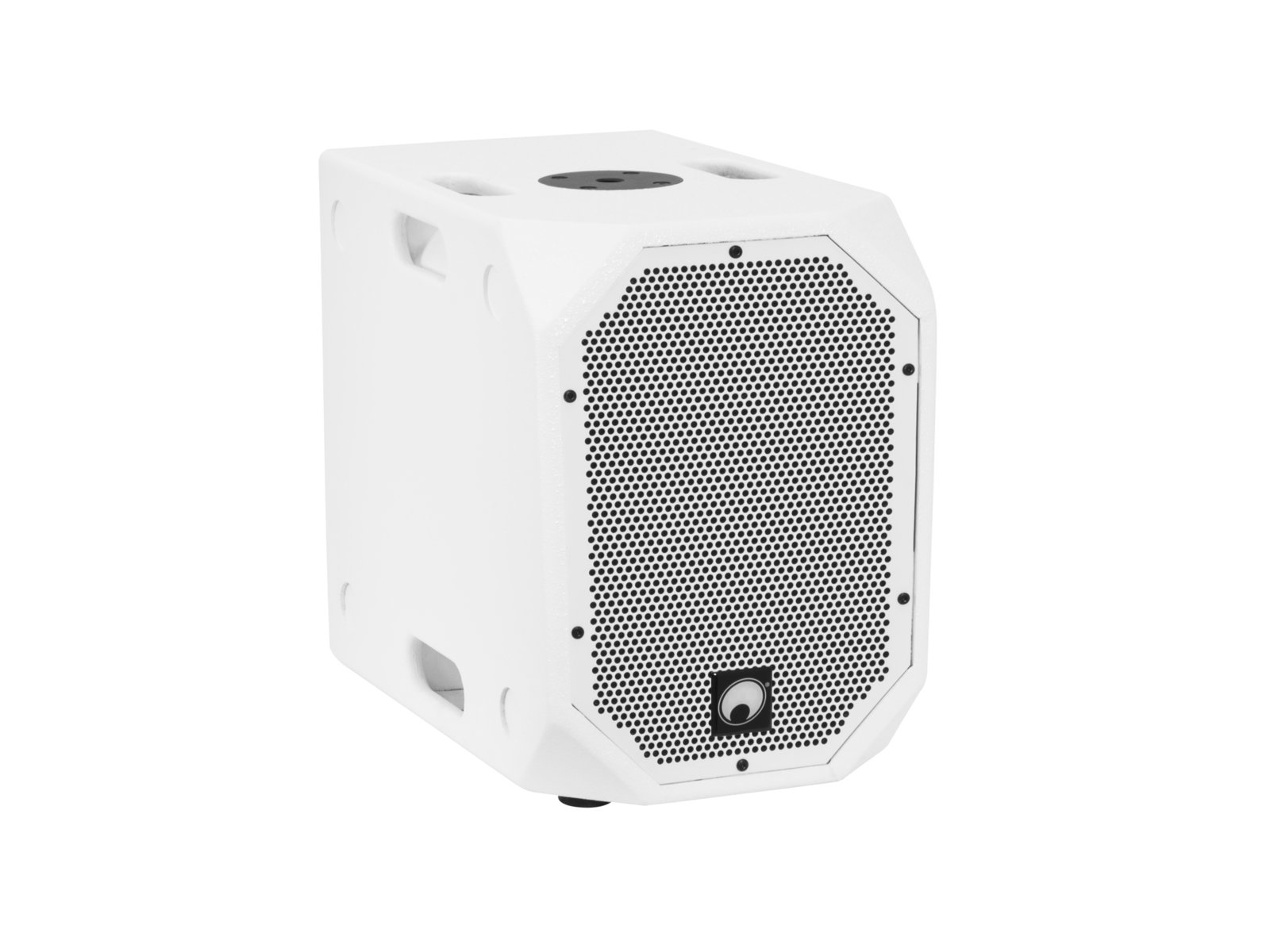

OMNITRONIC BOB-10A Active Subwoofer White
10" subwoofer with DSP and Bluetooth for the BOB series
- 10" bass reflex subwoofer with DSP and RMS power of 900 watts
- Flexibly expandable with BOB-4 satellites for 2.1, 4.1 and 8.1 configurations
- D class amplifier controlled by DSP (300 W + 2 x 300 W)
- Integrated Bluetooth audio streaming
- 4 EQ presets with indicators
- Signal limiter and crossover
- Signal inputs via combo jacks (XLR/6.3 mm) and RCA
- Parallel XLR outputs for connecting other BOB systems or active systems
- Separate volume controls for subwoofer and L/R satellites
- Stereo/mono selection
- Phase reverse switch
- Error, limit, signal and power indicators
- Two metal M20 flanges for mounting satellite speakers
- Built-in handles and lightweight for easy transport
- Stackable through notches when mounted horizontally
- Digital signal processor
- Bluetooth control
- For applications such as:
- Mobile DJs/entertainers
- Fair and shop setups
- Installation
- Home entertainment
- Restaurants, bars and hotels
- Product presentations and lectures
- Includes:
- 1 x subwoofer
- 1 x user manual
- 1 x power cable
- 2 x speaker cables
- 4 x feet
- 4 x screws
- 1 x declaration of conformity

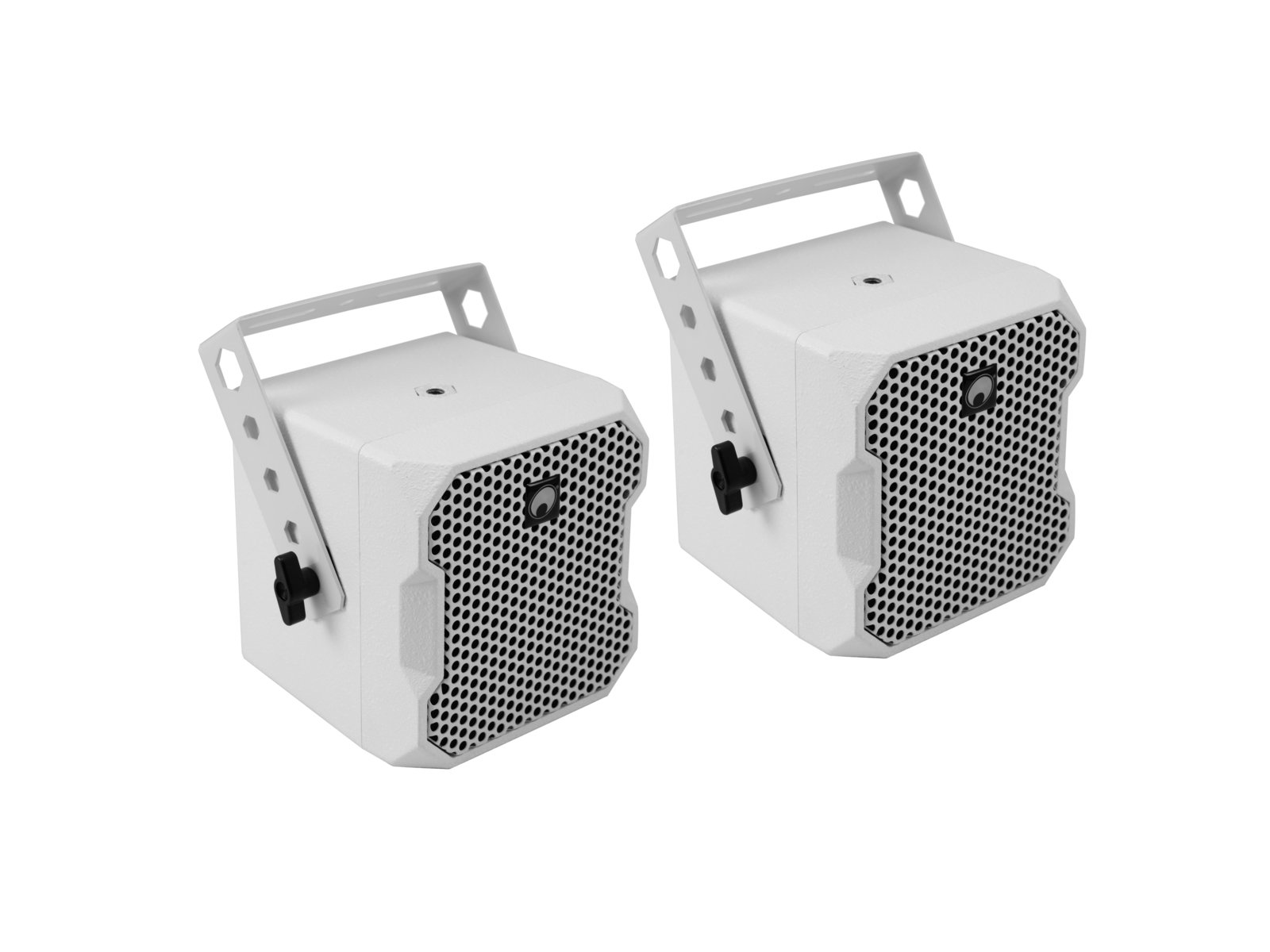

OMNITRONIC BOB-4 Top 16 Ohm White 2x
2 x 4" satellite speakers compatible with the BOB series
- Pair of 16 ohm speakers with 4" full-range driver
- For use with BOB-10A subwoofers for 2.1, 4.1 and 8.1 configurations
- An adapter is required for optional mounting support
- U-shaped extension support and cable available for connecting 2 satellite speakers
- Rated power: 75 W RMS/150 W program
- Connectors: 1 x speaker and terminal with screw
- Lightweight plastic with threaded inserts M8 and M10
- Scratch-resistant lacquered surface and steel grille
- Mounting support
- Includes:
- 2 x tops
- 4 x knurled screws
- 2 x mounting brackets
- 2 x plug (male)
Technical Specifications:
OMNITRONIC BOB-10A Active Subwoofer White
| Power Supply: | 230 V AC, 50 Hz |
| Power Consumption: | 1060 W |
| Power Connection: | Mains input via IEC (M) connector, power cable mounting version with safety plug (supplied) |
| Rated Power: | 1 x 300 W RMS LF; 2 x 300 W RMS HF |
| Frequency Range: | 45 - 250 Hz |
| Sensitivity: | 100 dB |
| Max. SPL: | 125 dB |
| DSP: | Digital signal processor |
| Control: | Bluetooth |
| Mounting System: | M20 thread |
| Circuit: | Class D |
| Controls: | Soft start; Short circuit; Limiter; Overvoltage; Overheating |
| Connections: | Input: Line via combined jack 2 x 3-pin XLR/6.35 mm (F) (mounting version)
Output: Speaker via 2 x built-in sockets for speaker (F)
Output: Line via 2 x 3-pin XLR
|
| Input Channels: | 1 x stereo via combined jack, RCA or Bluetooth, channel control via rotary selector |
| Speaker: | 1 x woofer (10") approximately 25 cm
Voice coil drop (2") approximately 5 cm |
| Speaker Type: | Subwoofer |
| Type: | Ventilated |
| Material: | MDF (medium density fiberboard), 15 mm |
| Colour: | White, smooth textured finish |
| Dimensions: | Width: 30 cm
Depth: 47 cm
Height: 43 cm |
| Weight: | 17.00 kg |
OMNITRONIC BOB-4 Top 16 Ohm White 2x
| Rated Power: | 75 W RMS |
| Program Power: | 150 W |
| Frequency Range: | 150 - 16,000 Hz |
| Sensitivity: | 90 dB (1W/1m) |
| Max. SPL: | 109 dB |
| Impedance: | 16 ohms |
| Mounting System: | 2x Mounting brackets |
| Connections: | Input: Speaker via 1 x terminal with screw Input: Speaker via 1 x built-in socket for speaker (F) |
| Speaker: | 1 x high compression tweeter (4") approximately 10 cm
1 x compression tweeter voice coil (1") approximately 2.5 cm |
| Colour: | White, painted |
| Dimensions: | Width: 15 cm
Depth: 16 cm
Height: 15.8 cm |
| Weight: | 4.00 kg |
