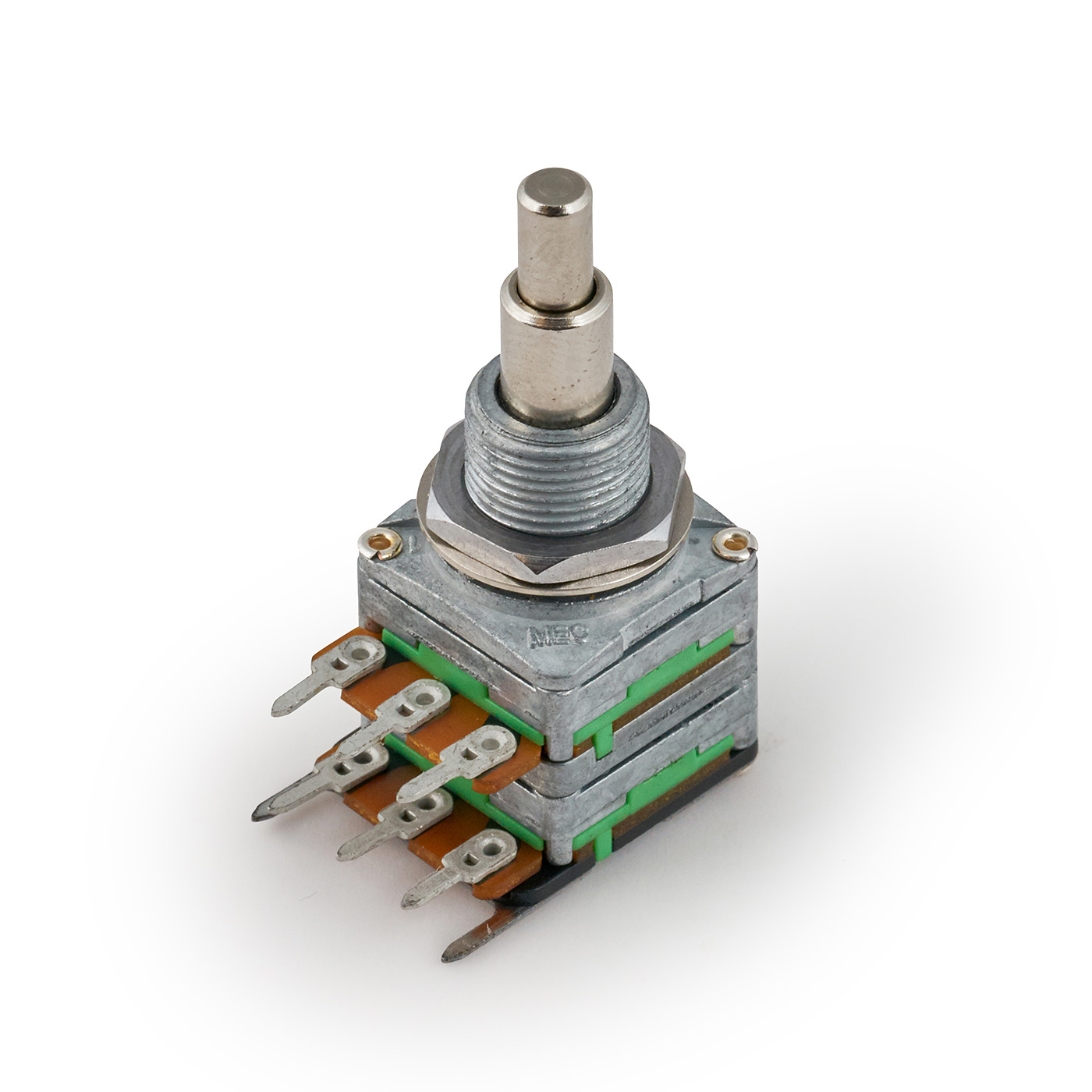

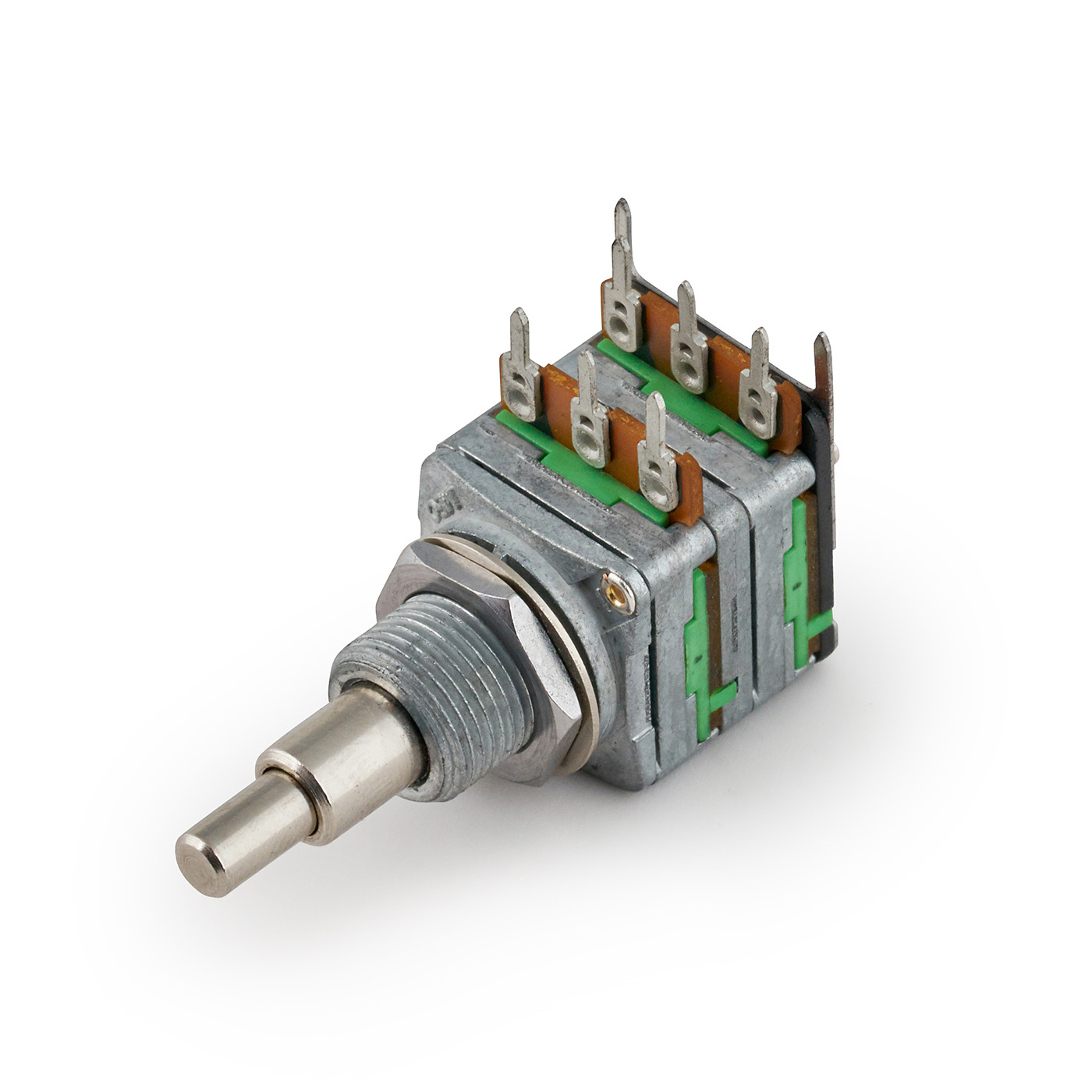

MEC Pickups Mono Stacked Potentiometer, B50K/cc / B50K/cc

Potentiometer

dual mono potentiometer with concentric shaft.
linear resistance of 50 kOhm for both R1 and R2.
central detent for precise control.
ideal for bass and treble adjustment in active electronics.
includes mounting hardware and dimensions of 24 x 16 x 17 mm.

29⁸³ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Mono Stacked Potentiometer, B50K/cc / B50K/cc Add to cart: 29⁸³ €

- dual mono potentiometer
- concentric shaft
- R1 = B50K (resistance 50 kOhm, (B) linear)
- R2 = B50K (resistance 50 kOhm, (B) linear)
- central detent
- suitable for controlling bass and treble in active electronics
- thread M10 x 0.75 mm
- mounting diameter 10 mm
- thread length 9 mm
- solid shaft
- shaft length 14 mm (internal), 7 mm (external)
- shaft diameter 4 mm (internal), 6 mm (external)
- includes nut and washer
- dimensions incl. terminals (L x W x H) 24 x 16 x 17 mm
