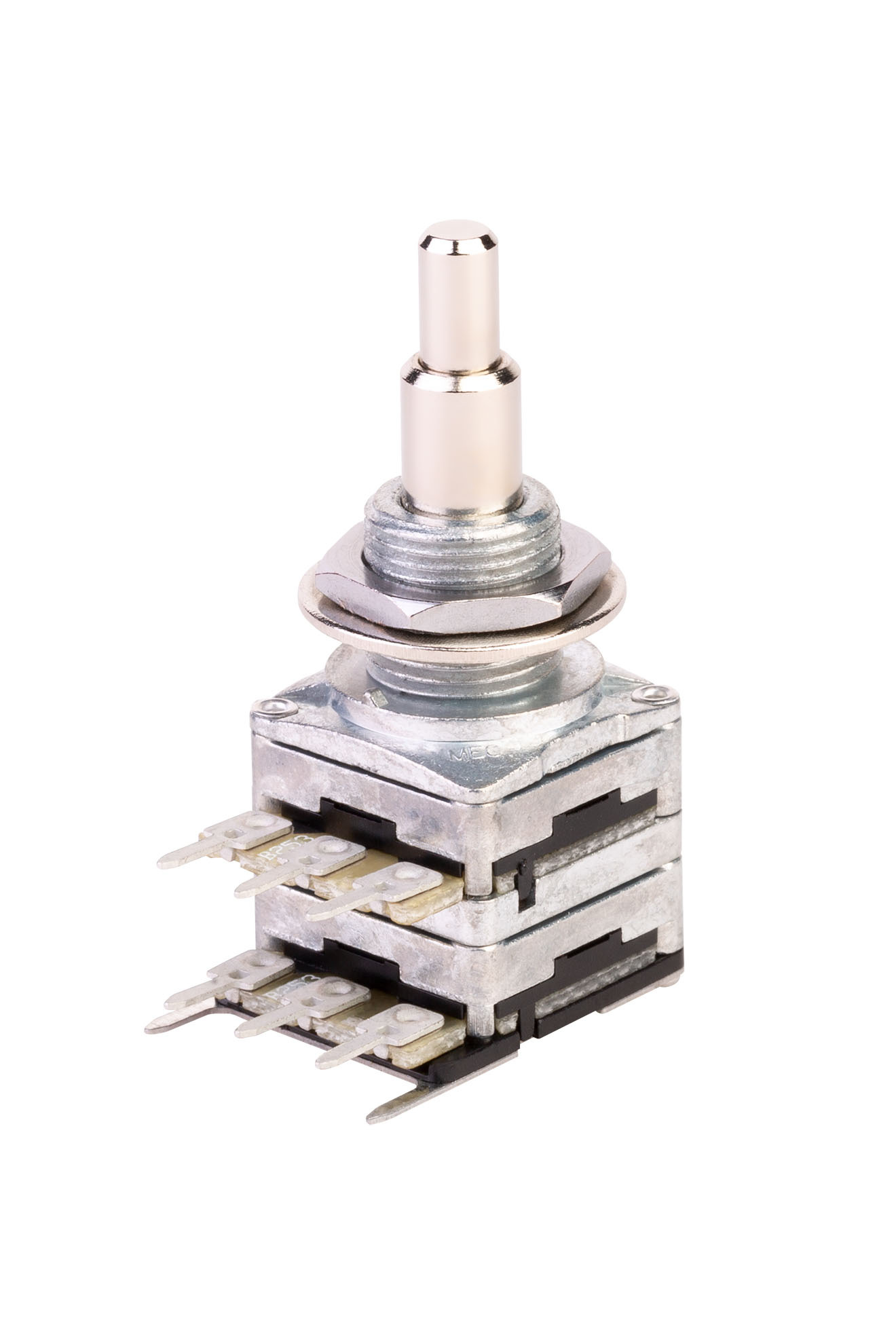

MEC Pickups Mono Stacked Potentiometer, B25K/cc / B25K/cc

Name: MEC Pickups Mono Stacked Potentiometer, B25K/cc / B25K/cc
Brand: MEC Pickups
SKU: M 852B25
Price: 29.64 EUR
Availability: OutOfStock

Potentiometer

dual mono potentiometer with concentric shaft.
resistance of 25 kOhm for both R1 and R2, linear with central detent.
ideal for controlling treble and bass in active electronics.
m10 x 0.75 mm thread with a mounting diameter of 10 mm.
includes nut and washer, dimensions 24 x 16 x 17 mm.

29⁶⁴ €

Currently unavailable. Request details

Central warehouse: 0

Add to cart

also deliverable via

Shipping 8.00 €

Warranty 24 months

Returns 14 days

request details

MEC Pickups Mono Stacked Potentiometer, B25K/cc / B25K/cc Add to cart: 29⁶⁴ €

- dual mono potentiometer
- concentric shaft
- R1 = B25K/cc (resistance 25 kOhm, (B) linear, central detent)
- R2 = B25K/cc (resistance 25 kOhm, (B) linear, central detent)
- suitable for controlling treble and bass in active electronics
- thread M10 x 0.75 mm
- mounting diameter 10 mm
- thread length 9 mm
- solid shaft
- shaft length 14 mm (internal), 7 mm (external)
- shaft diameter 4 mm (internal), 6 mm (external)
- includes nut and washer
- dimensions incl. terminals (L x W x H) 24 x 16 x 17 mm
