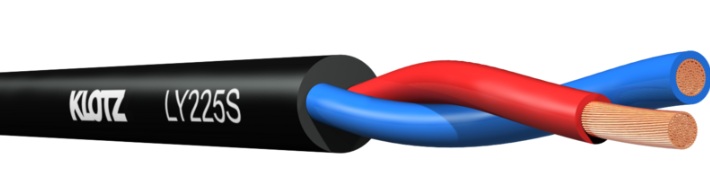

Klotz LY225S, cable for passive speakers, a standard for connecting mobile speaker systems with long cables and large conductor surfaces or short linking cables with lower power requirements: very short core twists and the soft PVC sheath allow use on reels, keeping the cable flexible and resistant to heavy loads. Connection to standard connectors or screw terminals is possible.
- 2 x Conductors:
- Twisted copper
- Cross-section: 2.5 mm²
- Construction: 50 x 0.25 mm
- Resistance: 7 Ω/km
- Capacitance: 170 pF/m
- Inductance: 0.53 μH/m
- Insulation: PVC, blue & red
- Core arrangement: 2 twisted cores in a pair
- Outer sheath: PVC, matte, black
- Minimum bending radius: 5x total diameter
- Maximum operating voltage: 300 V
- Outer diameter: 8 mm
